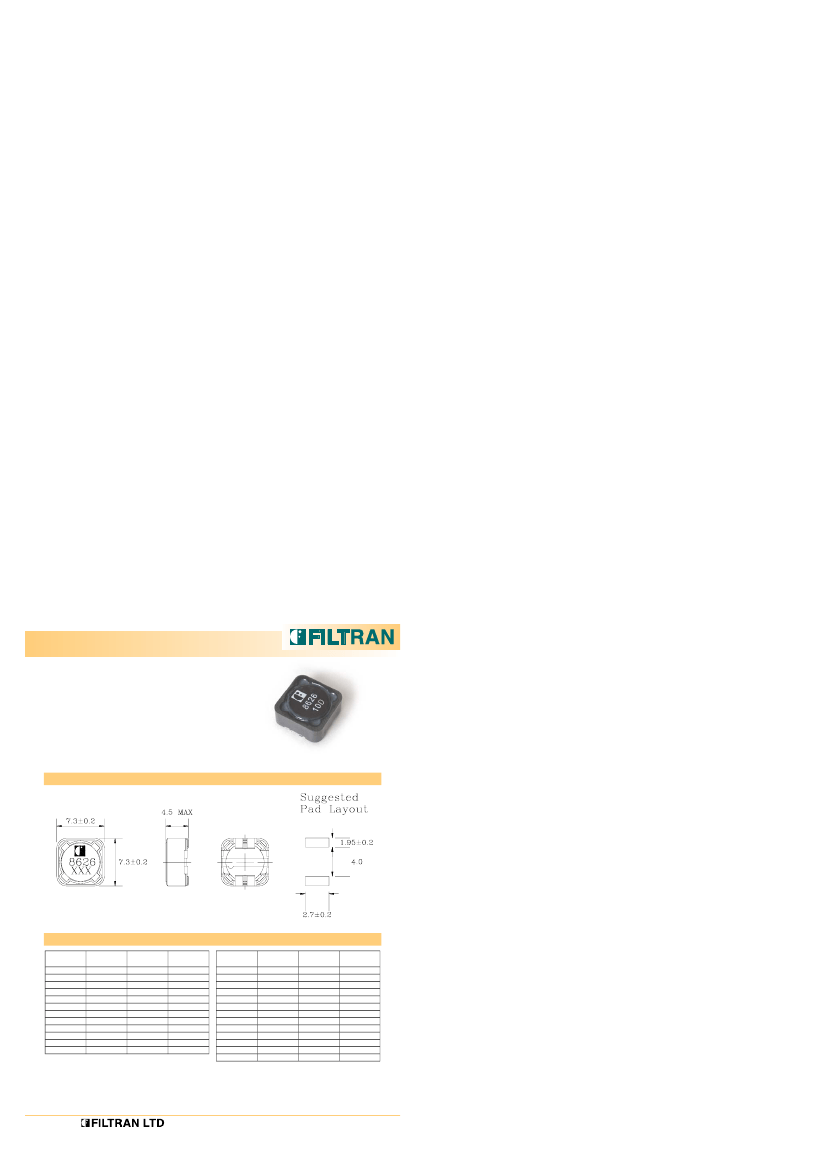

8626-10C Overview

CHOKE Power Chokes

CHOKE
Power Chokes
8626-XXX
The 8626 series of SMD chokes is designed to cover an inductance range from
10µH to 1000µH with rated saturation currents from 0.18A to 1.84A. These are
ideally suited for applications where shielding is required.
• DC/DC converters
• LCD displays
• PDA Palm Tops
• Telecommunication equipment etc.
Mechanical
(All dimensions in millimeters)
ELECTRICAL SPECIFICATION @ 25˚C
Part
Number
8626-10B
8626-12B
8626-15B
8626-18B
8626-22B
8626-27B
8626-33B
8626-39B
8626-47B
8626-56B
8626-68B
8626-82B
Inductance
(µH)
10
12
15
18
22
27
33
39
47
56
68
82
DCR
(Ω MAX)
49m
58m
81m
91m
0.11
0.15
0.17
0.23
0.26
0.35
0.38
0.43
Rated DC
Current (A)
1.84
1.71
1.47
1.31
1.23
1.12
0.96
0.91
0.88
0.75
0.69
0.61
Part
Number
8626-10C
8626-12C
8626-15C
8626-18C
8626-22C
8626-27C
8626-33C
8626-39C
8626-47C
8626-56C
8626-68C
8626-82C
8626-10D
Inductance
(µH)
100
120
150
180
220
270
330
390
470
560
680
820
1000
DCR
(Ω MAX)
0.61
0.66
0.88
0.98
1.17
1.64
1.86
2.85
3.01
3.62
4.63
5.20
6.00
Rated DC
Current (A)
0.60
0.52
0.46
0.42
0.36
0.34
0.32
0.29
0.26
0.23
0.22
0.20
0.18
ISSUE: D
20/08/01
8626
An ISO 9001 Registered Company
229 Colonnade Road, Ottawa, Ontario, Canada K2E 7K3
Tel: (613) 226-1626 Fax: (613) 226-7124 www.filtran.com
