8628-47B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> 8628-47B

8628-47B: Description1 ELEMENT, 6.1 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryThe sensor; File Size148KB，1 Pages; ManufacturerFILTRAN; Websitehttp://www.filtran.com/

Download Datasheet Parametric View All

8628-47B Overview

1 ELEMENT, 6.1 uH, GENERAL PURPOSE INDUCTOR, SMD

8628-47B Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	2
Rated inductance	6.1 uH
Processing package description	chips, 4949
state	CONSULT MFR
isolation	Yes
DC Resistance	0.0176 ohm
surface mount	Yes
Terminal shape	WRAPAROUND
Terminal layout	Double ENDED
Manufacturer Series
Inductor applications	POWER inductor
Shape and size description	Rectangular PACKAGE
deviation	20 %
Inductor type	Universal inductor
1Rated value test frequency	0.1000 MHz
Maximum rated current	6.6 A

Preview

Download Datasheet

View All

CHOKE

Power Chokes

8628-XXX

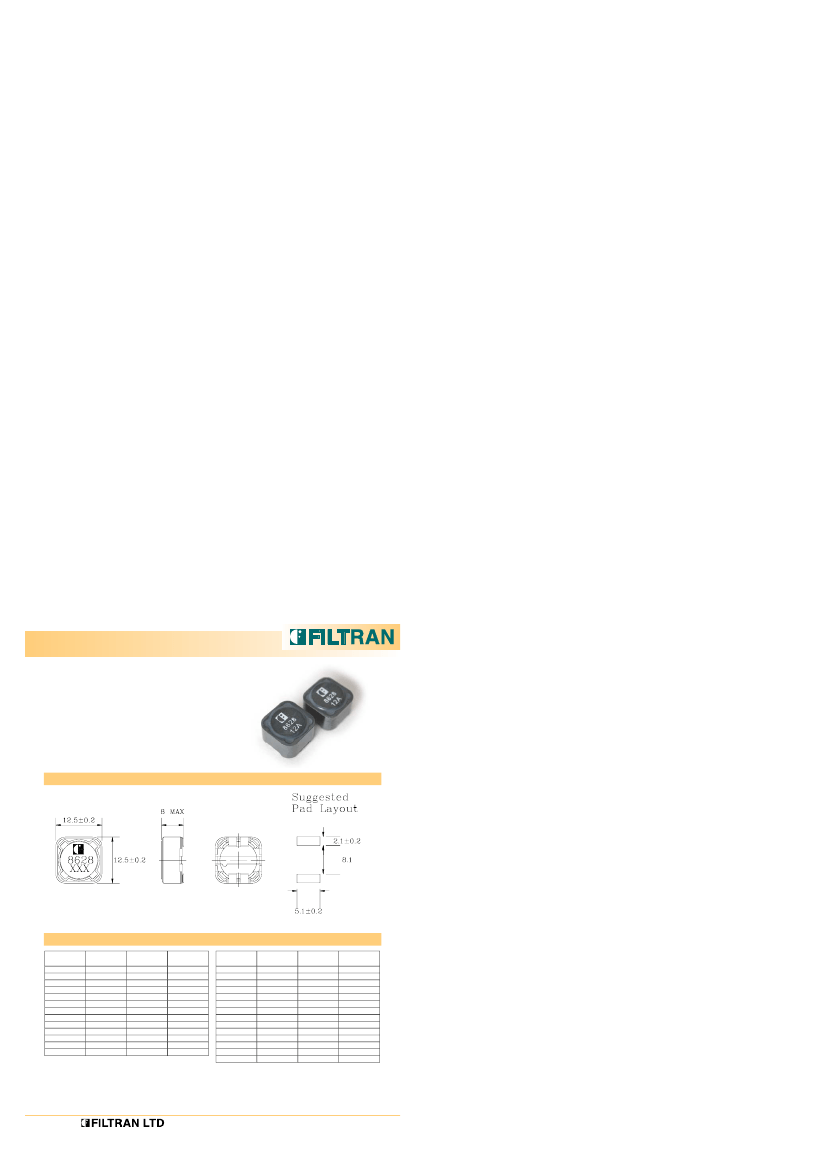

The 8628 series of SMD chokes is designed to cover an inductance range from

1.20µH to 470µH with rated saturation currents from 2.50A to 9.80A. These are

ideally suited for applications where shielding is required.

• DC/DC converters

• LCD displays

• PDA Palm Tops

• Telecommunication equipment etc.

Mechanical

(All dimensions in millimeters)

ELECTRICAL SPECIFICATION @ 25˚C

Part

Number

8628-12A

8628-24A

8628-35A

8628-47A

8628-61A

8628-76A

8628-10B

8628-12B

8628-15B

8628-18B

8628-22B

8628-27B

8628-33B

Inductance

(µH)

1.2

2.4

3.5

4.7

6.1

7.6

DCR

(Ω MAX)

7.0m

11.5m

1.35m

15.8m

17.6m

20.0m

21.6m

24.3m

27.0m

39.2m

43.2m

45.9m

64.8m

Rated DC

Current (A)

9.80

8.00

7.50

6.80

6.60

5.90

5.40

4.90

4.50

3.90

3.60

3.40

3.00

Part

Number

8628-39B

8628-47B

8628-56B

8628-68B

8628-82B

8628-10C

8628-12C

8628-15C

8628-18C

8628-22C

8628-27C

8628-33C

8628-39C

8628-47C

Inductance

(µH)

100

120

150

180

220

270

330

390

470

DCR

(Ω MAX)

72.9m

0.10

0.80

0.76

0.66

0.61

0.56

0.49

0.45

0.43

0.37

0.34

0.31

0.29

Rated DC

Current (A)

2.75

2.50

ISSUE: A

30/08/01

8628

An ISO 9001 Registered Company

229 Colonnade Road, Ottawa, Ontario, Canada K2E 7K3

Tel: (613) 226-1626 Fax: (613) 226-7124 www.filtran.com
