BAS28Q
DUAL SURFACE MOUNT FAST SWITCHING DIODE
Features
Fast Switching Speed
For General Purpose Switching Applications
Two Electrically Isolated Elements in a Single Compact Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOT143
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Annealed over Alloy 42 Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: See Diagram Below
Weight: 0.009 grams (Approximate)
SOT143
Device Schematic
Ordering Information
(Note 5)
Part Number
BAS28Q-13
Notes:
Qualification
Automotive
Case
SOT-143
Packaging
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to https://www.diodes.com/quality/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SOT143
KT7 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: E = 2017)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2017
E
Jan
1
2018
F
Feb
2
Mar
3
2019
G
Apr
4
2020
H
May
5
2021
I
Jun
6
2022
J
Jul
7
2023
K
Aug
8
Sep
9
2024
L
Oct
O
2025
M
Nov
N
2026
N
Dec
D
BAS28Q
Document number: DS40222 Rev. 1 - 2
1 of 5
www.diodes.com
September 2017
© Diodes Incorporated
BAS28Q
Maximum Ratings
(@T
A
= +25°C unless otherwise specified.)
Characteristic
Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Current (Note 6)
Non-Repetitive Peak Forward Surge Current
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
F
@ t = 1.0µs
@ t = 1.0ms
@ t = 1s
I
FSM
I
FRM
Value
85
60
215
4.0
1.0
0.5
500
Unit
V
V
mA
A
mA
Repetitive Peak Forward Current
Thermal Characteristics
Characteristic
Power Dissipation (Note 6)
Thermal Resistance Junction to Ambient Air (Note 6)
Operating and Storage Temperature Range
Symbol
P
D
R
θJA
T
J
, T
STG
Value
250
500
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 7)
Forward Voltage
Symbol
V
(BR)R
V
F
Min
85
Max
0.715
0.855
1.0
1.25
1.0
50
30
30
1.5
4
Unit
V
V
µA
µA
µA
nA
pF
ns
Test Condition
I
R
= 100µA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
J
= +150°C
V
R
= 25V, T
J
= +150°C
V
R
= 25V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
RR
= 0.1 x I
R
, R
L
= 100Ω
Reverse Current (Note 7)
Total Capacitance
Reverse Recovery Time
Notes:
I
R
C
T
t
RR
6. Part is mounted on a FR-4 substrate PC board, with 1" x 1" 2oz copper pad.
7. Short duration pulse test used to minimize self-heating effect.
BAS28Q
Document number: DS40222 Rev. 1 - 2
2 of 5
www.diodes.com
September 2017
© Diodes Incorporated
BAS28Q
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
300
Note 5
Note 6
1000
P
D
, POWER DISSIPATION (mW)
250
200
100
T
A
= 150°C
T
A
= 75°C
T
A
= 25°C
T
A
= 0°C
T
A
= -40°C
150
100
10
50
0
0
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (
C)

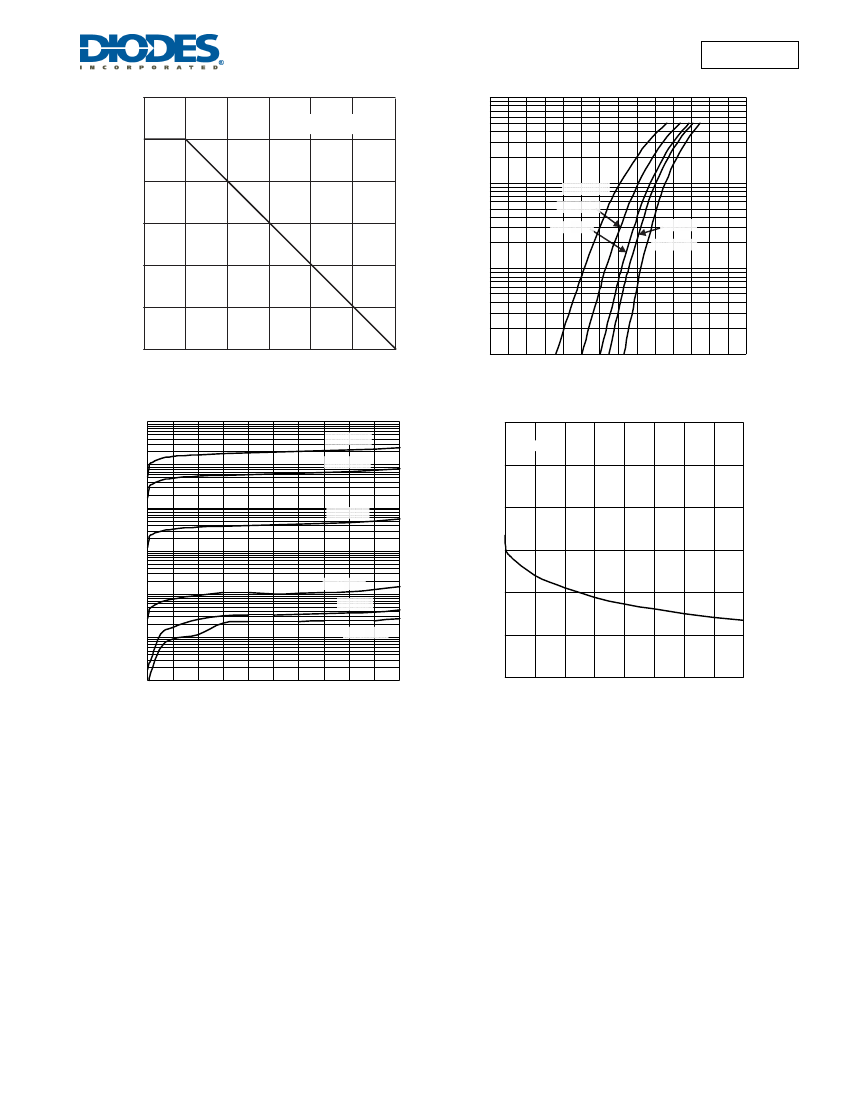

Figure 1 Power Derating Curve, Total Package
1
0
200
400
600
800 1000 1200 1400
V
F
, INSTANTANEOUS FORWARD VOLTAGE (mV)
Figure 2 Typical Forward Characteristics, Per Element
100000
0.7
T
A
= 150°C
f=1MHz
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
1000
C
T
, TOTAL CAPACITANCE (pF)
10000
T
A
= 125°C
0.65
T
A
= 75°C
0.6
100
0.55
T
A
= 25°C
10
T
A
= 0°C
T
A
= -40°C
0.5
1
0.45
0.1
0 10 20 30 40 50 60 70 80 90 100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Figure 3 Typical Reverse Characteristics, Per Element
10
15
20
25
30
35
40
V
R
, DC REVERSE VOLTAGE (V)
Figure 4 Total Capacitance vs. Reverse Voltage, Per Element
0.4
0
5
BAS28Q
Document number: DS40222 Rev. 1 - 2
3 of 5
www.diodes.com
September 2017
© Diodes Incorporated
BAS28Q
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT143
A1
G
F
C
B
M
0.25
GAUGE PLANE
SEATING PLANE
a
D
A2
H
L
K
J
SOT143
Dim Min
Max Typ
A1
0.37 0.51 0.400
A2
0.77 0.93 0.800
B
1.20 1.40 1.30
C
2.28 2.48 2.38
D
1.58 1.83 1.72
F
0.45 0.60 0.49
G
1.78 2.03 1.92
H
2.80 3.00 2.90
J
0.013 0.10 0.05
K
0.89 1.00
–
L
0.46 0.60 0.50
M
0.085 0.18 0.11
a
0°
8°
–
All Dimensions in mm
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT143
X2
Y
G
X
Z
C
X1
X2
Dimensions
Z
G
X
X1
X2
Y
C
Value (in mm)
2.70
1.30
2.50
1.00
0.60
0.70
2.00
BAS28Q
Document number: DS40222 Rev. 1 - 2
4 of 5
www.diodes.com
September 2017
© Diodes Incorporated
BAS28Q
