SMT Power Inductors

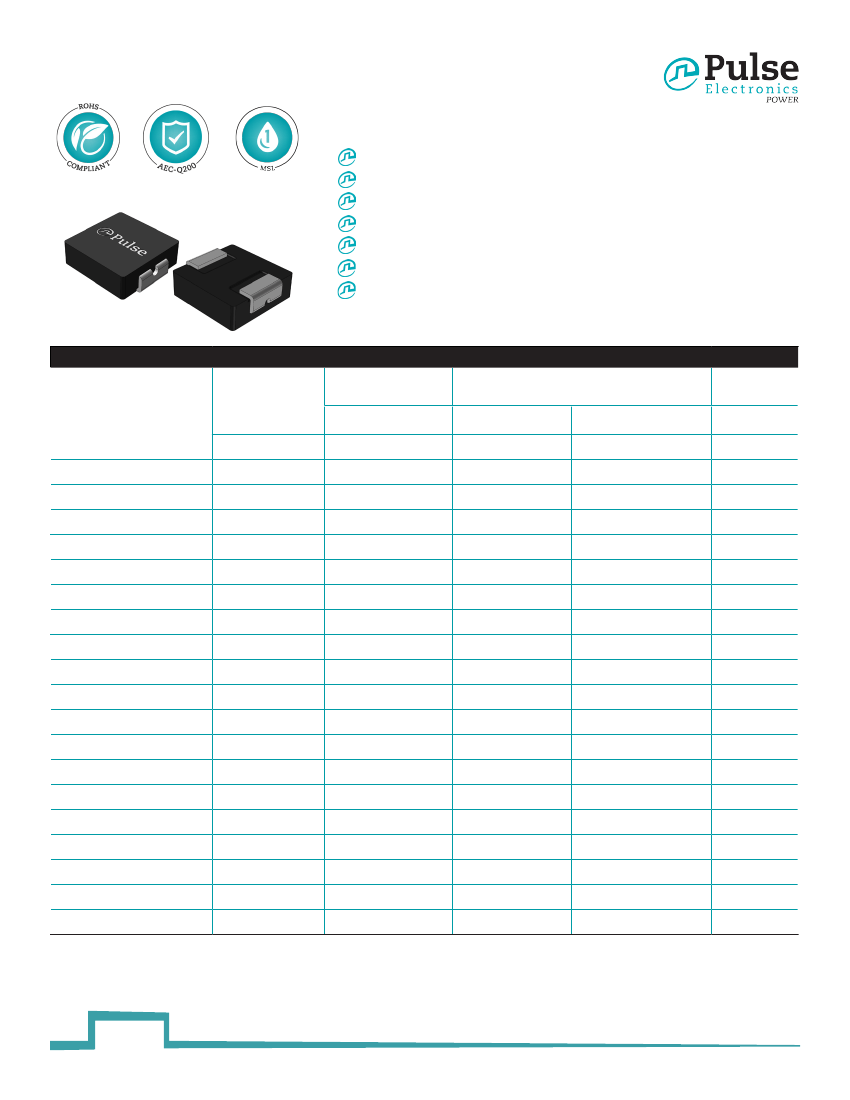

High Current Molded Power Inductor - PA4548.XXXNLT Series
Height:
2.4mm Max
Footprint:
7.3mm x 6.9mm Max
Current Rating:
up to 30A
Inductance Range:
0.10uH to 22.0uH
High current, low DCR, and high efficiency
High reliability
Minimized acoustic noise and minimized leakage flux noise
Part
Number
6
PA4548.101NLT
PA4548.151NLT
PA4548.221NLT
PA4548.331NLT
PA4548.471NLT
PA4548.561NLT
PA4548.681NLT
PA4548.821NLT
PA4548.102NLT
PA4548.152NLT
PA4548.222NLT
PA4548.332NLT
PA4548.472NLT
PA4548.562NLT
PA4548.682NLT
PA4548.822NLT
PA4548.103NLT
PA4548.153NLT
PA4548.223NLT
Electrical Specifications @ 25°C - Operating Temperature -55°C to +125°C
Rated
DC
5
Inductance
Current
Resistance
100KHz, 1.0V
TYP.
TYP.
uH±20%
0.10*
0.15*
0.22
0.33
0.47
0.56
0.68
0.82
1.0
1.5
2.2
3.3
4.7
5.6
6.8
8.2
10
15
22
A
30
30
21
18
15
13
13
11
11
9
7
6
5.5
5
4
3.6
3.2
2.5
1.8
mΩ
1.4
1.8
2
3.6
4.8
5.5
6.4
8
10.5
17
23
34
41
56
65
81
92
150
185
MAX.
mΩ
1.7
2.3
3.2
4.4
5.1
6.5
7.2
9.5
13.5
20
28
39
50
62
72
95
101
180
215
Saturation
Current
TYP.
A
70
45
34
30
26
24
21
17
16
15
14
10
9
8
7
6
5
3.5
3
1
power.pulseelectronics.com
P825. D (07/18)
http://www.power.pulseelectronics.com/contact
SMT Power Inductors
High Current Molded Power Inductor - PA4548.XXXNLT Series
Notes:
1. Actual temperature of the component during system operation (ambient plus
temperature rise) must be within the standard operating range.
2. The saturation current is the current at which the initial inductance drops approxi-
mately 30% at the stated ambient temperature. This current is determined by placing
the compnent in the specified ambient environment and applying a short duration
pulse current (to eliminate self-heating effect) to the component.
3. The rated current is the DC current required to raise the component temperature by
approximately 40½C. Take note that the components’ performanc varies depending
on the system condition. It is suggested that the component be tested at the system
level, to verify the temperature rise of the component during system operation.
4.
5.
6.
The part temperature (ambient+temp rise) should not exceed 125½C under worst
case operating conditions. Circuit design, PCB trace size and thickness, airflow and
other cooling provisions all affect the part temperature. Part temperature should be
verified in the end application.
Please note that the inductance tolerance of all parts are ±20%, except .101NLT and
.151NLT which is ±30%.
Parts shown in bold are standard catalog parts and are available through sample
stock and distribution. Parts in lighter font are available but are not necessarily held
in sample stock or distribution
and lead times may be longer.
Please contact Pulse
for availablity.

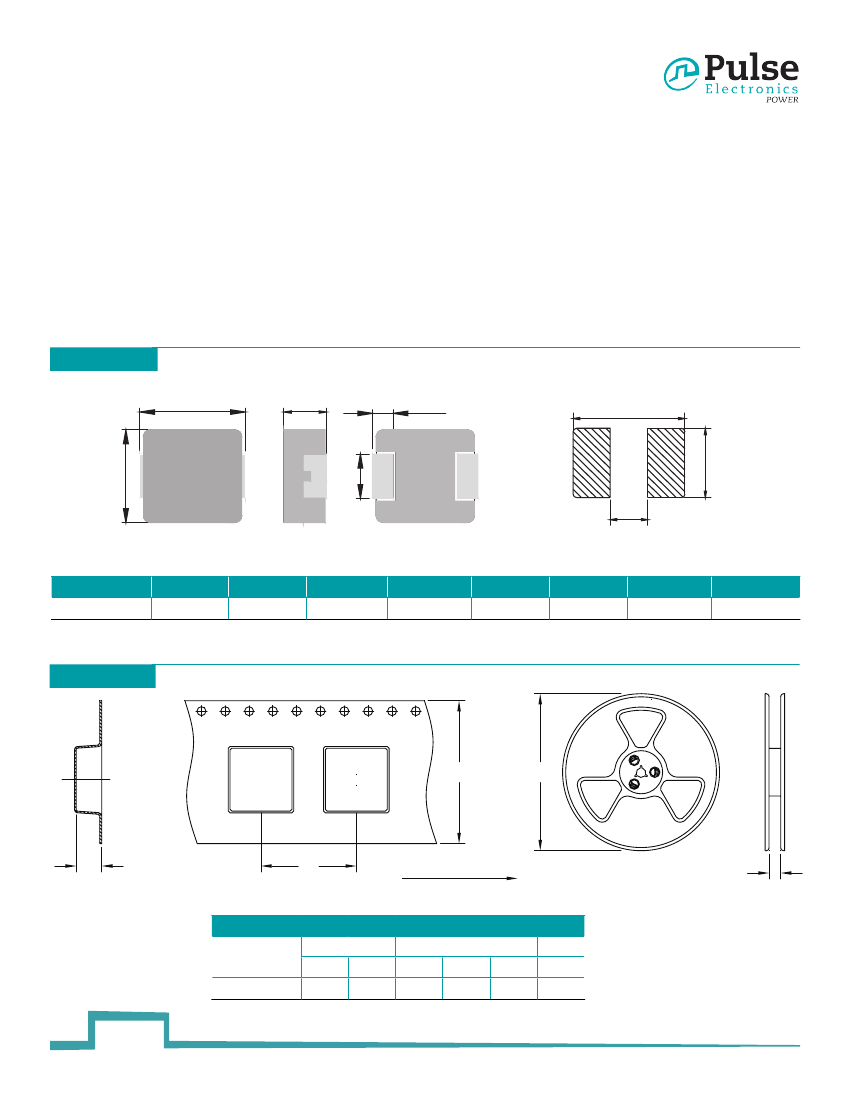

Mechanical
PA4548.XXXNLT
A
C
D
L
H
XXXNL
D/C
FINAL LAYOUT
B
E
G
SUGGESTED PAD LAYOUT
C
2.2±0.2
D
1.8±0.3
E
3.0±0.3
L
7.7
G
2.5
H
3.5
Series
PA4548.XXXNLT
All Dimensions in mm.
A
7.0±0.3
B
6.6±0.3
TAPE & REEL INFO
Marking
Marking
W
A
K
0
P
1
G
Direction of tape
SURFACE MOUNTING TYPE, REEL/TAPE LIST
REEL SIZE (mm)
TAPE SIZE (mm)
A
G
P
1
W
K
0
PA4548.XXXNLT
2
Ø330
16.4
12
16
2.7
QTY
PCS/REEL
1500
power.pulseelectronics.com
P825. D (07/18)
http://www.power.pulseelectronics.com/contact
SMT Power Inductors
High Current Molded Power Inductor - PA4548.XXXNLT Series
