Spec Sheet
Metal Core SMD Power Inductors for Automotive (BODY & CHASSIS, INFOTAINMENT) / Industrial Applications (MCOIL™, MD series)
MDWK4040T4R7MMV
Features
Item Summary
4.7uH±20%, 2.5A, 4.0x4.0x2.0mm
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping Embossed 700pcs
Products characteristics table
Inductance
Case Size (mm)
Rated Current (max)
Saturation Current (max)
Saturation Current (typ)
Temperature Rise Current (max)
Temperature Rise Current (typ)
DC Resistance (max)
DC Resistance (typ)
LQ Measuring Frequency
Operating Temp. Range
Temperature characteristic
(Inductance change)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
Yes
Yes
Yes
Reflow
4.7 uH ± 20 %
4.0x4.0
2.5 A
3.5 A (⊿L=30%)
5 A (⊿L=30%)
2.5 A (⊿T=40℃)
2.8 A (⊿T=40℃)
107 mΩ
93 mΩ
1 MHz
-40 to +125 ℃
(Including-self-generated heat)
± 10 %

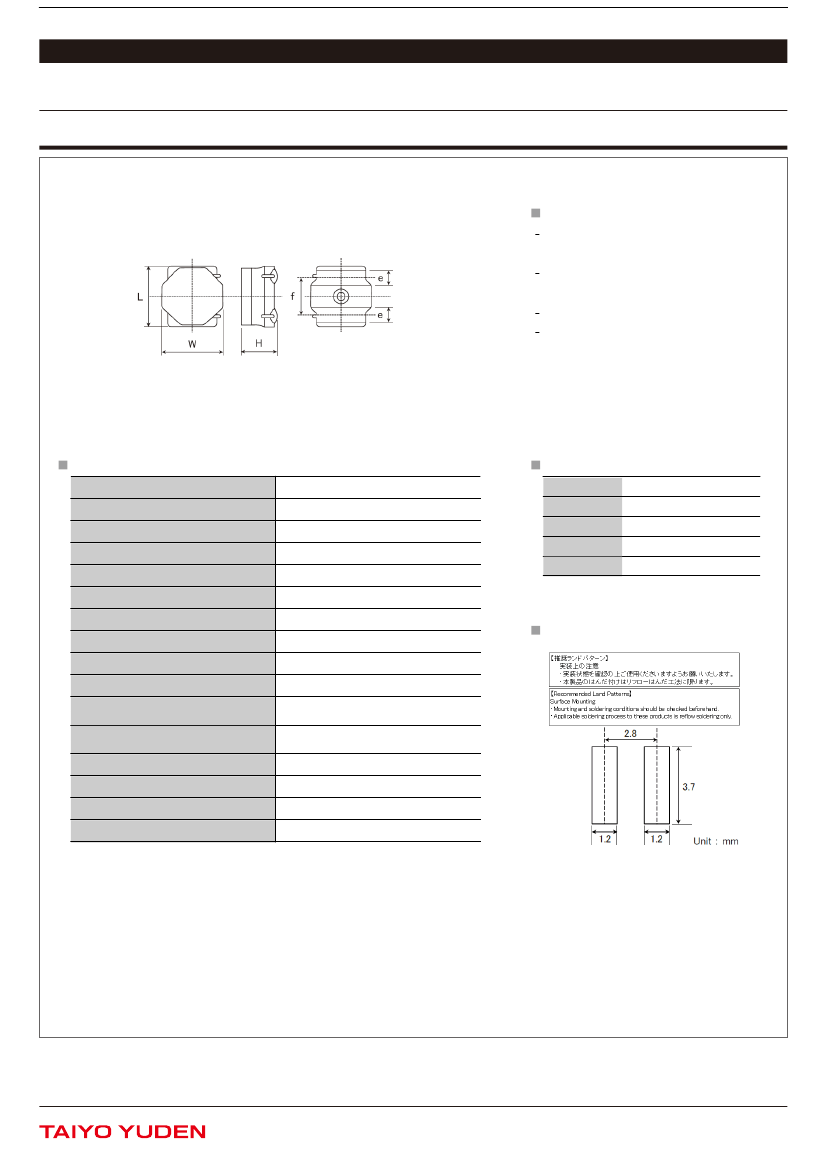

External Dimensions
Dimension L
Dimension W
Dimension H
Dimension e
Dimension f
4.0 ±0.2 mm
4.0 ±0.2 mm
Max 2.0 mm
1.1 ±0.2 mm
2.5 ±0.2 mm
Recommended Land Patterns
2018.11.28
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Halogen free / RoHS compliant
Wire Wound Inductor

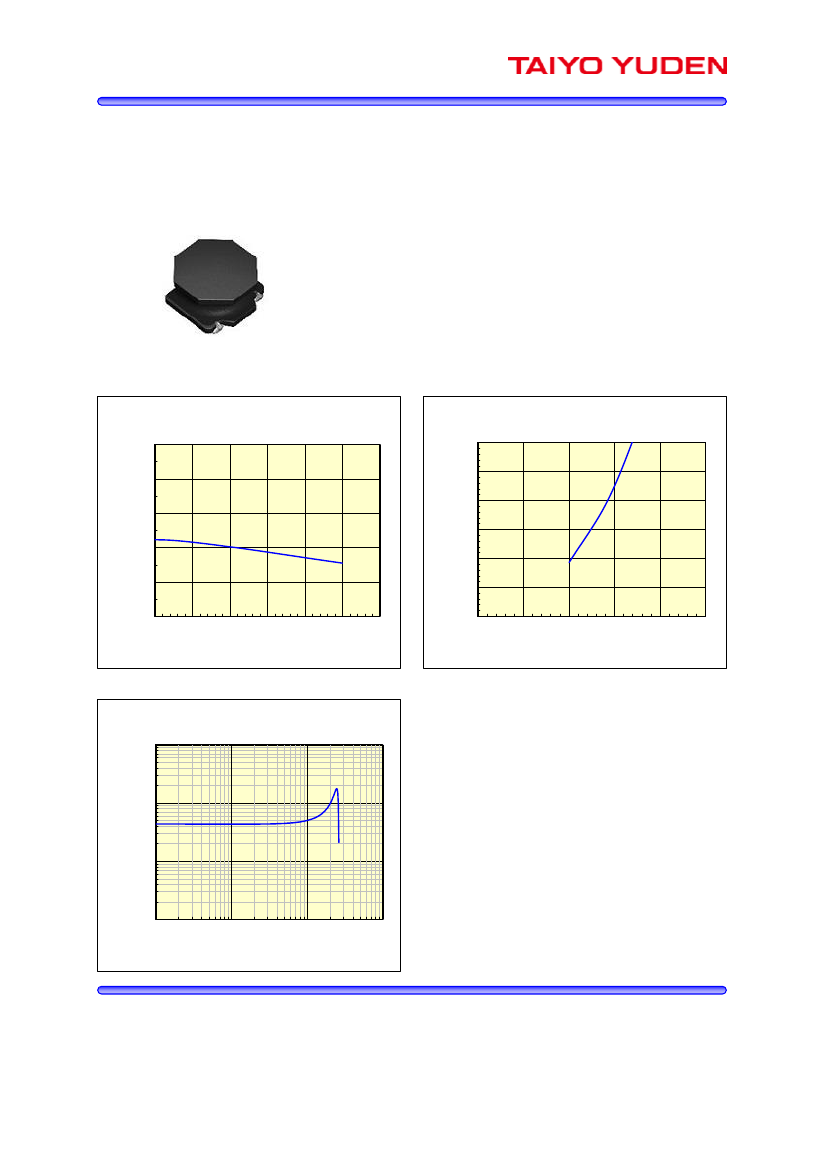

-Electrical Characteristics Data-
2018/6/20
Metal Core SMD Power Inductors for Automotive / Industrial Applications
(MCOIL™, MD series)
MCOIL
TM
Dimension
Length :
Width :
Height :
unit : mm
4.0 + / - 0.2
4.0 + / - 0.2
2.0
max.
uH
0.107
3,500
2,500
unit : inch
( 0.157 + / - 0.008 )
( 0.157 + / - 0.008 )
( 0.079
max. )
MDWK4040T4R7MMV
Inductance :
4.7
DC Resistance : 0.093
Saturation Current : 5,000
Temp. rise Current : 2,800
AEC-Q200 qualified
( test freq at 1MHz )
ohm ( typ / max )
mA ( typ / max )
mA ( typ / max )
/
/
/
Saturation current typical : 30% reduction from initial L value.
Temp rise Current typical : Temperature will rise by 40 deg C
Absolute maximum voltage : 25VDC
DC Bias vs Inductance
10
60
DC Bias vs Temperature
Self-temperature rise [deg]
0
1000
2000
3000
4000
5000
6000
8
50
40
30
20
10
0
0
1000
2000
3000
4000
5000
Inductance [uH]
6
4
2
0
DC Bias [mA]
DC Bias [mA]
Frequency vs Inductance
100
Inductance [uH]
10
1
0.1
0.1
1
10
100
Frequency [MHz]
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
The products are tested based on the test conditions and methods defined in AEC-Q200.
Please consult with TAIYO YUDEN for the details of the product specification and AEC-Q200 test results, etc.,
and please review and approve TAIYO YUDEN's product specification before ordering.
■
