3047-B-440-AL datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > accessories> 3047-B-440-AL

Preview

3047-B-440-AL: DescriptionROUND STANDOFF #4-40 ALUM 1/4"; Categoryaccessories; File Size297KB，1 Pages; ManufacturerRAF ELECTRONIC HARDWARE; Websitehttp://www.rafhdwe.com/

Download Datasheet Parametric Compare View All

3047-B-440-AL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3047-B-440-AL	-	-	View	Buy Now

3047-B-440-AL Overview

ROUND STANDOFF #4-40 ALUM 1/4"

3047-B-440-AL Parametric

Parameter Name	Attribute value
type	Round support
With/without silk	Threaded
gender	Female head, depressed shape
Screws, thread specifications	#4-40
Diameter - Internal	0.150"（3.81mm）
Diameter - External	0.250"（6.35mm）1/4"
Height between panels	0.250"（6.35mm）1/4"
Length - total	0.355"（9.02mm）
characteristic	-
Material	aluminum
plating	-
color	-

Preview

Download Datasheet

View All

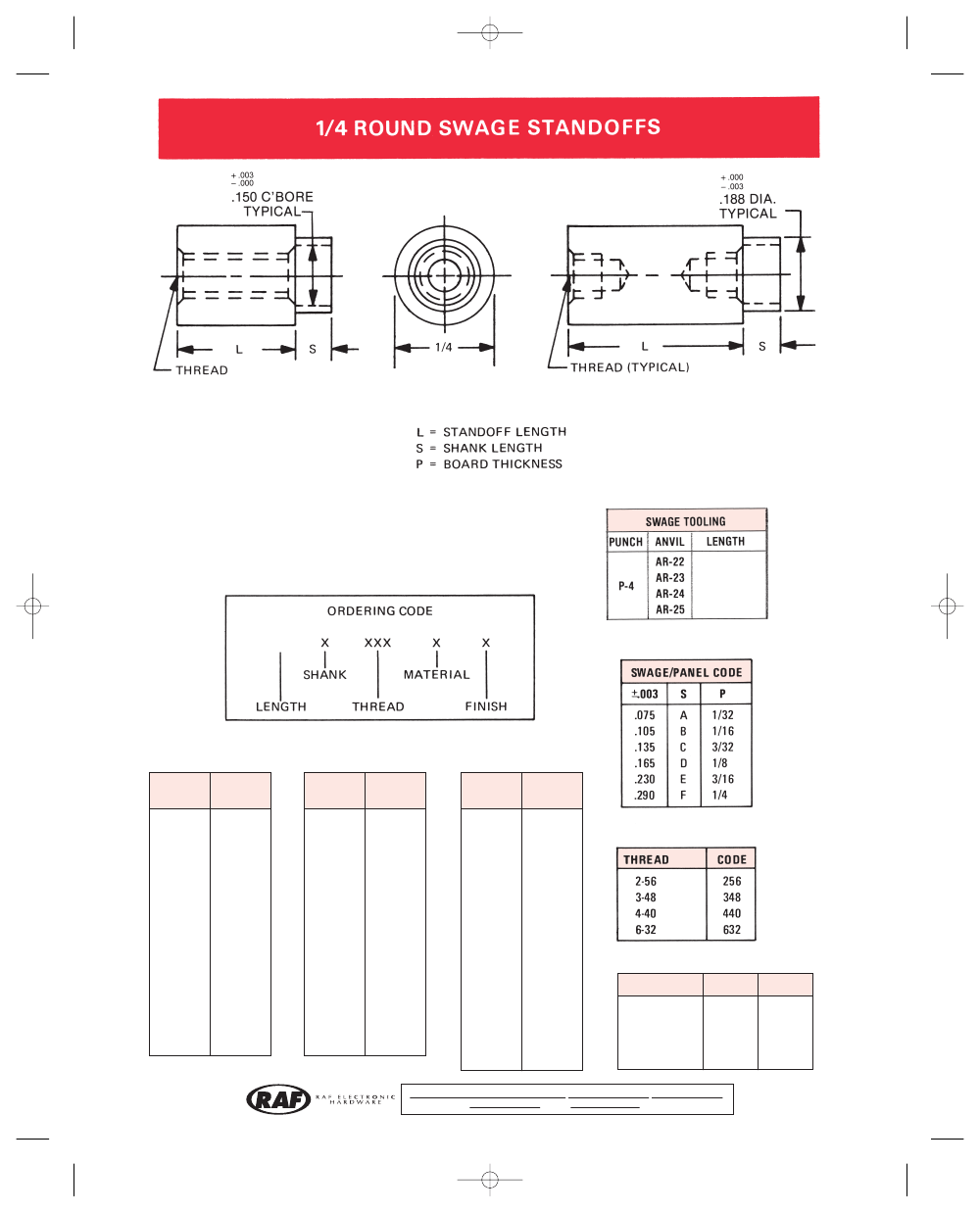

287771_085-168.v1

9/26/08

10:07 PM

Page 87

See page iv for

installation information

See page 10 for thread depth chart

See page 9 for finish codes

For non-standard parts contact Sales Office

3/32-3/16

7/32-7/16

15/32-11/16

23/32-2”

XXXX

XXXXX

or

LENGTH

3/32

1/8

5/32

3/16

7/32

1/4

9/32

5/16

11/32

3/8

13/32

7/16

15/32

1/2

17/32

PART

NO.

3045A

3045

3045T

3046

3046T

3047

3047T

3048

3048T

3049

3049T

3050

3050T

3051

3051T

LENGTH

9/16

19/32

5/8

21/32

11/16

23/32

3/4

25/32

13/16

27/32

7/8

29/32

15/16

31/32

1”

PART

NO.

3052

3052T

3053

3053T

3054

3054T

3055

3055T

3056

3056T

3057

3057T

3058

3058T

3059

LENGTH

1-1/16

1-1/8

1-3/16

1-1/4

1-5/16

1-3/8

1-7/16

1-1/2

1-9/16

1-5/8

1-11/16

1-3/4

1-13/16

1-7/8

1-15/16

2”

PART

NO.

3060

3061

3062

3063

3064

3065

3066

3067

3068

3069

3070

3071

3072

3073

3074

3075

MATERIAL

Aluminum

Brass

Stainless Steel

Steel

CODE

AL

B

SS

S

RoHS

YES

95 Silvermine Road, Seymour, Ct. 06483 Phone: 203-888-2133 Fax: 203-888-9860

e-mail : info@rafhdwe.com Web: www.rafhdwe.com

87

3047-B-440-AL Related Products

	3047-B-440-AL	3047-B-632-B-12	3045-B-632-B	3045-B-440-B-12
Description	ROUND STANDOFF #4-40 ALUM 1/4"	ROUND STANDOFF #6-32 BRASS 1/4"	ROUND STANDOFF #6-32 BRASS 1/8"	ROUND STANDOFF #4-40 BRASS 1/8"
type	Round support	Round support	Round support	Round support
With/without silk	Threaded	Threaded	Threaded	Threaded
gender	Female head, depressed shape	Female head, depressed shape	Female head, depressed shape	Female head, depressed shape
Screws, thread specifications	#4-40	#6-32	#6-32	#4-40
Diameter - Internal	0.150"（3.81mm）	0.150"（3.81mm）	0.150"（3.81mm）	0.150"（3.81mm）
Diameter - External	0.250"（6.35mm）1/4"	0.250"（6.35mm）1/4"	0.250"（6.35mm）1/4"	0.250"（6.35mm）1/4"
Height between panels	0.250"（6.35mm）1/4"	0.250"（6.35mm）1/4"	0.125"（3.18mm）1/8"	0.125"（3.18mm）1/8"
Length - total	0.355"（9.02mm）	0.355"（9.02mm）	0.230"（5.84mm）	0.230"（5.84mm）
Material	aluminum	brass	brass	brass
