BUK7212-55B,118 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> The transistor> BUK7212-55B,118

BUK7212-55B,118: DescriptionMOSFET N-CH 55V 75A DPAK; CategoryDiscrete semiconductor The transistor; File Size769KB，14 Pages; ManufacturerNexperia; Websitehttps://www.nexperia.com

Download Datasheet Parametric View All

BUK7212-55B,118 Overview

MOSFET N-CH 55V 75A DPAK

BUK7212-55B,118 Parametric

Parameter Name	Attribute value
Brand Name	Nexperia
Maker	Nexperia
Parts packaging code	DPAK
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Manufacturer packaging code	SOT428
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Avalanche Energy Efficiency Rating (Eas)	173 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	55 V
Maximum drain current (ID)	75 A
Maximum drain-source on-resistance	0.012 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-252AA
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	185 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	335 A
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

BUK7212-55B

N-channel TrenchMOS standard level FET

Rev. 2 — 23 February 2011

Product data sheet

1. Product profile

1.1 General description

Standard level N-channel enhancement mode Field-Effect Transistor (FET) in a plastic

package using TrenchMOS technology. This product has been designed and qualified to

the appropriate AEC standard for use in automotive critical applications.

1.2 Features and benefits

AEC Q101 compliant

Low conduction losses due to low

on-state resistance

Suitable for standard level gate drive

sources

Suitable for thermally demanding

environments due to 185 °C rating

1.3 Applications

12 V and 24 V loads

Automotive systems

General purpose power switching

Motors, lamps and solenoids

1.4 Quick reference data

Table 1.

Symbol

tot

Quick reference data

Parameter

drain-source

voltage

drain current

total power

dissipation

drain-source

on-state

resistance

Conditions

≥

25 °C; T

≤

185 °C

= 10 V; T

= 25 °C;

see

Figure 3;

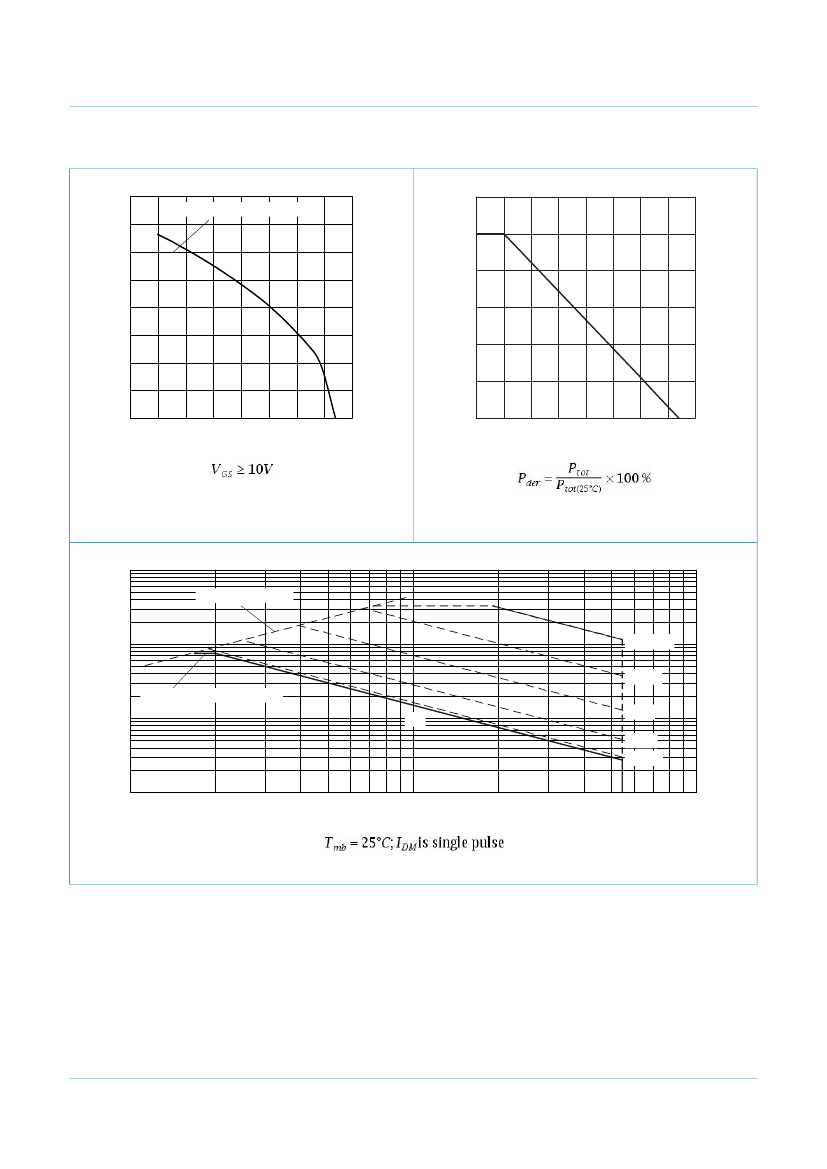

see

Figure 1

= 25 °C; see

Figure 2

[1]

Min

Typ

Max Unit

167

Static characteristics

DSon

= 10 V; I

= 25 A;

= 25 °C; see

Figure 9;

see

Figure 10

10.2 12

mΩ
