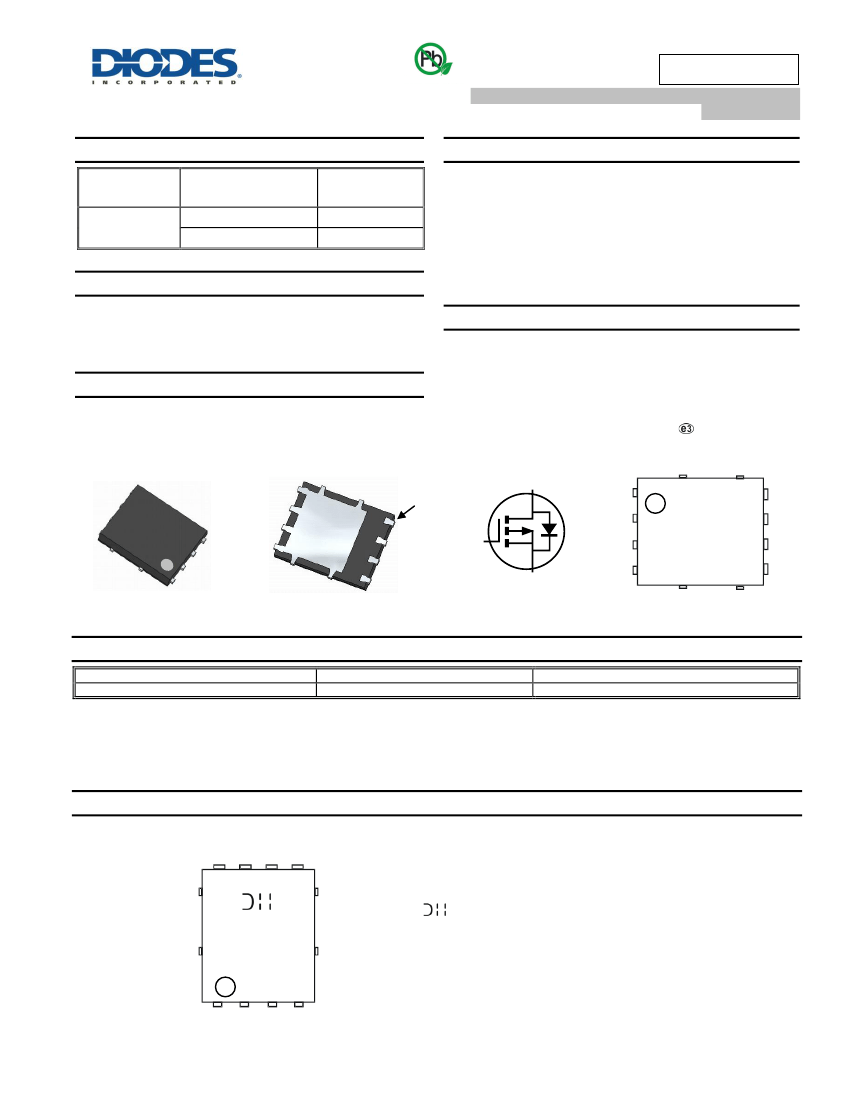

<1.1mm Package Profile – Ideal for Thin Applications
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
-30V
Description
This new generation MOSFET is designed to minimize R
DS(ON)
and
yet maintain superior switching performance. This device is ideal for
use in notebook battery power management and load switch.
Mechanical Data
Case: PowerDI 5060-8
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Finish - Matte Tin Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Weight: 0.097 grams (Approximate)
®
Applications
Switch
PowerDI5060-8
D
Pin1
S
S
D
D
D
D
G
S
Top View
Bottom View
Internal Schematic
S
G
Top View
Pin Configuration
Ordering Information
(Note 4)
Part Number
DMP34M4SPS-13
Notes:
Case
PowerDI5060-8
Packaging
2,500 / Tape & Reel
1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
PowerDI5060-8
D
D
D
D
P34M4SS
YY WW
= Manufacturer’s Marking
P34M4SS = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 18 = 2018)
WW = Week Code (01 to 53)
S
S
S
G
PowerDI is a registered trademark of Diodes Incorporated.
