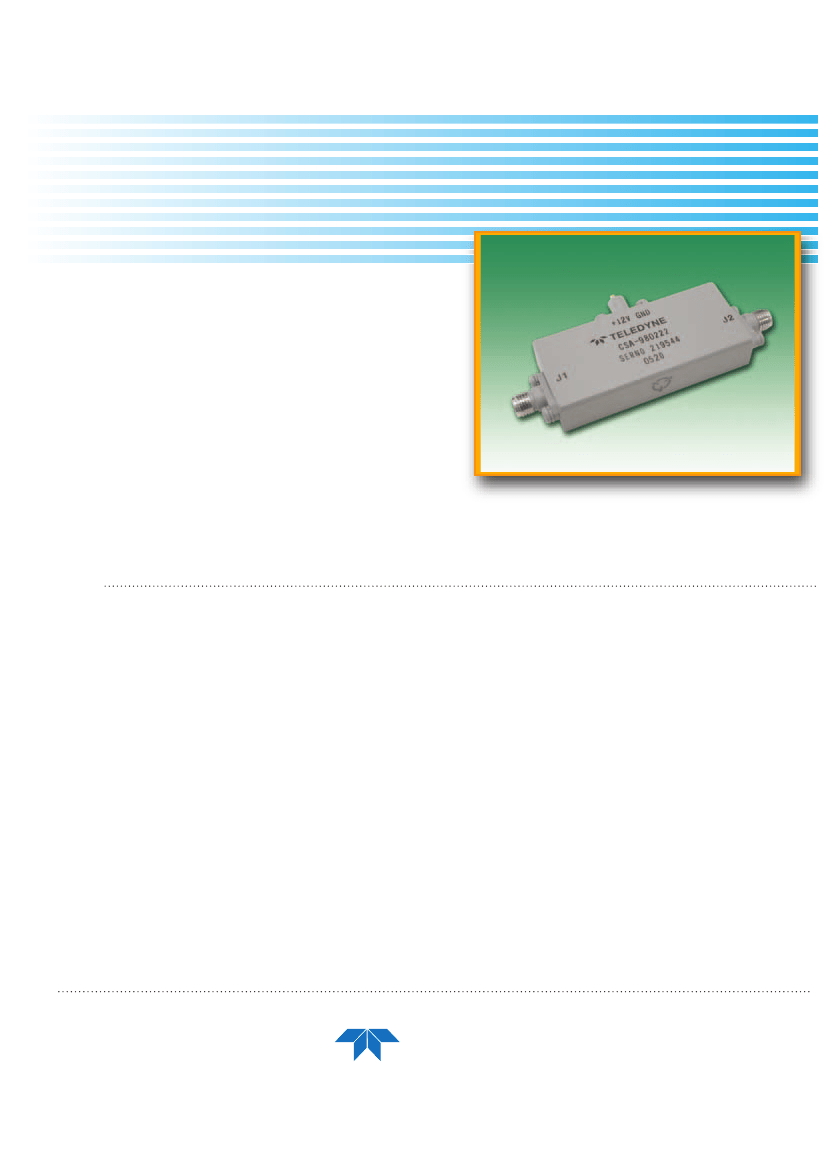

CPT-8-4003
Temperature Compensated Amplifier
4 GHz - 8 GHz
This Amplifier offers exceptional performance over the band 4
GHz to 8 GHz with 23 dBm P1dB output power and 28 dB
Gain.
Teledyne Microwave amplifiers are balanced or feedback
designs and manufactured with the latest MIC & MMIC
technology. The GaAs FET’s used in these amplifiers are well
established proven devices from multiple sources.
Teledyne Microwave offers a complete line of Narrow and
broadband Amplifiers covering the frequency range 500 MHz
to 40 GHz. These products are available in either
connectorized packages or as modules. For a complete list of
these products and more, please visit our website.
Other products from Teledyne Microwave
Transceivers, Synthesizers, and YIG Products
include:
Specifications:
Model Number:
CPT-8-4003
Frequency Range:
4 GHz - 8 GHz
28 dB
Gain (min):
Gain Vs Temp at any Frequency:
+/-1 dB
Noise Figure (max):
6.5 dB
23 dBm
Output Power @ 1dB Compression:
Gain Flatness Vs Frequency:
+/-1 dB
3
rd
Order Intercept (Typ):
32 dBm
Power Supply:
Input Voltage: 11.5 to 15 VDC
320 mA
Current @ 12 VDC (typ):
Current @ 12 VDC (max):
370 mA

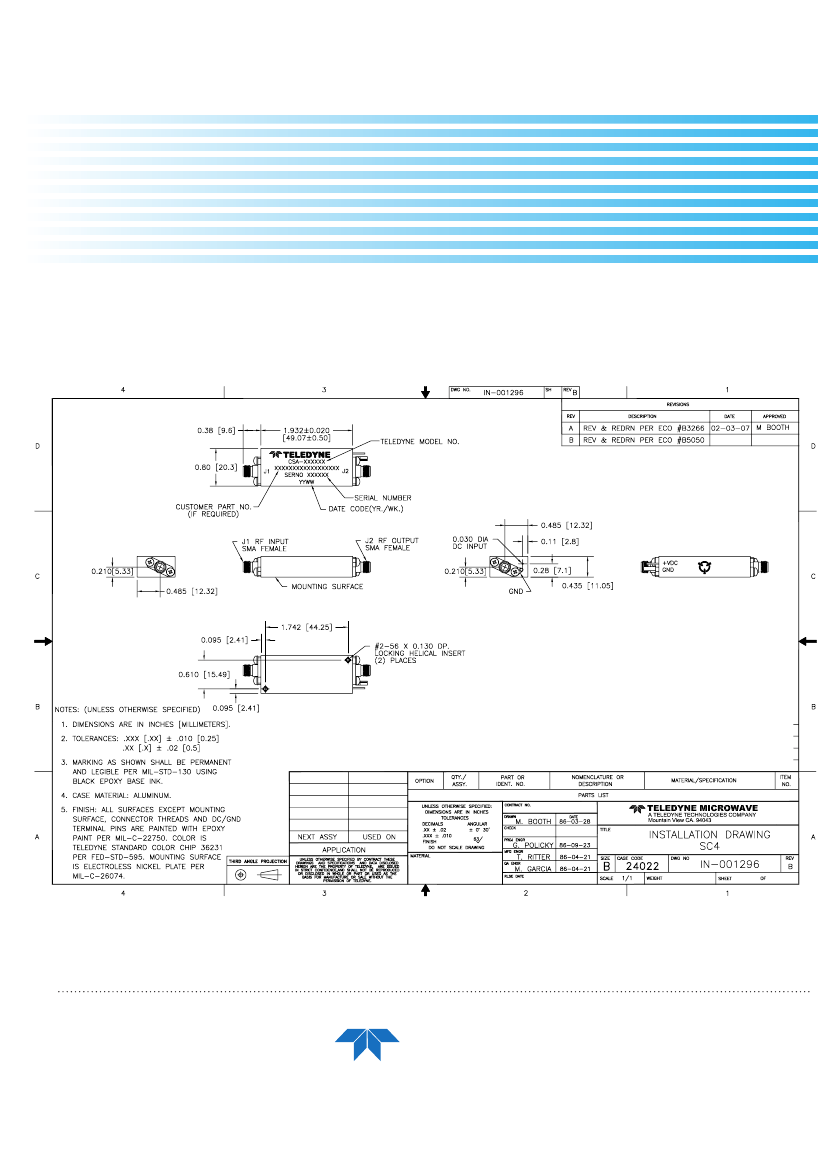

Case Type (See attached Outline):
SC4
Temperature Range:
-54 to +90C
