B-434-3

Description
B-434-C1100 BUSHING
Categoryaccessories
File Size65KB,1 Pages
ManufacturerAearo Technologies
Environmental Compliance
Download Datasheet Parametric Compare View All

B-434-3 Overview

B-434-C1100 BUSHING

B-434-3 Parametric

Parameter NameAttribute value
Screw size-
Head diameter0.813"(20.65mm)
Mounting hole diameter0.500"(12.70mm) 1/2"
head height0.250"(6.35mm)1/4"
Materialthermoplastic
color-
1

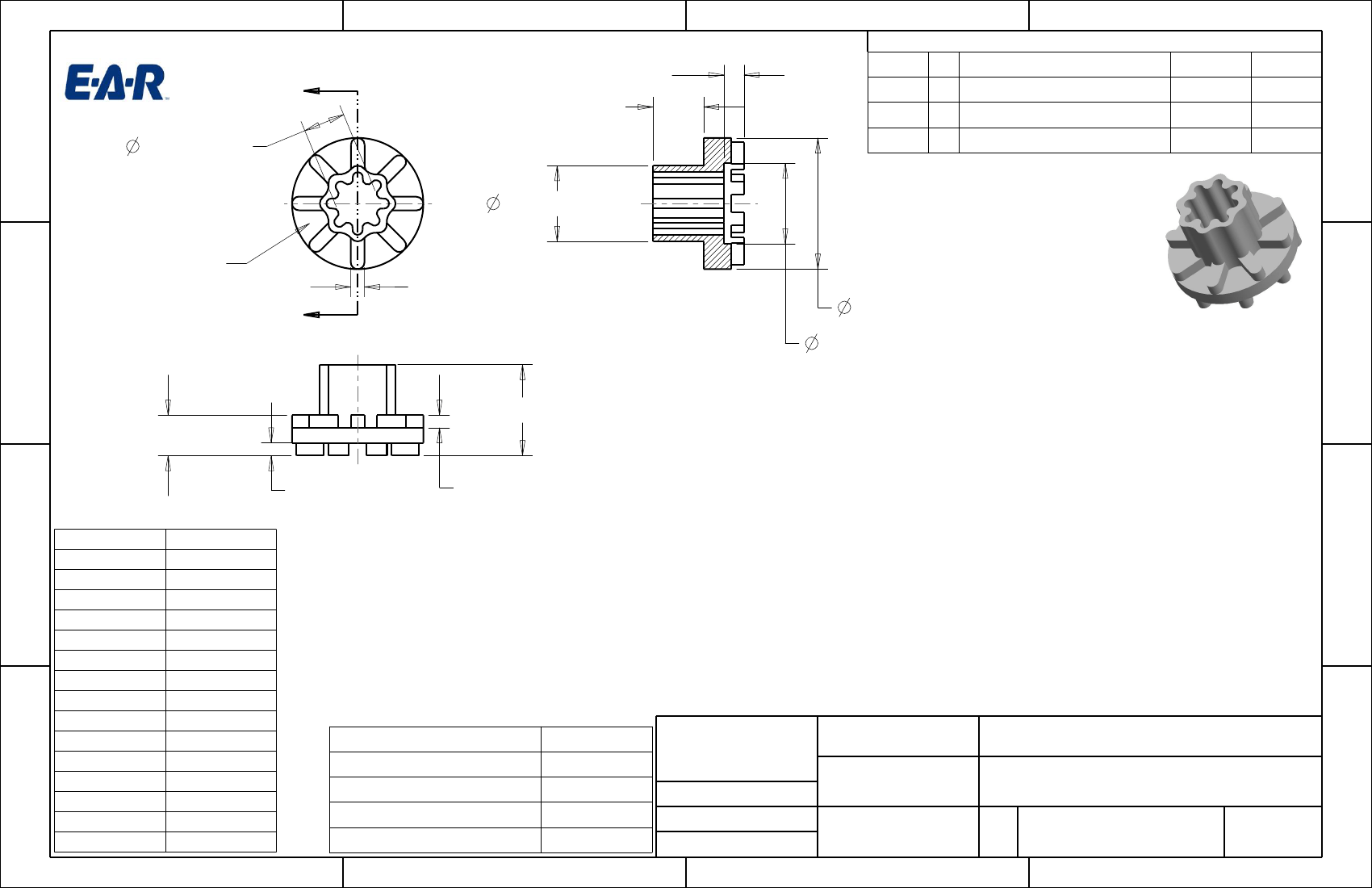

D
*
6.6
[.260 ]
A
2
3.18[.125]
7.95[.313]
3
REVISIONS
4
DRAWN REV
DESCRIPTION
DATE
APPROVED
SLU
00
ORIGINAL
UPDATED FORMAT, NOTES, TOLERANCES,
ADDED WEIGHT, CAVITY LOCATION AND -X
TO NAMING CONVENTION.
12-18-06
9-8-11
JS
MS
KP/TC 01
D
11.91[.469]
CAVITY #
2.16[.085]
A
20.65[.813]
SECTION A-A
12.7[.500]
C
C
14.3[.563]
6.35[.250]
1.98[.078]
1.98[.078]
B
B-434-V2775
B-434-V2750
B-434-V2725
B-434-V2599
B-434-V2590
B-434-V2575
B-434-V2550
B-434-V2525
B-434-V2375
B-434-V2350
B-434-V2325
V-2775
V-2750
V-2725
V-2599
V-2590
V-2575
V-2550
V-2525
V-2375
V-2350
V-2325
C-8002
C-1100
C-1105
C-1002
MATERIAL
RANGE
0<DIM<=2 [.078]
2 [.078]<DIM<=25 [.98]
25 [.98]<DIM<=50 [1.969]
50 [1.969]<DIM
±
±
TOL
0.15 [.006]
0.25 [.010]
ALLOWABLE FLASH:
.12 MM [.005]
GATE:
±.25 MM [.010]
UNLESS OTHERWISE SPECIFIED
UNITS ARE: MM [IN]
TOLERANCE FOR ANGLES: ± °
1.0
MATERIAL:
3. MAX DRAFT: 2°
.
B
2. CRITICAL DIMENSIONS SHALL HAVE Cpk VALUE >= 1.33 WITH ONGOING SPC DATA REQUIRED.
1. CRITICAL DIMENSIONS ARE MARKED WITH "*".
NOTES:
SEE TABLE ON LEFT
QUALITY CONTROL:
MUST COMPLY WITH E-A-R
SPECIALTY COMPOSITES
SUPPLIER QUALITY MANUAL
REQUIREMENTS
AEARO TECHNOLOGIES LLC * a 3M company
TITLE
A
B-434-8
B-434-3
B-434-2
B-434-1
PART NUMBER
GROMMET
SIZE
DRAWING NO.
PAGE NO.
A
1 OF 1
± 0.4 [.016]
± 0.6 [.024]
NOTES:
ANY FEATURE NOT DIMENSIONED
IN PRINT MUST BE VISIBLY PRESENT,
UTILIZE 3D CAD FOR CREATION
1.67 GRAM REF
B
B-434-X
1
2
3
4

B-434-3 Related Products

B-434-3 B-434-V2590 B-434-2 B-434-V2325 B-434-V2375 B-434-V2525 B-434-V2575 B-434-V2599 B-434-V2750
Description B-434-C1100 BUSHING SCREW GROMMET THERMOPLASTIC BLCK B-434-C1105 BUSHING B-434-V2325 BUSHING 1=1PC B-434-V2375 BUSHING 1=500PCS B-434-V2525 BUSHING 1=500PCS B-434-V2575 BUSHING 1=500PCS B-434-V2599 BUSHING 1=500PCS B-434-V2750 BUSHING 1=500PCS
Head diameter 0.813"(20.65mm) 0.813"(20.65mm) 0.813"(20.65mm) 0.813"(20.65mm) 0.813"(20.65mm) 0.813"(20.65mm) 0.813"(20.65mm) 0.813"(20.65mm) 0.813"(20.65mm)
Mounting hole diameter 0.500"(12.70mm) 1/2" 0.500"(12.70mm) 1/2" 0.500"(12.70mm) 1/2" 0.500"(12.70mm) 1/2" 0.500"(12.70mm) 1/2" 0.500"(12.70mm) 1/2" 0.500"(12.70mm) 1/2" 0.500"(12.70mm) 1/2" 0.500"(12.70mm) 1/2"
head height 0.250"(6.35mm)1/4" 0.250"(6.35mm)1/4" 0.250"(6.35mm)1/4" 0.250"(6.35mm)1/4" 0.250"(6.35mm)1/4" 0.250"(6.35mm)1/4" 0.250"(6.35mm)1/4" 0.250"(6.35mm)1/4" 0.250"(6.35mm)1/4"
Material thermoplastic thermoplastic thermoplastic thermoplastic thermoplastic thermoplastic thermoplastic thermoplastic thermoplastic
