FR20C03VBDN datasheet, PDF - EEWORLD Datasheet

FR20C03VBDN: DescriptionRECEPTACLE, DUAL ROW, 2.00 MM VE; CategoryThe connector; File Size282KB，4 Pages; ManufacturerMETZ CONNECT USA Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

FR20C03VBDN Overview

RECEPTACLE, DUAL ROW, 2.00 MM VE

Parameter Name	Attribute value
Connector type	socket
Contact type	female socket
style	board to board
Number of pins	6
Number of pins loaded	all
Spacing - Mating	0.079"（2.00mm）
Number of rows	2
Line spacing - patching	0.079"（2.00mm）
Installation type	Through hole
Termination	welding
Fastening type	push-pull
Contact surface treatment - mating	-
Contact Surface Treatment Thickness - Mating	-
Insulation color	black
Insulation height	0.169"（4.30mm）
Contact length - terminal	0.087"（2.20mm）
Operating temperature	-
Material flammability rating	-
Contact Surface Preparation - Column	-
Joint stack height	-
Intrusion protection	IP00
characteristic	-
Rated current	1A
Rated voltage	-
application	-
Insulation Materials	-
Contact shape	Square
Contact material	-
Contact Surface Treatment Thickness - Column	-

Data Sheet

FR20CxxVBDN

Illustration

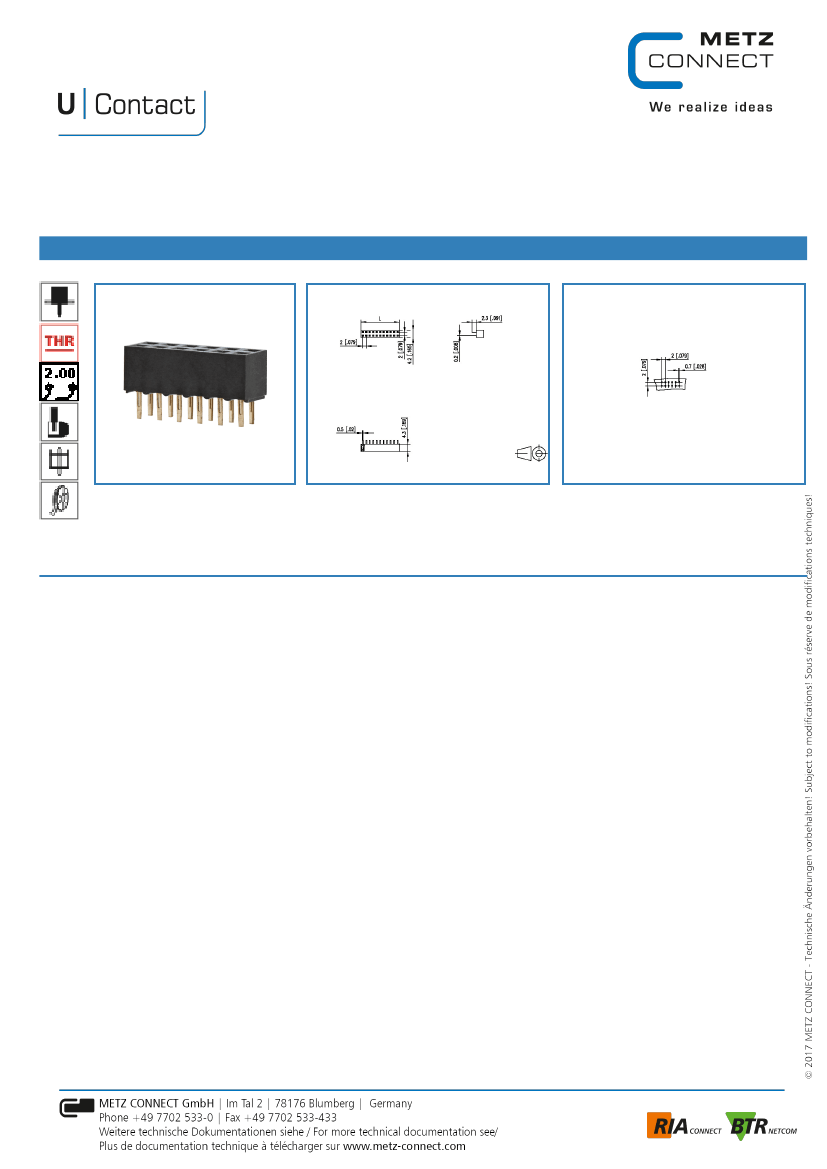

Page 1/4

P/N

FR20CxxVBDN

xx=number of poles

2017/05/05

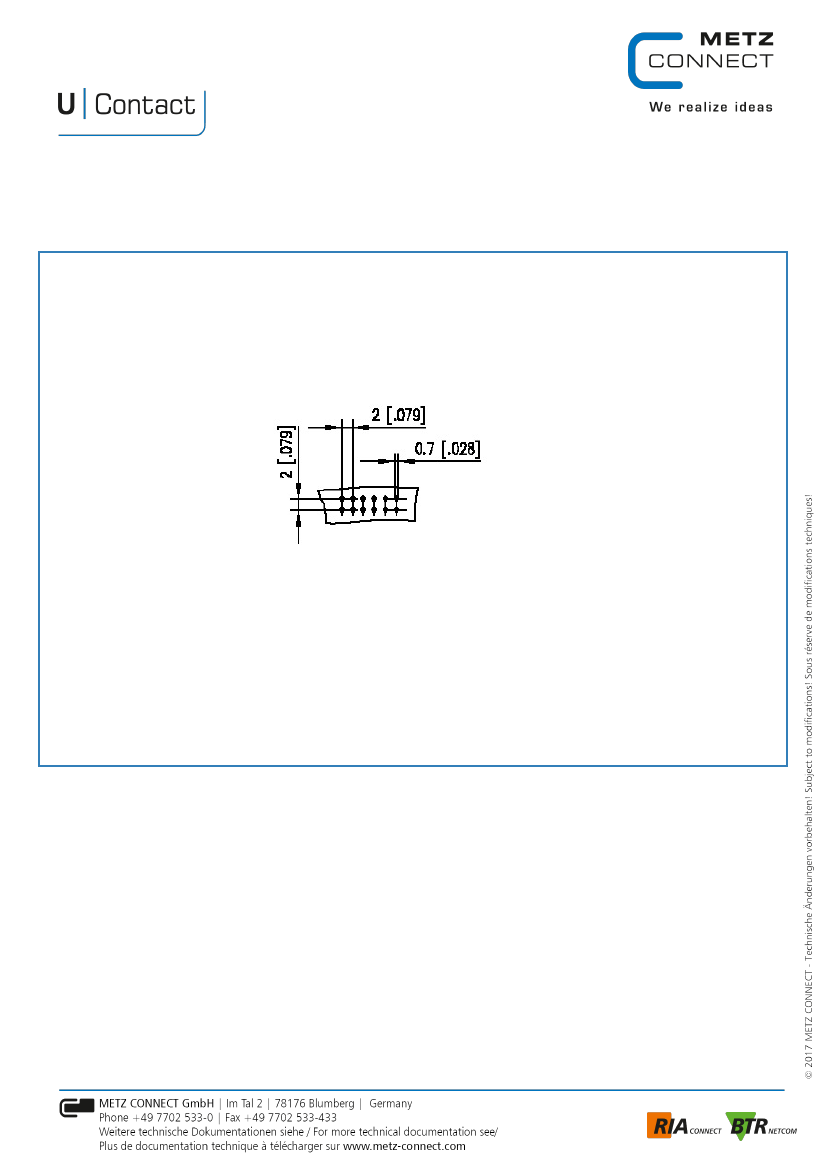

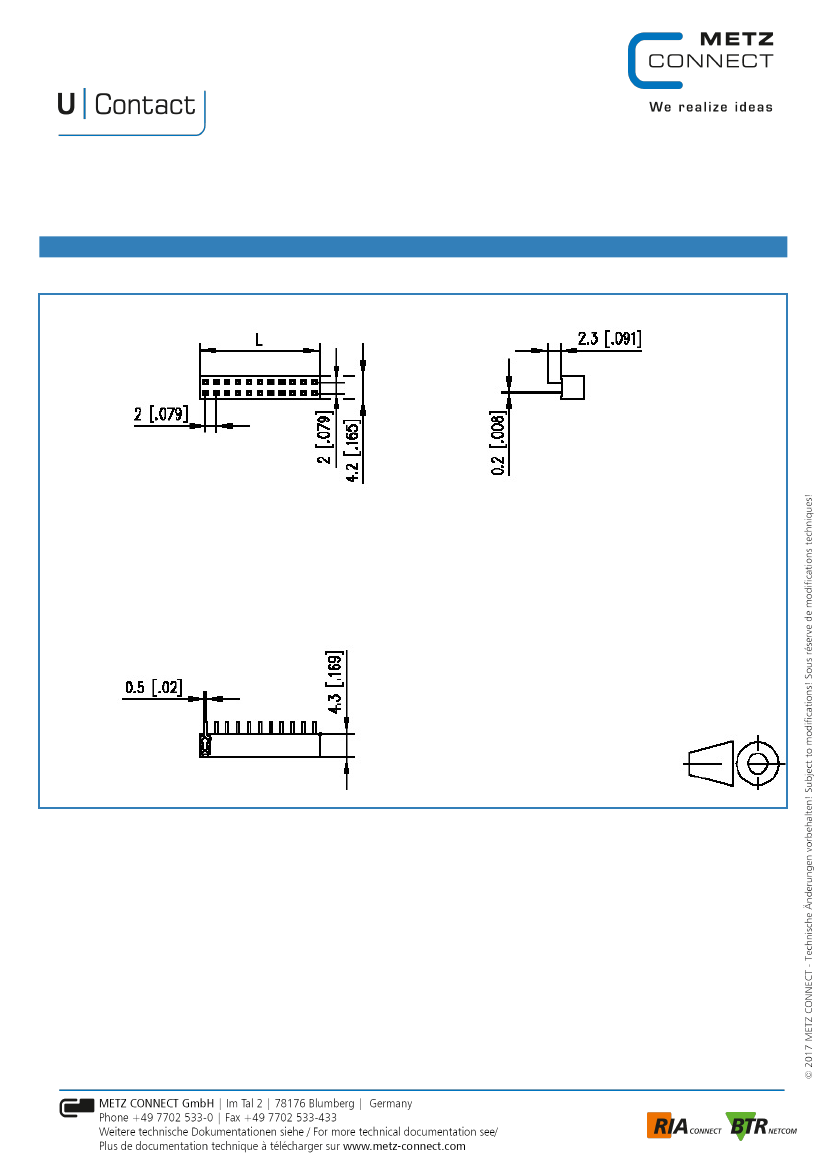

see enlarged drawing at the end of the document

Product specification

• female connector, THR solderable

• centerline 2.00 mm, direction of connection vertical 0°

• closed ends

• color black

• Tape & Reel packaging

• dual rows
