31017104 datasheet, PDF - EEWORLD Datasheet

31017104: DescriptionPIN HEADER, VERTICAL, THR, PCB,; CategoryThe connector; File Size229KB，5 Pages; ManufacturerMETZ CONNECT USA Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

31017104 Overview

PIN HEADER, VERTICAL, THR, PCB,

Parameter Name	Attribute value
type	Connector, male pins, unshielded
Number of pins	4
Number of pins per level	4
Number of levels	1
spacing	0.197"（5.00mm）
Needle seat direction	Vertical
Plug entrance	-
Terminal type	welding
Installation type	Through hole
Current - IEC	-
Current - UL	15A
Voltage - UL	300V
Wire Gauge or Range - AWG	-
Wire gauge or range - mm²	-
color	black
Operating temperature	-40°C ~ 105°C
Contact mating surface treatment	gold, nickel alloy
characteristic	-
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	-
Torque - Screws	-
Wire stripping length	-
Contact material	Beryllium copper
Shell material	Polyamide (PA66), Nylon 6/6
Contact tail length	0.134"（3.40mm）
Insulation height	0.073"（1.85mm）

Data Sheet

PR015xxVBHC

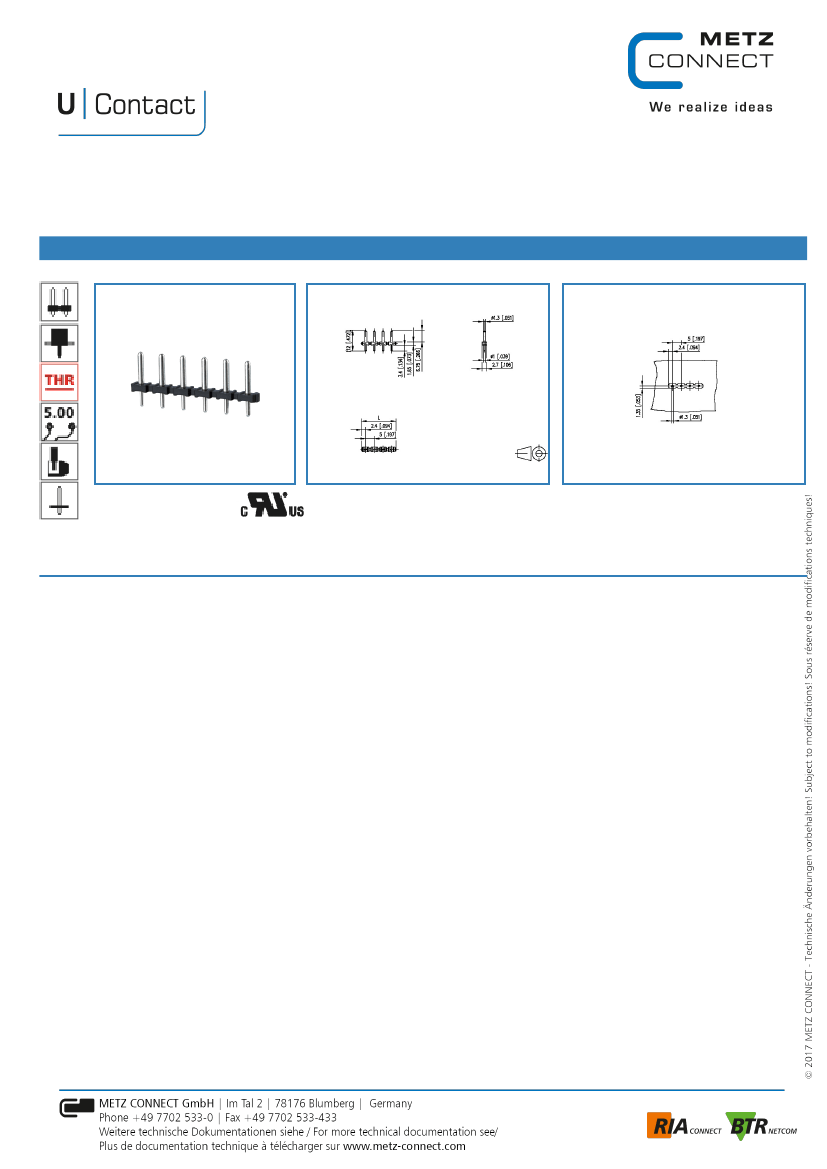

Illustration

Page 1/5

P/N

310171xx

xx=number of poles

2017/05/04

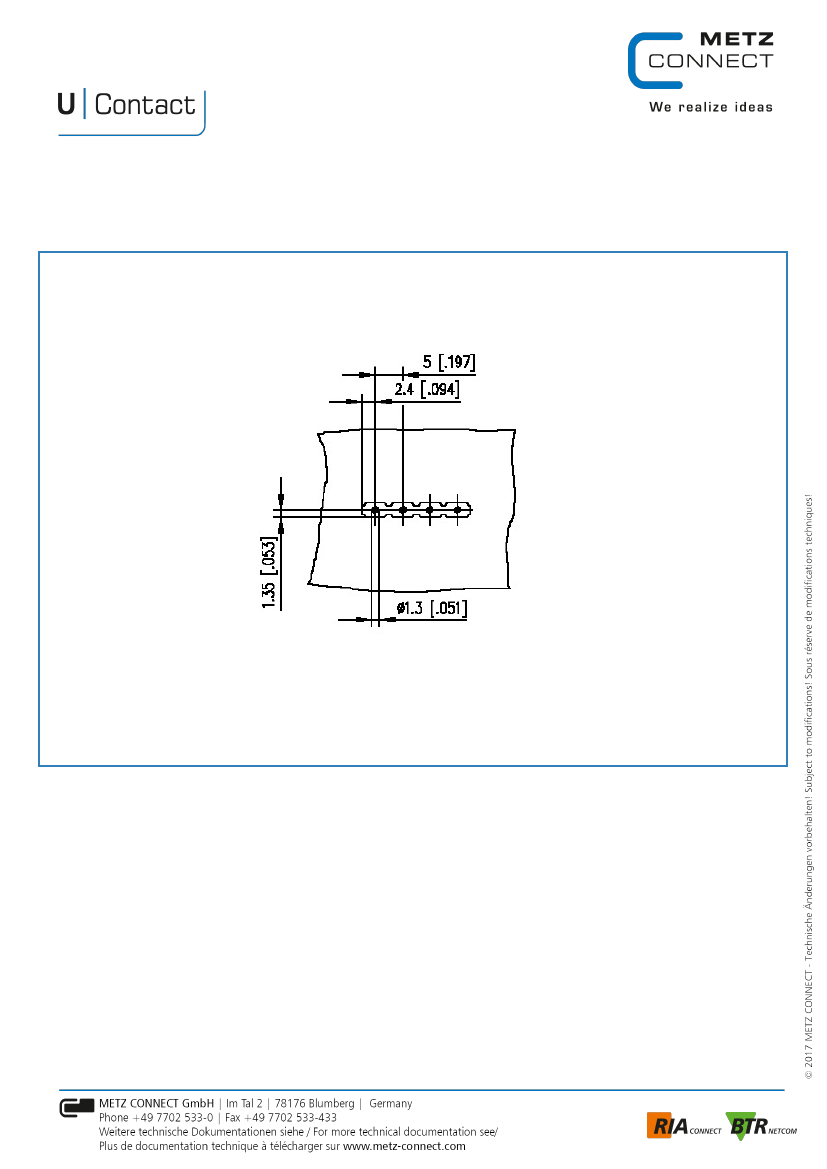

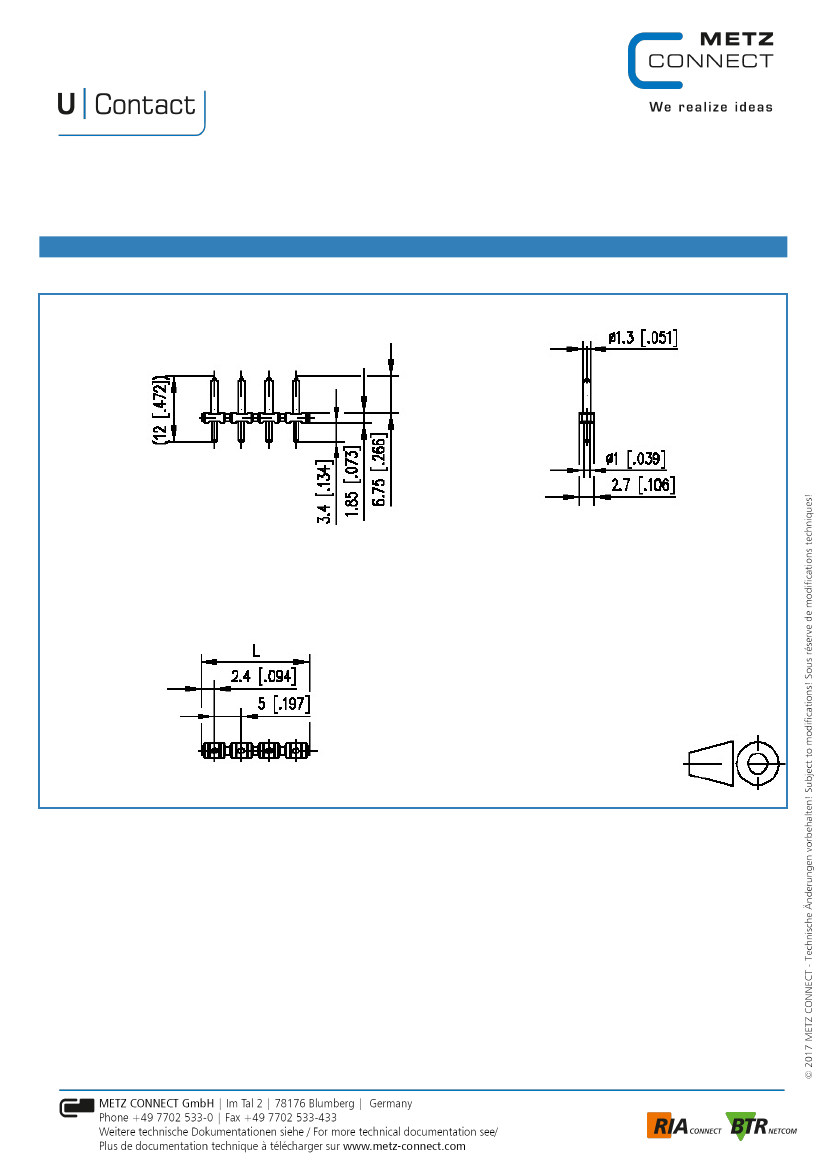

see enlarged drawing at the end of the document

Product specification

• pin header, THR solderable

• centerline 5.00 mm, direction of connection vertical 0°

• fittable without loss of poles

• color black

• Tape & Reel packaging

	31017104	31017103	31017106	31017102
Description	PIN HEADER, VERTICAL, THR, PCB,	PIN HEADER, VERTICAL, THR, PCB,	PIN HEADER, VERTICAL, THR, PCB,	PIN HEADER, VERTICAL, THR, PCB,
type	Connector, male pins, unshielded	Connector, male pins, unshielded	Connector, male pins, unshielded	Connector, male pins, unshielded
Number of pins	4	3	6	2
Number of pins per level	4	3	6	2
Number of levels	1	1	1	1
spacing	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）
Needle seat direction	Vertical	Vertical	Vertical	Vertical
Terminal type	welding	welding	welding	welding
Installation type	Through hole	Through hole	Through hole	Through hole
Current - UL	15A	15A	15A	15A
Voltage - UL	300V	300V	300V	300V
color	black	black	black	black
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Contact mating surface treatment	gold, nickel alloy	gold, nickel alloy	gold, nickel alloy	gold, nickel alloy
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact material	Beryllium copper	Beryllium copper	Beryllium copper	Beryllium copper
Shell material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Contact tail length	0.134"（3.40mm）	0.134"（3.40mm）	0.134"（3.40mm）	0.134"（3.40mm）
Insulation height	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）	0.073"（1.85mm）
