31189104: DescriptionSHROUDED HEADER, VERTICAL, PCB,; CategoryThe connector; File Size258KB，5 Pages; ManufacturerMETZ CONNECT USA Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

31189104 Overview

SHROUDED HEADER, VERTICAL, PCB,

Parameter Name	Attribute value
type	Connector, male pins, shrouded (4 sides)
Number of pins	4
Number of pins per level	4
Number of levels	1
spacing	0.138"（3.50mm）
Needle seat direction	Vertical
Plug entrance	-
Terminal type	welding
Installation type	Through hole
Current - IEC	-
Current - UL	10A
Voltage - UL	300V
Wire Gauge or Range - AWG	-
Wire gauge or range - mm²	-
color	black
Operating temperature	-40°C ~ 105°C
Contact mating surface treatment	tin
characteristic	-
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	-
Torque - Screws	-
Wire stripping length	-
Contact material	copper alloy
Shell material	Polyamide (PA6T), Nylon 6T
Contact tail length	0.126"（3.20mm）
Insulation height	0.362"（9.20mm）

Data Sheet

PR043xxVBBN

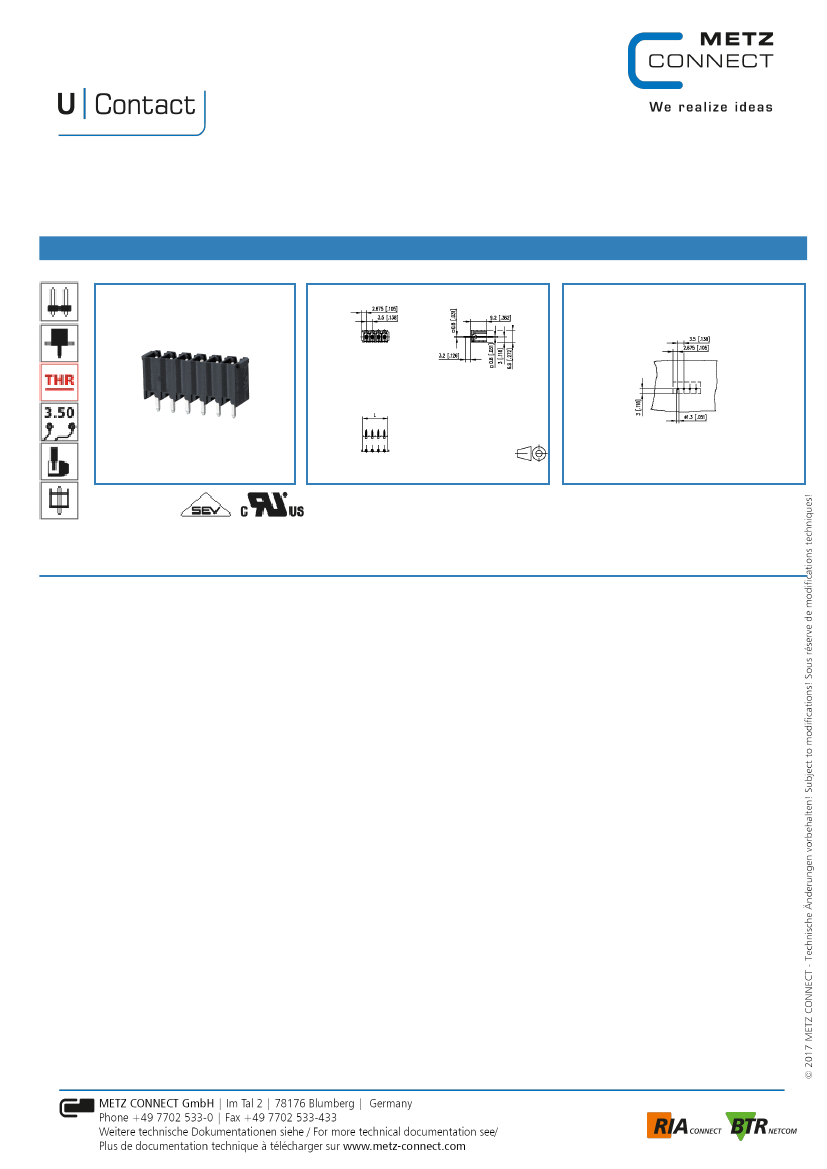

Illustration

Page 1/5

P/N

311891xx

xx=number of poles

2017/05/04

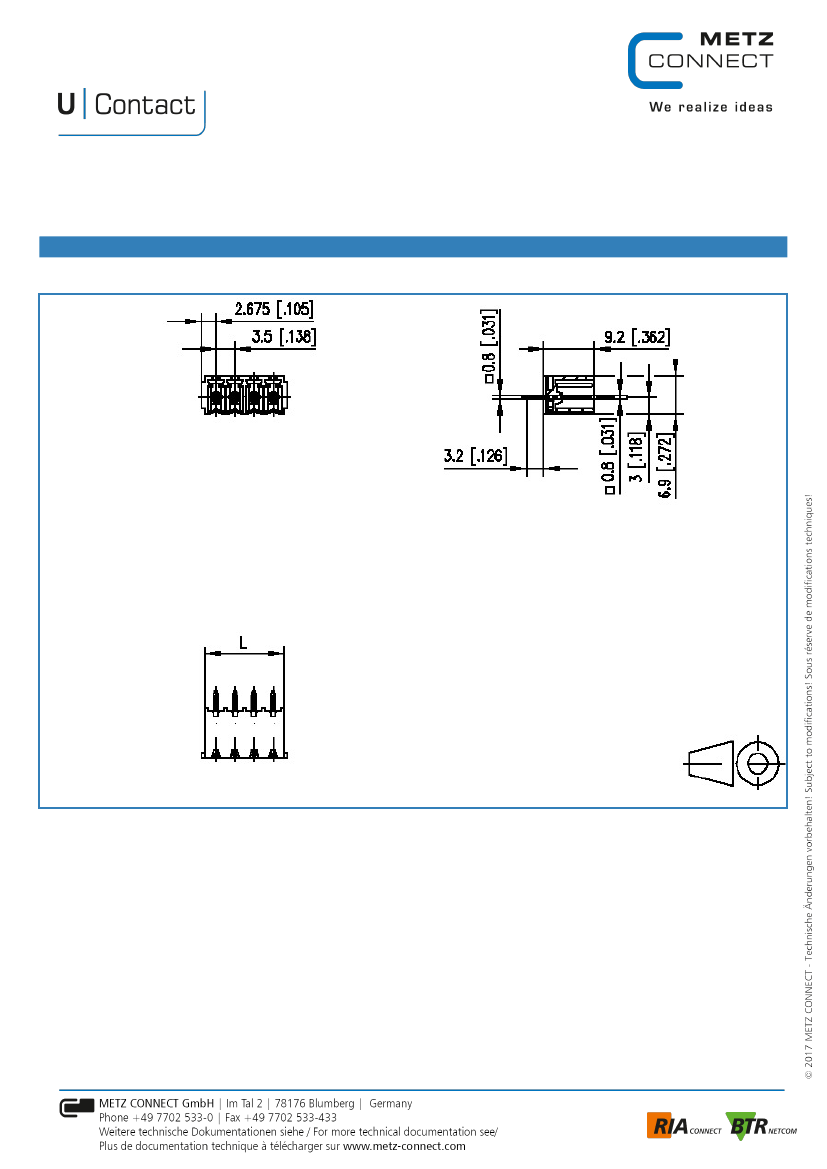

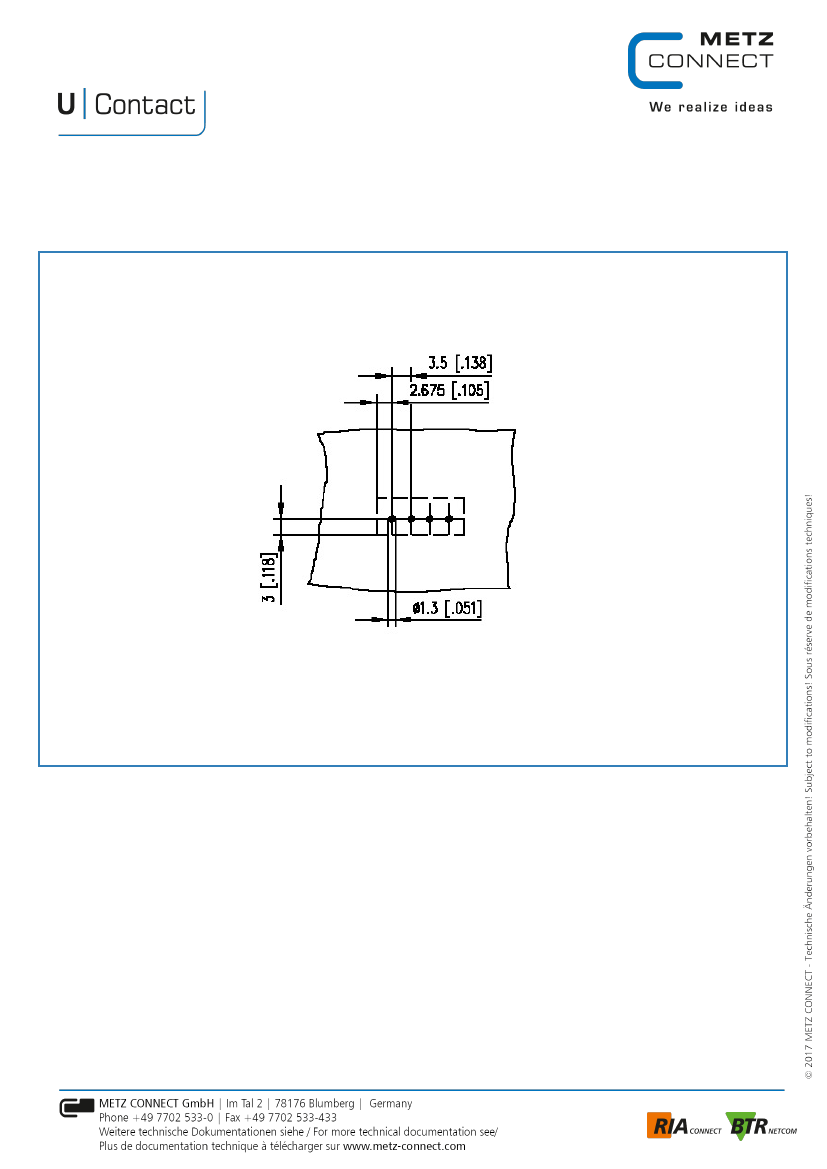

see enlarged drawing at the end of the document

Product specification

• pin header, THR solderable

• centerline 3.50 mm, direction of connection vertical 0°

• closed ends

• color black

• Tape & Reel packaging

• codeable

	31189104	31189102	31189106	31189103
Description	SHROUDED HEADER, VERTICAL, PCB,	SHROUDED HEADER, VERTICAL, PCB,	SHROUDED HEADER, VERTICAL, PCB,	SHROUDED HEADER, VERTICAL, PCB,
type	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)
Number of pins	4	2	6	3
Number of pins per level	4	2	6	3
Number of levels	1	1	1	1
spacing	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）
Needle seat direction	Vertical	Vertical	Vertical	Vertical
Terminal type	welding	welding	welding	welding
Installation type	Through hole	Through hole	Through hole	Through hole
Current - UL	10A	10A	10A	10A
Voltage - UL	300V	300V	300V	300V
color	black	black	black	black
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Contact mating surface treatment	tin	tin	tin	tin
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact material	copper alloy	copper tin	copper tin	copper alloy
Shell material	Polyamide (PA6T), Nylon 6T	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA6T), Nylon 6T
Contact tail length	0.126"（3.20mm）	0.126"（3.20mm）	0.126"（3.20mm）	0.126"（3.20mm）
Insulation height	0.362"（9.20mm）	0.362"（9.20mm）	0.362"（9.20mm）	0.362"（9.20mm）
