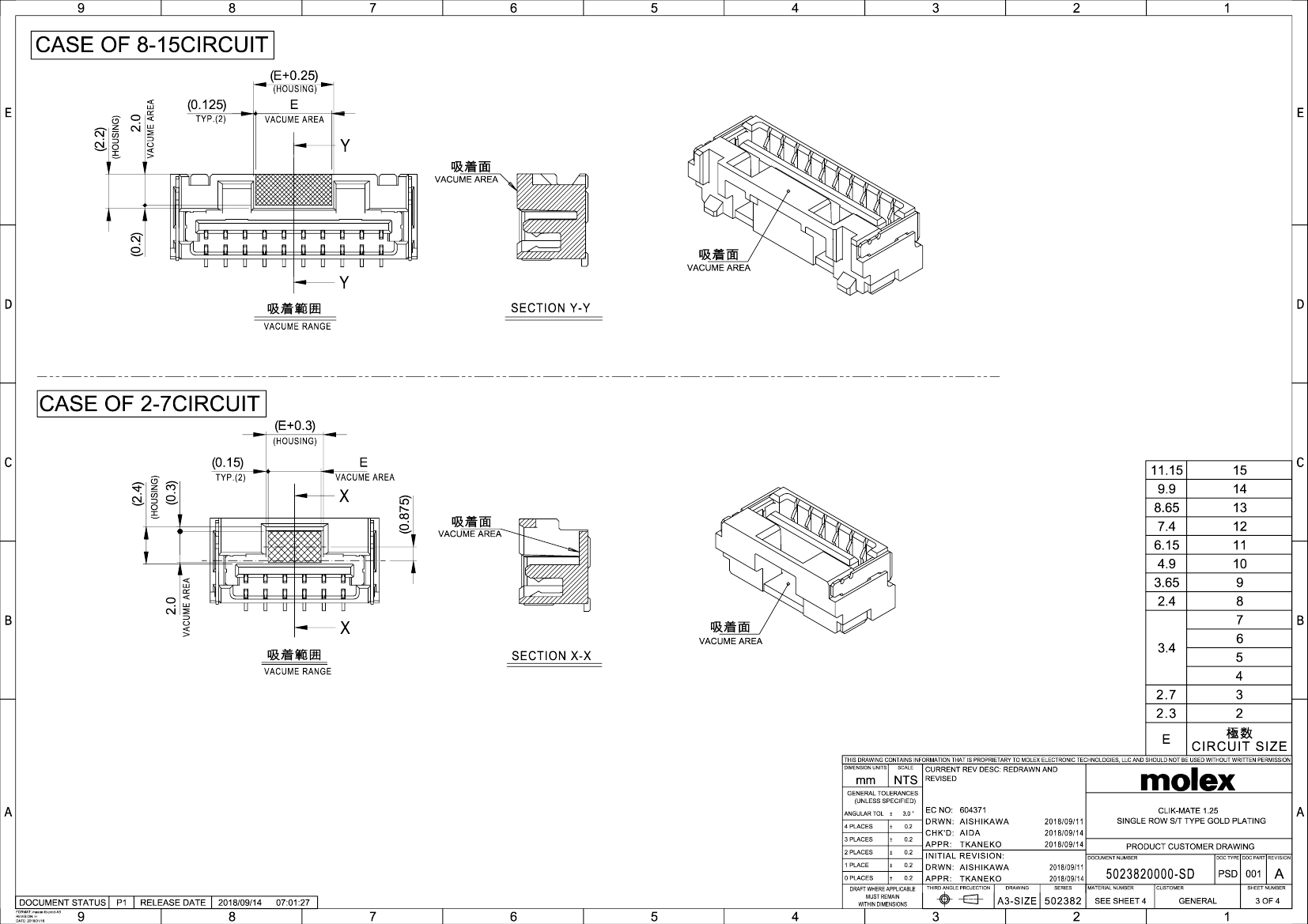

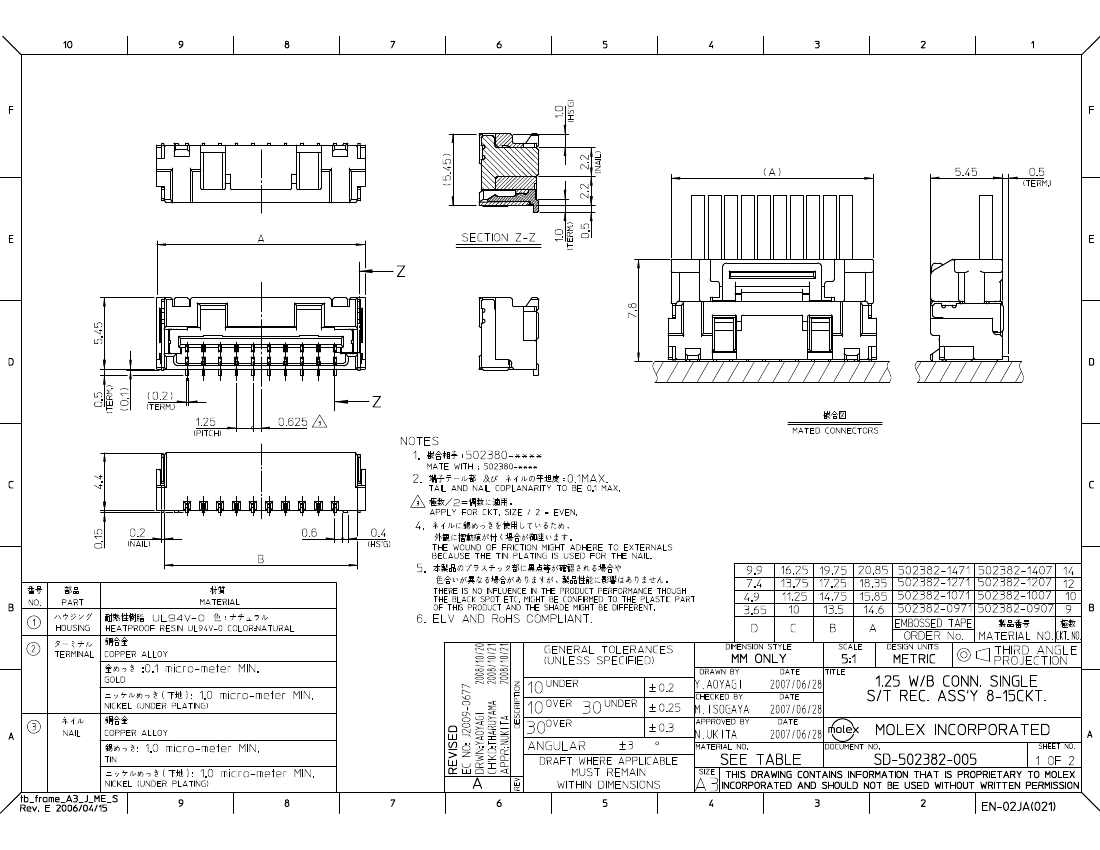

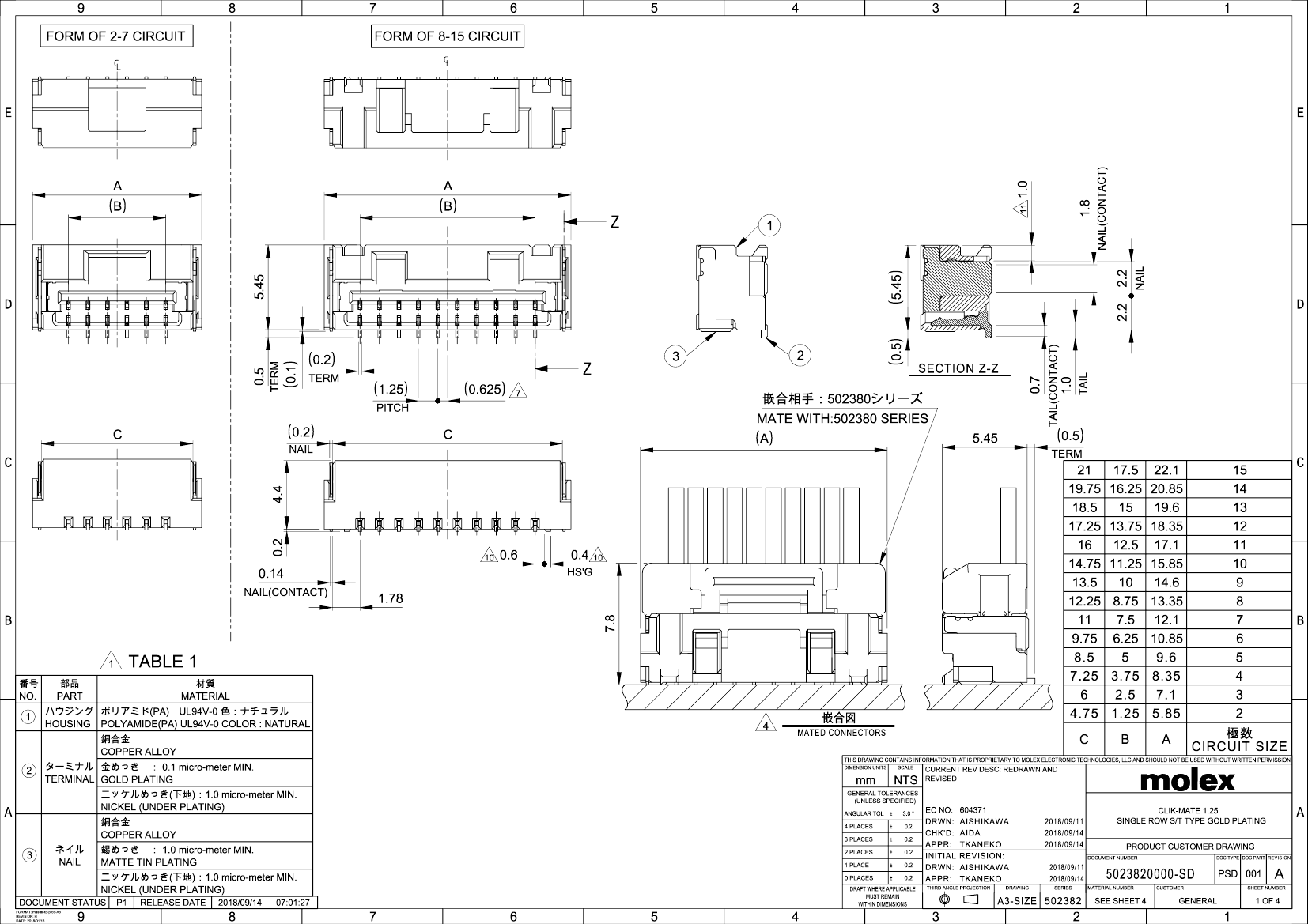

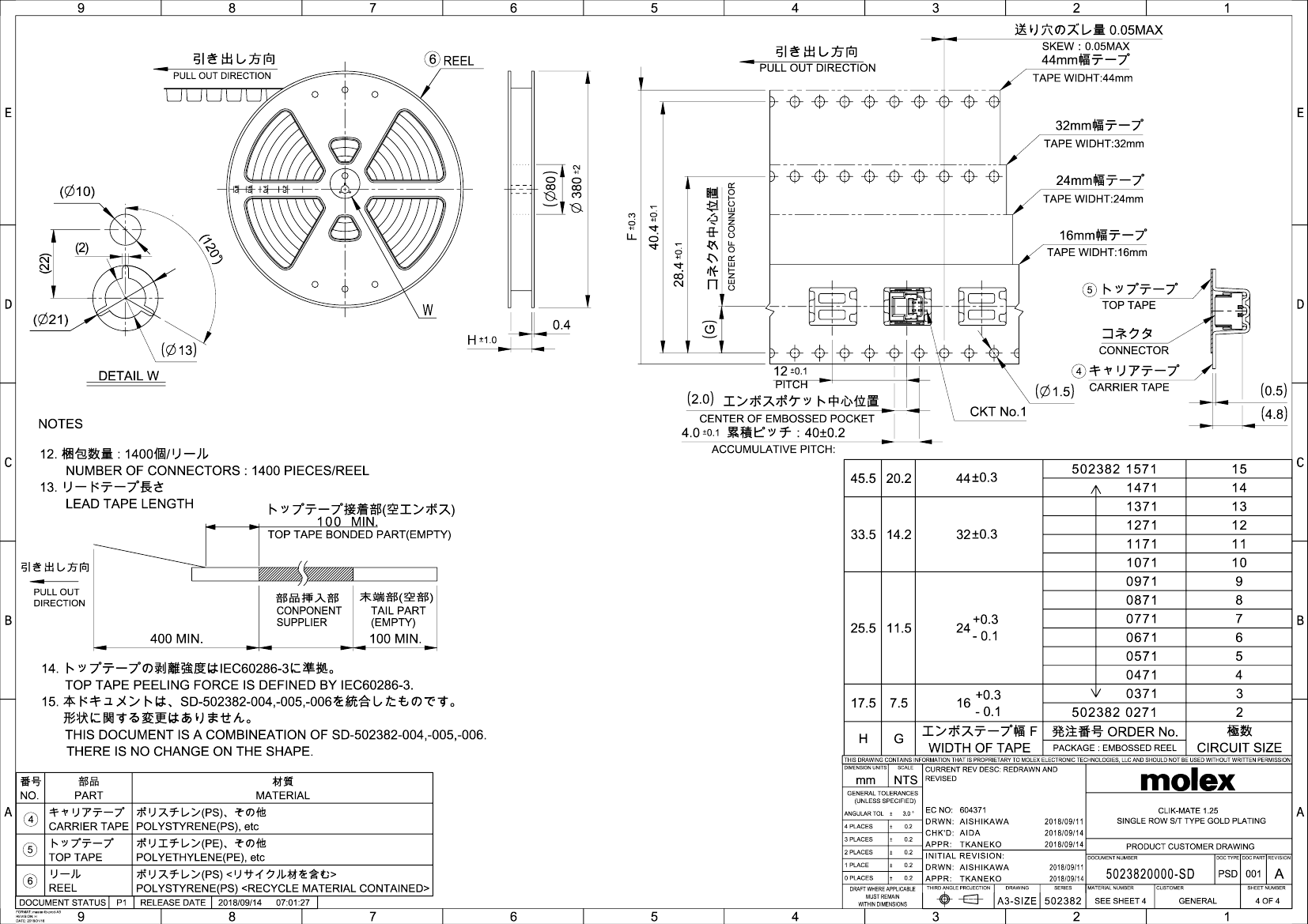

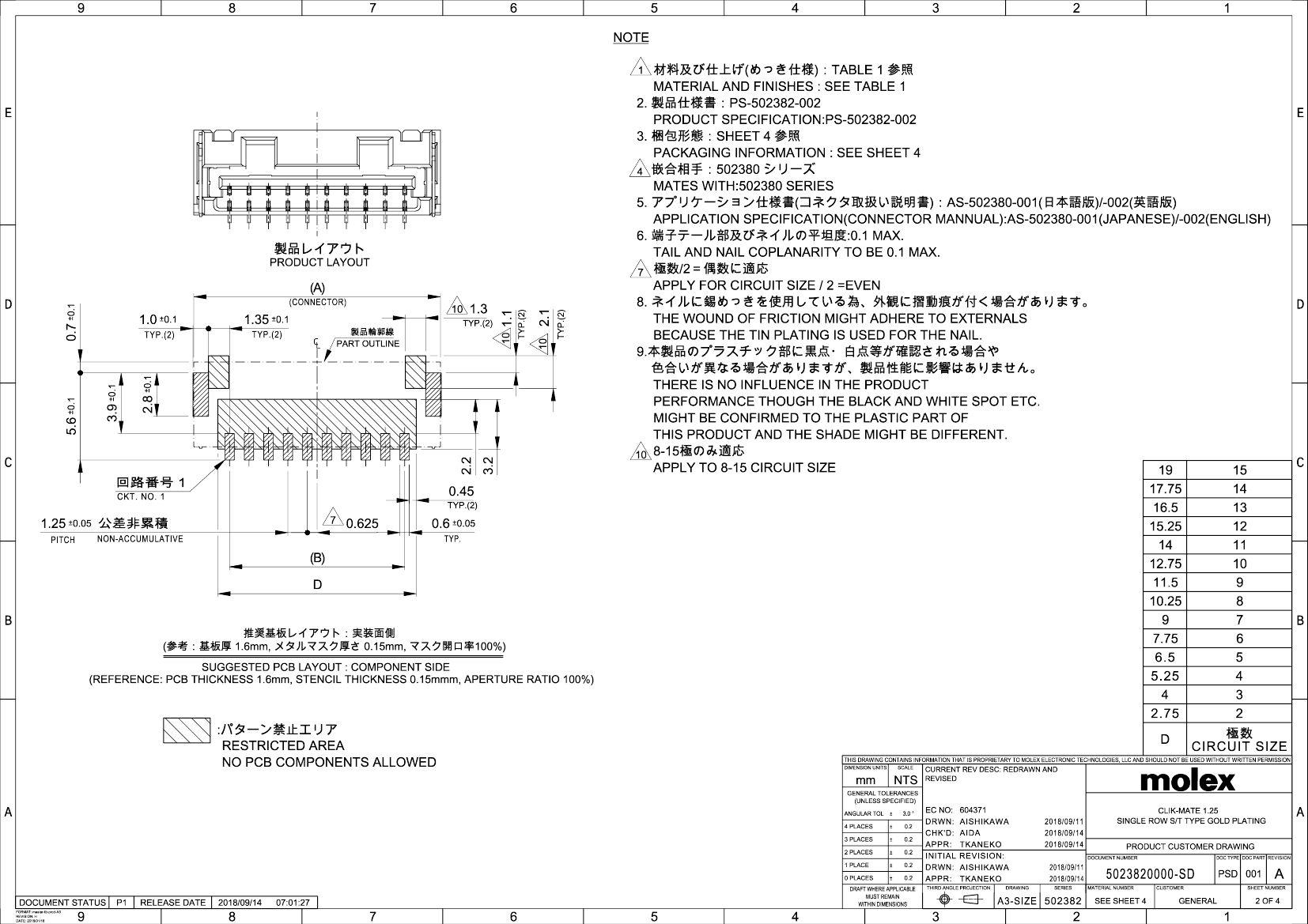

1.25 W/B SGL S/T ASSY14CKT
| Parameter Name | Attribute value |
| Connector type | socket |
| Contact type | Forked |
| style | Board to cable/wire |
| Number of pins | 14 |
| Number of pins loaded | all |
| Spacing - Mating | 0.049"（1.25mm） |
| Number of rows | 1 |
| Line spacing - patching | - |
| Installation type | surface mount |
| Termination | welding |
| Fastening type | latch holder |
| Contact surface treatment - mating | gold |
| Contact Surface Treatment Thickness - Mating | 3.90µin（0.099µm） |
| Insulation color | natural |
| Insulation height | 0.173"（4.40mm） |
| Contact length - terminal | - |
| Operating temperature | -40°C ~ 105°C |
| Material flammability rating | UL94 V-0 |
| Contact Surface Preparation - Column | tin |
| Joint stack height | - |
| Intrusion protection | - |
| characteristic | Fixed solder tail |
| Rated current | 1A |
| Rated voltage | 50V |
| application | Automotive, general, industrial, lighting, medical |
| Insulation Materials | Resin |
| Contact shape | - |
| Contact material | copper alloy |
| Contact Surface Treatment Thickness - Column | 39.4µin（1.00µm） |
| 5023821471 | 5023820971 | 5023821271 | |
|---|---|---|---|
| Description | 1.25 W/B SGL S/T ASSY14CKT | 1.25 W/B SGL S/T ASSY 9CKT | 1.25 W/B SGL S/T ASSY12CKT |
| Connector type | socket | socket | socket |
| Contact type | Forked | Forked | Forked |
| style | Board to cable/wire | Board to cable/wire | Board to cable/wire |
| Number of pins | 14 | 9 | 12 |
| Number of pins loaded | all | all | all |
| Spacing - Mating | 0.049"（1.25mm） | 0.049"（1.25mm） | 0.049"（1.25mm） |
| Number of rows | 1 | 1 | 1 |
| Installation type | surface mount | surface mount | surface mount |
| Termination | welding | welding | welding |
| Fastening type | latch holder | latch holder | latch holder |
| Contact surface treatment - mating | gold | gold | gold |
| Contact Surface Treatment Thickness - Mating | 3.90µin（0.099µm） | 3.90µin（0.099µm） | 3.90µin（0.099µm） |
| Insulation color | natural | natural | natural |
| Insulation height | 0.173"（4.40mm） | 0.173"（4.40mm） | 0.173"（4.40mm） |
| Operating temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Material flammability rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Surface Preparation - Column | tin | tin | tin |
| characteristic | Fixed solder tail | Fixed solder tail | Fixed solder tail |
| Rated current | 1A | 1A | 1A |
| Rated voltage | 50V | 50V | 50V |
| application | Automotive, general, industrial, lighting, medical | Automotive, general, industrial, lighting, medical | Automotive, general, industrial, lighting, medical |
| Insulation Materials | Resin | Resin | Resin |
| Contact material | copper alloy | copper alloy | copper alloy |
| Contact Surface Treatment Thickness - Column | 39.4µin（1.00µm） | 39.4µin（1.00µm） | 39.4µin（1.00µm） |
