0022289032

Description
KK 100 HDR ASSY RA BKWY 3POS
CategoryThe connector
File Size345KB，18 Pages
ManufacturerMolex Premise Network
Environmental Compliance
Download Datasheet Parametric View All

0022289032 Online Shopping

Suppliers Part Number Price MOQ In stock
0022289032 - - View Buy Now

0022289032 Overview

KK 100 HDR ASSY RA BKWY 3POS

0022289032 Parametric

Parameter NameAttribute value
Connector typeNeedle hub, separate
Contact typeMale pin
Spacing - Mating0.100"（2.54mm）
Number of pins3
Number of rows1
Line spacing - patching-
Number of pins loadedall
styleBoard to Board or Cable
shieldUncovered
Installation typeThrough hole, right angle
TerminationKink pins, solder
Fastening typepush-pull
Contact Length - Mating0.244"（6.20mm）
Contact length - terminal0.135"（3.43mm）
Overall contact length-
Insulation height0.098"（2.50mm）
Contact shapeSquare
Contact surface treatment - matinggold
Contact Surface Treatment Thickness - Mating15.0µin（0.38µm）
Contact Surface Preparation - Columntin
Contact material-
Insulation MaterialsPolyamide (PA), nylon, glass fiber reinforced
characteristic-
Operating temperature-
Intrusion protection-
Material flammability ratingUL94 V-0
Insulation colorblack
Rated current-
Rated voltage-
Joint stack height-
Contact Surface Treatment Thickness - Column100.0µin（2.54µm）
applicationAutomotive, general, medical, telecommunications

Preview

Download Datasheet

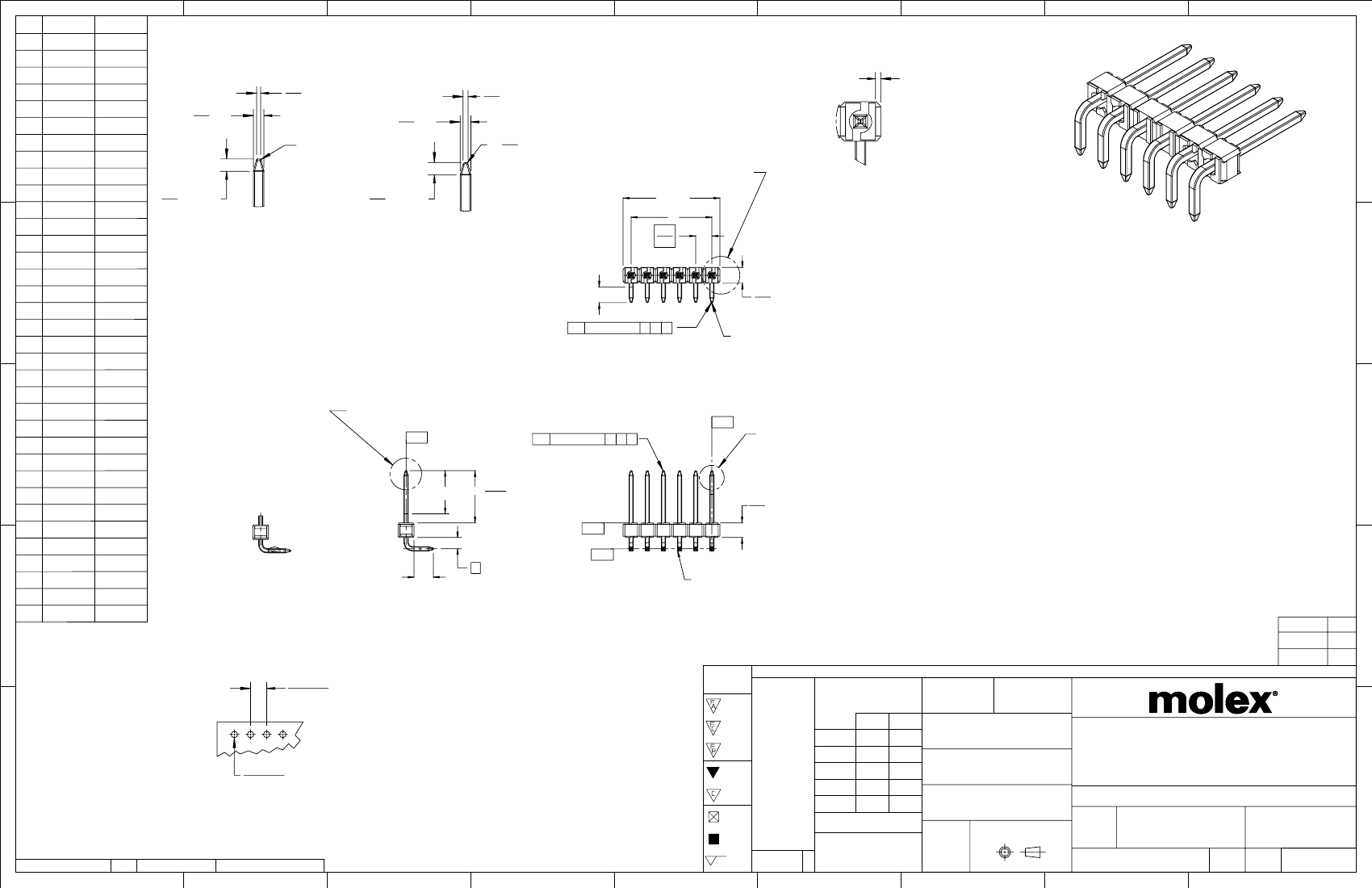

NO.
CKTS
9
DIM. A
5.08
.200
7.62
.300
10.16
.400
12.70
.500
15.24
.600
17.78
.700
20.32
.800
22.86
.900
25.40
1.000
27.94
1.100
30.48
1.200
33.02
1.300
35.56
1.400
38.10
1.500
40.64
1.600
43.18
1.700
45.72
1.800
48.26
1.900
50.80
2.000
53.34
2.100
55.88
2.200
58.42
2.300
60.96
2.400
63.50
2.500
66.04
2.600
68.58
2.700
71.12
2.800
73.66
2.900
76.20
3.000
78.74
3.100
81.28
3.200
83.82
3.300
86.36
3.400
88.90
3.500
91.44
3.600
DIM. B
8
2.54
.100
5.08
.200
7.62
.300
10.16
.400
12.70
.500
15.24
.600
17.78
.700
20.32
.800
22.86
.900
25.40
1.000
27.94
1.100
30.48
1.200
33.02
1.300
35.56
1.400
38.10
1.500
40.64
1.600
43.18
1.700
45.72
1.800
48.26
1.900
50.80
2.000
53.34
2.100
55.88
2.200
58.42
2.300
60.96
2.400
63.50
2.500
66.04
2.600
68.58
2.700
71.12
2.800
73.66
2.900
76.20
3.000
78.74
3.100
81.28
3.200
83.82
3.300
86.36
3.400
88.90
3.500
7
6
5
4
3
2
1
2
3
4
E
5
6
7
8
9
10
11
12
13
14
15
0.66REF
.026
0.22REF
.009
0.66REF
.026
NO BURRS ON
PIN TIP
0.28TYP
REF
.011
IRREGULARITIES OR BURRS
ALLOWED IN THIS AREA,
BOTH ENDS.
E
R0.15MAX
REF
.006
SEE DETAIL Z
0.76TYP
REF
.030
0.76TYP
REF
.030
A REF
DETAIL Z
SCALE 5:1
DETAIL X
SCALE 5:1
SEE NOTE 10
DETAIL Y
SCALE 5:1
SEE NOTE 10
B
2.54
.100
TYP
D
16
17
18
19
20
21
22
23
24
TIN
2.49
.098
NOTES:
1. MATERIAL: GLASS FILLED NYLON
UL94V-0, COLOR: BLACK
2. FINISH:
(154) OVERALL TIN: 0.00254/.000100 MIN. OVER
NICKEL: 0.00127/.000050 MIN.
(208) SELECT GOLD: 0.00038/.000015 MIN,
SELECT TIN: 0.00254/.000100 MIN,
WITH OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.
(228) SELECT GOLD: 0.00076/.000030 MIN,
SELECT TIN: 0.00254/.000100 MIN,
WITH OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.
3. PRODUCT SPECIFICATION: PS 10-07.
4. PACKAGING INFORMATION: SEE TABLES
5. SOLDERABILITY PER SMES-152.
6. PIN PUSH OUT FORCE: 3 LBS. MIN
7. KINK PIN OPTION NOT RECOMMENDED FOR 2 CIRCUIT PARTS.
HOLE SIZE MAY NEED TO BE ADJUSTED FOR 2 CIRCUIT PARTS
WITH KINK OPTION FOR PROPER INSERTION INTO THE PCB.
SEE SMES-42003 FOR ADDITIONAL INFORMATION
ON KINK PIN DIRECTION AND PLACEMENT.
8. HEADERS ARE NOT STACKABLE ON 2.54/.100 CENTERS.
9. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF
COSMETIC SPECIFICATION PS-45499-002.
10. PIN TIP DIMENSIONS ARE SHOWN FOR REFERENCE ONLY.
DIMENSIONS APPLY PRIOR TO PLATING OR ASSEMBLY.
D
⌖
⌀
0.41/.016
Ⓜ
F
D
E
CIRCUIT 1
SEE DETAIL X
-F-
C
25
26
27
28
29
30
31
32
33
34
-E-
⌖
⌀
0.61/.024
Ⓜ
C
F
E
SEE DETAIL Y
C
GOLD
M
±
0.38
±
.015
2.29
.090
-C-
-D-
OPTIONAL KINK PIN
SEE NOTE 7
B
35
36
P
TYP REF
Y
TYP
OPTIONAL
VOID CKT.
B
2-*
1
SHEET
TYP.
NON-ACCUM.
Y
Y
REV
2016/08/30
2016/09/27
2016/10/11
2.54
±
0.05
.100
±
.002
QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
SYMBOLS
=
=
=
0
DIM L 42377-0387
GENERAL TOLERANCES
(UNLESS SPECIFIED)
MM/IN
DRWN BY
DATE
2:1
0
0
0
0
0
0
0
MM
INCH
±
±
0.01
±
0.015
±
±
4 PLACES
±
±
±
0.25
±
0.38
±
JSCHAFER
CHK'D BY
DATE
11/24/03
11/24/03
DATE
A
1.02
±
0.05
DIA.
.040
±
.002
107985
BAPPELDORN
MKIPPER
FSMITH
3 PLACES
2 PLACES
1 PLACES
0 PLACES
HOLE TYP.
SEE NOTE 7
=
=
=
=
C
SAMIEC
APPR BY
KK 100 HEADER ASSEMBLY
FLAT RIGHT ANGLE BREAKAWAY
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
A
EC NO:
DRWN:
CHK'D:
APPR:
TYP. HOLE PATTERN
FOR 1.57/.062 THK. PCB
RELEASE STATUS
FORMAT: Eng-lega-master-tb-prod-B
REVISION: C
DATE: 2016/04/04
MARGULIS
DRAWING SIZE
11/24/03
ANGULAR TOL
±
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
THIRD ANGLE PROJECTION
9
RELEASE DATE
=
8
7
6
5
Y
4
B
42377
DOCUMENT NUMBER
SEE CHART
GENERAL MARKET
DOC TYPE DOC PART
SHEET NUMBER
3
SD-42377-001
2
PSD
000
1
1 OF 1
REV
