Power entry modules without line filter
https://www.schurter.com /PG05
DG11

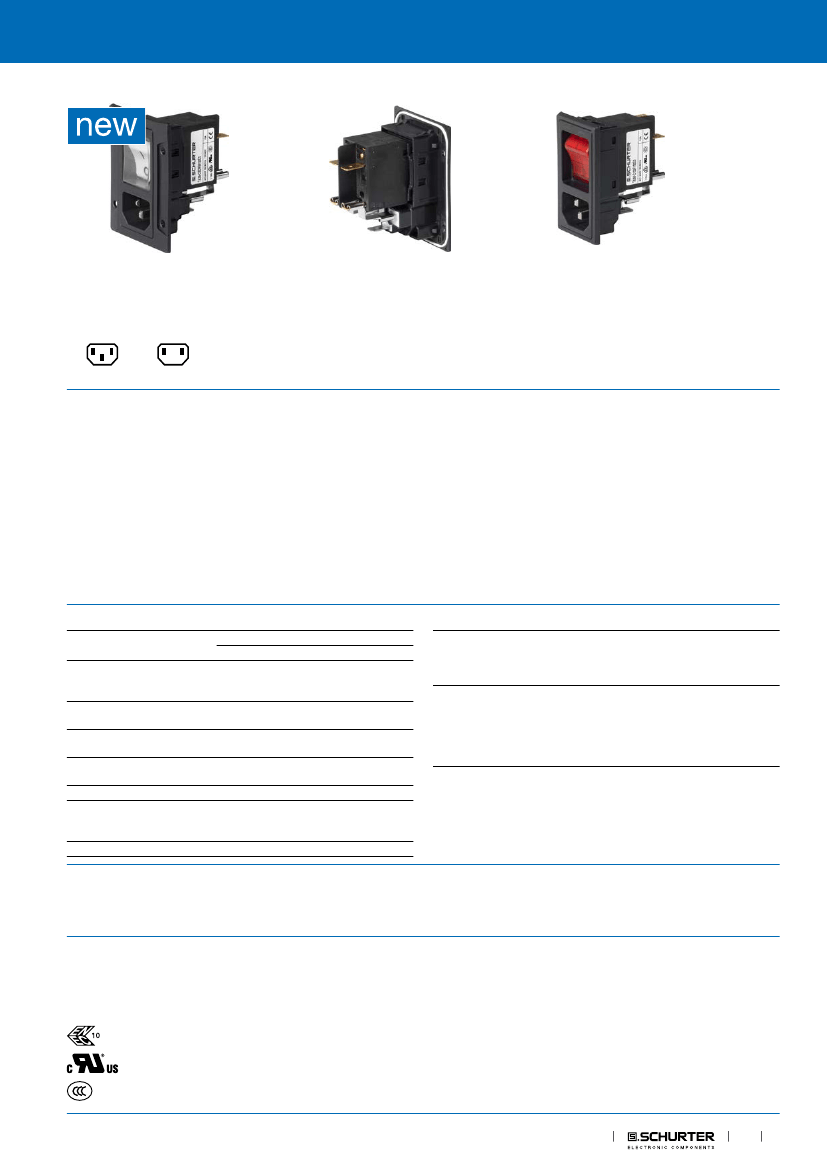

IEC Appliance Inlet C14 or C18 with Circuit Breaker TA35 2-pole
Screw-on with IP67 and TA35 in white with black
printed symbols
Screw-on with IP67
Snap-in IP40 with TA35 red illuminated and em-
bossed symbols
C14
C18
See below:
Approvals and Compliances
70° C
70° C
Description
- Panel mount :
Screw-on version from front or rear side, snap-in version from front
side
- 2 Functions :
Appliance Inlet , protection class I or II , Circuit breaker type TA35
, 2-pole
- Pre-wired coupling
- V-Lock notch standard
- Quick connect terminal 6.3 x 0.8 mm
Characteristics
- Connector and circuit breaker are prewired
- Circuit Breaker non-illuminated or illuminated
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
- Version without pre-wiring from inlet to circuit breaker
- Protection class II, 70°C
- Variants in white
References
Weblinks
Unique Selling Proposition
-
-
-
-
Variant tested for IP67 into the appliance
Various mounting options
Recessed rocker prevents accidental manipulation
Compatible with V-Lock cord retention
Substitute for type
6135
Component: circuit breakers
TA35 Rocker 2Pole
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Landing Page
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 60 °C
from front side IP40 or IP67 acc. to IEC
60529
Suitable for appliances with protection
class I or II acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Screw: max 8 mm
Recommended torque min 0.25 Nm
Snap-in : S =1/1.2/1.5/2/2.5/3 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 / C18 acc. to IEC 60320-1
UL 60320-1, CSA C22.2 no. 60320-1
(for cold conditions) pin-temperature 70
°C, 10 A, Protection Class I or II
Acc. IEC/EN 60934, UL 1077, CSA
22.2 no. 235
2-pole rocker switch, illuminated or non-
illuminated.
Conditional short circuit Inc:
2000 A
Circuit Breakers
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Panel Thickness S
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: DG11
Approval Logo
Certificates
VDE Approvals
UL Approvals
CQC Approvals
Certification Body
VDE
UL
CQC
Description
Certificate Number: 40048151
UL File Number: E96454
CCC Certificate Number: pending
Connectors
1
DG11
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
UL 60320-1
CSA C22.2 no. 60320-1
Power entry modules without line filter
https://www.schurter.com /PG05
Description
Appliance couplers for household and similar general purposes
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
SCHURTER AG

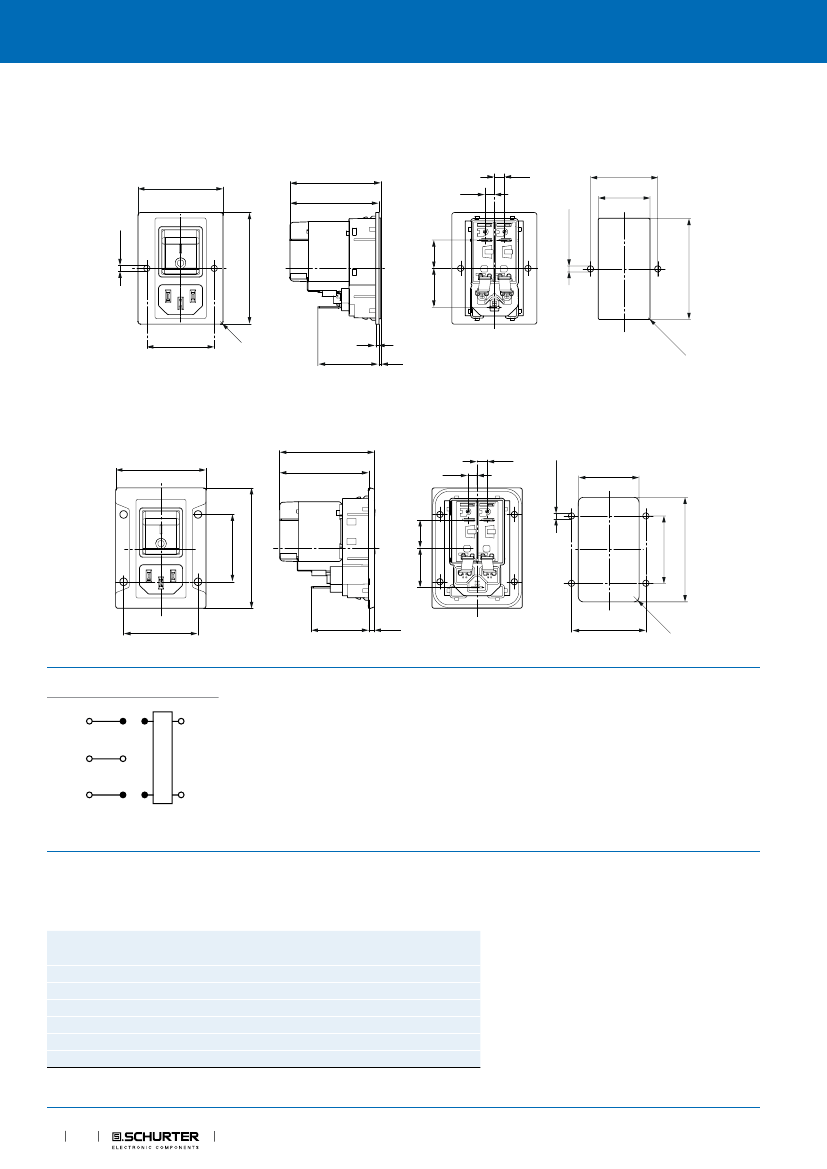

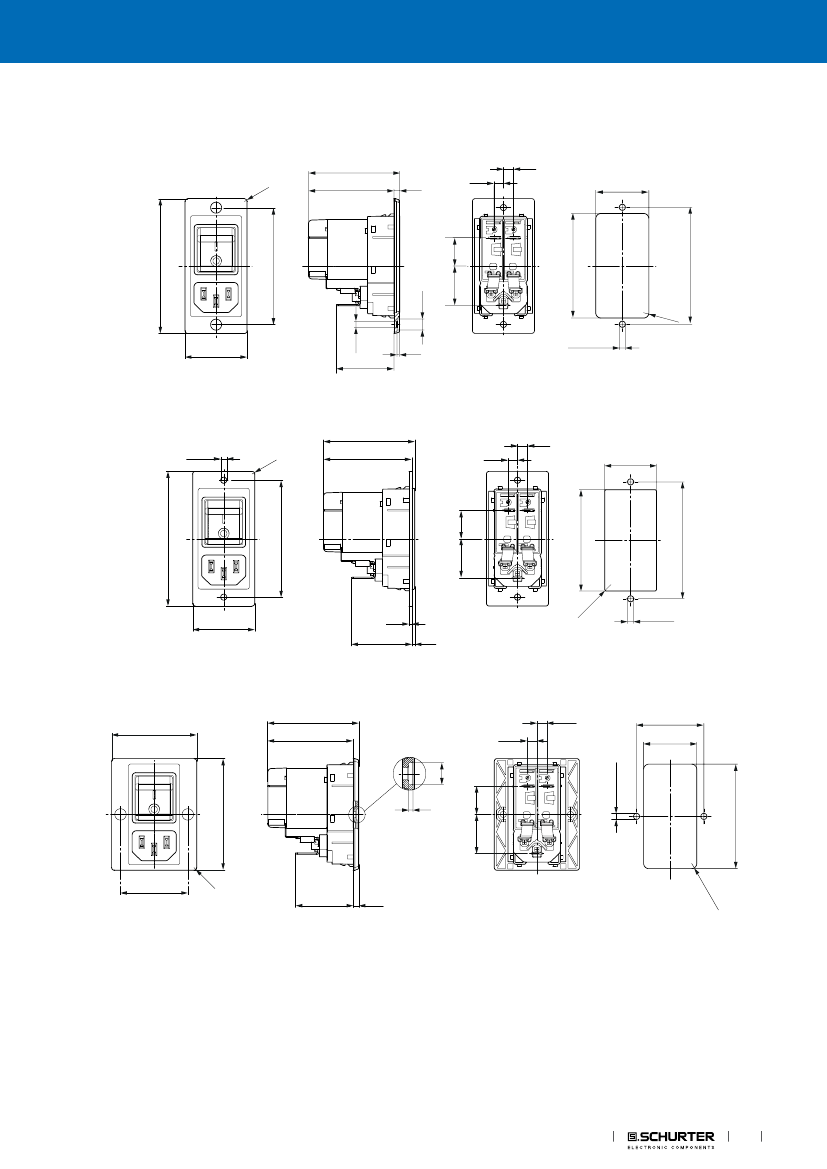

Dimensions [mm]
Snap-in mounting for front mount IP40
(51.6)
35
48.3
5.65
5.35
30
±0.10
16
22.1
R1.5
S
0
32.45
+0.10
ma
x.
R3
3.3
S = Panel thickness
2
Connectors
59
+0.20
0
63
DG11
Power entry modules without line filter
https://www.schurter.com /PG05
Screw-on mounting version B for rear mount IP40
48
(51.6)
50.1
5.35
5.65
38
±0.10
29.2
±0.10
ø 3.4 / M3
ø 3.4
16
22.1
m
1.8
34.25
1.5
38
ax
.R
1
Screw-on mounting for front mount IP67
(53.6)
51
50.3
5.35
5.65
ø 3.4/M3
34.3
±0.10
16
±0.10
22.1
42
32.45
3.3
42
±0.10
38
Diagrams
L
1)
PE
N
N' P
2
1) Line
2) Load
L' P
1
2)
PE'
Effect of ambient temperature
The units are calibrated for an ambient temperature of +23°C. To determine the rated cur-
rent for a lower or higher ambient temperature, use a correction factor (typical value) from
the table below:
Ambient Temperature [°C]
-30
-20
0
+23
+40
+50
+60
Correction factor
0.76
0.81
0.90
1.00
1.03
1.04
1.06
Example: Rated current = 5 A, Environmental temperature = 50 °C --> Correction factor =
1.04, Resulting current = 5.2 A --> Fount to next higher rated current: 6 A
TA35
4
Connectors
59
0
38
68
+0.20
57.2
±0.10
63
R1
.5
m
ax
.R
3
