RF360 Europe GmbH
A Qualcomm – TDK Joint Venture

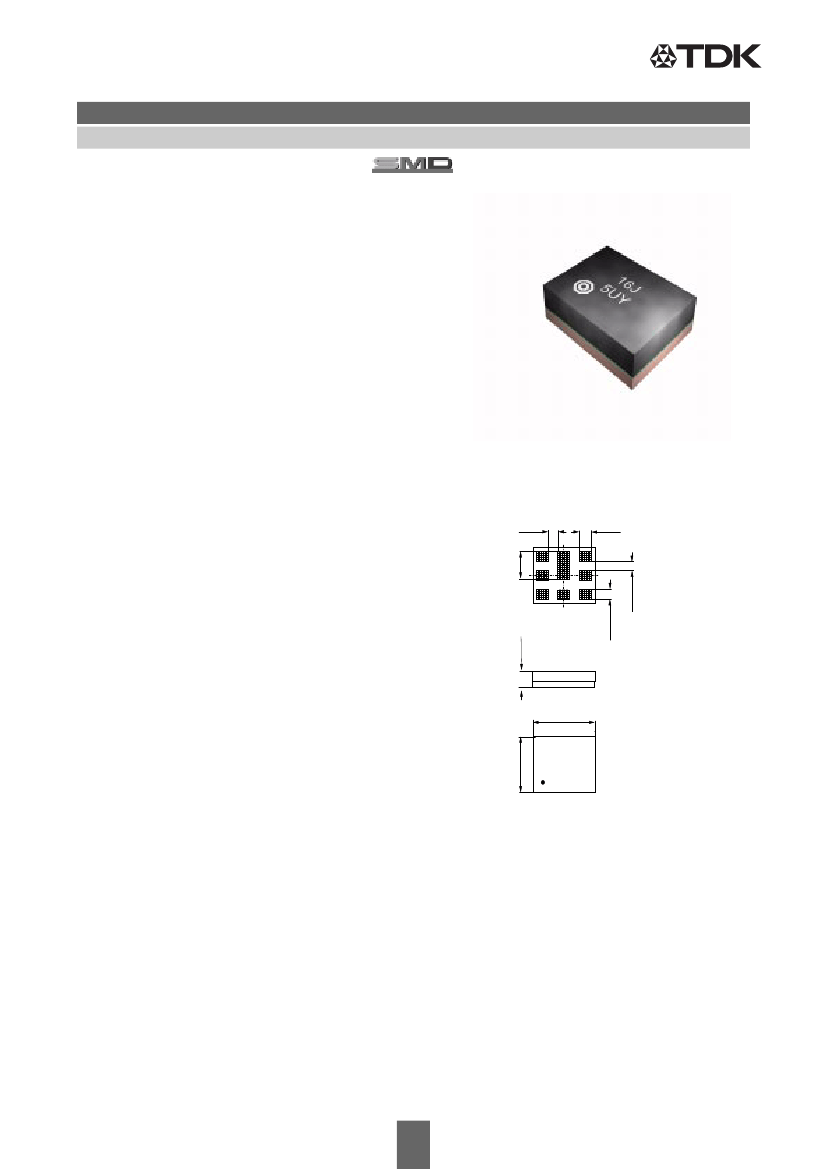

SAW Components
SAW Duplexer
LTE Band 17
Series/type:
Ordering code:
Date:
Version:
B8628
B39741B8628P810
May 19, 2015
2.2
RF360 products mentioned within this document are offered by RF360 Europe GmbH and other subsidiaries of
RF360 Holdings Singapore Pte. Ltd. (collectively, the “RF360 Subsidiaries”). RF360 Holdings Singapore Pte. Ltd.
is a joint venture of Qualcomm Global Trading Pte. Ltd. and EPCOS AG. References in this documentation to
EPCOS AG should properly reference, and shall be read to reference, the RF360 Subsidiaries.
RF360 Europe GmbH, Anzinger Str. 13, München, Germany
© 2016 RF360 Europe GmbH and/or its affiliated companies. All rights reserved.
These materials, including the information contained herein, may be used only for informational purposes by
the customer. The RF360 Subsidiaries assume no responsibility for errors or omissions in these materials or
the information contained herein. The RF360 Subsidiaries reserve the right to make changes to the product(s)
or information contained herein without notice. The materials and information are provided on an AS IS basis,
and the RF360 Subsidiaries assume no liability and make no warranty or representation, either expressed or
implied, with respect to the materials, or any output or results based on the use, application, or evaluation of
such materials, including, without limitation, with respect to the non-infringement of trademarks, patents,
copyrights or any other intellectual property rights or other rights of third parties.
No use of this documentation or any information contained herein grants any license, whether express, implied,
by estoppel or otherwise, to any intellectual property rights, including, without limitation, to any patents owned
by QUALCOMM Incorporated or any of its subsidiaries.
Not to be used, copied, reproduced, or modified in whole or in part, nor its contents revealed in any manner to
others without the express written permission of RF360 Europe GmbH.
Qualcomm and Qualcomm RF360 are trademarks of Qualcomm Incorporated, registered in the United States
and other countries. RF360 is a trademark of Qualcomm Incorporated. Other product and brand names may be
trademarks or registered trademarks of their respective owners.
This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws.
Diversion contrary to U.S. and international law is strictly prohibited.
SAW Components
SAW Duplexer
Data sheet
Application
s
Low-loss SAW duplexer for mobile telephone
s
s
s
s
s
B8628
710.0 / 740.0 MHz
LTE Band 17 systems
High attenuation
Low amplitude ripple
Usable passband 12 MHz
Single-ended duplexer
Very small size and low height
Features
s
s
s
s
s
s
s
0.3
1
2
3
0.35
0.475 max.
Package size 1.8 * 1.4 mm
2
Package height: maximum 0.475 mm
RoHS compatible
Package for
Surface Mount Technology
(SMT)
Ni, Au-plated terminals
Electrostatic Sensitive Device
(ESD)
Moisture Sensitivity Level
3
0.7
7
6
5
0.25
0.25
4
8
4
bottom view
side view
1.8
7
6
5
1.4
8
top view
1
2
3
Pin configuration
s
s
s
s
3
1
6
2, 4, 5, 7, 8
Tx input
Rx output
Antenna
To be grounded
Please read
cautions and warnings and
important notes
at the end of this document.
2
May 19, 2015
SAW Components
SAW Duplexer
Data sheet
Characteristics
Temperature range for specification:
TX terminating impedance:
ANT terminating impedance:
RX teminating impedance:
T = –20 ˚C to +90 ˚C
Z
Tx
= 50
Ω
Z
Ant
= 50
Ω
|| 15 nH
Z
Rx
= 50Ω
B8628
B8628
710.0 / 740.0 MHz
Characteristics Tx-Antenna
Center frequency
f
c
min.
-
typ.
@ 25 ˚C
710
max.
-
MHz
Maximum insertion attenuation
α
704.34 ... 715.66 MHz
Amplitude ripple
(p-p)
704.34 ...
Input VSWR (Tx port)
704.0 ...
Output VSWR (Ant Port)
704.0 ...
∆α
715.66 MHz
-
-
1.6
0.5
2.3
1.1
dB
dB
716.0
716.0
MHz
MHz
-
-
1.4
1.5
2.0
2.0
Please read
cautions and warnings and
important notes
at the end of this document.
3
May 19, 2015
