55PC1122-18-9/96-9 datasheet, PDF

Datasheet> All Categories > Wire/cable> 55PC1122-18-9/96-9

55PC1122-18-9/96-9: Description55PC1122-18-9/96-9; CategoryWire/cable; File Size21KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55PC1122-18-9/96-9 Overview

55PC1122-18-9/96-9

55PC1122-18-9/96-9 Parametric

Parameter Name	Attribute value
Cable type	Spec 55PC
shield	yes
Cable type	Surround braided shield and jacket
Number of shares	19
Rated voltage (V)	600
shielding material	silver coated copper, silver coated copper
Insulation Materials	Irradiation cross-linked modified ETFE
Insulating sleeve color	White
conductor material	silver coated copper, silver coated copper
Wire size (AWG)	18
Operating temperature range (°C)	-65 – 200

Preview

Download Datasheet

View All

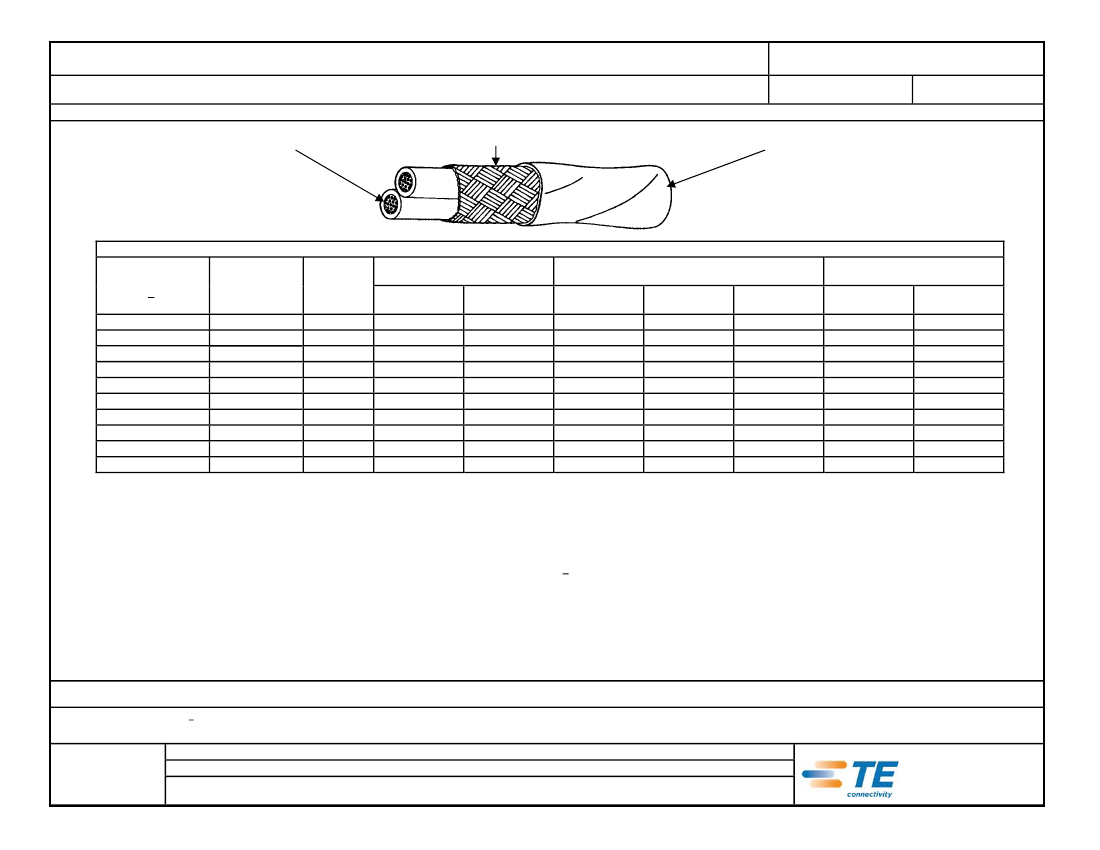

SPECIFICATION CONTROL DRAWING

Title

SCD

55PC1122

Revision

TWO CONDUCTOR CABLE, SHIELDED, JACKETED, GENERAL PURPOSE, 600 VOLT

This specification sheet forms a part of the latest issue of Raychem Specification 55PC.

COMPONENT WIRES - 55PC0112

SHIELD - SILVER-COATED COPPER

Date

5-14-15

JACKET - RADIATION-CROSSLINKED,

MODIFIED ETFE

PART NUMBER

55PC1122-24-*

55PC1122-22-*

55PC1122-20-*

55PC1122-18-*

55PC1122-16-*

55PC1122-14-*

55PC1122-12-*

55PC1122-10-*

55PC1122-8-*

55PC1122-6-*

CONDUCTOR

SIZE

(AWG)

SHIELD

SIZE

(AWG)

CABLE CONSTRUCTION DETAILS

JACKET THICKNESS

OUTSIDE DIAMETER

(inch)

LOWER

TARGET

LOWER

TARGET

UPPER

SPEC LIMIT

WALL

SPEC LIMIT

VALUE

SPEC LIMIT

.0050

.0065

.097

.101

.105

.0050

.0065

.109

.114

.119

.0055

.0070

.126

.130

.134

.0055

.0070

.145

.149

.154

.0055

.0070

.159

.164

.169

.0060

.0075

.189

.194

.199

.0060

.0080

.227

.233

.238

.0065

.0085

.280

.291

.302

.0070

.0090

.394

.415

.436

.0070

.0090

.486

.512

.538

CABLE RATINGS AND ADDITIONAL REQUIREMENTS

WEIGHT

(lbs/1000 ft.)

TARGET

UPPER

VALUE

SPEC LIMIT

8.55

8.91

11.10

11.60

14.95

15.44

20.40

21.03

24.81

25.54

35.52

36.41

51.71

52.88

81.65

85.95

147.76

152.88

229.27

236.76

TEMPERATURE RATING: 200°C

Maximum continuous conductor temperature

VOLTAGE RATING: 600 volts (rms) at sea level

CROSSLINKED VERIFICATION: 300 ± 3°C for 1 hour

DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz

JACKET COLOR: White preferred

JACKET ELONGATION AND TENSILE STRENGTH:

Elongation, 50% (minimum)

Tensile Strength, 5000 lbf/in

(minimum)

JACKET FLAWS:

Spark Test, 1000 volts (rms)

Impulse Dielectric Test, 6.0 kV (peak)

SHIELD COVERAGE: 85% (minimum)

VOLTAGE WITHSTAND (Post Environmental):

1000 volts (rms), 60 Hz, 1 minute

1/ PART NUMBER:

The "*" in the part numbers above shall be replaced by color code

designators with a slash separating the component wire colors and a

dash separating the component wire colors from the jacket color.

Example: AWG 22, red and blue component wires; white jacket:

55PC1122-22-2/6-9

Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.

Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.

1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,

AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: "901/902..." MAY BE REPLACED BY "Axxx".) OTHER CODES

AND SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.

Raychem, TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks.

Raychem Wire & Cable

501 Oakside Avenue

Redwood City, CA 94063-3800

Phone: 1-800-227-8816

Fax: 1-650-361-6297

Page 1 of 1

DIMENSIONS ARE IN INCHES AND, UNLESS OTHERWISE DESIGNATED, ARE NOMINAL.

THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.

REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.

55PC1122-18-9/96-9 Related Products

	55PC1122-18-9/96-9	55PC1122-20-6/9-94	55PC1122-16-5/9-3	55PC1122-12-9/96-9	55PC1122-20-9/96-9	55PC1122-22-6/9-9	55PC1122-18-6/9-9	55PC1122-16-6/9-9	55PC1122-16-9/96-9	55PC1122-24-6/9-9
Description	55PC1122-18-9/96-9	55PC1122-20-6/9-94	55PC1122-16-5/9-3	55PC1122-12-9/96-9	55PC1122-20-9/96-9	55PC1122-22-6/9-9	55PC1122-18-6/9-9	55PC1122-16-6/9-9	55PC1122-16-9/96-9	55PC1122-24-6/9-9
conductor material	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	COPPER	silver coated copper, silver coated copper	silver coated copper, silver coated copper
Cable type	Surround braided shield and jacket	Surround braided shield and jacket	Surround braided shield and jacket	Sheathed shield winding braid	Surround braided shield and jacket	Sheathed shield winding braid	Sheathed shield winding braid	-	Sheathed shield winding braid	Surround braided shield and jacket
shield	yes	yes	yes	yes	yes	-	-	YES	-	yes
Number of shares	19	19	19	37	19	-	-	-	-	19
Rated voltage (V)	600	600	600	600	600	600	600	-	600	600
shielding material	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	-	silver coated copper, silver coated copper	silver coated copper, silver coated copper
Insulating sleeve color	White	White with yellow stripes	orange color	White	White	White	White	-	White	White
Wire size (AWG)	18	20	16	12	20	22	18	-	16	24
Operating temperature range (°C)	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-	-65 – 200	-65 – 200
