0916273001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0916273001

0916273001: Description5 CCT RAST PWR IDT CONN W/O LTC; CategoryThe connector; File Size4MB，32 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric View All

0916273001 Overview

5 CCT RAST PWR IDT CONN W/O LTC

0916273001 Parametric

Parameter Name	Attribute value
Connector type	socket
Contact type	Housing contacts
Number of pins	5
spacing	0.197"（5.00mm）
Number of rows	1
spacing	-
Installation type	Free hanging, right angle
Fastening type	-
Cable termination	IDC
Cable type	Discrete
Wire gauge	18-22 AWG
characteristic	-
Contact plating	tin
Contact plating thickness	-
color	natural

Preview

Download Datasheet

View All

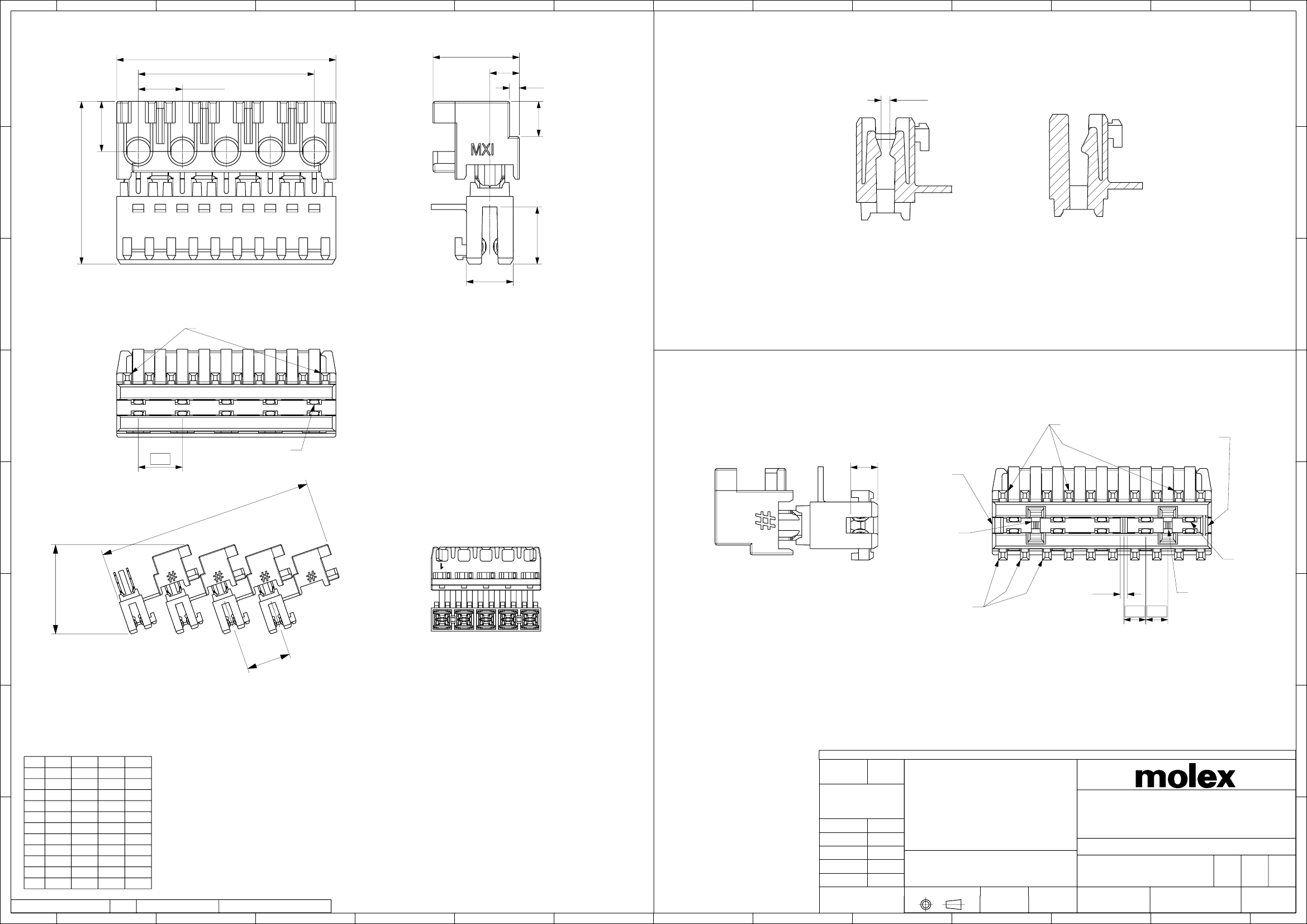

+0.20

-0.10

A REF

9.80

0.15

3.35

1.10

FULL LATCH

0.80

REF

HALF LATCH

5.0

PITCH

18.50

5.70

4.00

5.30

6.50

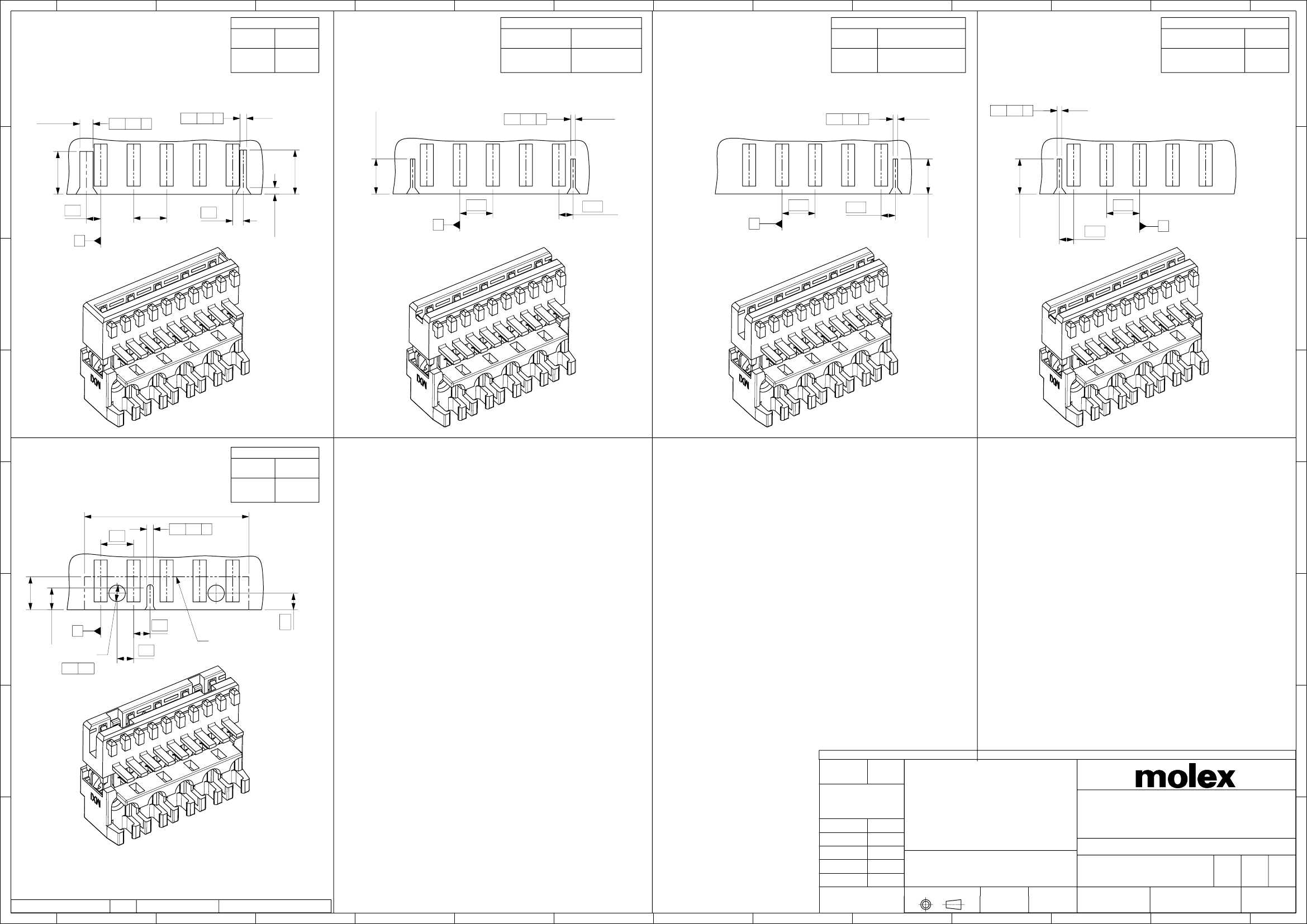

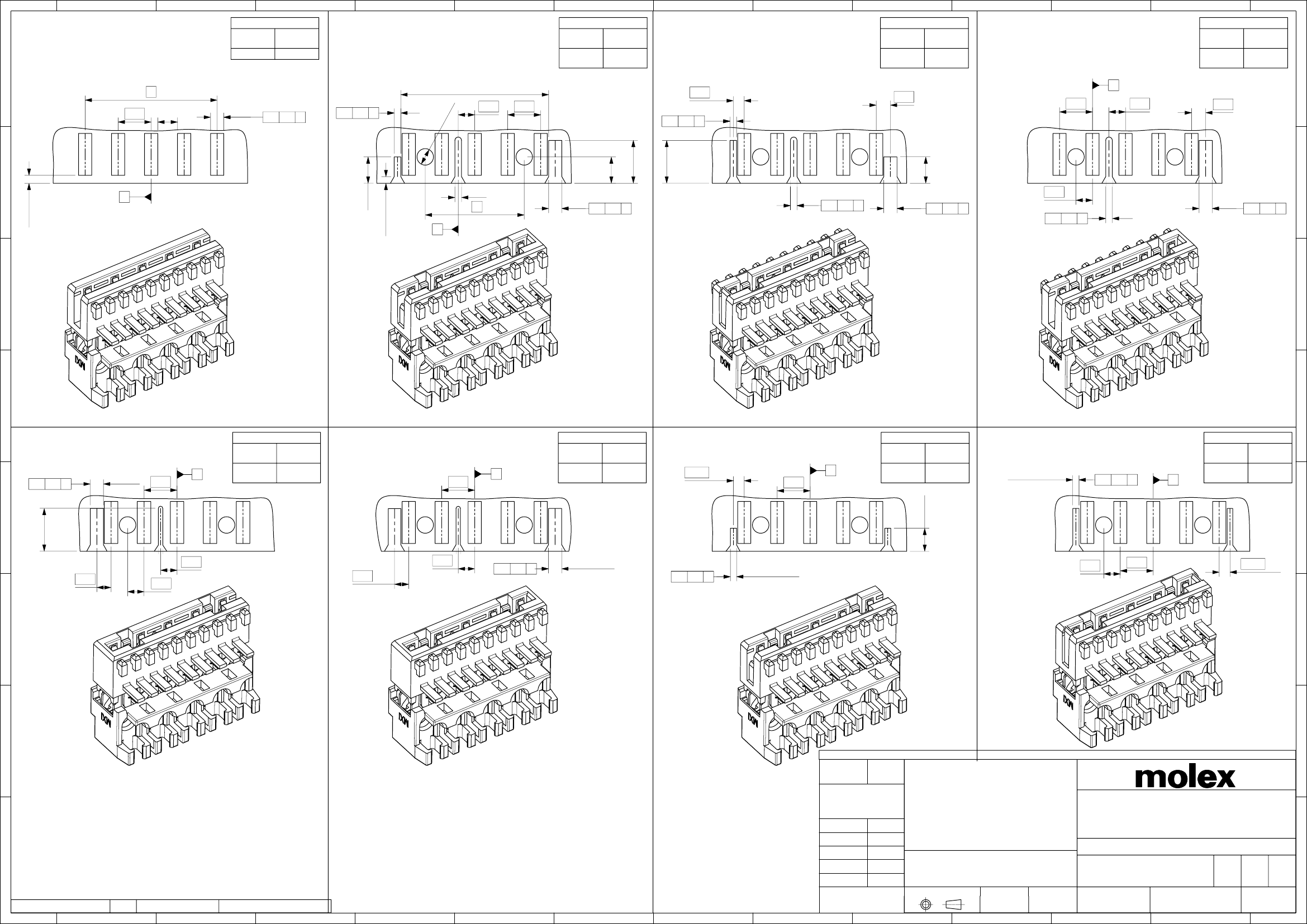

CODING KEYS

*SEE NOTE 6 FOR LATCHING INFORMATION

ADDITIONAL OPTIONS

STANDARD

ROW OF CODING KEYS

FIRST CKT

END-WALL

5.00

CCT 1

3.10

LAST CKT

END-WALL

piec

REF

= 52

SURFACE FOR

COLCUR STRIPE

SEE NOTE 8

LAST CKT

LATCH

NOTE 6

CKT NO.1

REF

0.80

OPTION FOR DUAL

ROW OF CODING KEYS

USE a2,b2,c2 etc

2.50 2.50

FIRST CKT

LATCH

NOTE 6

SHIPPING ARRAY

CKT

DIM A

DIM B

9.9

14.9

19.9

24.9

29.9

34.9

39.9

44.9

49.9

54.9

59.9

DIM C

DIM D

7.3

12.3

17.3

22.3

27.3

32.3

37.3

42.3

47.3

52.3

57.3

NOTES:

1. MATERIAL: HOUSING: PA 6

TERMINAL:PHOSPHOR BRONZE OR COPPER ALLOY

PLATING: TIN(6A) OR SILVER(10A)

2. PRODUCT SPECIFICATION: PS-91627-001

3. SEE SUBSEQUENT SHEETS FOR PART NUMBERING INFORMATION

4. LATCHES RECOMMENDED WHERE LOCKING VIA HEADER,

GUIDEFRAME OR COMPONENT ENCLOSURE IS NOT POSSIBLE.

5. APPLICATION SPECIFICATION: AS-91627-001

6. 2 CCT OPTIONS WITH LATCH WILL HAVE HALF LATCH ONLY

3CCT OPTIONS WITH 2 LATCHES WILL HAVE HALF LATCH

BETWEEN CCTS 1&2 AND FULL LATCH BETWEEN CCTS 2&3

7. PACKAGING SPECIFICATION: PK-91627-001

8. COLOUR STRIPE IS OPTIONAL.

AVAILABLE IN THE FOLLOWING COLOURS; BLUE, RED, GREEN & BLACK.

ASTERIX IN CHART INDICATES FULL SURFACE COVERAGE.

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

ANGULAR TOL

10:1

2.0 °

CURRENT REV DESC: ADDED P/N SHT6

GENERAL TOLERANCES

(UNLESS SPECIFIED)

4 PLACES

3 PLACES

2 PLACES

1 PLACE

0 PLACES

0.1

0.2

DRWN: AKABADI

CHK'D: CFISHER01

APPR:

CMONAHAN

INITIAL REVISION:

DRWN:

CFISHER01

APPR: BRUTTLE

THIRD ANGLE PROJECTION

DRAWING

EC NO:

604130

2018/09/07

2018/09/20

2018/10/15

2018/01/03

2018/02/07

SERIES

RAST PWR IDT CONN 5MM PITCH

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

916270001

MATERIAL NUMBER

CUSTOMER

PSD

000

FORMAT: master-tb-prod-A2

REVISION: H

DATE: 2018/01/18

DOCUMENT STATUS

RELEASE DATE

2018/10/15

09:30:17

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

A2-SIZE

91627

SEE TABLES

1 OF 11
