Part Number

Search

5452391

Description
TERM BLOCK HDR 4POS VERT 5MM
CategoryThe connector
File Size85KB,4 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Environmental Compliance
Download Datasheet Parametric View All

5452391 Online Shopping

Suppliers Part Number Price MOQ In stock
5452391 - - View Buy Now

5452391 Overview

TERM BLOCK HDR 4POS VERT 5MM

5452391 Parametric

Parameter NameAttribute value
typeConnector, male pins, shrouded (2 sides)
Number of pins4
Number of pins per level4
Number of levels1
spacing0.197"(5.00mm)
Needle seat directionVertical
Plug entrance-
Terminal typewelding
Installation typeThrough hole
Current - IEC12A
Voltage - IEC320V
Current - UL15A
Voltage - UL300V
Wire Gauge or Range - AWG-
Wire gauge or range - mm²-
colorblack
Operating temperature-
Contact mating surface treatmenttin
characteristic-
Material flammability rating-
Intrusion protection-
Screw size-
Torque - Screws-
Wire stripping length-
Contact material-
Shell material-
Contact tail length0.154"(3.90mm)
Insulation height0.472"(12.00mm)
https://www.phoenixcontact.com/us/products/5452391

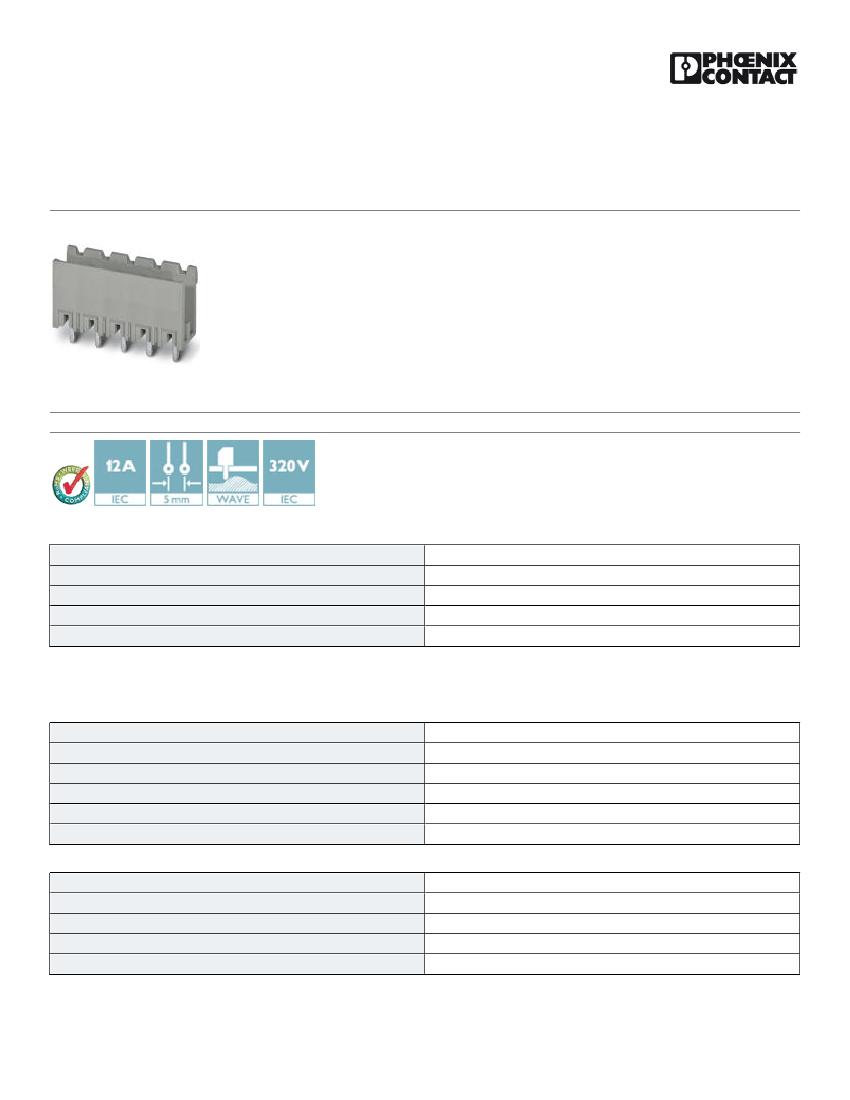

Printed-circuit board connector - BCH-500V- 4 BK - 5452391
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 4, Pitch: 5 mm, Color: black,
Contact surface: Tin, Mounting: Wave soldering
The figure shows a 5-pos. version of
the product in gray
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
100 pc
1.6 g
85366990
China
Technical data
Dimensions
Length
Pitch
Dimension a
Length of the solder pin
Pin dimensions
Hole diameter
8.6 mm
5.00 mm
15 mm
3.9 mm
1 x 1 mm
1.4 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
BCH-V
I
4 kV
4 kV
4 kV
05/03/2016   Page 1 / 4
