The V Series LED Array products deliver high quality light in a compact and cost-effective solid-state lighting package.
These Chip-on-Board (CoB) arrays can be efficiently driven at twice the nominal drive current, enabling design flexibility
not previously possible. This high flux density light source is designed to support a wide range of high quality, low cost
directional luminaires and replacement lamps for commercial and residential applications.
The V6 LED Array is available in a variety of electrical, CCT and CRI combinations providing substantial design flexibility
and energy efficiencies.
Lighting system designs incorporating these LED Arrays deliver comparable performance to 7-13 Watt compact
fluorescent and 25 - 50 Watt incandescent and halogen based luminaires, delivering increased system level efficacy and
longer service life. Typical applications include, but are not limited to, replacement lamps, task, accent, spot, track, down
light, wide area, security, and wall pack.
Features
Benefits
•
•
•
•
•
•
•
•
•
Efficacy of 130 lm/W typical
Compact high flux density light source
Uniform high quality illumination
Minimum 70, 80 and 90 CRI options
Streamlined thermal path
Energy Star / ANSI compliant color binning structure
with 3SDCM and 4SDCM options
More energy efficient than incandescent, halogen and
fluorescent lamps
Low voltage DC operation
Instant light with unlimited dimming
•
•
•
•
•
•
•
•
•
Enhanced optical control
Clean white light without pixilation
High quality true color reproduction
Significantly reduced thermal resistance and
increased operating temperatures
Uniform consistent white light
Lower operating costs
Easy to use with daylight and motion detectors to
enable increased energy savings
Reduced maintenance costs
Environmentally friendly, no disposal issue
V Series
Contents
Product Feature Map
Product Nomenclature
Product Selection Guide
Performance at Commonly Used Drive Currents
Electrical Characteristics
Absolute Maximum Ratings
Performance Curves
Typical Radiation Pattern
Typical Color Spectrum
Mechanical Dimensions
Color Binning Information
Packaging and Labeling
Design Resources
Precautions
Disclaimers
About Bridgelux
2
2
3
4
7
8
9
13
14
15
16
17
19
19
19
20

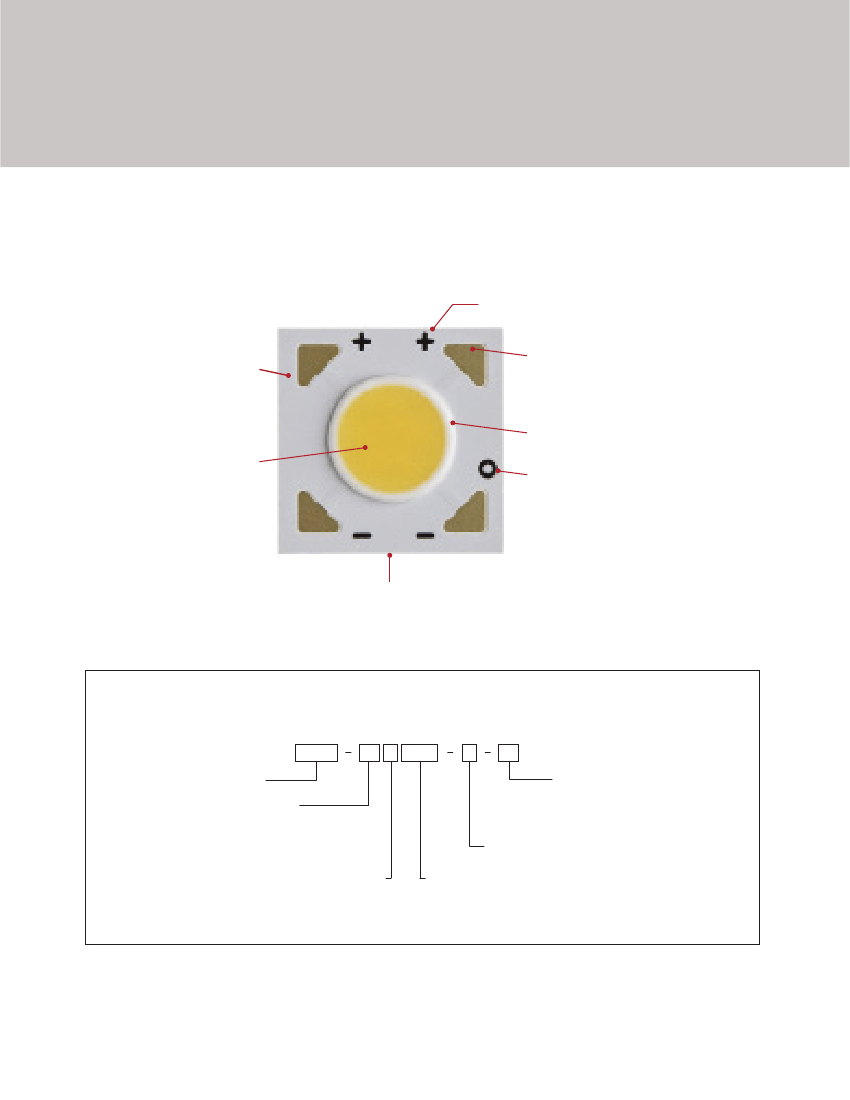

Product Feature Map
Bridgelux arrays are fully engineered devices that provide
consistent thermal and optical performance on an
engineered mechanical platform. The V Series arrays are
the most compact chip-on-board devices across all of
Bridgelux’s LED Array products. The arrays incorporate
several features to simplify design integration and assembly.
Polarity symbols
Fully engineered substrate
for consistent thermal, mechanical
and optical properties
Solder pads
White ring around LES
Yellow phosphor Light
Emitting Surface (LES)
Case Temperature (T
c
) measurement point
Note: Part number and lot codes are scribed on back of array
Product Nomenclature
The part number designation for Bridgelux V Series LED arrays is explained as follows:
1 2 3 4
5 6
7
8 9 10 11
12
13 14
BXRE
Product Family
Product Family
27 = 2700K
30 = 3000K
40 = 4000K
50 = 5000K
30 E 0400
A
23
Color Control Bin Options
23 = 3 SDCM
24 = 4 SDCM
Array Configuration
Minimum CRI
C = 70 CRI
E = 80 CRI
G = 90 CRI
Flux Indicator
0400 = 400lm
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25ºC)
Part Number
BXRE-27E0400-A-2x
BXRE-27E0400-B-2x
BXRE-27G0400-A-2x
BXRE-27G0400-B-2x
BXRE-30E0400-A-2x
BXRE-30E0400-B-2x
BXRE-30G0400-A-2x
BXRE-30G0400-B-2x
BXRE-35E0400-A-2x
BXRE-35E0400-B-2x
BXRE-35G0400-A-2x
BXRE-35G0400-B-2x
BXRE-40E0400-A-2x
BXRE-40E0400-B-2x
BXRE-50C0400-A-24
BXRE-50C0400-B-24
BXRE-50E0400-A-24
BXRE-50E0400-B-24
Nominal CCT
1
(K)
2700
2700
2700
2700
3000
3000
3000
3000
3500
3500
3500
3500
4000
4000
5000
5000
5000
5000
CRI
2
80
80
90
90
80
80
90
90
80
80
90
90
80
80
70
70
80
80
Nominal Drive
Current
3
(mA)
175
350
175
350
175
350
175
350
175
350
175
350
175
350
175
350
175
350
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
381
381
320
320
400
400
334
334
403
403
344
344
426
426
439
439
416
416
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
362
362
283
283
372
372
309
309
371
371
310
310
411
411
403
403
400
400
Typical V
f
(V)
18.0
9.0
18.0
9.0
18.0
9.0
18.0
9.0
18.0
9.0
18.0
9.0
18.0
9.0
18.0
9.0
18.0
9.0
Typical
Power (W)
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
Typical
Efficacy
(lm/W)
121
121
102
102
127
127
106
106
128
128
109
109
135
135
139
139
132
132
Table 2:
Selection Guide, Stabalized DC Performance (T
c
= 85ºC)
8,9
Part Number
BXRE-27E0400-A-2x
BXRE-27E0400-B-2x
BXRE-27G0400-A-2x
BXRE-27G0400-B-2x
BXRE-30E0400-A-2x
BXRE-30E0400-B-2x
BXRE-30G0400-A-2x
BXRE-30G0400-B-2x
BXRE-35E0400-A-2x
BXRE-35E0400-B-2x
BXRE-35G0400-A-2x
BXRE-35G0400-B-2x
BXRE-40E0400-A-2x
BXRE-40E0400-B-2x
BXRE-50C0400-A-24
BXRE-50C0400-B-24
BXRE-50E0400-A-24
BXRE-50E0400-B-24
Nominal CCT
1
(K)
2700
2700
2700
2700
3000
3000
3000
3000
3500
3500
3500
3500
4000
4000
5000
5000
5000
5000
CRI
80
80
90
90
80
80
90
90
80
80
90
90
80
80
70
70
80
80
2
Nominal Drive
Current
3
(mA)
175
350
175
350
175
350
175
350
175
350
175
350
175
350
175
350
175
350
Typical DC
Flux
T
c
= 85ºC
(lm)
337
337
283
283
354
354
295
295
356
356
304
304
380
380
381
381
361
361
Minimum DC
Flux
10
T
c
= 85ºC
(lm)
320
320
250
250
329
329
273
273
328
328
274
274
367
367
349
349
347
347
Typical V
f
(V)
17.6
8.8
17.6
8.8
17.6
8.8
17.6
8.8
17.6
8.8
17.6
8.8
17.6
8.8
17.6
8.8
17.6
8.8
Typical
Power (W)
3.1
3.1
3.1
3.1
3.1
3.1
3.1
3.1
3.1
3.1
3.1
3.1
3.1
3.1
3.1
3.1
3.1
3.1
Typical
Efficacy
(lm/W)
110
110
92
92
115
115
96
96
116
116
99
99
124
124
124
124
118
118
Notes for Tables 1 & 2:
1.Nominal CCT as defined by ANSI C78.377-2011.
2.CRI Values are minimums. Minimum R9 value for 80 CRI products is 0, the minimum R9 values for 90 CRI products is 50.
3.Drive current is referred to as nominal drive current.
4.Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5.Typical performance values are provided as a reference only and are not a guarantee of performance.
6.Bridgelux maintains a ±7% tolerance on flux measurements.
7.Minimum flux values at the nominal test current are guaranteed by 100% test.
8.Typical stabilized DC performance values are provided as reference only and are not a guarantee of performance.
9.Typical performance is estimated based on operation under DC (direct current) with LED array mounted onto a heat sink with thermal interface material
and the case temperature maintained at 85°C. Based on Bridgelux test setup, values may vary depending on the thermal design of the luminaire and/or
the exposed environment to which the product is subjected.
10. Minimum flux values at elevated temperatures are provided for reference only and are not guaranteed by 100% production testing. Based on Bridge-
lux test setup, values may vary depending on the thermal design of the luminaire and/or the exposed environment to which the product is subjected.
