PCB Mount Filters
General purpose Chassis and PCB mount
A series of compact, high performance, low leakage PCB
and chassis mount suppression filters - with multiple
combinations of enclosure size, current ratings and ter-
mination styles. This range offers flexibility and economy.
Typical applications include industrial measuring equip-
ment, consumer electronics and low power SMPS.
•
Current ratings from 0.5A to 10A
•
Compact PCB or chassis mount footprint
•
Low profile variants (FAH)
•
PCB or fast-on terminations
•
Medical versions available
Mechanical Specifications
Manufacture:
Connections:
plastic case sealed with self-
extinguishing resin.
for PCB mounting (FA-AV) or with faston
2.8x0.5mm (FA-AA FA-DA)
Code
FAH - - 3100ZA
FAH - - 3100ZB
FAH - - 3100ZC
FAH - - 3100ZD
FAH - - 3100ZE
FAH - - 3100ZF
FAH - - 3100ZG
FAH - - 3100ZK
FAH - - 3100ZL
FAH - - 3100ZM
FAH - - 3100ZN
FAH - - 3100ZP
FAH - - 3200ZA
FAH - - 3200ZB
FAH - - 3200ZC
FAH - - 3200ZD
FAH - - 3200ZE
FAH - - 3200ZF
FAA - - 3100ZA
FAA - - 3100ZB
FAA - - 3220ZB
FAA - - 3220ZC
FAA - - 3330ZA
FAA - - 3680ZA
I
R
(A)
0.5
1
1.6
2.5
4
6.5
5
0.5
1
1.6
2.5
6.5
0.5
1
1.6
2.5
4
6.5
10
1
0.5
6.5
0.5
0.5
L
(mH)
2x40
2x10
2x6
2x2
2x1
2x1
2x2
2x40
2x10
2x6
2x2
2x1
2x40
2x10
2x6
2x2
2x1
2x1
2x1
2x10
2x40
2x1
2x40
2x40
Cx
(µF)
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
2x0.1
2x0.1
2x0.1
2x0.1
2x0.1
2x0.1
0.1
0.1
0.22
0.22
0.33
0.68
FA series
Filter Range
Cy
(pF)
2x2500
2x2500
2x2500
2x2500
2x2500
2x2500
2x2500
2x4700
2x4700
2x4700
2x4700
2x4700
I
L
(mA)
2x0.23
2x0.23
2x0.23
2x0.23
2x0.23
2x0.23
2x0.23
2x0.43
2x0.43
2x0.43
2x0.43
2x0.43
2x0.02
2x0.02
2x0.02
2x0.02
2x0.02
2x0.02
2x0.23
2x0.23
2x0.20
2x0.23
2x0.43
2x0.43
R
(M )
Circ
Diag
A
A
A
A
A
A
A
A
A
A
A
A
E
E
E
E
E
E
A
A
B
A
C
C
Electrical Specifications
Rated voltage (V
R
): max 250V, 50/60Hz
Rated current (I
R
):
Voltage test (2 s.):
Climatic category:
referred to room temperature = 40°C
line to ground 3000Vdc or 1800Vac
line to line 1700Vdc
HPF (25/085/21);
Temperature range: -25°C to +85°C
Leakage current (I
L
): at 220V, 50Hz, max value
2x2500
2x2500
2x2200
2x2500
2x4700
2x4700
1
1.5
1
1
0.47
A = Faston 2.8 x 0.5mm
V = for PCB mounting
A = Case without brackets
D = Case with brackets
No approvals.
Also available in circuit B on request, no approvals.
VDE approved only.
* other variants on request
Approvals
60932-2
in progress
1283
22.2 N°8
1
11/2009
PCB Mount Filters

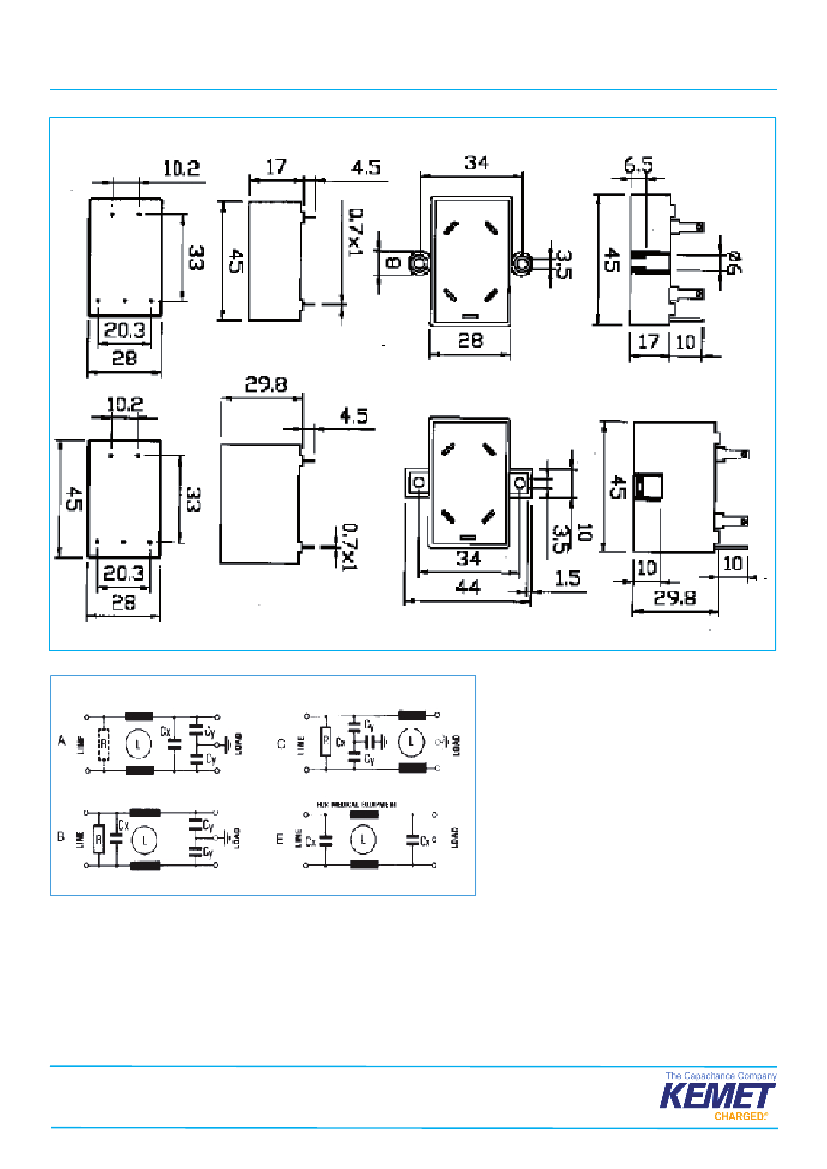

Dimensions (mm) and connections
FAH
FA series
FAA
Circuit diagram
2
11/2009
PCB Mount Filters
Insertion loss (typical):
FA series
Asymmetrical (line to ground) - - - Symmetrical (line to line)
FAH
...3100ZA ...3100ZK
...3100ZB ...3100ZL
...3100ZC ...3100ZM
...3100ZD,...3100ZE,...3100ZF,...3100ZG,...3100ZN,...3100ZP
...3200ZA
...3200ZB
...3200ZC
...3200ZD,...3200ZE,...3200ZF
3
11/2009
PCB Mount Filters

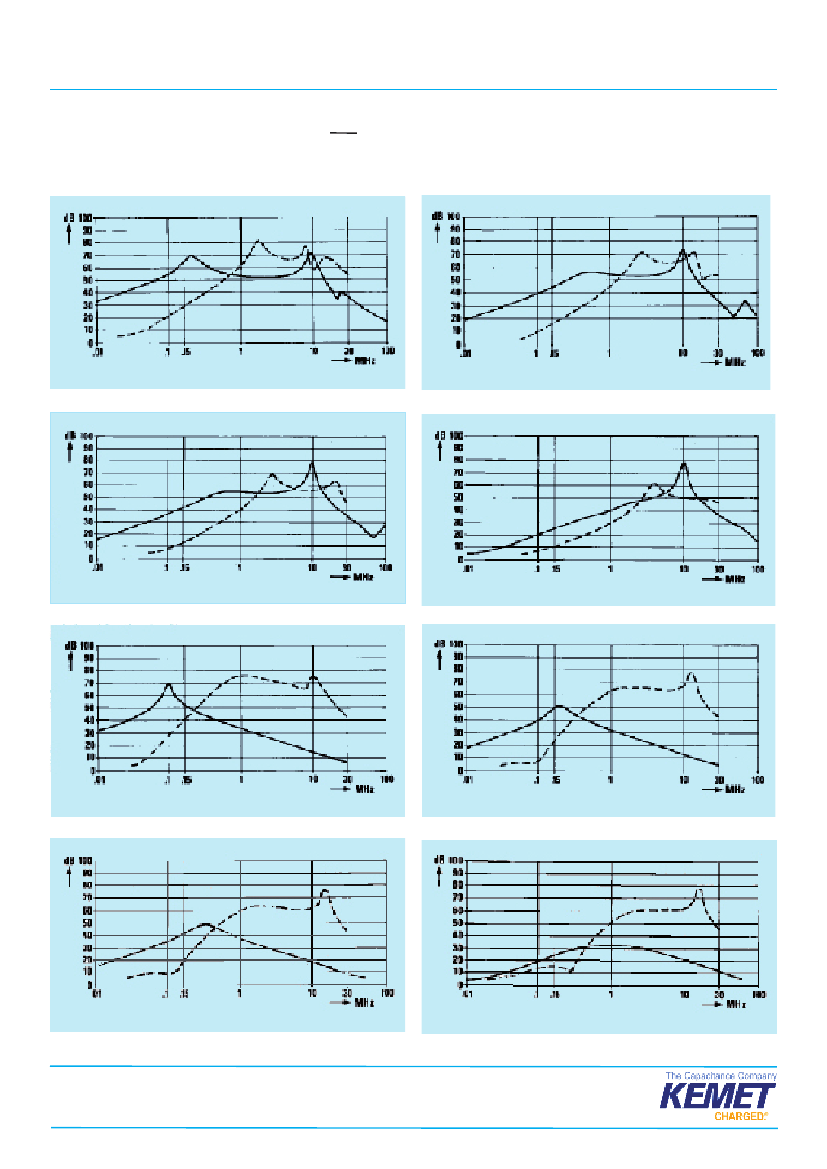

Insertion loss (typical):
FA series
Asymmetrical (line to ground) - - - Symmetrical (line to line)
FAA
...3100ZA
...3100ZB
...3220ZB
...3220ZC
...3330ZA
...3680ZA
4
11/2009
PCB Mount Filters
High performance
This range provides a high level of performance within
compact metal enclosures for printed circuit board
configurations.
Specifically designed to protect against symmetric, assy-
metric, periodic and pulse shaped RFI.
Ideal for use with office equipment, telecom products,
computers and industrial applications.
•
Current ratings from 3A to 16A
•
PCM mount termination
•
High RFI attenuation
•
Single or two stage circuit designs
•
Medical versions available
Mechanical Specifications
Manufacture:
metal case sealed with self-
extinguishing resin.
Connections:
for PCB mounting;
ground terminal connected to case.
FA series
Filter Range
Code
FAMAV3600ZC010
FAMAV3600ZI010
FAMAV3940ZA
FAMAV3940ZB001
UL approval only
* other variants on request
Electrical Specifications
Rated voltage (V
R
): max 250V, 50/60Hz
Rated current (I
R
): referred to room temperature = 40°C
Leakage current (I
L
): at 220V, 50Hz, max value
Voltage test (2 s.): line to ground 3000Vdc or 1800Vac
line to line 1700Vdc
Climatic category: HPF (25/085/21);
Temperature range: -25°C to +85°C
I
L
(mA)
2x0.23
2x0.62
2x0.62
R
(M )
1
1
0.33
0.68
Circ
diag
A
A
B
C
I
R
(A)
16
16
3.3
3.3
Cy1
L
L
1
Cx
1
Cx
2
(pF)
(mH) (mH) (µF) (µF)
2x1
0.6 2x2500
2x1
0.6 2x6800
2x13
0.47 0.47 2x6800
Cy2
(pF)
2x13 2x1
0.47 0.47
2x6800
2x1000 2x.072
Dimensions (mm) and connections
Circuit diagram
Approvals
in progress
1283
22.2 N°8
5
11/2009
