JFA
CONNECTOR J-PF3 PRESS FIT TYPE
Specifications –––––––––––––––––––
• Current rating: (AC, DC)
Circuits
4
5
6
10
#14
13.0
13.0
12.5
11.5
#16
11.5
11.5
11.0
10.0
Wire size (AWG)
#18
#20
9.5
8.0
9.5
8.0
9.0
7.5
8.5
7.0
#22
6.5
6.5
6.0
5.5
Unit: A
#24
5.5
5.5
5.0
4.5
• Voltage rating: 250 V
• Temperature range: -55°C to +105°C
(including temperature rise in applying
electrical current)
• Applicable PC board thickness: 2.4 to 3.4 mm
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
* Compliant with RoHS.
Standards ––––––––––––––––––––––
• Press fit contact is adopted.
• Easy PC board layout
• Use the receptacle contact of J300 series
1
Certified LR20812
2
R50133261
0
Recognized E60389

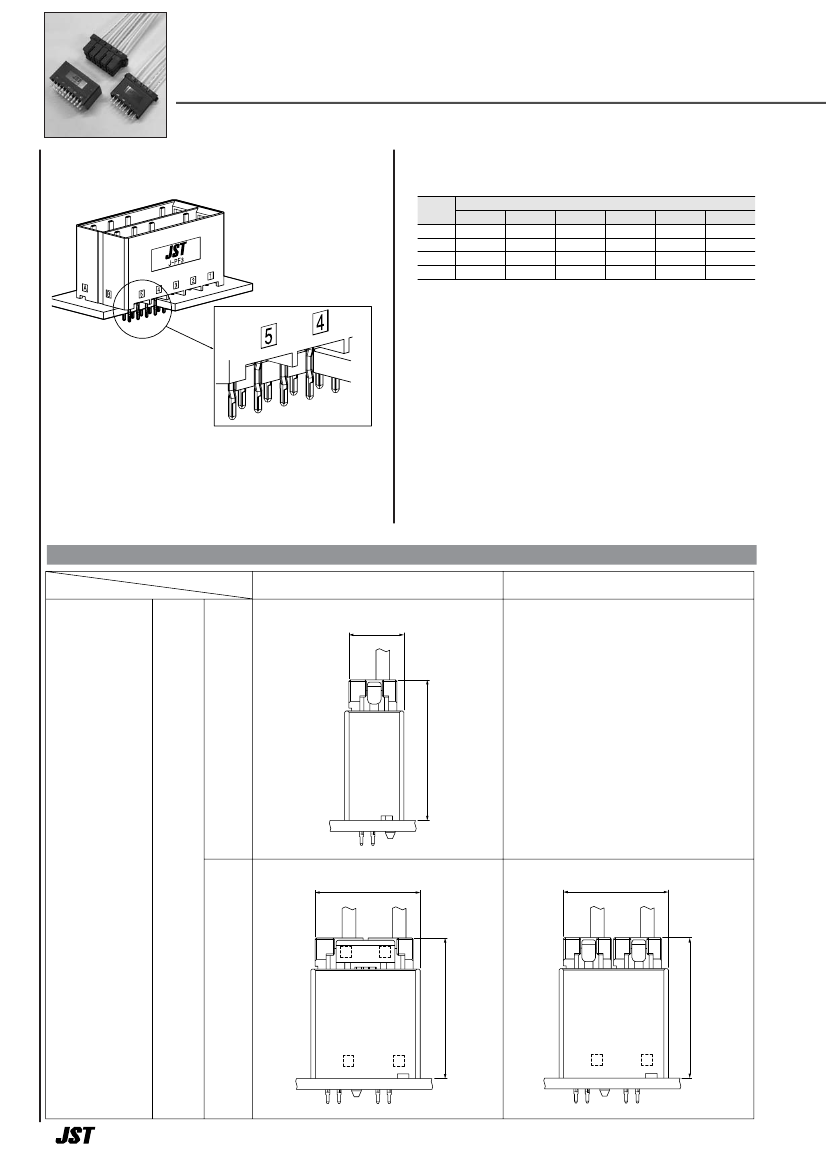

Assembly layout
When using J-PF3 receptacle
When using J-PF3 receptacle modular
(12.1)
Single-row
Wire-to-board
Top entry type
(30.9)
(23.1)
(23.1)
Double-row
(30.9)
B
A
B
A
1
(30.9)
A
B
J300 SERIES/J-PF3 PRESS FIT TYPE
Receptacle contact
Model No.
Strip contact
Loose piece
SF3F-002(*)-P2.0 BF3F-002(*)-P2.0
SF3F-01(*)-P2.0 BF3F-01(*)-P2.0
SF3F-41(*)-P2.0 LF3F-41(*)-P2.0
*SF3F-71(*)-P2.0 *BF3F-71(*)-P2.0
Size
S
M
L
2L
Q’ty
Applicable wire
Insulation O.D.
Box
(mm)
mm
2
reel
(Loose piece)
AWG#
0.08∼0.20
0.20∼0.50
0.50∼1.25
1.25∼2.0
28∼24
24∼20
20∼16
16∼14
0.8∼1.4
1.2∼2.6
1.8∼2.8
2.4∼3.4
3,700
3,700
3,200
3,200
1,000
1,000
1,000
1,000
17.9(18.4/2L)
Material and Finish
17.9(18.4/2L)
(5.3 5.8/2L)
(2.5 3.0/2L)
(9.3)
Copper alloy (superior conductivity), nickel-undercoated, selective gold-plated
RoHS compliance
Note: Finish (*):GF...Nickel-undercoated, 0.38
μ
m selective gold-platad
GI....Nickel-undercoated, 0.76
μ
m selective gold-platad

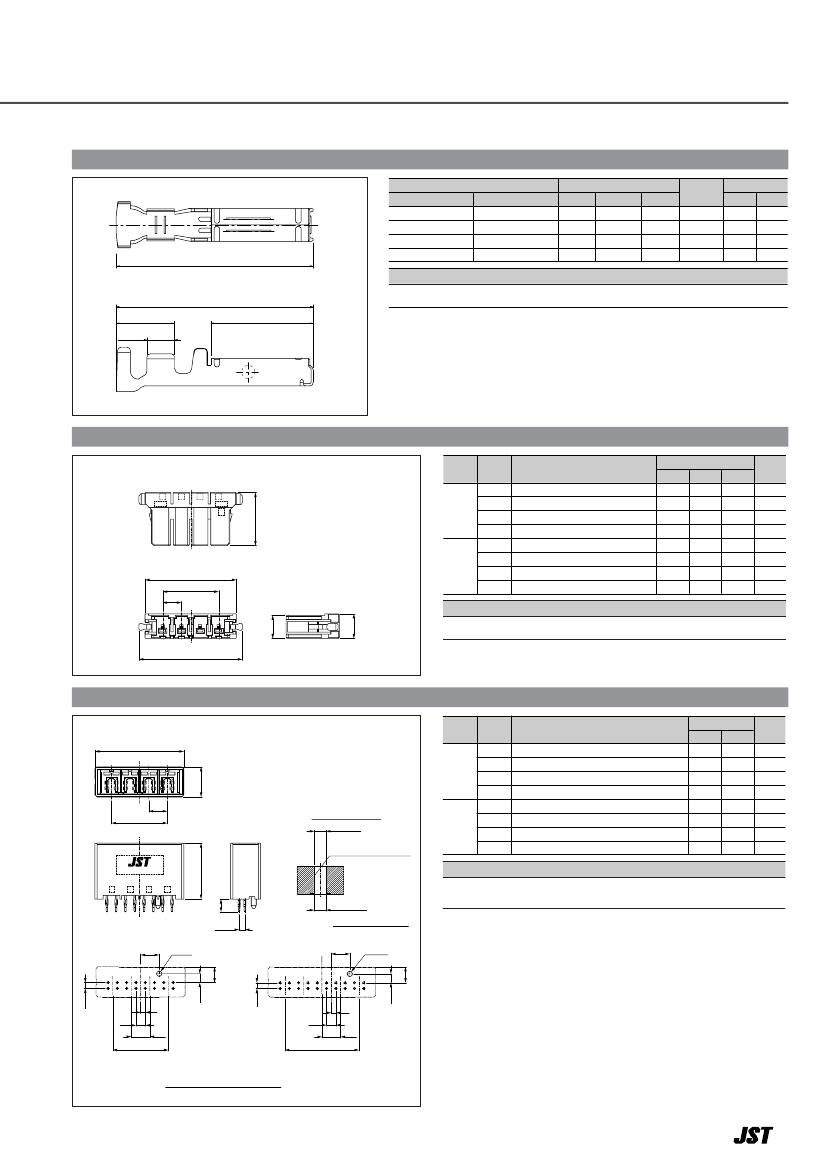

Receptacle housing
Single-row type
J-PF3
Circuits Keying
X
22.8
4
Y
V
W
X
5
B
A
Y
V
W
1
2
3
Model No.
JPF3FSS-04V-KX
JPF3FSS-04V-KY
*JPF3FSS-04V-KV
*JPF3FSS-04V-KW
JPF3FSS-05V-KX
JPF3FSS-05V-KY
*JPF3FSS-05V-KV
*JPF3FSS-05V-KW
Material
Dimensions (mm)
A
B
C
24.0
24.0
24.0
24.0
32.0
32.0
32.0
32.0
39.2
39.2
39.2
39.2
47.2
47.2
47.2
47.2
44.4
44.4
44.4
44.4
52.4
52.4
52.4
52.4
Q’ty/
bag
100
100
100
100
100
100
100
100
8
10.5
9.9
(C)

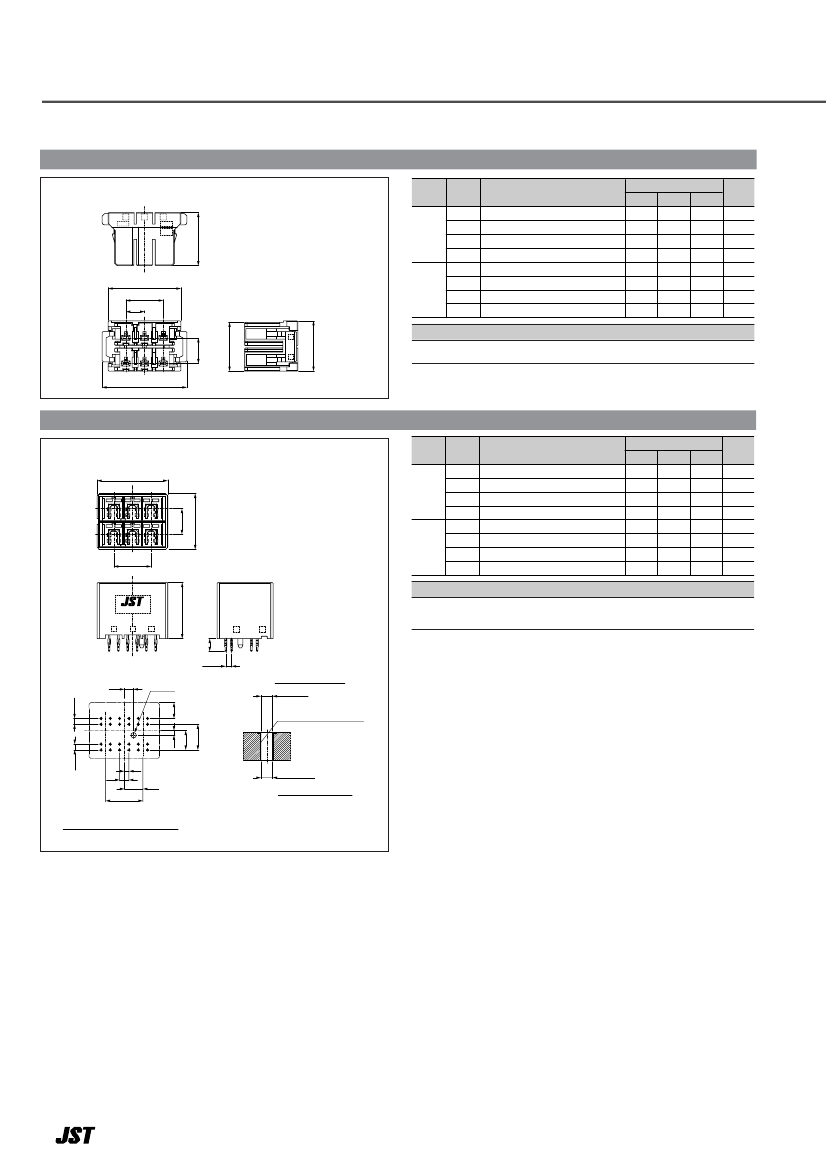

Header Top entry type (Press fit type)
Single-row type
B
4
13
X
X
8
A
J-PF3
24
4
3
2
1
5.5
2.5
8
φ2.3
6.8
3.8
2.5
2
4
8
A
2.5
2
4
8
A
4 circuits
PC board layout
(viewed from component side)
5 circuits
3.8
6.8
X
4
JST
Thermoplastic resin, UL94V-0, black
RoHS compliance
Note: 1. Not CSA/TÜV approved.
2. *Marked products are not approved by UL/CSA/TÜV standards.
Circuits Keying
X
Y
V
W
Finished diameter
φ1
±0.05
Copper through-hole
plated
X
5
Y
V
W
Model No.
B04B-JPF3SK-GKXR
B04B-JPF3SK-GKYR
*B04B-JPF3SK-GKVR
*B04B-JPF3SK-GKWR
B05B-JPF3SK-GKXR
B05B-JPF3SK-GKYR
*B05B-JPF3SK-GKVR
*B05B-JPF3SK-GKWR
Material and Finish
Dimensions (mm) Q’ty/
box
A
B
24.0
24.0
24.0
24.0
32.0
32.0
32.0
32.0
38.3
38.3
38.3
38.3
47.2
47.2
47.2
47.2
168
168
168
168
144
144
144
144
φ
1.1
±0.025
Prepared hole size
Post: Copper alloy, gold-plated
Housing: Thermoplastic resin, UL94V-0, black
8
φ2.3
RoHS compliance
Note: 1. Contact JST for jig for press fit.
2. Not CSA/TÜV approved.
3. *Marked products are not approved by UL/CSA/TÜV standards.
2
J300 SERIES/J-PF3 PRESS FIT TYPE
Receptacle housing
Double-row type
J-PF3
Circuits Keying
XX
22.8
6
YY
XY
YX
XX
1
Model No.
JPF3FMS-06V-KXX
JPF3FMS-06V-KYY
JPF3FMS-06V-KXY
*JPF3FMS-06V-KYX
JPF3FMS-10V-KXX
JPF3FMS-10V-KYY
JPF3FMS-10V-KXY
*JPF3FMS-10V-KYX
Material
Dimensions (mm)
A
B
C
16.0
16.0
16.0
16.0
32.0
32.0
32.0
32.0
31.2
31.2
31.2
31.2
47.2
47.2
47.2
47.2
36.4
36.4
36.4
36.4
52.4
52.4
52.4
52.4
Q’ty/
bag
100
100
100
100
100
100
100
100
B
A
8
B
11
20.9
21.5
A
(C)
Header Top entry type (Press fit type)
Double-row type
B
6
X
X
11
24
X
A
24
J-PF3
3
2
1
5.5
C
2.5
φ2.3
6.8
2.5
4
A
2
8
2
8.3
11
PC board layout
(viewed from component side)
3
XX
X
2
3
JST
10
YY
XY
YX
Thermoplastic resin, UL94V-0, black
RoHS compliance
Note: 1. Not CSA/TÜV approved.
2. *Marked products are not approved by UL/CSA/TÜV standards.
Circuits Keying
XX
YY
XY
YX
XX
10
YY
XY
YX
Model No.
B06B-JPF3MK-GKXXR
B06B-JPF3MK-GKYYR
B06B-JPF3MK-GKXYR
*B06B-JPF3MK-GKYXR
B10B-JPF3MK-GKXXR
B10B-JPF3MK-GKYYR
B10B-JPF3MK-GKXYR
*B10B-JPF3MK-GKYXR
Material and Finish
Dimensions (mm)
A
B
C
16.0
16.0
16.0
16.0
32.0
32.0
32.0
32.0
30.3
30.3
30.3
30.3
46.3
46.3
46.3
46.3
4.0
4.0
4.0
4.0
12.0
12.0
12.0
12.0
Q’ty/
box
144
144
144
144
96
96
96
96
Post: Copper alloy, gold-plated
Housing: Thermoplastic resin, UL94V-0, black
B
A
2.5
Finished diameter
φ1
±0.05
Copper through-hole
plated
RoHS compliance
Note: 1. Contact JST for jig for press fit.
2. Not CSA/TÜV approved.
3. *Marked products are not approved by UL/CSA/TÜV standards.
φ
1.1
±0.025
Prepared hole size
J300 SERIES/J-PF3 PRESS FIT TYPE
Model number identification
Receptacle contact
Receptacle housing
S F3 F - 41 GF - P 2.0
JPF3 F S S - 04 V - K X
Form: S...Strip form, B...Loose piece
L...Loose piece with curled barrels
Series name
Kind of terminal: F...Receptacle contact
Applicable wire: 002...AWG #28
∼
#24, 01...AWG #24
∼
#20,
41...AWG #20
∼
#16, 71...AWG #16
∼
#14
Surface finish: GF...Nickel-undercoated, 0.38
μm
selective gold-plated
GI... Nickel-undercoated, 0.76
μm
selective gold-plated
Meterial: P...Copper alloy
Terminal size
Series name
Type of connector: F...Receptacle housing
Rows: S...Single-row
M...Double-row
Mounting arrangement: S...Side locking
Circuits: 4
∼
6, 10
Flammability: V...UL94V-0
Color indication: K...Black
Keying: X...X-Keying, Y...Y-Keying, XX...XX-Keying, YY...YY-Keying,
XY...XY-Keying, YX...YX-Keying, V...V-Keying, W...W-Keying
Header
B 05 B - JPF3 S K - GK X R
PC board mounting direction:
B...Top entry type
Circuits: 4
∼
6, 10
Product name: Header
Series name
Rows: S... Single-row
M... Double-row
Color indication: K...Black
Surface finish: GK...Nickel-undercoated, 0.76
μm
selective gold-plated
Keying: X...X-Keying, Y...Y-Keying, XX...XX-Keying, YY...YY-Keying,
XY...XY-Keying, YX...YX-Keying, V...V-Keying, W...W-Keying
Packaging form: R...Tray
