HMFLEX-2-1 Overview

AC/DC CONVERTER -54.5V 500W

HMFLEX-2-1 Parametric

Parameter Name	Attribute value
type	closed
Number of outputs	1
Voltage - input	176 ~ 264 VAC
Voltage - Output 1	-54.5V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (maximum)	18.35A
Power (W)	500W
application	ITE (Business)
efficiency	86%
Operating temperature	-40°C ~ 65°C
characteristic	Adjustable output, hot-swappable, I²C™ interface, load sharing, PFC, standby output, universal input
Installation type	Base installation
size/dimensions	19.00" long x 17.26" wide x 4.92" high (482.6mm x 438.4mm x 125.0mm)
Minimum load required	none
Approval	CE

Preview

Download Datasheet

View All

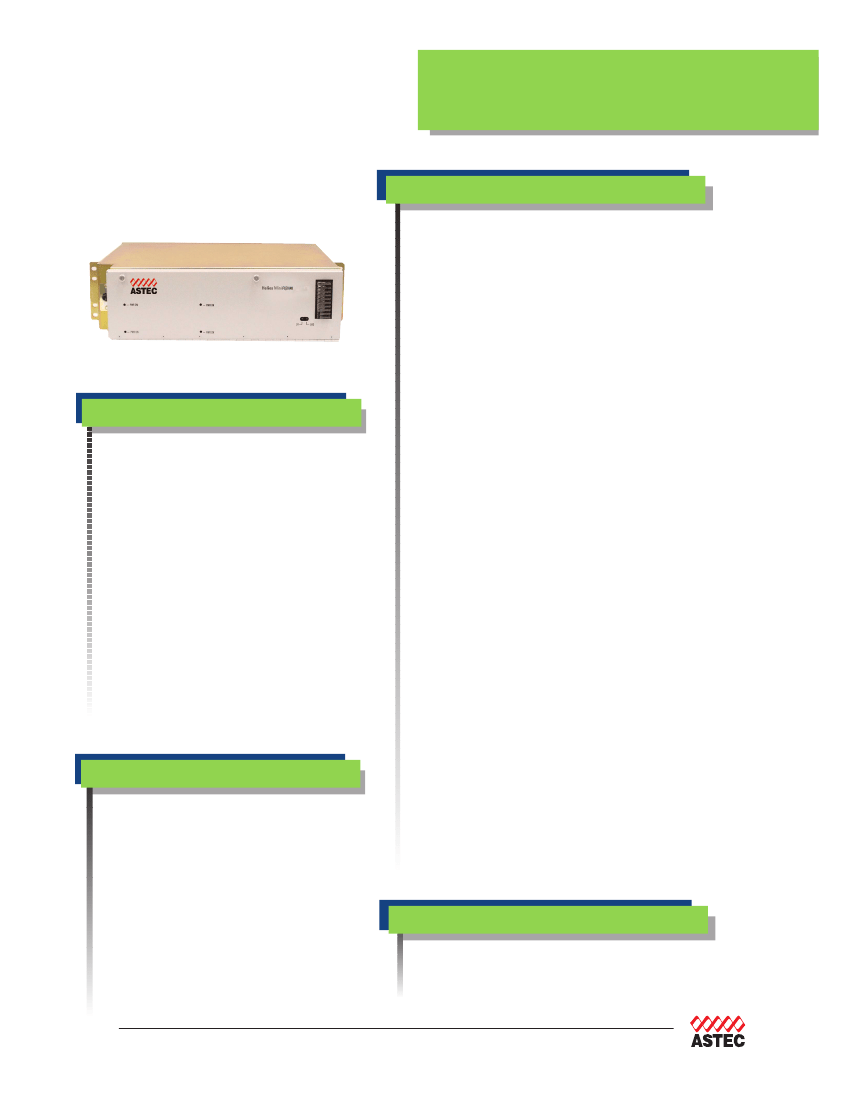

250-2600 Watts

HELIOS

Mini FLEX

2600W 48 VDC Compact Flexible Power Solution

Input

AC input voltage range

110/220VAC (86-264 VAC for 250 W,

176-264 VAC for 500 W,186-264 VAC

for 650W rectifiers)

45 – 65 Hz

> 86% at full load

0.99 (50 – 100% output load)

< 6.5% at loads over 50% of rated

current

Electrical Specs

Frequency

Efficiency

Power factor

Total harmonic distortion

Special Features

• Up to 2600 W Power Output and up to 5200 W with

optional double shelves

• Front access unit.

• Operable in 110VAC or 220VAC systems

• One to four 250W/500W/650W output rectifiers

providing up to 1950W with N+1 redundancy

• Distribution: 8 fuse positions (0 to 10A each)

• Power factor correction

• Current sharing

• Standard Low Voltage Disconnect (LVD) with LVD

bypass and LVD test.

• Hot plug-in rectifier modules

• Soft switching technology

• Brackets for 1.5 or 4.75 inch depth installation

• Full complement of LED and output alarms

• Connection for battery string

• Compact dimensions

Power shelf: 19"W x 4.94"H x 13.2"D

Battery tray: 17.3"W x 7"H x 14.46"D

• CE Marking

Output

DC output voltage range

Output Current

Maximum output power

Voltage regulation

Dynamic response

Capacitor precharge

Voice frequency noise

High frequency noise

-54.5 VDC ± 0.27 VDC (Factory

preset)

18.35A (1000W), 36.70A (2000W),

47.71 A (2600W) @ -54.5 VDC

1120 W, 2240 W, 2730 W @ power

limit. Different preset voltages avail.

± 0.5% load/line and ± 1.0%

load/line°C

± 5% for 10% to 90% or 90% to 10%

load step changes

automatic upon insertion

<55dB rnc @ 10% load

<250 mV p-p

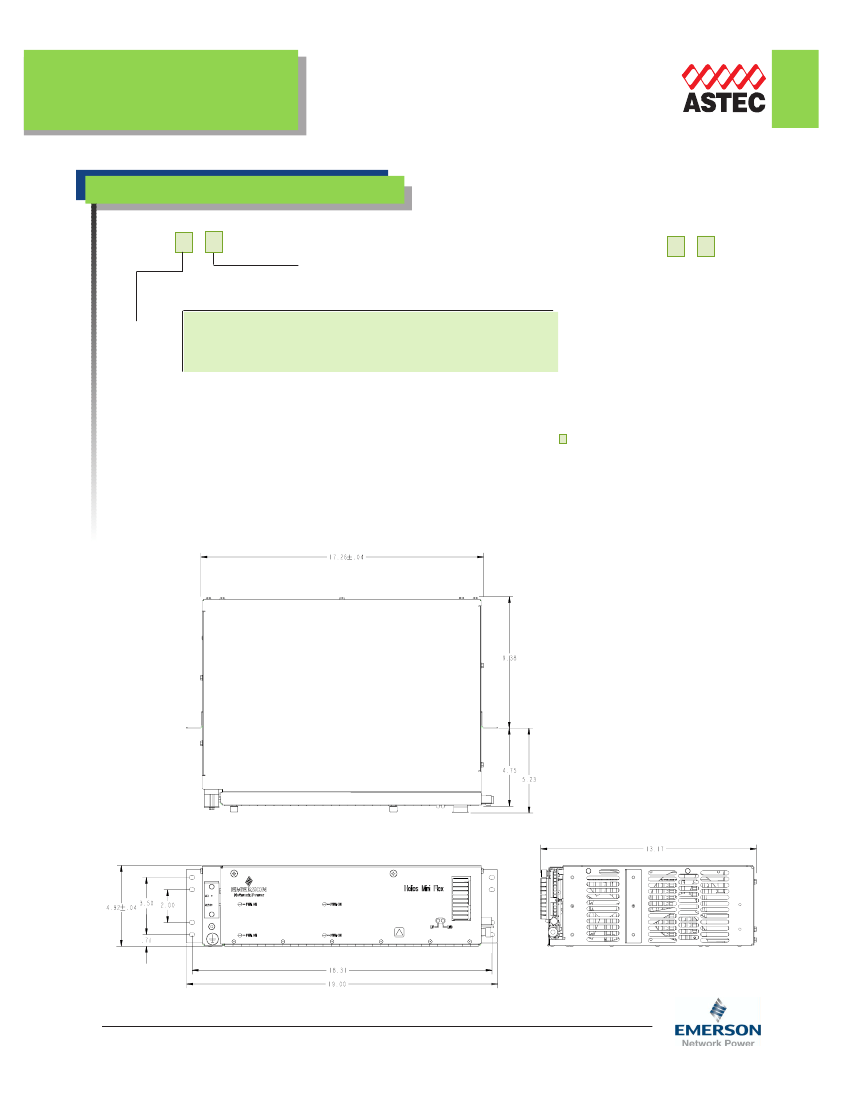

Battery Tray - A0802970

(for 1000 W application only)

Protection

disconnect device

Batteries

Built in 30 A circuit breaker

Designed to accommodate 30 A/h

M12V30 Marathon VRLA batteries

Environmental

EMC/EMI: FCC Class B, CISPR Class B for digital devices,

Telcordia GR-1089-CORE, Class B, EN 300 386-2

Temperature: -40° to +65°C (+50°C for high altitude)

Humidity: 0 to 95% RF (non-condensing)

Acoustic noise: < 60dB for full system

Cooling: forced air, horizontal (side to side)

Shock and vibration: meets Telcordia GR-63- CORE

Fire resistance: UL 94VO, TR-NWT-000154, Sec 7.2

Voltage surge protection: meets Telcordia GR-1089

section 4.5.9

Safety

Rectifier:

Power Shelf:

UL1950

UL1801, CSA 22.2#950, IEC-950, VDE

170

America’s (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211

Asia (HK): 852-2437-9662

rev 12.01.01
