0.3mm Contact Pitch, 1.25mm above the board, Flexible Printed Circuit Connectors
FH 23 Series
q

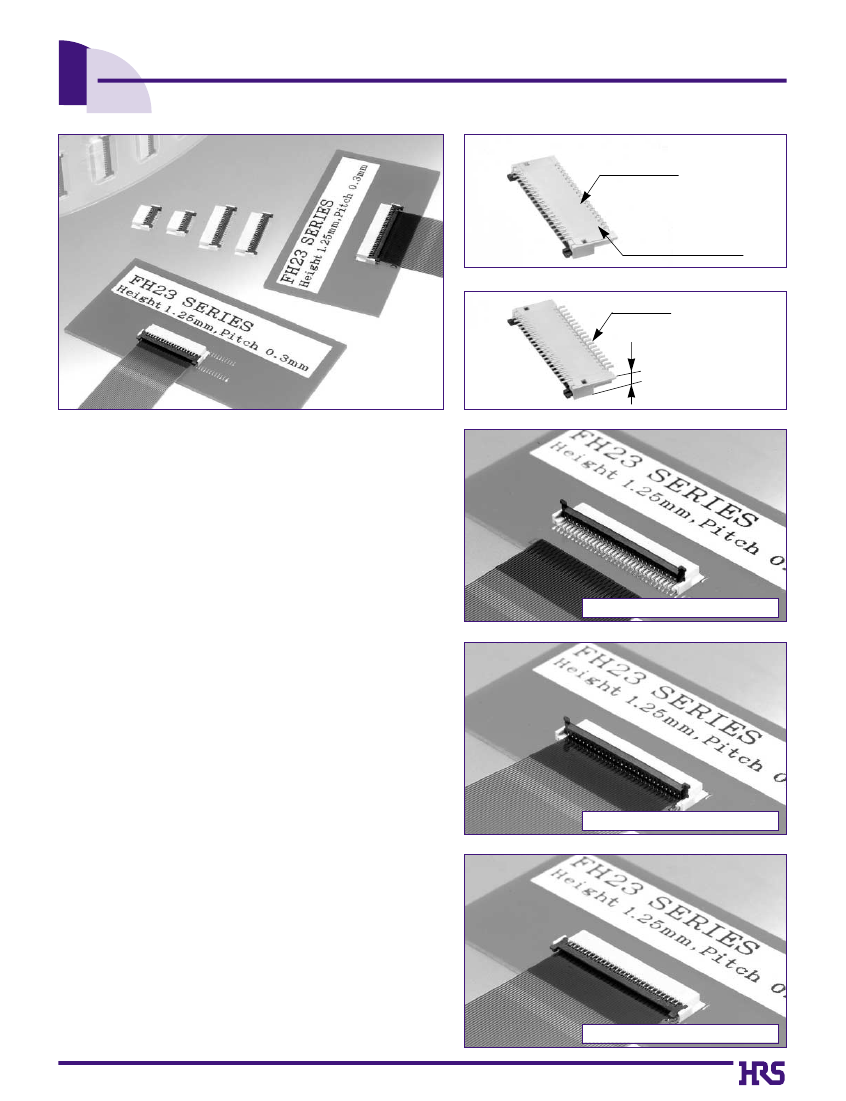

Staggered termination configuration. Only 1.25 mm above the board.
Leadless type
Completely enclosed
bottom surface
Lead type
1.25mm
s
Features
1. FPC low insertion force and high holding force
Hirose Electric's unique low insertion force (LIF) design
(patents pending) improves the Flexible Printed Circuit
(FPC) holding force after insertion.
FPC insertion force:Reduced approximately 36%
(as compared with FH18 Series connectors).
FPC holding force:Improvement of approximately 22%
(as compared with FH18 Series connectors).
2. Temporary hold of FPC
There is no need to hold the FPC after insertion in the
connector. The connector will hold it in correct position,
allowing closing of the actuator.
When the actuator is opened
3. Easy board mounting
The surface mounted termination of the contacts is staggered on
0.6 mm centers, positioned on front and back of the connector.
Bottom of the connector is completely insulated, allowing
conductive traces on PCB to run under the connector.
4. Proven Flip-lock Actuator assures easy and
reliable operation
Rotating actuator permits easy insertion and reliable connection
with the FPC. Tactile sensation confirms complete mechanical
locking of the actuator and the electrical connection.
5. Variations to suit different mounting areas
Available with lead and leadless type of terminations
(for opposing FPC insertion side).
6. Designed for placement with automatic equipment
Flat top surface allows pick-up with vacuum nozzles.
Packaged in embossed tape, on reel. One reel contains 2,500 pieces.
Temporary hold of FPC
7. Accepts 0.2mm thick FPC
8. Variety of contact positions
Available with 15,17,21, 25, 27, 31, 33, 39, 45, 51and 61 pos.
8. Environmental considerations
Plating is lead-free in order to protect environment.
s
Applications
Mobile phones, PDA’s, digital cameras, digital video
cameras and other compact devices requiring
interconnections of the main circuit with the LCD,
plasma display (PDP), camera module, or other devices.
When the actuator is closed
55
sProduct
Specifications
Current rating
Ratings
Voltage rating
50 V AC
0.3 A DC
Operating temperature range
-55
ç
to +85
ç
(Note 1)
Operating humidity range
Relative humidity 90% max. (No condensation)
Storage temperature range
-10
ç
to +50
ç
(Note 2)
Storage humidity range
Relative humidity 90% max.
Recommended FPC
Item
Thickness: = 0.2±0.03mm tinned copper or pure tin plating (Note 3)
Specification
100 V DC
90 V AC/1 minute
1 mA AC
10 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours
in each of the 3 directions
Acceleration of 981 m/s
2
, 6ms duration, sine half-wave
waveform, 3 cycles in each of the 3 axis.
Conditions
1. Insulation resistance 50 M ohms min.
2. Withstanding voltage No flashover or insulation breakdown
3. Contact resistance
100 m ohms max.
*Including
FPC/FFC conductor resistance
Contact resistance: 100 m ohms max.
4. Durability
4.
(insertion/ withdrawal) No damage, cracks, or parts dislocation.
5. Vibration
No electrical discontinuity of 1
µ
s or more.
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1
µ
s. min.
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation.
Contact resistance: 100 m ohms max.
Insulation resistance: 100 M ohms min.
No damage, cracks, or parts dislocation.
Contact resistance: 100 m ohms max.
Insulation resistance: 100 M ohms min.
No damage, cracks, or parts looseness.
6. Shock
7. Humidity
(Steady state)
96 hours at temperature of 40
°
C and humidity of 90% to 95%
Temperature:-55
ç
/
+15
ç
to +35
ç
/
+85
ç
/
+15
ç
to +35
ç
Time: 30
/
2 to 3
/
30
/
2 to 3 (Minutes)
5 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350
ç
±5
ç
for 5 seconds
8. Temperature cycle
9. Resistance to
soldering heat
No deformation of
components affecting performance.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term ”storage” refers to products stored for long period of time prior to mounting and use. Operating
Temperature Range and Humidity range covers non- conducting condition of installed connectors in storage,
shipment or during transportation.
Note 3: When FPC is gold plated, the connector contacts should be also gold plated: Select the (05) specification.
sMaterials
Part
Insulator
Contacts
Material
LCP
LCP
Phosphor bronze
Color:Beige
Color:Black
Pure tin plating (Note 3)
UL94V-0
---------------
Finish
Remarks
sOrdering
information
FH23
1
1
Series name : FH23
2
No. of contacts.
- 39S - 0.3 SHW (05)
2
3
4
5
4
Terminal type
SHW: SMT horizontal mounting type, lead type termination.
SHAW: SMT horizontal mounting type, lead-less type termination.
Number of contacts : 15,17,21,25,27,31,33,39,45,51,61
3
Contact pitch: 0.3 mm
5
Plating specifications :
Blank
(05)
: Tin plating
: Gold plating
56
BConnector
Dimensions (Lead Type termination)
A
0.3
0.6
B
1.7
(0.15)
2.45
0.6
Number of contacts indicator
C
(0.12)
0.05MAX.
E
4.15
0.5
(2.84)
1.25(Including contact terminal leads)
0.05MAX.
0.1MAX.
1
2
(D: FPC insertion area dimensions)
1
2
0.1MAX.
0.55
Notes 1 The coplanarity of each terminal lead is within 0.1.
2 The contact terminal lead position indicates the dimension from the E surface, the bottom surface of the insulator body.
3 Any discoloration of the plastic compound will NOT AFFECT form, fit or function of the connector.
Lead Type
Part Number
FH23-15S-0.3SHW
FH23-17S-0.3SHW
FH23-21S-0.3SHW
FH23-25S-0.3SHW
FH23-27S-0.3SHW
FH23-31S-0.3SHW
FH23-33S-0.3SHW
FH23-39S-0.3SHW
FH23-45S-0.3SHW
FH23-51S-0.3SHW
FH23-61S-0.3SHW
CL No.
586-1317-0
586-1300-7
586-1314-1
586-1322-0
586-1308-9
586-1302-2
586-1304-8
586-1306-3
586-1318-2
586-1312-6
586-1310-0
Number of Contacts
15
17
21
25
27
31
33
39
45
51
61
A
17.0
17.6
18.8
10.0
10.6
11.8
12.4
14.2
16.0
17.8
20.8
B
13.6
14.2
15.4
16.6
17.2
18.4
19.0
10.8
12.6
14.4
17.4
C
14.2
14.8
16.0
17.2
17.8
19.0
19.6
11.4
13.2
15.0
18.0
Unit: mm
D
14.83
15.43
16.63
17.83
18.43
19.63
10.23
12.03
13.83
15.63
18.63
Note: Embossed tape reel packaging(2,500 pieces/reel)
Please order by number of reels.
57
sConnector
Dimensions Diagram (Leadless Type termination)
A
0.3
0.6
B
1.7
(0.15)
2.45
**
0.6
Number of contacts indicator
C
(0.12)
0.05MAX.
0.1MAX.
1
2
E
0.55
4.15
(2.84)
1.25 (Including contact terminal leads)
0.05MAX.
0.1MAX.
1
2
(D: FPC insertion area dimensions)
Notes 1 The coplanarity of each terminal lead is within 0.1.
2 The contact terminal lead position indicates the dimension from the E surface, the bottom surface of the insulator body.
3 Any discoloration of the plastic compound will NOT AFFECT form, fit or function of the connector.
Leadless Type
Part Number
FH23-15S-0.3SHAW
FH23-17S-0.3SHAW
FH23-21S-0.3SHAW
FH23-25S-0.3SHAW
FH23-27S-0.3SHAW
FH23-31S-0.3SHAW
FH23-33S-0.3SHAW
FH23-39S-0.3SHAW
FH23-45S-0.3SHAW
FH23-51S-0.3SHAW
FH23-61S-0.3SHAW
CL No.
586-1316-7
586-1301-0
586-1315-4
586-1323-2
586-1309-1
586-1303-5
586-1305-0
586-1307-6
586-1319-5
586-1313-9
586-1311-3
Number of Contacts
15
17
21
25
27
31
33
39
45
51
61
A
17.0
17.6
18.8
10.0
10.6
11.8
12.4
14.2
16.0
17.8
20.8
B
13.6
14.2
15.4
16.6
17.2
18.4
19.0
10.8
12.6
14.4
17.4
C
14.2
14.8
16.0
17.2
17.8
19.0
19.6
11.4
13.2
15.0
18.0
Unit: mm
D
14.83
15.43
16.63
17.83
18.43
19.63
10.23
12.03
13.83
15.63
18.63
Note: Embossed tape reel packaging(2,500 pieces/reel)
Please order by number of reels.
58
BRecommended
PCB Land and Metal Mask Dimensions (Lead Type)
0.7±0.05
B±0.05
(0.1)
(5.2)
0.6±0.05
0.3±0.05 (Land)
0.25±0.05 (Metal mask)
3.45±0.05
(5.4)
0.3±0.05
1.25±0.05
Recommended metal mask thickness: t = 0.1 mm
0.25±0.05 (Metal mask)
C±0.05
(0.1)
0.6±0.05
0.3±0.05 (Land)
Lead Type
Part Number
FH23-15S-0.3SHW
FH23-17S-0.3SHW
FH23-21S-0.3SHW
FH23-25S-0.3SHW
FH23-27S-0.3SHW
FH23-31S-0.3SHW
FH23-33S-0.3SHW
FH23-39S-0.3SHW
FH23-45S-0.3SHW
FH23-51S-0.3SHW
FH23-61S-0.3SHW
CL No.
586-1317-0
586-1300-7
586-1314-1
586-1322-0
586-1308-9
586-1302-2
586-1304-8
586-1306-3
586-1318-2
586-1312-6
586-1310-0
Number of Contacts
15
17
21
25
27
31
33
39
45
51
61
B
03.6
04.2
05.4
06.6
07.2
08.4
09.0
10.8
12.6
14.4
17.4
C
04.2
04.8
06.0
07.2
07.8
09.0
09.6
11.4
13.2
15.0
18.0
Unit: mm
G
04.8
05.4
06.6
07.8
08.4
09.6
10.2
12.0
13.8
15.6
18.6
BRecommended
Land and Metal Mask Dimensions (Leadless Type)
B±0.05
0.65±0.05
( 0.1 )
(4.6)
0.6±0.05
0.3±0.05(Land)
0.25±0.05(Metal mask)
2.9±0.05
0.3±0.05
(4.8)
1.25±0.05
Recommended metal mask thickness: t = 0.1 mm
0.6±0.05
0.3±0.05(Land)
0.25±0.05(Metal mask)
C±0.05
(0.1)
Leadless Type
Part Number
FH23-15S-0.3SHAW
FH23-17S-0.3SHAW
FH23-21S-0.3SHAW
FH23-25S-0.3SHAW
FH23-27S-0.3SHAW
FH23-31S-0.3SHAW
FH23-33S-0.3SHAW
FH23-39S-0.3SHAW
FH23-45S-0.3SHAW
FH23-51S-0.3SHAW
FH23-61S-0.3SHAW
CL No.
586-1316-7
586-1301-0
586-1315-4
586-1323-2
586-1309-1
586-1303-5
586-1305-0
586-1307-6
586-1319-5
586-1313-9
586-1311-3
Number of Contacts
15
17
21
25
27
31
33
39
45
51
61
B
03.6
04.2
05.4
06.6
07.2
08.4
09.0
10.8
12.6
14.4
17.4
C
04.2
04.8
06.0
07.2
07.8
09.0
09.6
11.4
13.2
15.0
18.0
Unit: mm
G
04.8
05.4
06.6
07.8
08.4
09.6
10.2
12.0
13.8
15.6
18.6
59
