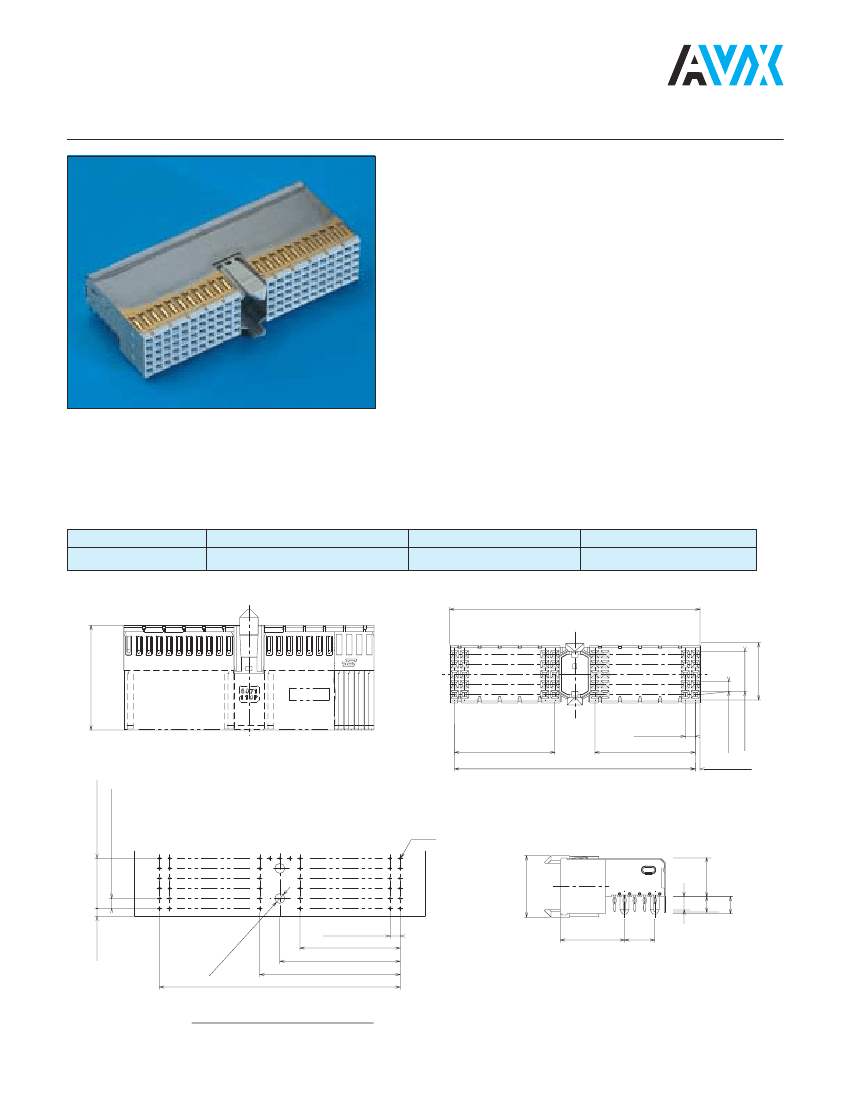

J1/J4 Type A Right Angle
Female for Daughter Cards
Series 8071
• 110 signal contacts in a 5 x 25 configuration
• Center cavity with pre-alignment guides and keying option (uses
3 positions)
• See page 53 for keying options
• Designed for gas tight press-fit installation
• Supplied with or without upper ground return shield
• Available with bottom pegs for secure P.C. mounting
• This connector can be used by itself or in conjunction with Style B
or C connectors
• Used in positions J1/J4 of CompactPCI
®
specification (Daughter
Card)
• Lower ground return shield available (see page 30)
27
27
27
27
8071
8071
8071
8071
110
110
110
110
001
002
011
012
833
= Type A Right Angle Female without top shield, with pegs
833
= Type A Right Angle Female without top shield, without pegs
833
= Type A Right Angle Female with top shield, with pegs
833
= Type A Right Angle Female with top shield, without pegs
Contact Area
0.1µm min. Au.65µm Pd/Ni
Press-fit Area
1.5-3.0µm Solder
Under Coat
Nickel 1.2-3.0µm
Plating Code
833
49.9
0
-0.2
25
(20.9)
9Z21XX
15
11
1
e
11.4
TYP.
MAX.
d
c
b
a
2X4=8.0
2.0
2X10=20.0
2x24=48.0
2X10=20.0
TYP.
0.95
2x5=10.0
±0.1
2.0
±0.1
TYP.
135-
f
0.6
±0.05
HOLES
f
e
d
c
b
a
12.25
3.0
7.4
3.2
a
12.8
bc d e f
6.0
3.5
MAX.
2
HO -
f
2
LE .0
±
0
.1
1.5
2.0
±0.1
TYP.
2x10=20.0
±0.1
2x12=24.0
±0.1
2x14=28.0
±0.1
2x24=48.0
±0.1
RECOMMENDED P.C. BOARD LAYOUT
(COMPONENT SIDE)
8
ELCO
2.0
