L70QS080.V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> L70QS080.V

L70QS080.V: DescriptionFUSE CARTRIDGE 80A 700VAC/VDC; CategoryCircuit protection; File Size179KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L70QS080.V Overview

FUSE CARTRIDGE 80A 700VAC/VDC

L70QS080.V Parametric

Parameter Name	Attribute value
Fuse type	box
Rated current	80A
Rated voltage - AC	700V
Rated voltage - DC	700V
Response time	fast
application	semiconductor
characteristic	-
category
Approval	CE，cURus
Operating temperature	-55°C ~ 125°C
Fusing capacity at different rated voltages	200kA AC，50kA DC
Installation type	Bolt installation
Package/casing	Cylindrical, flat terminal (bolt)
size/dimensions	1.000" diameter x 2.875" length (25.40mm x 73.03mm)
Melt I²t	452

Preview

Download Datasheet

View All

REV

DATE

3/23/16

9/6/16

REVISION

DESCRIPTION

515693GCP - RELEASE MRY

516327ECP/D - CHG DATA SHEET REVISION MRY

38.10

[1.500]

13.46

[0.530]

10.41

[0.410]

50.80

[2.000]

13.46

[0.530]

17.02

[0.670]

8.73

[0.344]

129.16

[5.085]

106.30

[4.185]

73.03

[2.875]

22.73

[0.895]

38.10

[1.500]

10.41

[0.410]

111.13

[4.375]

95.24

[3.749]

84.12

[3.312]

180.09

[7.090]

129.39

[5.094]

108.72

[4.280]

86.76

[3.416]

156.47

[6.160]

72.24

[2.844]

89.67

[3.530]

72.24

[2.844]

173.05

[6.813]

142.83

[5.623]

103.20

[4.063]

72.24

[2.844]

88.77

[3.495]

73.03

[2.875]

35-100A

125-200A

225-400A

450-600A

700-800A

3.18

[0.125]

4.75

[0.187]

6.35

[0.250]

6.35

[0.250]

9.53

[0.375]

25.40

[1.000]

30.94

[1.218]

50.80

[2.000]

50.80

[2.000]

63.50

[2.500]

DENOTES CRITICAL CHARACTERISTICS.

CPK

DENOTES CPK DIMENSIONS, -MINIMUM CPK VALUE

DENOTES A CHARACTERISTIC THAT PROVIDES AN INDICATION

OF PROCESS PERFORMANCE. PROCEDURE FOR MEASUREMENT

AND TRACKING TO BE DEFINED IN

LITTELFUSE INSPECTION INSTRUCTIONS.

DENOTES CP DIMENSIONS, -MINIMUM CP VALUE

MUST BE WITHIN THE DIMENSIONAL LIMITATIONS

SHOWN ON DRAWING AND INITIALLY LOCATED TO

ALLOW FOR MAXIMUM TOOL LIFE.

FINISH

MATL SPEC

DATA SHEET REVISION: 060616

DRW

DATE

SCALE

FINISH GOOD WT

GRAMS/PIECE

MYORK

9/3/2015

NTS

UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN MILLIMETERS, DIMENSIONS IN

BRACKETS [ ] ARE INCHES DIMENSIONING AND DO NOT INCLUDE PLATING. TOLERANCING

TO BE INTERPRETED IN ACCORDANCE WITH ANSI Y14.5M-1994

3RD ANGLE

PROJECTION

TITLE

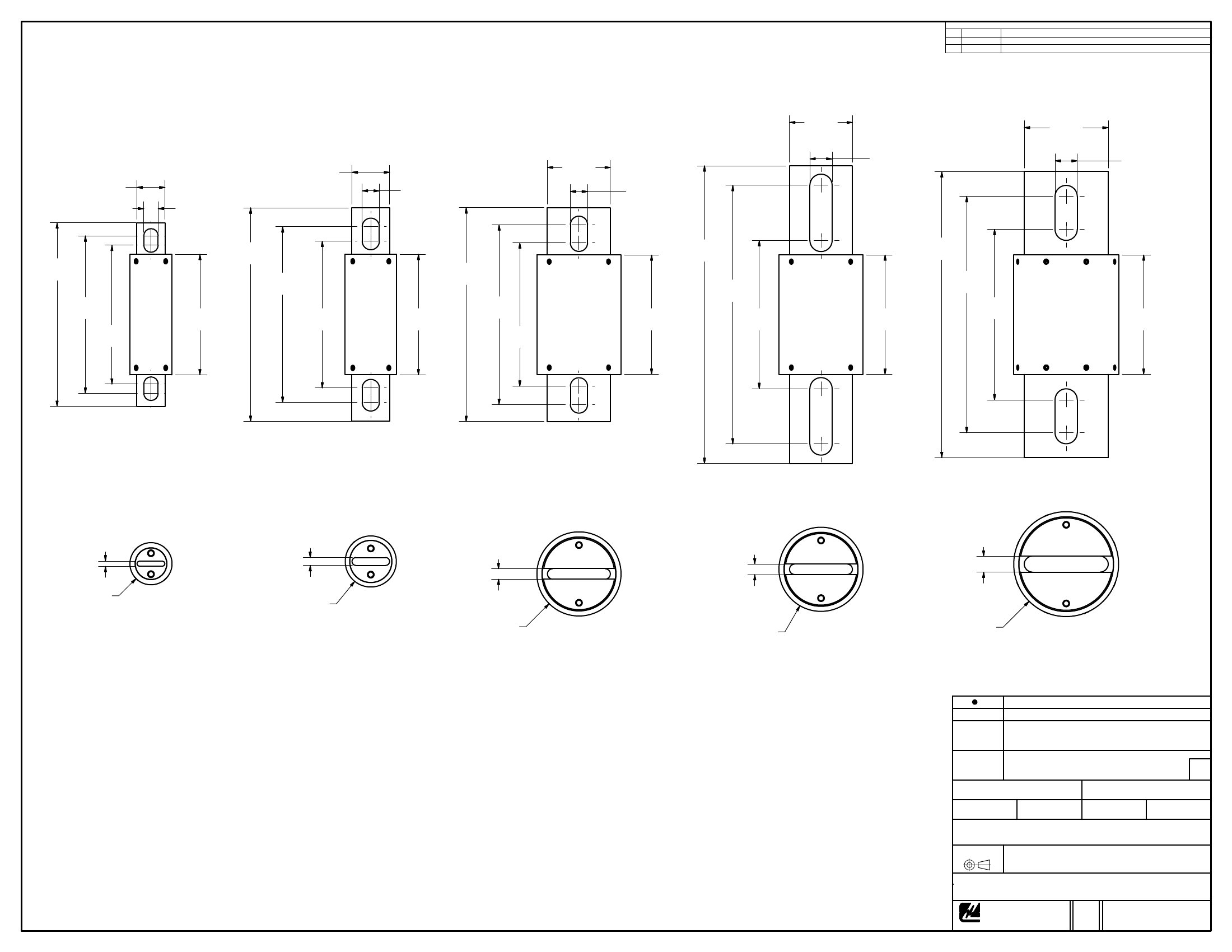

L70QS SERIES OUTLINE

Littelfuse

CHICAGO, ILLINOIS 60631

REVISION

DRWG NO.

SHEET 1 OF 1

OL-L70QS000

L70QS080.V Related Products

	L70QS080.V	L70QS225.X	L70QS300.X
Description	FUSE CARTRIDGE 80A 700VAC/VDC	FUSE CARTRIDGE 225A 700VAC/VDC	FUSE CARTRIDGE 300A 700VAC/VDC
Fuse type	box	box	-
Rated current	80A	225A	-
Rated voltage - AC	700V	700V	-
Rated voltage - DC	700V	700V	-
Response time	fast	fast	-
application	semiconductor	semiconductor	-
Approval	CE，cURus	CE，cURus	-
Operating temperature	-55°C ~ 125°C	-55°C ~ 125°C	-
Fusing capacity at different rated voltages	200kA AC，50kA DC	200kA AC，50kA DC	-
Installation type	Bolt installation	Bolt installation	-
Package/casing	Cylindrical, flat terminal (bolt)	Cylindrical, flat terminal (bolt)	-
size/dimensions	1.000" diameter x 2.875" length (25.40mm x 73.03mm)	2.000" diameter x 2.844" length (50.80mm x 72.24mm)	-
Melt I²t	452	9226	-
