Introduction
Vero
®
SE Series is a revolutionary light source system that integrates Bridgelux’s seventh generation COB technology with
poke-in connectivity enabling solder-free installation. Vero SE LED light sources streamline assembly processes, lower
manufacturing cost, simplify luminaire design, improve light quality and increase design flexibility.
Vero SE is available in four different light emitting surface (LES) configurations that operate reliably over a broad current range.
With Vero SE, secondary connector and holder components are not required, allowing for rapid integration of arrays into
fixtures and an efficient field replaceable solution. Vero SE arrays deliver increased lumen density for improved beam control
and precision lighting with 2 and 3 SDCM color control standards for clean and consistent uniform lighting.
Bridgelux Décor Series is our state of the art color line designed specifically for premium applications, producing unmatched
LED light quality with brilliant color-rendering options and offer pleasing and inspiring lighting palettes. Bridgelux Décor Series
color points are available on Vero
®
SE Series, Vero
®
Series, V Series™ and V Series™ HD.
Décor Series Class A
is based on human response testing, providing color points with a combined GAI and CRI metric.
Décor Series™ Ultra
products provide a high CRI of 97 and a minimum R9 value of 93, which emphasizes the reds and color
tones to which the human eye is most receptive - perfect for the most luxurious retail shops and world renowned museums.
Décor Series Ultra is also a good replacement for halogen lamps.
Décor Series™ Food
products offer color points developed to address the unique requirements of the food, grocery, and
restaurant industries. Highlighting the distinctive colors and nuanced patterns found in meats and breads, the Décor Series
Food products are a must have for any butcher counter or bakery.
Décor Series ™ Entertainment
products provide color points developed specifically for the healthcare and entertainment
industries. The 5600K cool white color point combined with a CRI of 90 or 97 provides the bright white required by these
industries.
Décor Series™ Street and Landmark
is designed to be a direct replacement for high pressure sodium lamps.
Décor Series™ Showcase
is the optimal solution for replacing ceramic metal halide lamps, incorporating the same pure white
light with enhanced spectrum coverage and higher efficacy.
Features
Benefits
• Poke-in connectivity
• Efficacy of 157 lm/W typical
• Lumen output performance ranges from 1,372 to
13,060
lumens
• Broad range of CCT options from 1750K to 6500K
• CRI options: minimum 65, 70, 80, and 90
• Color control: 2 and 3 SDCM for 2700K-4000K CCT
• Reliable operation at up to 2X nominal drive current
• Radial die pattern and improved lumen density
• Top side part number markings
• No exposed solder pads or electrical connections
• V
f
bin code backside marking
• Poke-in connectivity enables solderless, connector
free installation
• Broad application coverage for interior and exterior
lighting
• Flexibility for application driven lighting design
requirements
• High quality, true color reproduction
• Uniform consistent white light
• Flexibility in design optimization
• Enhanced ease of use and assembly
• Ability to configure multiple Vero SE arrays in series
and parallel reduces customer driver cost
• Improved inventory management and quality control
Vero SE
Product Feature Map
Vero SE 18 is the second largest form factor in the
product family of next generation solid state light
sources. In addition to delivering the performance and
light quality required for many lighting applications,
Vero SE incorporates several features to simplify the
design integration and manufacturing process, accelerate
time to market and reduce system costs. Please visit www.
bridgelux.com for more information on the Vero SE family
of products.

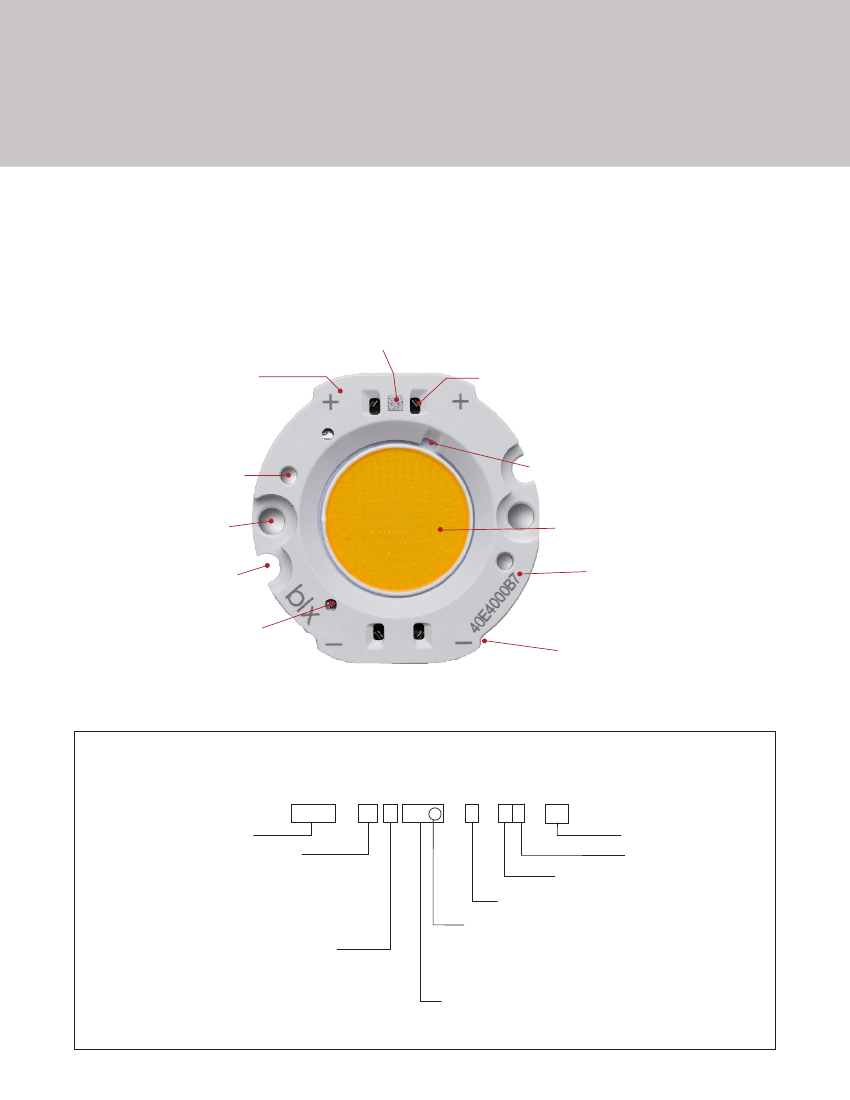

2D Bar code provides full
manufacturing traceability
Polarity indication marks simplify
manufacturing operator instructions
Wire release mechanisms x4
Optic mounting holes
T
c
Measurement point
Mounting holes
Radial die configuration improves lumen
density and beam control
Zhaga Book 3 compatible
mounting locations
Top side part number marking improves
inventory management and outgoing
quality control
Test ports for probing
Dual poke-in connectivity
Product Nomenclature
The part number designation for Bridgelux Vero SE LED arrays is explained as follows:
1 2 3 4
–
56
7
8 9 10 11
–
12
– 13 14
– 15 16
BXRC – 30 E 400 0 – C – 7 3 – SE
Product Family
Nominal CCT
17 = 1,750K
20 = 2,000K
25 = 2,500K
27 = 2,700K
30 = 3,000K
35 = 3,500K
40 = 4,000K
50 = 5,000K
56 = 5,600K
57 = 5,700K
65 = 6,500K
Special Edition
CCT Bin Options
Gen. 7
Array Configuration
2 = 2 SDCM
3 = 3 SDCM
4 = 4 SDCM
CRI
B = 65 CRI min.
C = 70 CRI min.
E = 80 CRI min.
G = 90 CRI min.
H = 97 CRI typ.
A = Class A
Color Targeting Designator
0 = Cold Targeted
1 = Hot Targeted
C = Decor Series Showcase Target
Flux Indicator
400x = 4000 lm
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Part Number
BXRC-17E4000-B-74-SE
BXRC-17E4000-C-74-SE
BXRC-17E4000-D-74-SE
BXRC-20B4001-C-73-SE
BXRC-20B4001-D-73-SE
BXRC-25E4000-B-74-SE
BXRC-25E4000-C-74-SE
BXRC-25E4000-D-74-SE
BXRC-27E4000-B-7x-SE
BXRC-27E4000-C-7x-SE
BXRC-27E4000-D-7x-SE
BXRC-27G4000-B-7x-SE
BXRC-27G4000-C-7x-SE
BXRC-27G4000-D-7x-SE
BXRC-27H4000-B-7x-SE
BXRC-27H4000-C-7x-SE
BXRC-27H4000-D-7x-SE
BXRC-30E4000-B-7x-SE
BXRC-30E4000-C-7x-SE
BXRC-30E4000-D-7x-SE
BXRC-30G4000-B-7x-SE
BXRC-30G4000-C-7x-SE
BXRC-30G4000-D-7x-SE
BXRC-30G400C-B-73-SE
BXRC-30G400C-D-73-SE
BXRC-30H4000-B-7x-SE
BXRC-30H4000-C-7x-SE
BXRC-30H4000-D-7x-SE
BXRC-30A4001-B-73-SE
8,9
BXRC-30A4001-C-73-SE
8,9
BXRC-30A4001-D-73-SE
8,9
Nominal
CCT
1
(K)
1750
1750
1750
2000
2000
2500
2500
2500
2700
2700
2700
2700
2700
2700
2700
2700
2700
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3500
3500
3500
CRI
2
80
80
80
65
65
80
80
80
80
80
80
90
90
90
97
97
97
80
80
80
90
90
90
90
90
97
97
97
93
93
93
80
80
80
Nominal Drive
Current
3
(mA)
900
1170
1050
1170
1050
900
1170
1050
900
1170
1050
900
1170
1050
900
1170
1050
900
1170
1050
900
1170
1050
900
1050
900
1170
1050
900
1170
1050
900
1170
1050
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
2725
3542
2649
5985
4476
4416
5741
4293
4729
6148
4598
3946
5130
3837
3414
4438
3319
4917
6392
4781
4103
5334
3989
3790
3684
3664
4764
3563
3696
4804
3593
5074
6596
4933
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
2452
3188
2384
5387
4029
3975
5167
3864
4256
5533
4138
3552
4617
3453
3072
3994
2987
4426
5753
4303
3693
4800
3590
3411
3316
3298
4287
3206
3326
4324
3234
4566
5936
4440
Typical V
f
(V)
34.8
34.8
29.0
34.8
29.0
34.8
34.8
29.0
34.8
34.8
29.0
34.8
34.8
29.0
34.8
34.8
29.0
34.8
34.8
29.0
34.8
34.8
29.0
34.8
29.0
34.8
34.8
29.0
34.8
34.8
29.0
34.8
34.8
29.0
Typical
Power
(W)
31.3
40.7
30.5
40.7
30.5
31.3
40.7
30.5
31.3
40.7
30.5
31.3
40.7
30.5
31.3
40.7
30.5
31.3
40.7
30.5
31.3
40.7
30.5
31.3
30.5
31.3
40.7
30.5
31.3
40.7
30.5
31.3
40.7
30.5
Typical
Efficacy
(lm/W)
87
87
87
147
147
141
141
141
151
151
151
126
126
126
109
109
109
157
157
157
131
131
131
121
121
117
117
117
118
118
118
162
162
162
BXRC-35E4000-B-7x-SE
BXRC-35E4000-C-7x-SE
BXRC-35E4000-D-7x-SE
Notes for Table 1:
1. Nominal CCT as defined by ANSI C78.377-2011. Products with a CCT of 5000K-6500K are hot targeted to T
c
= 85°C.
2. CRI values are typical for Decor Series Ultra and Decor Series Class A products. CRI values are minimums for all other products. Minimum R9 value
for 80 CRI products is 0, the minimum R9 values for 90 CRI products is 50, the minimum R9 values for 97 CRI products is 93. Bridgelux maintains a ± 3
tolerance on CRI and R9 values.
3. Drive current is referred to as nominal drive current.
4. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5. Typical performance values are provided as a reference only and are not a guarantee of performance.
6. Bridgelux maintains a ±7% tolerance on flux measurements.
7. Minimum flux values at the nominal test current are guaranteed by 100% test.
8.
Nominal CCT is defined by the Lighting Research Center’s Class A definition. The center of the Class A color bin is on the corresponding isothermal line.
9. GAI value is 80. To help ensure optimal fixture level performance, GAI is measured at the fixture level, on axis, at a case temperature of 70°C. GAI may
vary depending on fixture design and performance.
3
