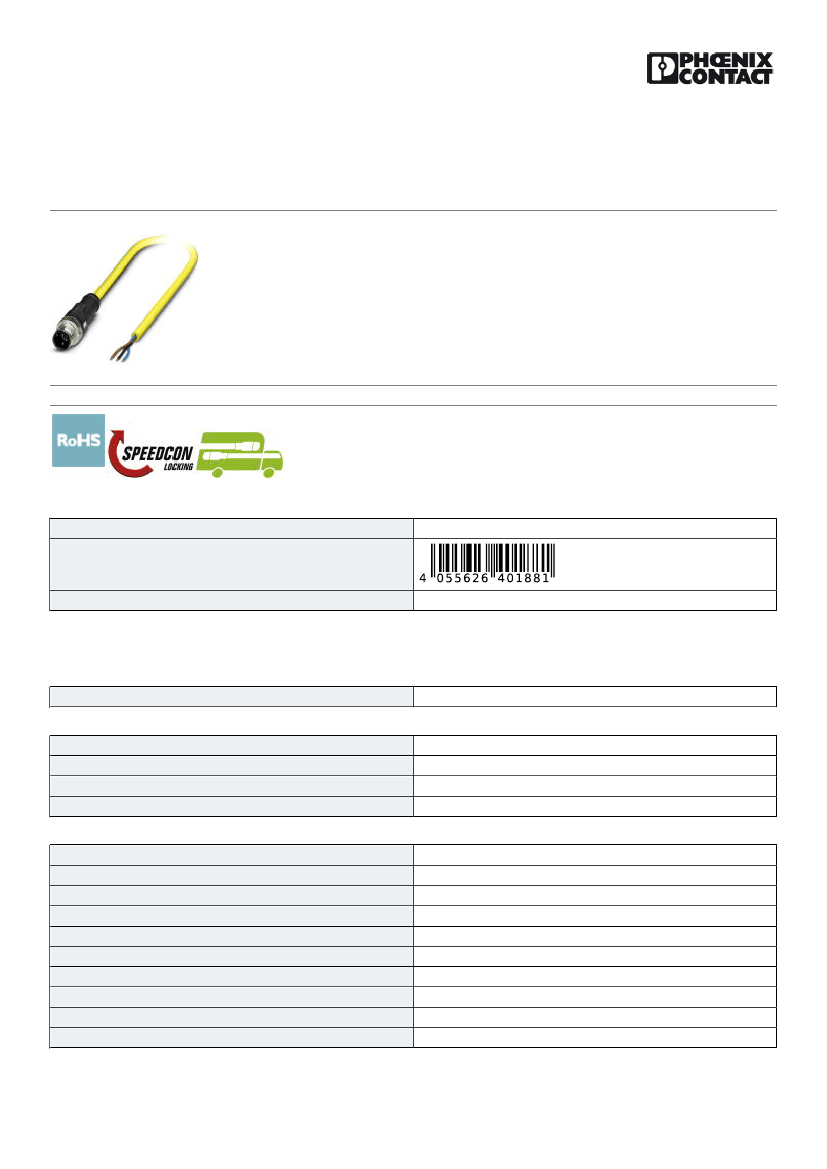

Sensor/actuator cable - SAC-3P-MS/ 2,0-547 SCO BK - 1424916
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator cable, 3-position, PVC, yellow, Plug straight M12 SPEEDCON, A-coded, on free cable end,
cable length: 2 m
Key Commercial Data
Packing unit
GTIN
GTIN
4055626401881
1 pc
Technical data
Dimensions
Length of cable
2m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
4A
250 V AC
250 V DC
3
≥ 10 MΩ
A - standard
M12 connector IEC 61076-2-101
No
Unwired
II
11/26/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1424916
Sensor/actuator cable - SAC-3P-MS/ 2,0-547 SCO BK - 1424916
Technical data
General
Degree of pollution
Torque
3
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
HB
Cable
Cable type
Cable type (abbreviation)
UL AWM style
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
External sheath, color
External cable diameter D
Minimum bending radius, fixed installation
Outer sheath, material
Material conductor insulation
Conductor material
Nominal voltage, cable
Special properties
PVC yellow 105 °C
547
2517 (105 °C / 300 V)
18
41x 0.16 mm
1.7 mm ±0.03 mm
brown, blue, black
3 wires, twisted
yellow
5.7 mm ±0.2 mm
8xD
PVC
PVC
Tin-plated Cu litz wires
300 V
C(UL) CMX OUTDOOR-CMG 105 °C
UL ITC/PLTC 105 °C
CSA AWM I/II A/B FT4 105 °C / 300 V
Flame resistance
Ambient temperature (operation)
FT4
-30 °C ... 105 °C (cable, fixed installation)
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
11/26/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1424916
Sensor/actuator cable - SAC-3P-MS/ 2,0-547 SCO BK - 1424916

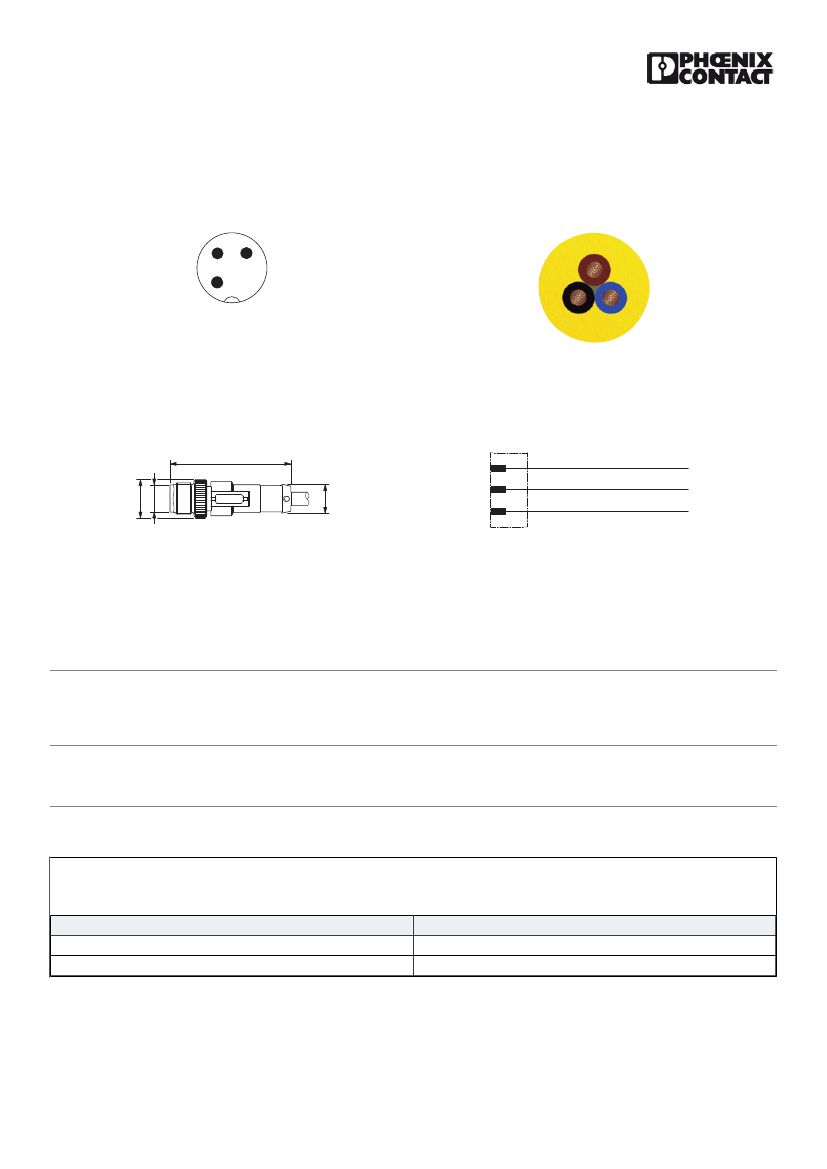

Drawings
Schematic diagram
4
3
Cable cross section
1
Pin assignment M12 plug, 3-pos., A-coded, view male side
PVC yellow 105 °C [547]
Dimensional drawing
Circuit diagram
46,8
1
BN
BK
BU
Ø14,8
M12
Ø11
4
3
Plug, M12 x 1, straight, shielded
Contact assignment of the M12 plug
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / cULus Listed
Ex Approvals
Approval details
UL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
300 V
4A
FILE E 221474
11/26/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1424916
Sensor/actuator cable - SAC-3P-MS/ 2,0-547 SCO BK - 1424916
Approvals
cUL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
300 V
4A
FILE E 221474
EAC
RU C-
DE.AI30.B.00767
cULus Listed
