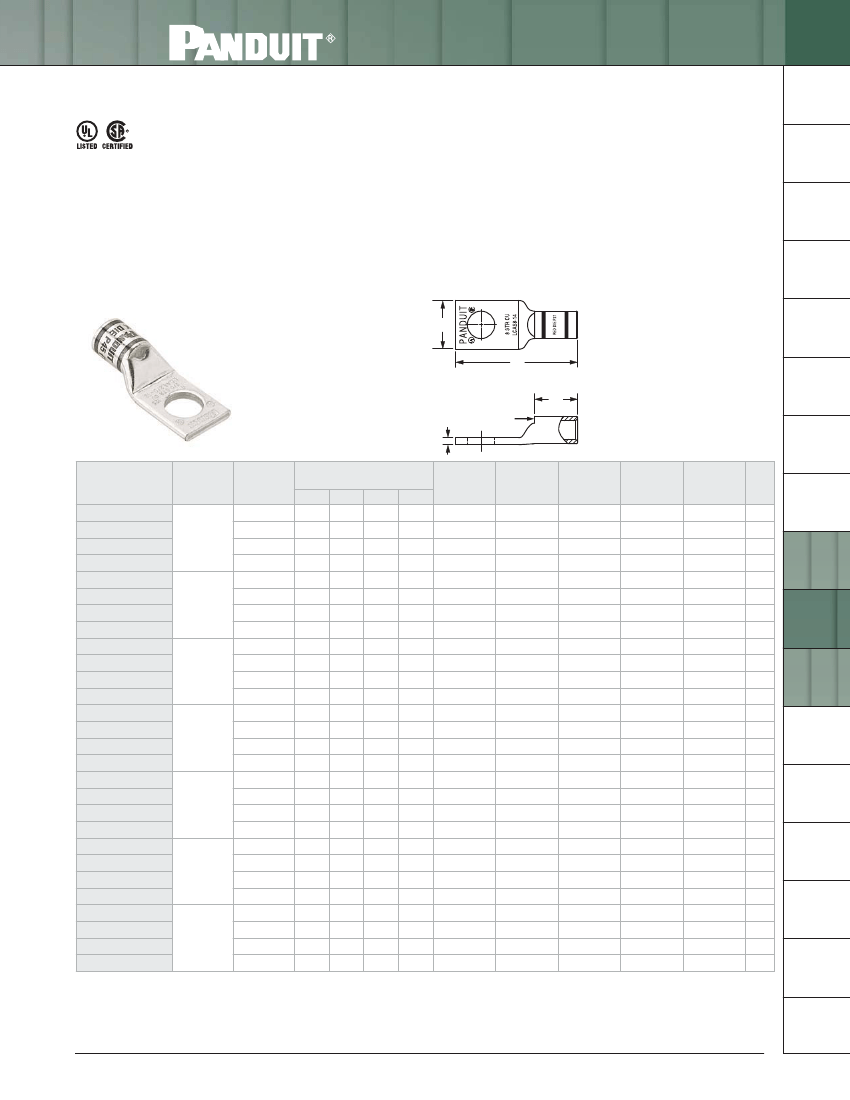

Code Conductor, One-Hole, Short Barrel with Window Lug
For Use with Stranded Copper Conductors
Type LCAS
• Short barrel for limited space applications
• Color-coded barrels marked with Panduit and specified competitor
die index numbers for proper crimp die selection
• Inspection window to visually assure full conductor insertion
• Tin-plated to inhibit corrosion
• UL Listed and CSA Certified to 35 KV** and temperature rated to
90°C when crimped with Panduit and specified competitor
crimping tools and dies
•
Tested by Telcordia
–
meets NEBS Level 3
• American Bureau of Shipping approved
B2.
Cable
Accessories
B1.
Cable Ties
B3.
Stainless
Steel Ties
W
C1.
Wiring
Duct
L
B
INSPECTION
WINDOW
C2.
Surface
Raceway
T
Copper
Conductor
Size
Stud Hole
Size
(In.)
#10
1/4
#8 AWG
5/16
3/8
#10
1/4
#6 AWG
5/16
3/8
#10
1/4
#4 AWG
5/16
3/8
1/4
5/16
#2 AWG
3/8
1/2
1/4
5/16
#1 AWG
3/8
1/2
1/4
5/16
1/0 AWG
3/8
1/2
1/4
5/16
2/0 AWG
3/8
1/2
Figure Dimensions
(In.)
W
0.41
0.48
0.56
0.60
0.45
0.48
0.56
0.62
0.55
0.55
0.55
0.62
0.60
0.66
0.66
0.75
0.70
0.70
0.70
0.75
0.76
0.76
0.76
0.80
0.85
0.85
0.85
0.85
B
0.42
0.42
0.42
0.42
0.48
0.48
0.48
0.48
0.53
0.53
0.53
0.53
0.57
0.57
0.57
0.57
0.59
0.59
0.59
0.59
0.66
0.66
0.66
0.66
0.72
0.72
0.72
0.72
T
0.08
0.07
0.05
0.05
0.09
0.08
0.07
0.06
0.09
0.09
0.09
0.07
0.10
0.10
0.10
0.08
0.11
0.11
0.11
0.09
0.12
0.12
0.12
0.12
0.13
0.13
0.13
0.13
L
1.11
1.20
1.32
1.42
1.19
1.28
1.40
1.50
1.26
1.35
1.47
1.57
1.46
1.58
1.66
1.89
1.50
1.63
1.70
1.94
1.67
1.72
1.80
2.03
1.82
1.82
1.89
2.14
Panduit
Color
Code
Red
Red
Red
Red
Blue
Blue
Blue
Blue
Gray
Gray
Gray
Gray
Brown
Brown
Brown
Brown
Green
Green
Green
Green
Pink
Pink
Pink
Pink
Black
Black
Black
Black
Panduit
Die Index
No.‡
P21
P21
P21
P21
P24
P24
P24
P24
P29
P29
P29
P29
P33
P33
P33
P33
P37
P37
P37
P37
P42
P42
P42
P42
P45
P45
P45
P45
Burndy
Die Index
No.‡
49
49
49
49
7
7
7
7
8
8
8
8
10
10
10
10
11
11
11
11
12
12
12
12
13
13
13
13
T&B
Die Index
No.‡
21
21
21
21
24
24
24
24
29
29
29
29
33
33
33
33
37
37
37
37
42
42
42
42
45
45
45
45
Wire Strip
Length
(In.)
1/2
1/2
1/2
1/2
9/16
9/16
9/16
9/16
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
11/16
11/16
11/16
11/16
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
Std.
Pkg.
Qty.
50
50
50
50
50
50
50
50
50
50
50
50
25
25
25
25
20
20
20
20
10
10
10
10
10
10
10
10
C3.
Abrasion
Protection
Part Number
LCAS8-10-L
LCAS8-14-L
LCAS8-56-L
LCAS8-38-L
LCAS6-10-L
LCAS6-14-L
LCAS6-56-L
LCAS6-38-L
LCAS4-10-L
LCAS4-14-L
LCAS4-56-L
LCAS4-38-L
LCAS2-14-Q
LCAS2-56-Q
LCAS2-38-Q
LCAS2-12-Q
LCAS1-14-E
LCAS1-56-E
LCAS1-38-E
LCAS1-12-E
LCAS1/0-14-X
LCAS1/0-56-X
LCAS1/0-38-X
LCAS1/0-12-X
LCAS2/0-14-X
LCAS2/0-56-X
LCAS2/0-38-X
LCAS2/0-12-X
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
‡See pages D3.56, D3.57 for tool and die information.
**Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V.
Table continues on page D2.8
