TWIST TIE
1

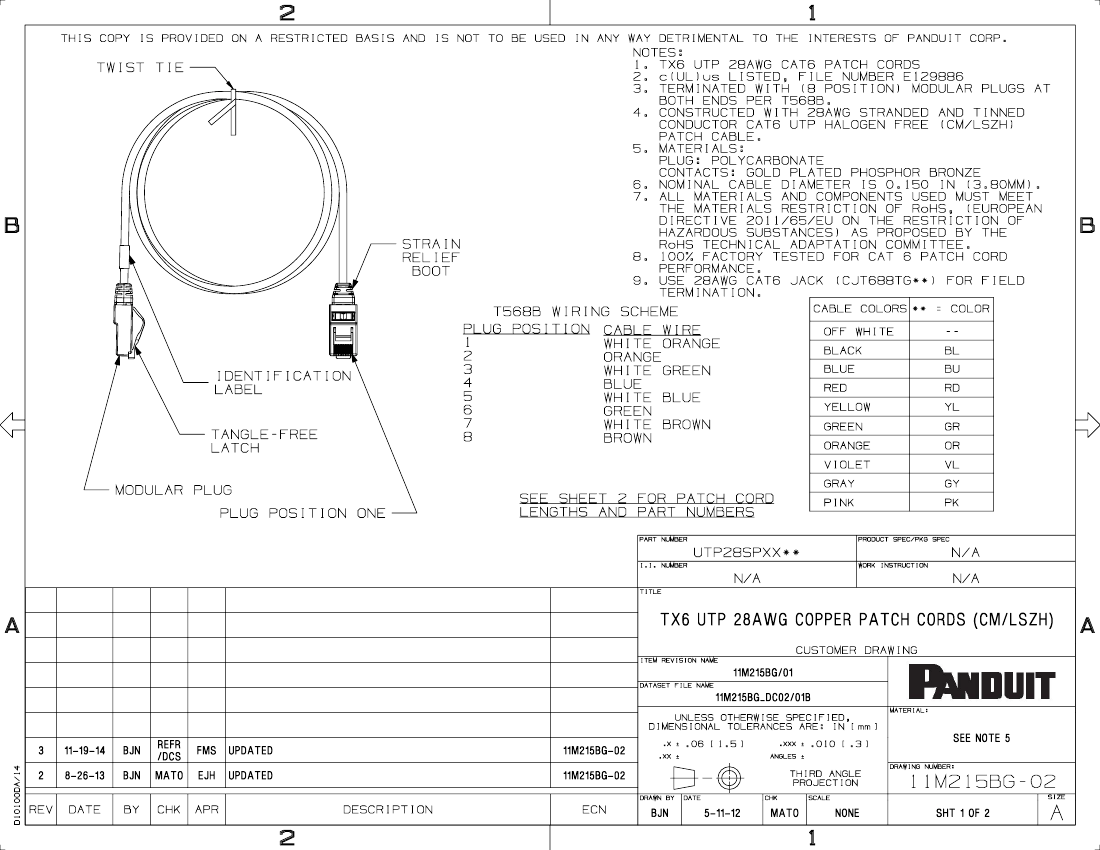

NOTES:
1. TX6 UTP 28AWG CAT6 PATCH CORDS
2. c(UL)us LISTED, FILE NUMBER E129886
3. TERMINATED WITH (8 POSITION) MODULAR PLUGS AT
BOTH ENDS PER T568B.
4. CONSTRUCTED WITH 28AWG STRANDED AND TINNED
CONDUCTOR CAT6 UTP HALOGEN FREE (CM/LSZH)
PATCH CABLE.
5. MATERIALS:
PLUG: POLYCARBONATE
CONTACTS: GOLD PLATED PHOSPHOR BRONZE
6. NOMINAL CABLE DIAMETER IS 0.150 IN (3.80MM).
7. ALL MATERIALS AND COMPONENTS USED MUST MEET
THE MATERIALS RESTRICTION OF RoHS, (EUROPEAN
DIRECTIVE 2011/65/EU ON THE RESTRICTION OF
HAZARDOUS SUBSTANCES) AS PROPOSED BY THE
RoHS TECHNICAL ADAPTATION COMMITTEE.
8. 100% FACTORY TESTED FOR CAT 6 PATCH CORD
PERFORMANCE.
9. USE 28AWG CAT6 JACK (CJT688TG**) FOR FIELD
TERMINATION.
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
B
STRAIN
RELIEF
BOOT
B
IDENTIFICATION
LABEL
TANGLE-FREE
LATCH
MODULAR PLUG
PLUG POSITION ONE
T568B WIRING SCHEME
PLUG POSITION CABLE WIRE
1
WHITE ORANGE
2
ORANGE
3
WHITE GREEN
4
BLUE
5
WHITE BLUE
6
GREEN
7
WHITE BROWN
8
BROWN
CABLE COLORS ** = COLOR
OFF WHITE
BLACK
BLUE
RED
YELLOW
GREEN
ORANGE
VIOLET
GRAY
--
BL
BU
RD
YL
GR
OR
VL
GY
PK
SEE SHEET 2 FOR PATCH CORD
LENGTHS AND PART NUMBERS
PART NUMBER
PINK
PRODUCT SPEC/PKG SPEC
UTP28SPXX**
I.I. NUMBER
WORK INSTRUCTION
N/A
N/A
N/A
TITLE
A
TX6
UTP
28AWG
COPPER
PATCH
CORDS
(CM/LSZH)
CUSTOMER DRAWING
ITEM REVISION NAME
A
11M215BG/01
DATASET FILE NAME
11M215BG_DC02/01B
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
MATERIAL:
3
D10100DA/14
11-19-14
8-26-13
DATE
BJN
BJN
REFR
/DCS
FMS
EJH
UPDATED
UPDATED
DESCRIPTION
11M215BG-02
11M215BG-02
.X
.XX
.06 [1.5]
.XXX
ANGLES
.010 [.3]
SEE
NOTE
5
DRAWING NUMBER:
2
REV
MATO
CHK
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
CHK
SCALE
11M215BG-02
SIZE
BY
APR
ECN
BJN
5-11-12
MATO
NONE
SHT
1
OF
2
A
2
1
2

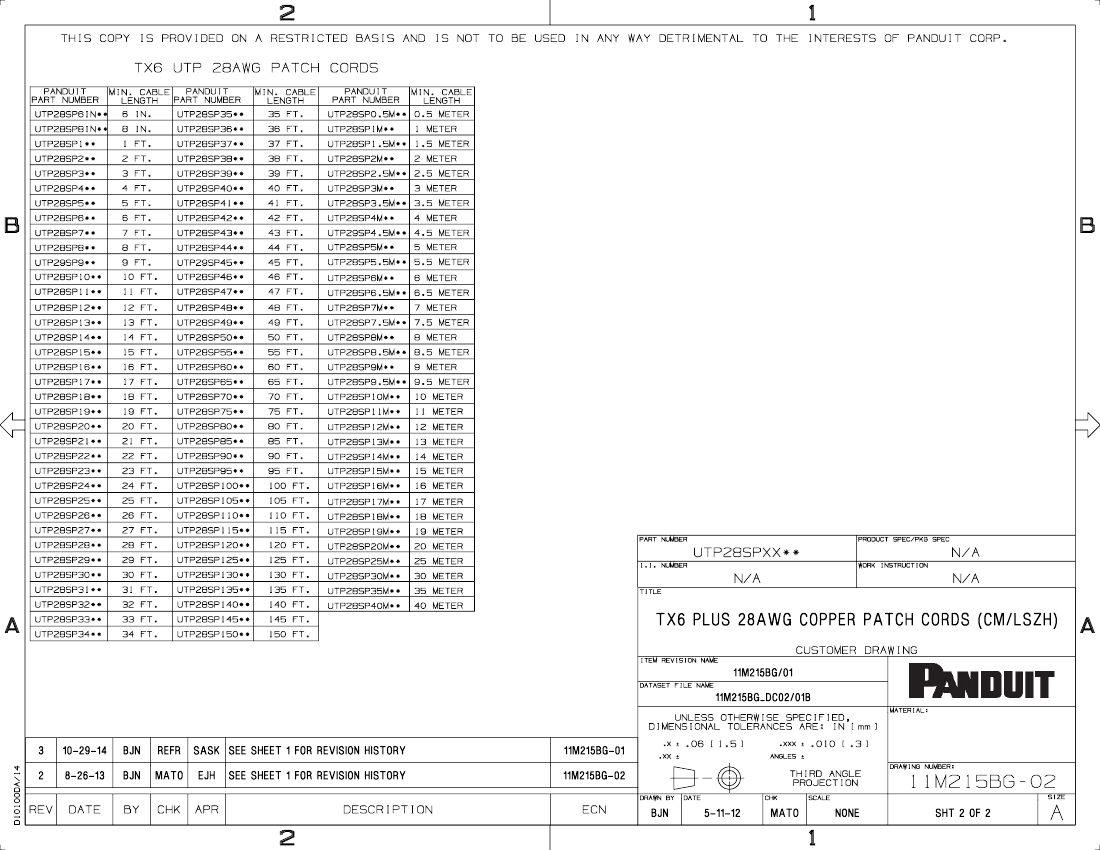

TX6 UTP 28AWG PATCH CORDS
PANDUIT
PART NUMBER
UTP28SP6IN**
UTP28SP8IN**
UTP28SP1**
UTP28SP2**
UTP28SP3**
UTP28SP4**
UTP28SP5**
PANDUIT
MIN. CABLE
PART NUMBER
LENGTH
6 IN.
8 IN.
1 FT.
2 FT.
3 FT.
4 FT.
5 FT.
6 FT.
7 FT.
8 FT.
9 FT.
10 FT.
11 FT.
12 FT.
13 FT.
14 FT.
15 FT.
16 FT.
17 FT.
18 FT.
19 FT.
20 FT.
21 FT.
22 FT.
23 FT.
24 FT.
25 FT.
26 FT.
27 FT.
28 FT.
29 FT.
30 FT.
31 FT.
32 FT.
33 FT.
34 FT.
UTP28SP35**
UTP28SP36**
UTP28SP37**
UTP28SP38**
UTP28SP39**
UTP28SP40**
UTP28SP41**
UTP28SP42**
UTP28SP43**
UTP28SP44**
UTP29SP45**
UTP28SP46**
UTP28SP47**
UTP28SP48**
UTP28SP49**
UTP28SP50**
UTP28SP55**
UTP28SP60**
UTP28SP65**
UTP28SP70**
UTP28SP75**
UTP28SP80**
UTP28SP85**
UTP28SP90**
UTP28SP95**
UTP28SP100**
UTP28SP105**
UTP28SP110**
UTP28SP115**
UTP28SP120**
UTP28SP125**
UTP28SP130**
UTP28SP135**
UTP28SP140**
UTP28SP145**
UTP28SP150**
MIN. CABLE
LENGTH
35 FT.
36 FT.
37 FT.
38 FT.
39 FT.
40 FT.
41 FT.
42 FT.
43 FT.
44 FT.
45 FT.
46 FT.
47 FT.
48 FT.
49 FT.
50 FT.
55 FT.
60 FT.
65 FT.
70 FT.
75 FT.
80 FT.
85 FT.
90 FT.
95 FT.
100 FT.
105 FT.
110 FT.
115 FT.
120 FT.
125 FT.
130 FT.
135 FT.
140 FT.
145 FT.
150 FT.
PANDUIT
PART NUMBER
MIN. CABLE
LENGTH
1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
UTP28SP0.5M** 0.5 METER
UTP28SP1M**
1 METER
UTP28SP1.5M** 1.5 METER
UTP28SP2M**
2 METER
UTP28SP2.5M** 2.5 METER
UTP28SP3M**
3 METER
UTP28SP3.5M** 3.5 METER
UTP28SP4M**
4 METER
B
UTP28SP6**
UTP28SP7**
UTP28SP8**
UTP29SP9**
UTP28SP10**
UTP28SP11**
UTP28SP12**
UTP28SP13**
UTP28SP14**
UTP28SP15**
UTP28SP16**
UTP28SP17**
UTP28SP18**
UTP28SP19**
UTP28SP20**
UTP28SP21**
UTP28SP22**
UTP28SP23**
UTP28SP24**
UTP28SP25**
UTP28SP26**
UTP28SP27**
UTP28SP28**
UTP28SP29**
UTP28SP30**
UTP28SP31**
UTP28SP32**
UTP29SP4.5M** 4.5 METER
UTP28SP5M**
5 METER
B
UTP28SP5.5M** 5.5 METER
UTP28SP6M**
6 METER
UTP28SP6.5M** 6.5 METER
UTP28SP7M**
7 METER
UTP28SP7.5M** 7.5 METER
UTP28SP8M**
8 METER
UTP28SP8.5M** 8.5 METER
UTP28SP9M**
9 METER
UTP28SP9.5M** 9.5 METER
UTP28SP10M**
UTP28SP11M**
UTP28SP12M**
UTP28SP13M**
UTP29SP14M**
UTP28SP15M**
UTP28SP16M**
UTP28SP17M**
UTP28SP18M**
UTP28SP19M**
UTP28SP20M**
UTP28SP25M**
UTP28SP30M**
UTP28SP35M**
UTP28SP40M**
10 METER
11 METER
12 METER
13 METER
14 METER
15 METER
16 METER
17 METER
18 METER
19 METER
20 METER
25 METER
30 METER
35 METER
40 METER
TITLE
PART NUMBER
PRODUCT SPEC/PKG SPEC
UTP28SPXX**
I.I. NUMBER
WORK INSTRUCTION
N/A
N/A
N/A
A
UTP28SP33**
UTP28SP34**
TX6
PLUS
28AWG
COPPER
PATCH
CORDS
(CM/LSZH)
CUSTOMER DRAWING
ITEM REVISION NAME
A
11M215BG/01
DATASET FILE NAME
11M215BG_DC02/01B
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
MATERIAL:
3
D10100DA/14
10-29-14
8-26-13
DATE
BJN
BJN
REFR
SASK
SEE
SHEET
1
FOR
REVISION
HISTORY
EJH
SEE
SHEET
1
FOR
REVISION
HISTORY
11M215BG-01
.X
.XX
.06 [1.5]
.XXX
ANGLES
.010 [.3]
DRAWING NUMBER:
2
REV
MATO
CHK
11M215BG-02
DRAWN BY
DATE
CHK
THIRD ANGLE
PROJECTION
SCALE
11M215BG-02
SIZE
BY
APR
DESCRIPTION
ECN
BJN
5-11-12
MATO
NONE
SHT
2
OF
2
A
2
