1.30090.0121300 datasheet, PDF

Datasheet> All Categories > accessories> 1.30090.0121300

1.30090.0121300: DescriptionSWITCH PB RAFIX 16F ILLUM RED; Categoryaccessories; File Size101KB，2 Pages; ManufacturerRAFI USA; Environmental Compliance

Download Datasheet Parametric View All

1.30090.0121300 Overview

SWITCH PB RAFIX 16F ILLUM RED

1.30090.0121300 Parametric

Parameter Name	Attribute value
Require	contact block, lighting power supply
type	-
illumination	Illuminated - red
Actuator type	button, round
(Select first, then apply filter) Compatible Series	Rafix 16 F
Panel opening size	22.3mm (round)

Preview

Download Datasheet

View All

12.10.2016

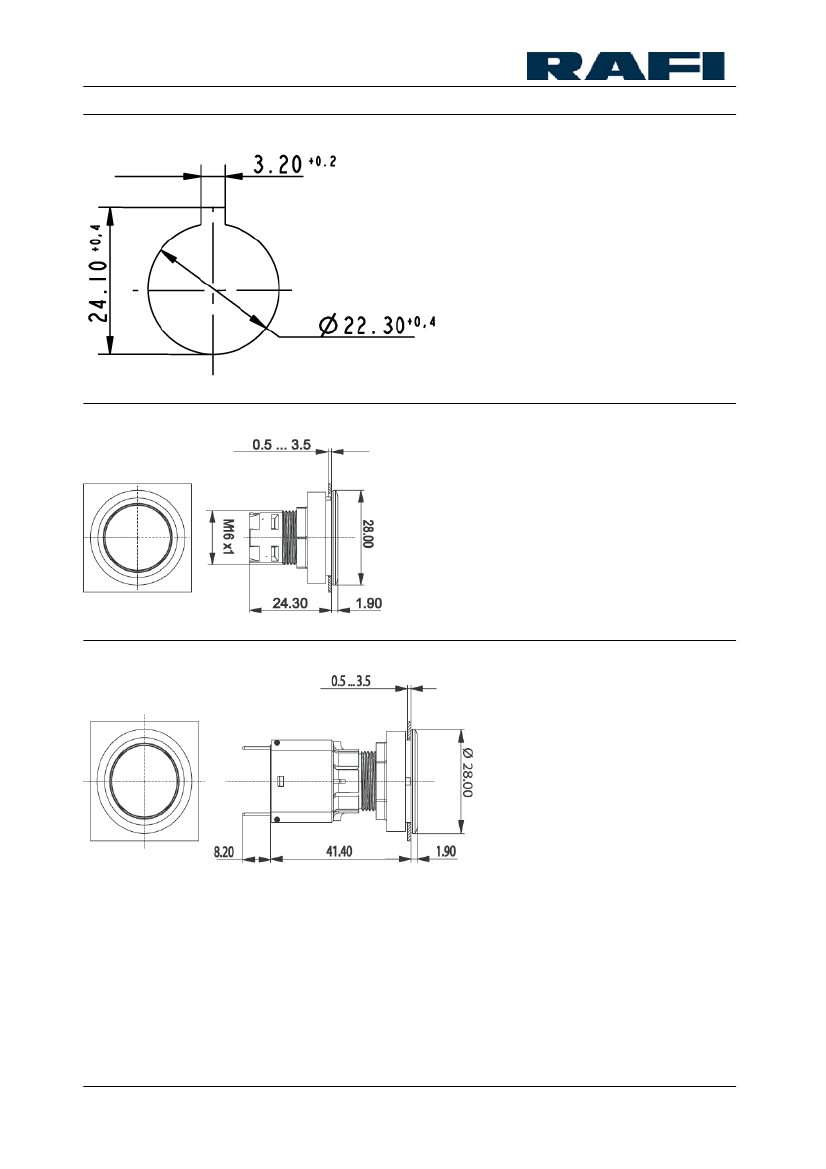

RAFIX 16 F - Pushbutton, flush lens, round metallized collar

1.30.090.012/1300

General information

Form of lens

Color of lens

Form of collar

Color of collar

Dimensions

Collar dimensions

Overall height

Mounting depth with contact block

Key grid

Mounting hole

Mechanical design

Mounting

Contact function

Illumination

Mechanical characteristics

Robustness max.

Other specifications

Operating life (operations)

Degree of protection from front side

Operation temperature min.

Ambient temp. operating max. without lamp /

LED

Ambient temp. operating max. with lamp /LED

Storage temperature min.

Storage temperature max.

Environmental restistance

ROHS compliant

REACH compliant

flat lens

transparent red

round

silver metallic

ø 28 mm

1.9 mm

50 mm

30 x 30 mm

ø 22.3 mm

ring nut

je nach Schaltelement

yes

100 N

2,000,000 cycle

IP65 (DIN EN 60529)

-25 °C

+70 °C

+55 °C

-40 °C

+85 °C

acc. to IEC 60068-2-14, -30, -33 and -78

yes

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
