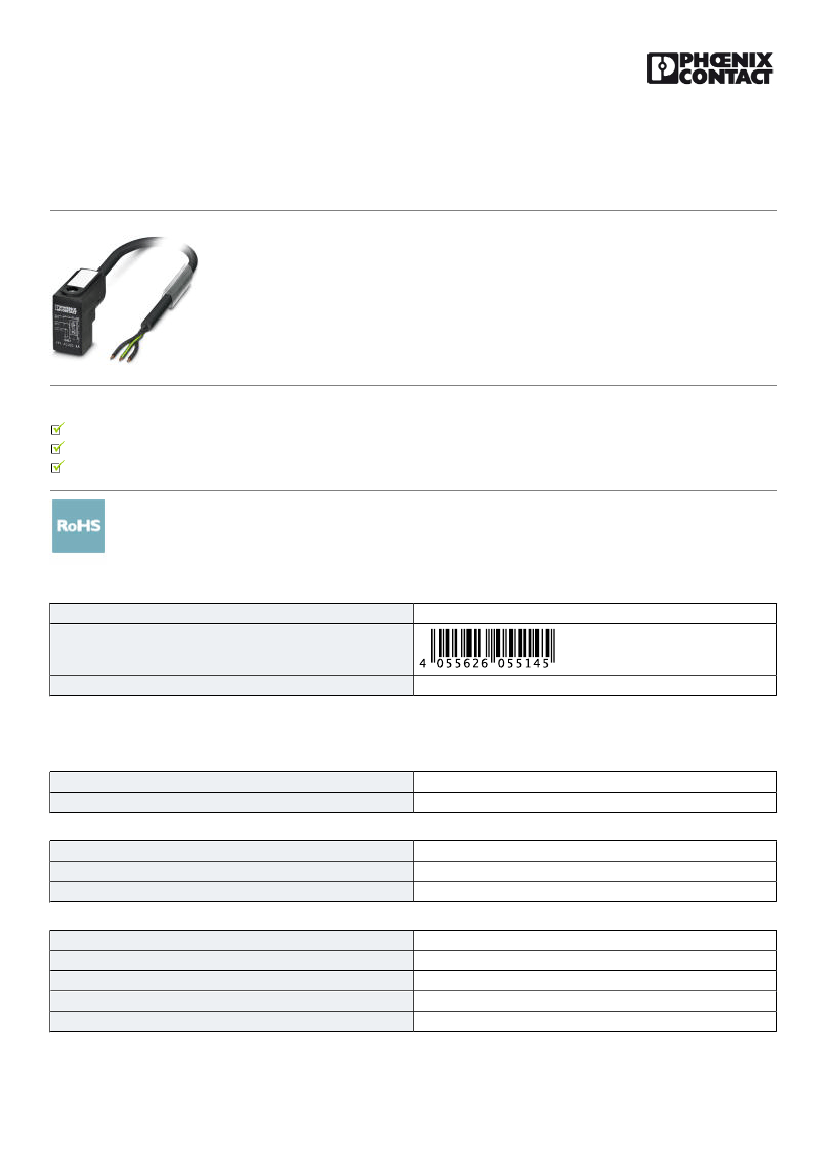

Sensor/actuator cable - SAC-3P- 3,0-PVC/CI-1L-Z - 1415939
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator cable, 3-position, PVC, black RAL 9005, free cable end, on Valve connector CI (9.4 mm),
with 1 LED, connected with Z diode, cable length: 3 m
Your advantages
Easy and safe: 100% electrically tested plug-in components
Robust valve connector with Zener diode as protective circuit
Convenient: increased machine availability thanks to quick and easy diagnostics
Key Commercial Data
Packing unit
GTIN
GTIN
4055626055145
1 pc
Technical data
Dimensions
Length of cable
Central screw valve connector
3m
M3 x 29
Ambient conditions
Ambient temperature (operation)
Degree of protection
-20 °C ... 85 °C (valve plug)
IP65
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Color handle area
4A
24 V AC
24 V DC
3
black
11/26/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1415939
Sensor/actuator cable - SAC-3P- 3,0-PVC/CI-1L-Z - 1415939
Technical data
General
Insulation resistance
Status display
Protective circuit/component
Pulse power W
max
Reverse voltage
Overvoltage category
Degree of pollution
≥ 100 MΩ
1 LED
Z diode
40 W (at 100 µs square-wave pulse)
50 V
III
3
Material
Flammability rating according to UL 94
Valve plug contact material
Valve plug contact surface material
Valve plug contact insert material
Material housing valve plug
Sealing material
V0
CuSn
Sn
PA 6.6
TPU
TPU (Seal molded)
Standards and Regulations
Flammability rating according to UL 94
V0
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
External sheath, color
External cable diameter D
Minimum bending radius, fixed installation
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
PVC black
PVC
LiYY
2464
3x 0.5 mm²
20
16x 0.20 mm
1.5 mm ±0.05 mm
black 1, black 2, green/yellow
3 wires, twisted
black RAL 9005
4.8 mm ±0.2 mm
5xD
PVC
PVC
Bare Cu litz wires
≥ 20 MΩ*km
39 Ω/km (at 20 °C)
300 V
1200 V
DIN VDE 0482
DIN EN 50265-2-1
11/26/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1415939
Sensor/actuator cable - SAC-3P- 3,0-PVC/CI-1L-Z - 1415939
Technical data
Cable
Resistance to oil
Ambient temperature (operation)
largely oil-resistant
-40 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

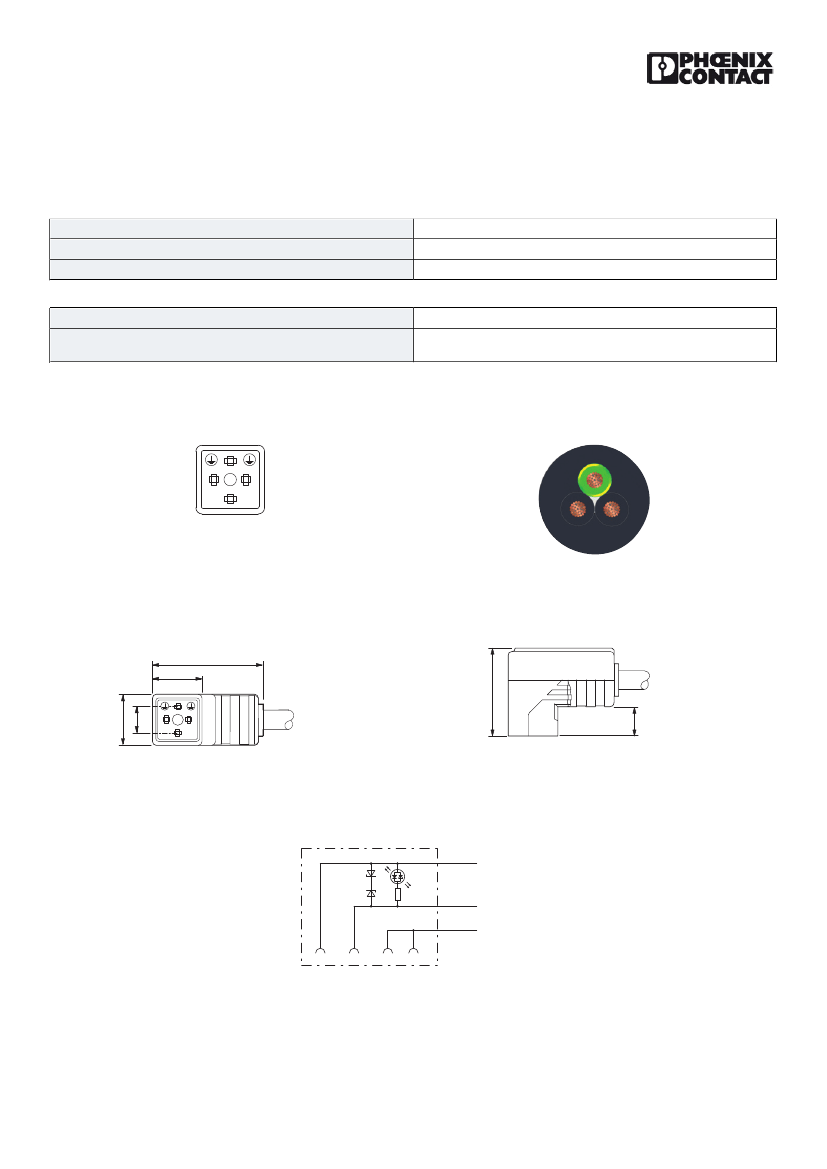

Drawings
Schematic diagram
1
Cable cross section
2
Valve connector connector pin assignment, type CI
PVC black [PVC]
Dimensional drawing
Dimensional drawing
35,5
16
16,1
9,4
1
2
28
Valve connector, type CI, side view
Valve connector, type CI
Circuit diagram
BK 2
YE
BK 1
GNYE (PE)
2
1
PE
Contact assignment of the valve plug
9,5
11/26/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1415939
Sensor/actuator cable - SAC-3P- 3,0-PVC/CI-1L-Z - 1415939
Approvals
Approvals
Approvals
CSAus
Ex Approvals
Approval details
CSAus
Nominal voltage UN
Nominal current IN
http://www.csagroup.org/services-industries/product-listing/
24 V
6A
13631
