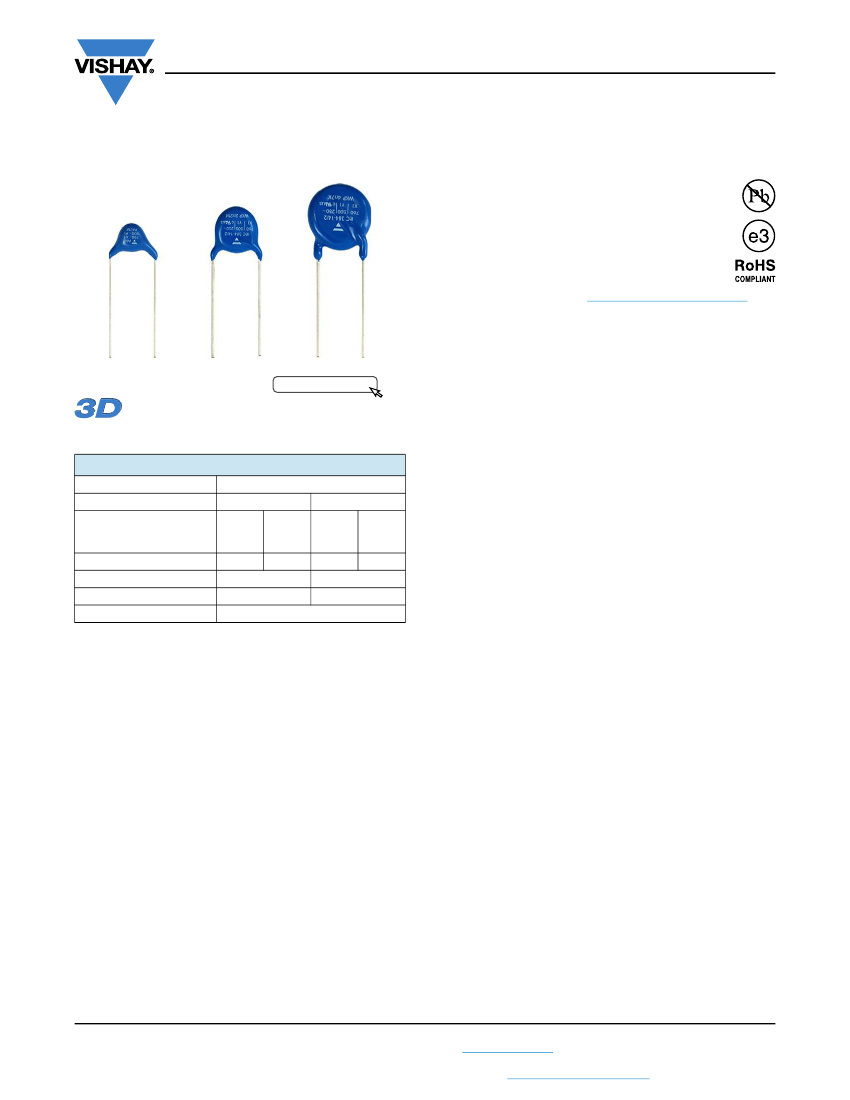

WKP Series
www.vishay.com
Vishay Draloric
AC Line Rated Ceramic Disc Capacitors
Class X1, 760 V
AC
, Class Y1, 500 V
AC
FEATURES
• Complying with IEC 60384-14 4
th
edition
• High reliability
• Wide range of different leadstyles
• Singlelayer AC disc safety capacitors
• Material categorization: for definitions of
compliance please see
www.vishay.com/doc?99912
APPLICATIONS
• X1, Y1 according to IEC 60384-14.4
• Across-the-line
DESIGN SUPPORT TOOLS
Models
Available
click logo to get started
• Line-by-pass
• Antenna coupling
DESIGN
The capacitors consist of ceramic disc both sides of which
are silver plated. Connection leads are made of tinned
copper having diameters of 0.6 mm or 0.8 mm.
2
N750
760
33
33
Radial
Y5S,
Y5T,
Y5U
500
47
4700
Y5S,
Y5T,
Y5U
760
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
AC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
N750
500
1
VALUE
The capacitors may be supplied with straight or kinked
leads having a lead spacing of 10.0 mm or 12.5 mm.
Coating is made of blue colored flame retardant epoxy resin
in accordance with UL 94 V-0.
CAPACITANCE RANGE
33 pF to 4.7 nF
TOLERANCE ON CAPACITANCE
MARKING
Marking indicates series, AC rating, capacitance, tolerance
code, and approvals.
± 10 %, ± 20 %
RATED VOLTAGE
• X1:
760 V
AC
, 50 Hz (IEC 60384-14.4)
760 V
AC
, 50 Hz / 60 Hz (US/UL/CSA 60384-14)
500 V
AC
, 50 Hz (IEC 60384-14.4)
500 V
AC
, 50 Hz / 60 Hz (US/UL/CSA 60384-14)
OPERATING TEMPERATURE RANGE
-40 °C to +125 °C
• Y1:
TEMPERATURE CHARACTERISTICS
Class 1
Class 2
N750 (U2J)
Y5S, Y5T, Y5U
TEST VOLTAGE
• 4000 V
AC
, 50 Hz, 2 s
Component test (100 %)
• 4000 V
AC
, 50 Hz, 60 s Random sampling test (destructive)
SECTIONAL SPECIFICATIONS
Climatic category (according to EN 60068-1)
Class 1
Class 2
40/125/21
40/125/21
• 4000 V
AC
, 50 Hz, 60 s Voltage proof of coating (destructive)
INSULATION RESISTANCE AT 500 V
DC
10
000 M (60 s)
APPROVALS
IEC 60384-14.4
UL 60384-14.1
CSA E60384-1:03 2
nd
edition, CSA E60384-14:09 2
nd
edition
DISSIPATION FACTOR
Class 1:
Class 2:
max. 0.5 % (1 kHz)
max. 2.5 % (1 kHz)
Revision: 29-Mar-18
Document Number: 22206
1
For technical questions, contact:
slcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WKP Series
www.vishay.com
Vishay Draloric

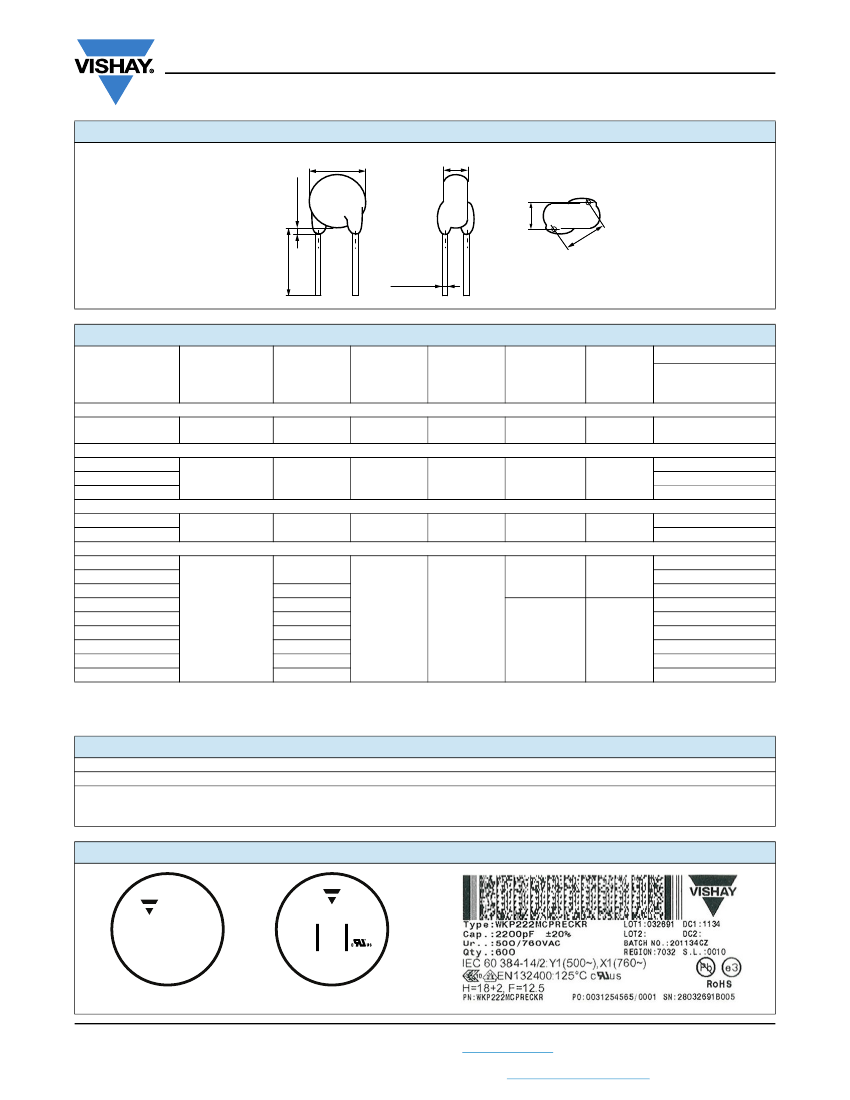

DIMENSIONS
in millimeters
D
max.
3.0 max.
S
max.
V
F
30 - 3
or 10 ± 1
Ø d ± 0.05
TECHNICAL DATA
CAPACITANCE
C (pF)
N750 (U2J)
33
± 10 %,
± 20 %
8.0
6.0
12.5
0.6
1.9
WKP330#CP###KR
(2)
CAPACITANCE
TOLERANCE
BODY
DIAMETER
D
MAX.
(mm)
BODY
THICKNESS
S
MAX.
(mm)
LEAD
SPACING
(1)
F (mm)
± 1 mm
LEAD
DIAMETER
(1)
d (mm)
± 0.05 mm
WIDTH
(1)
V (mm)
± 0.5 mm
PART NUMBER
MISSING DIGITS
SEE ORDERING
CODE BELOW
Y5S (2C3)
47
WKP470#CP###KR
± 10 %,
68
8.0
6.0
12.5
0.6
2.3
WKP680#CP###KR
± 20 %
100
WKP101#CP###KR
Y5T (2D3)
150
WKP151#CP###KR
± 10 %,
8.0
6.0
12.5
0.6
2.3
± 20 %
220
WKP221#CP###KR
Y5U (2E3)
330
WKP331#CP###KR
8.0
470
0.6
2.5
WKP471#CP###KR
680
9.0
WKP681#CP###KR
1000
10.0
WKP102#CP###KR
± 10 %,
6.0
12.5
1500
12.0
WKP152#CP###KR
± 20 %
2200
13.0
WKP222#CP###KR
0.8
2.7
3300
15.0
WKP332#CP###KR
3900
16.0
WKP392#CP###KR
4700
18.0
WKP472#CP###KR
Notes
(1)
Standard lead configuration, other lead spacing and diameter available on request
(2)
Capacitance values from 1 nF to 4.7 nF: the alternative usage of smaller VKP series is recommended for new application.
ORDERING CODE
#
###
Example
10
th
7
th
digit
to 12
th
digit
WKP
Series
Capacitance tolerance
Lead configuration
222
M
Capacitance
Tolerance code
value
± 10 % = K, ± 20 % = M
see “General Information”
CP
ED0
Lead
Voltage code
configuration
K
Internal code
R
RoHS
compliant
MARKING
WKP
760~X1
500~Y1
33p M
WKP 33 pF to 1.5 nF
IEC 384-14/2
760 500 250~
X1 Y1
WKP 2n2 M
WKP 2.2 nF to 4.7 nF
Revision: 29-Mar-18
Document Number: 22206
2
For technical questions, contact:
slcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WKP Series
www.vishay.com
Vishay Draloric
APPROVALS
IEC 60384-14.4 - Safety tests
This approval together with CB test certificate substitutes all national approvals.
CB Certificate
Y1-capacitor: CB test certificate:
X1-capacitor: CB test certificate:
Minimum thickness of insulation: 0.4 mm
VDE
Y1-capacitor: VDE marks approval:
X1-capacitor: VDE marks approval:
DIN EN 60384-14 VDE 0565-1-1:2006-04 - Safety tests
Minimum thickness of insulation: 0.4 mm
Underwriters Laboratories Inc. / Canadian Standards Association
Y1-capacitor: UL-test certificate:
X1-capacitor: UL-test certificate:
E183844
E183844
33 pF to 4.7 nF
33 pF to 4.7 nF
500 V
AC
760 V
AC
136493
136493
33 pF to 4.7 nF
33 pF to 4.7 nF
500 V
AC
760 V
AC
US-26549-UL
US-26549-UL
33 pF to 4.7 nF
33 pF to 4.7 nF
500 V
AC
760 V
AC
UL 60384-14.1, CSA E60384-1:03 2
nd
edition, CSA E60384-14:09 2
nd
edition
Across-the-line, antenna-coupling and line-by-pass component
Minimum thickness of insulation: 0.4 mm
LEAKAGE CURRENT VS. VOLTAGE
(typical)
I (μA)
5000
4000
3000
2000
1000
0
0
500
1000 1500 2000 2500 3000 3500 4000
IMPEDANCE VS. FREQUENCY
(typical)
Z (Ω)
10
4.7 nF
1
4700 pF
3900 pF
3300 pF
2200 pF
1500 pF
1000 pF
680 pF
470 pF
330 pF
220 pF
150 pF
100 pF
68 pF
3.3 nF
2.2 nF
1.0 nF
470 pF
0.1
0.01
1
10
100
1000
U
R
(V~)
f (MHz)
RELATED DOCUMENTS
General Information
CB Test Certificate
VDE Marks Approval
UL Test Certificate
www.vishay.com/doc?22001
www.vishay.com/doc?22214
www.vishay.com/doc?22216
www.vishay.com/doc?22215
Revision: 29-Mar-18
Document Number: 22206
3
For technical questions, contact:
slcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
