PRODUCT BRIEF

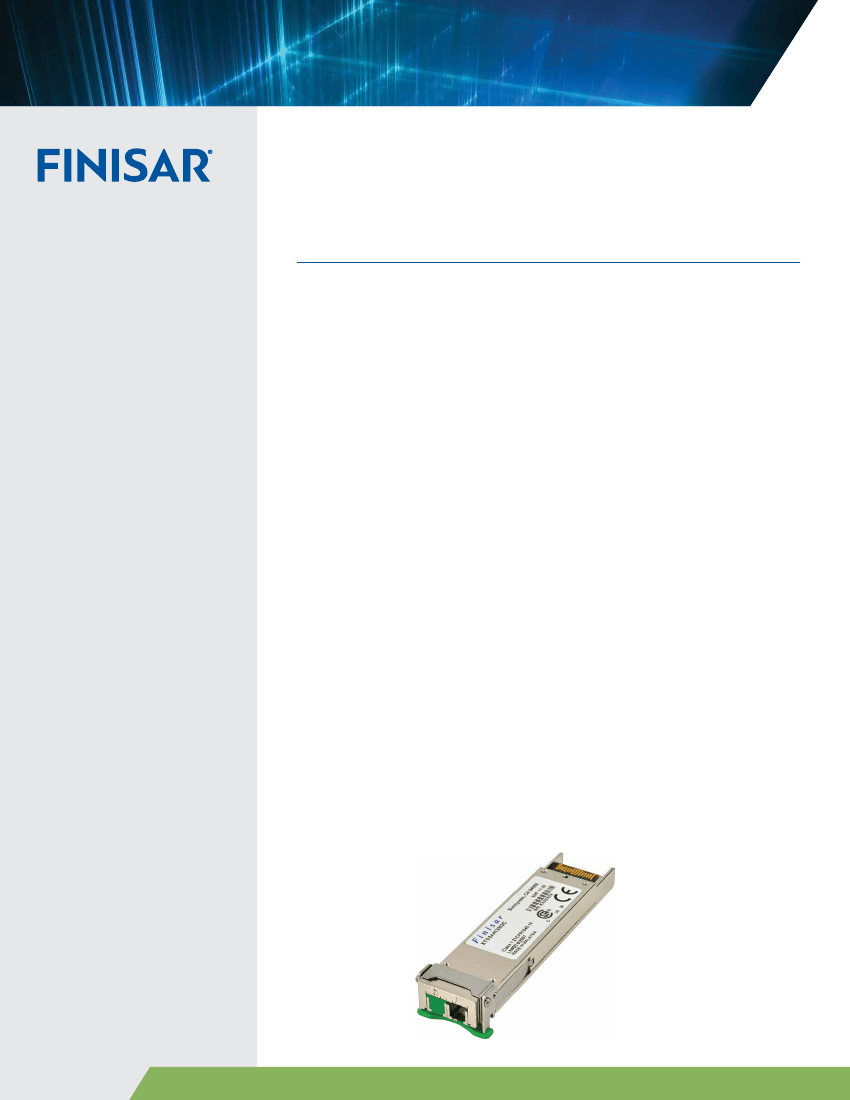

Pluggable XFP-RF Transmitter
Key Features
DOCSIS 3.1 compatible: All-
Digital QAM loading from
50 MHz to 1.2 GHz
Wavelength can be tuned across
the entire C-band at 100GHz ITU
DWDM spacings
Packaged in standard XFP
pluggable optical module
Built-in digital diagnostic
functions
Link distance up to 60
kilometers without any
dispersion compensation
LC Angled-Physical Contact
(APC) optical connection for
low reflection
Low power consumption
Compliant with SCTE 195 2013:
Interface Specifications for an
RF-Modulated Small Form Factor
Pluggable Optical Module
Mechanical dimensions
compliant with 10 Gigabit Small
Form Factor Pluggable Module
(XFP) Multi-Source Agreement
(INF-8077i, Rev. 4.5)
for Hybrid Fiber Coaxial (HFC) Applications
Wavelength tunable, 1.2 GHz pluggable
optical transmitter module
Overview
Finisar’s XFP-RF transmitter is a small form factor hot-pluggable optical module
that is compliant with interface specifications developed by the Society of Cable
Telecommunications Engineers (SCTE). It can be fully loaded with digital QAM channels
from 50 MHz to 1218 MHz to enable cable operators to more effectively segment their
serving groups and offer more services to their subscribers. The small XFP module
significantly reduces power consumption and increases density for downstream
transmitters. These modules can be integrated into today’s Hybrid-Fiber Coaxial (HFC)
optical broadband platforms and tomorrow’s converged access platforms (CCAP).
The transmitter wavelength can be tuned up to any of the 43 different Dense Wavelength
Division Multiplexing (DWDM) wavelengths across the entire C-band in 500 ms. This
increases operational efficiencies in deploying DWDM networks and reduces inventory of
transmitters at different fixed wavelengths. Wavelength tunability also opens the possibility
of novel HFC architectures that can dynamically route services and increase bandwidth
capacity in the cable operator’s access network.
Key Advantages
2x to 4x density improvement over current transmitter solutions
At least 50% less power consumption per transmitter
Enables future HFC architectures to route services dynamically by changing the
wavelength of the transmitter
Enables pluggable optics to be utilized directly in next-generation Cable Modem
Termination Systems and QAM modulators
Applications
1550nm Broadcast with DWDM
Narrowcast Overlay architectures
All-Digital QAM networks
RF-over-Glass (RFoG)
Pluggable XFP-RF HFC Transmitter
Specifications
Parameter
Optical Output Power
Optical Wavelengths
Center Wavelength Spacing
Wavelength Tuning Time
Optical Connection
Optical Fiber Distance
Fiber Dispersion Compensation, Internal
or External
SBS Suppression
Modulation Error Ratio (MER)
RF Bandwidth
RF Input Level
RF Impedance
RF Flatness
RF Input Return Loss
Dimensions
Mounting
Operating Temperature Range
Storage Temperature Range
Power Consumption
Data/Control
Value
+5 dBm or +6 dBm minimum (see product selection table below)
ITU DWDM Channels 18 to 60 (1528.77 nm to 1529.55 nm)
100 GHz
0.5 seconds typical
LC/APC receptacle (angled physical contact)
0 km to 60 km
Not applicable
+13 dBm typical (higher SBS suppression available)
41 dB, Minimum (64 channels of 256 QAM, link distance of 50km)
37 dB, Minimum (154 channels of 256 QAM, link distance of 50km)
50 MHz to 1218 MHz
Dependent on host module (+3 dBm composite typical into XFP-RF)
Dependent on host module (100 Ω differential into XFP-RF)
1.0 dB max, peak to peak, 50 MHz to 1003 MHz
1.5 dB max, peak to peak, 50 MHz to 1218 MHz
16 dB min, 52 MHz to 1218 MHz
78 mm (L ) X 18.35 mm (W) X 8.5 mm (H)
3.0 in (L) X 0.7 in (W) X 0.3 in (H)
XFP cage assembly on host module
0˚C to 70˚C
-40˚C to 85˚C
3 Watts typical
Digital diagnostic functions via two-wire serial interface
Product Selection
Part Number
XT05AAQTENJD1860
XT05AAQ5ENJDxxx
XT06AAQTENJD2035
XT06AAQ5ENJDxxx
Output Power
+ 5 dBm
+ 5 dBm
+ 6 dBm
+ 6 dBm
Wavelength Control
Wavelength-Tunable
Fixed Wavelength
Wavelength-Tunable
Fixed Wavelength
Wavelength Range
43 channels from ITU 18 to 60
Single-channel between ITU 18 to 60
16 channels from ITU 20 to 35
Single-channel between ITU 20 to 35
xxx – fixed wavelength designated with ITU DWDM channel number (e.g. "210" for ITU channel 21)
1389 Moffett Park Drive
Sunnyvale, CA 94089-1133
www.finisar.com
Phone:
Sales:
Email:
+1-408-548-1000
+1-408-541-5690
sales@finisar.com
Visit Our Website
