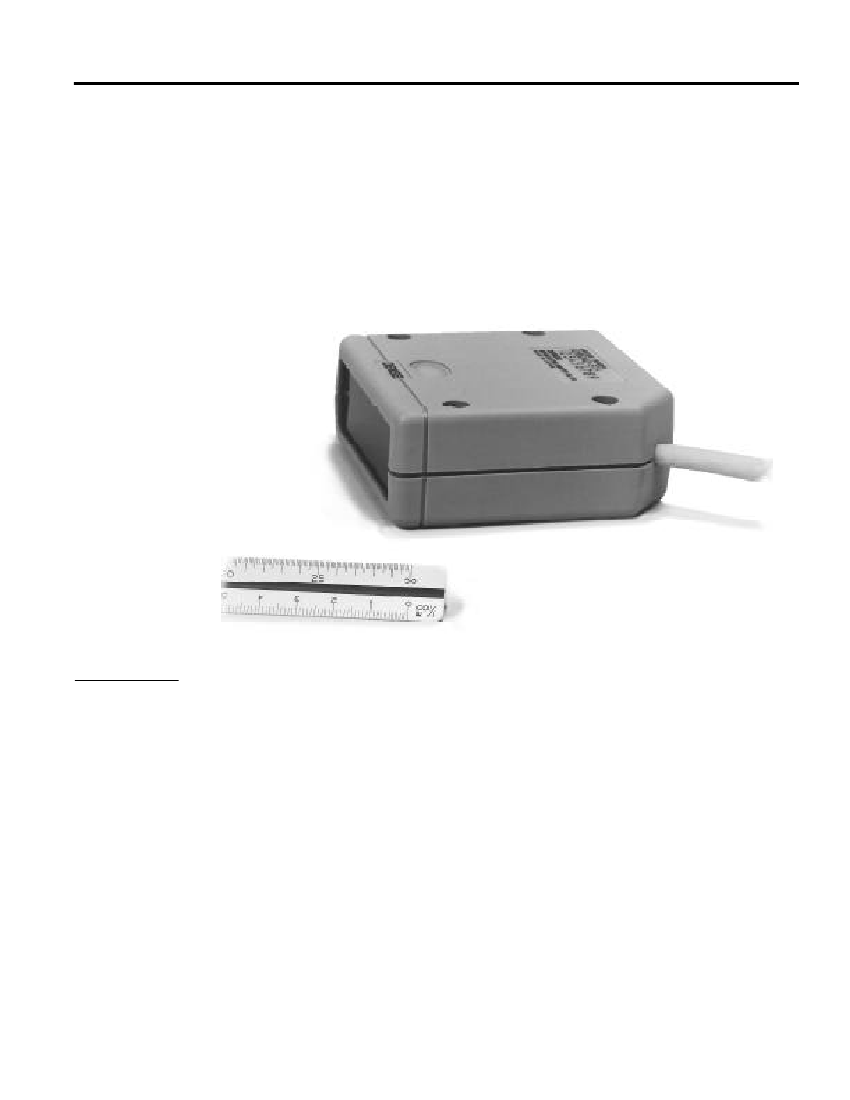

BCR5242
Video/CCD Scanner
MACHINE MOUNT SCANNER
FEATURES
•
VIDEO/CCD imager
The scanning system is functionally identical to
a solid state, one line, TV camera. There are no
moving parts to wear out, break or adjust.
•
Triggering Options
The scanner can be operated with an external
trigger or in the autotrigger mode, providing
operational flexibility.
• Viewing Options
Both end and side scanning models are available.
The side scanning option is well suited for ex-
treme space limitations.
• Large Depth of Field
The scanner has a depth of field of up to
2 inches (5cm.), allowing considerable flexibility
in scanner/label positioning.
•
Small size
The compact design and convenient mount-
ing make the BCR5242 easy to install in tight
quarters.
•
Low power consumption
The scanner operates at 5VDC and only
consumes 130mA of current.
• Reads all standard symbologies
Reads and autodiscriminates Code 39, Code
93, Code 128, CODABAR, 2 of 5, I 2 of 5 and
UPC/EAN
•
Reads poorly printed symbols
The advanced circuitry and optical design of
the BCR5242 allows the scanner to reliably
read poor contrast and soiled symbols.
BCR5242 Specifications
Series
Interface
Readable bar codes
Bar code width
Min. resolution
Depth of field
Scan Rate
Light source
Detecting element
Min. PCS value
Reading start method
Reading indicator
Set up
Power requirements
Weight (without cable)
Cable length
Max. external illumination
Operating temperature
Operating humidity
EMI/RFI standard
BCR 5242
RS-232-interface is built into scanner
CODE39, CODABAR, 2 of 5, I 2 of 5, CODE128 and CODE93, UPC/EAN
3.1 inch (79mm) wide symbol at principal focal point.
6 mils. (1.5 mm)
2.0 in. (50 mm) TYP. (UPC/EAN standard label x 1, PCS: 0.9)
120 scans/sec.
Red LED (wavelength: 660nm)
VIDEO/CCD imager-one line/2048 pixels
0.3 (white reflection: 85% or more)
Auto or manual triggering
Beeper and LED
Symbology and RS-232 variables are set by bar code menu or host computer
130mA at 5 VDC +/- 5%
4.2 oz. (120 g)
6.6 ft. (2 m)
8000 lux
32° F to 104°F (0°C to 40°C)
20% to 85% RH (non-condensing)
FCC Class A
Mechanical Design
End Scanning Model BCR5242-AX
Units: inches (mm)
Setscrew 4-M3 (5mm deep)
Side Scanning Model BCR5242-BX
Units: inches (mm)
1.1 (28)
1.4 (35)
2.8 (70)
0.8
(20)
1.1 (28)
3.5 (88)
Principal focal point is 1.4 inch (35mm) from the window surface
Principal focal point is 0.6 inch (15mm) from the window surface
BCR5242 Ordering Number Chart
Model Configuration
Omron Part Number
PC COM port
End Scan
BCR5242-AR
PC COM port
Side Scan
BCR5242-BR
Omron PLC
End Scan
BCR5242-AP
Omron PLC
Side Scan
BCR5242-BP
