DB102STR

Description
BRIDGE RECT 1PHASE 100V 1A DB-S
Categorysemiconductor    Discrete semiconductor
File Size371KB,5 Pages
ManufacturerSMC
Websitehttp://www.smc-diodes.com/
Environmental Compliance
Download Datasheet Parametric View All

DB102STR Overview

BRIDGE RECT 1PHASE 100V 1A DB-S

DB102STR Parametric

Parameter NameAttribute value
Diode typeSimplex
technologystandard
Voltage - Peak Reverse (Maximum)100V
Current - average rectification (Io)1A
Voltage at different If - Forward (Vf1.1V @ 1A
Current at different Vr - Reverse leakage current5µA @ 100V
Operating temperature-55°C ~ 150°C(TJ)
Installation typesurface mount
Package/casing4-SMD, gull wing
Supplier device packagingDB-S
DB101S THRU DB107S
Technical Data
Data Sheet N1459, Rev. B
GLASS PASSIVATED SILICON BRIDGE RECTIFIERS
Features
Glass passivated die construction
Low forward voltage drop
High current capability
High surge current capability
Designed for surface mount application
Plastic material-UL flammability 94V-0
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

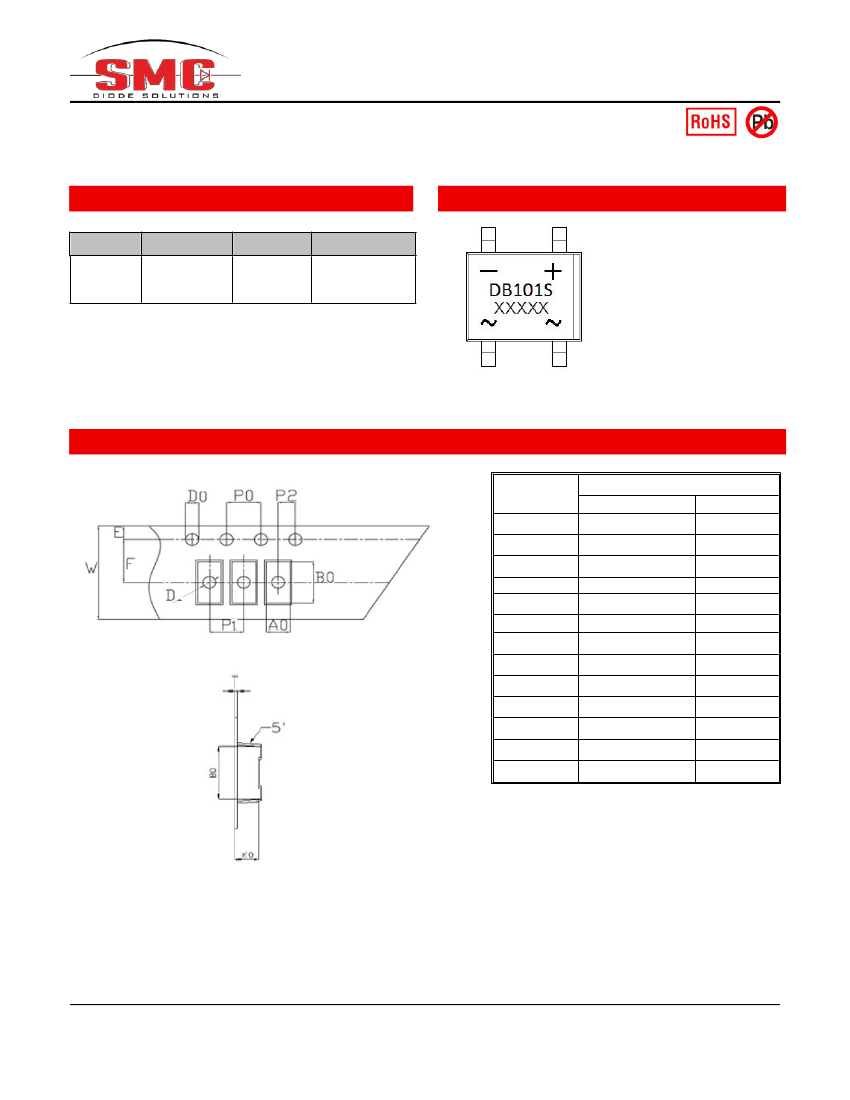

DB101S THRU DB107S
SINGLE-PHASE
DB-S

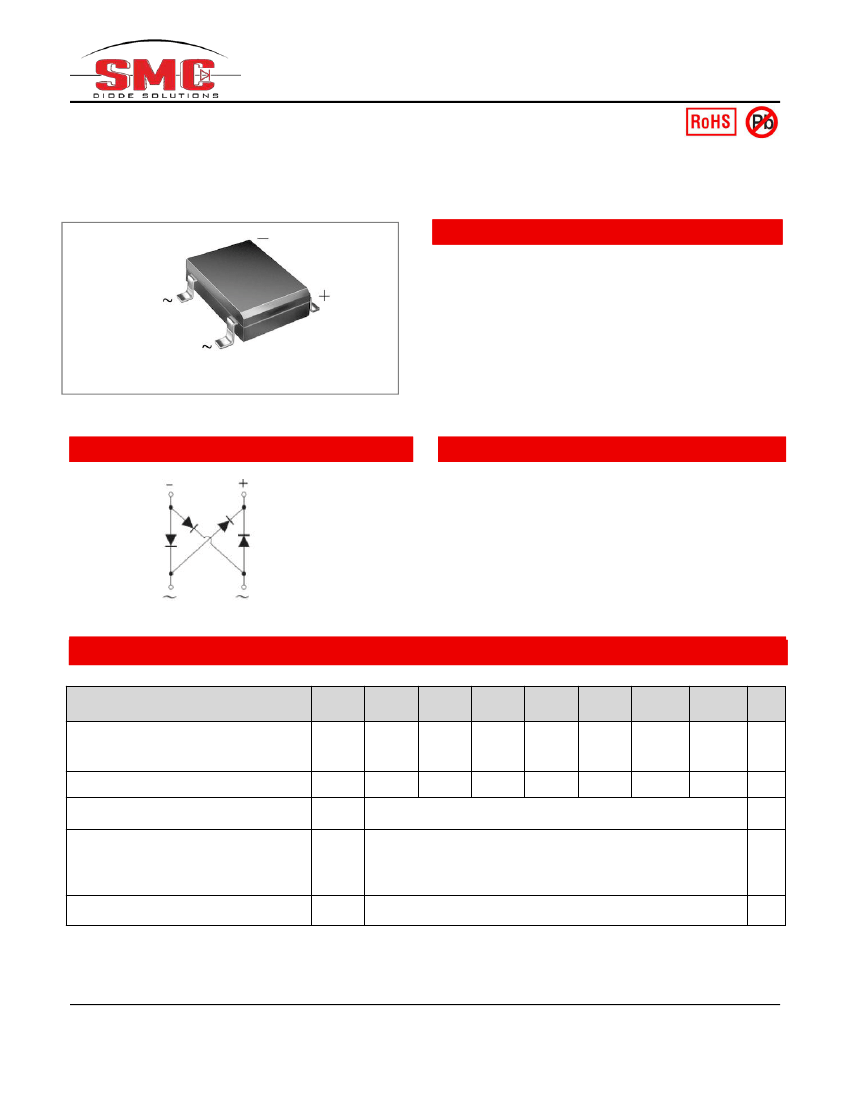

Circuit Diagram

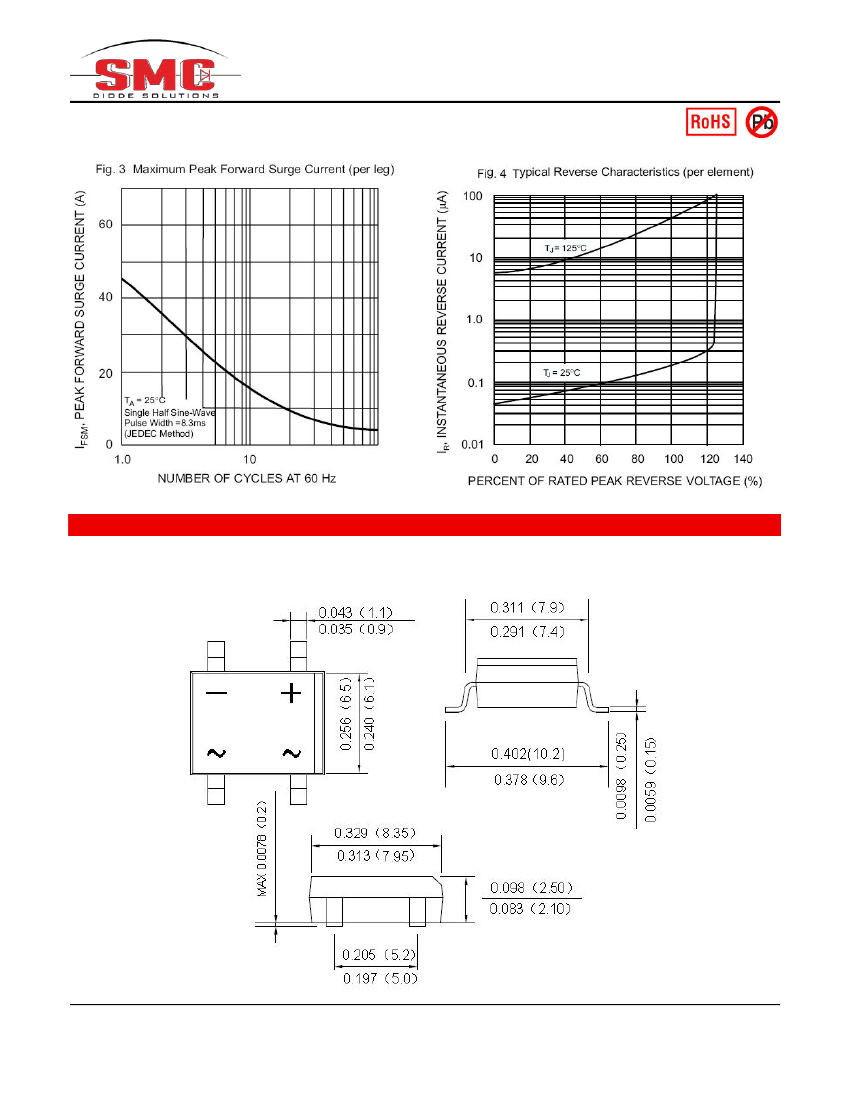

Mechanical Data
Case: DB-S, molded plastic
Terminals: plated leads solderable per MIL-STD-202,
Method 208
Polarity: as marked on case
Mounting position: Any
Lead Free: For RoHS / Lead Free Version,

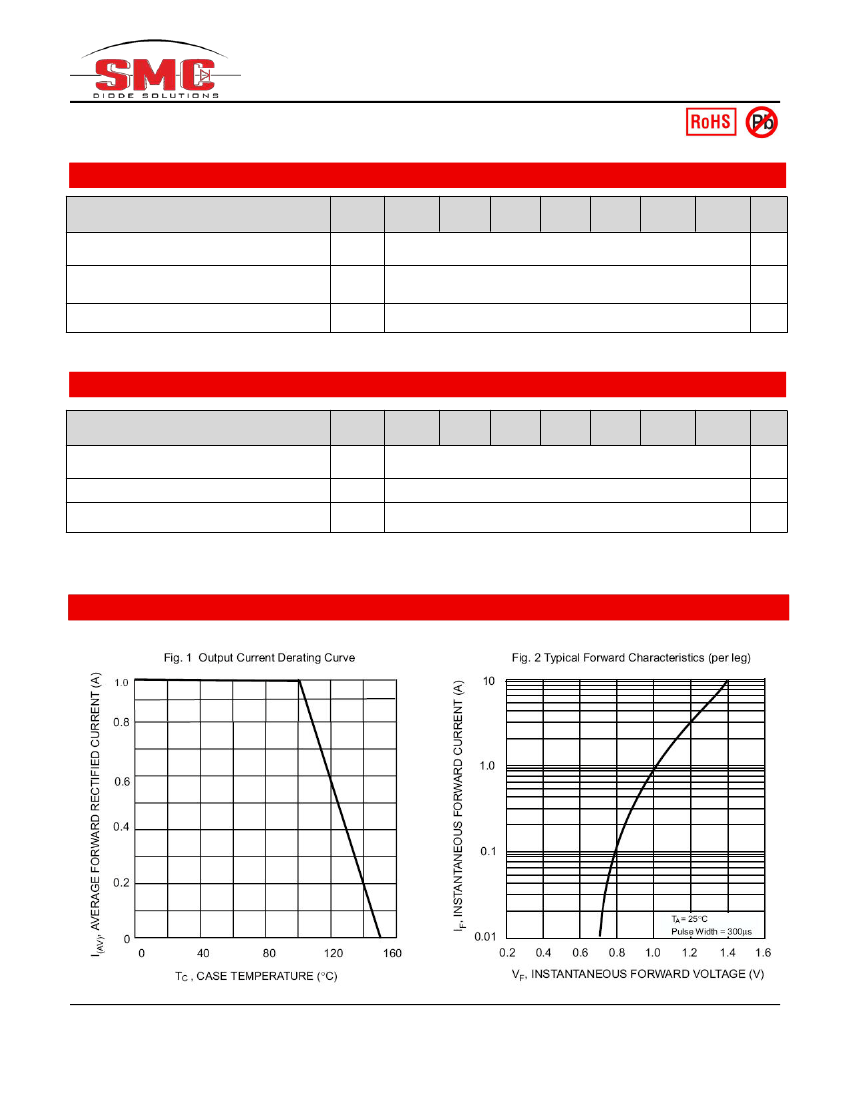

Maximum Ratings
@T
A
=25°C unless
Characteristics
@T
A
=25°C unless otherwise specified
and Electrical
otherwise specified
Single Phase half wave 60Hz, resistive or inductive load. For capacitive load current derate by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Output Current
(Note 1)
@ T
C
=100°C
Non-Repetitive Peak Forward Surge
Current 8.3ms Single half sine-wave
superimposed on rated load (JEDEC
Method)
I
2
t Rating for Fusing (t < 8.3ms)
Symbol
V
RRM
V
RWM
V
R
V
RMS
I
F(AV)
DB
101S
50
35
DB
102S
100
70
DB
103S
200
140
DB
104S
400
280
1.0
DB
105S
600
420
DB
106S
800
560
DB
107S
1000
700
Unit
V
V
A
I
FSM
45
A
I
2
t
8.404
A
2
s
