0438100209: DescriptionMF SMC RA HDR W/O CLIP TIN; CategoryThe connector; File Size437KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric View All

0438100209 Overview

MF SMC RA HDR W/O CLIP TIN

0438100209 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.165"（4.20mm）
Number of pins	24
Number of rows	2
Line spacing - patching	0.165"（4.20mm）
Number of pins loaded	all
style	Board to Board or Cable
shield	Covered - 4 walls
Installation type	Through hole, right angle
Termination	welding
Fastening type	latch holder
Contact Length - Mating	-
Contact length - terminal	0.123"（3.12mm）
Overall contact length	-
Insulation height	0.591"（15.00mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	100.0µin（2.54µm）
Contact Surface Preparation - Column	tin
Contact material	brass
Insulation Materials	Polyamide (PA46), nylon 46, glass fiber reinforced
characteristic	-
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）
application	General, industrial, medical, telecommunications

Preview

Download Datasheet

View All

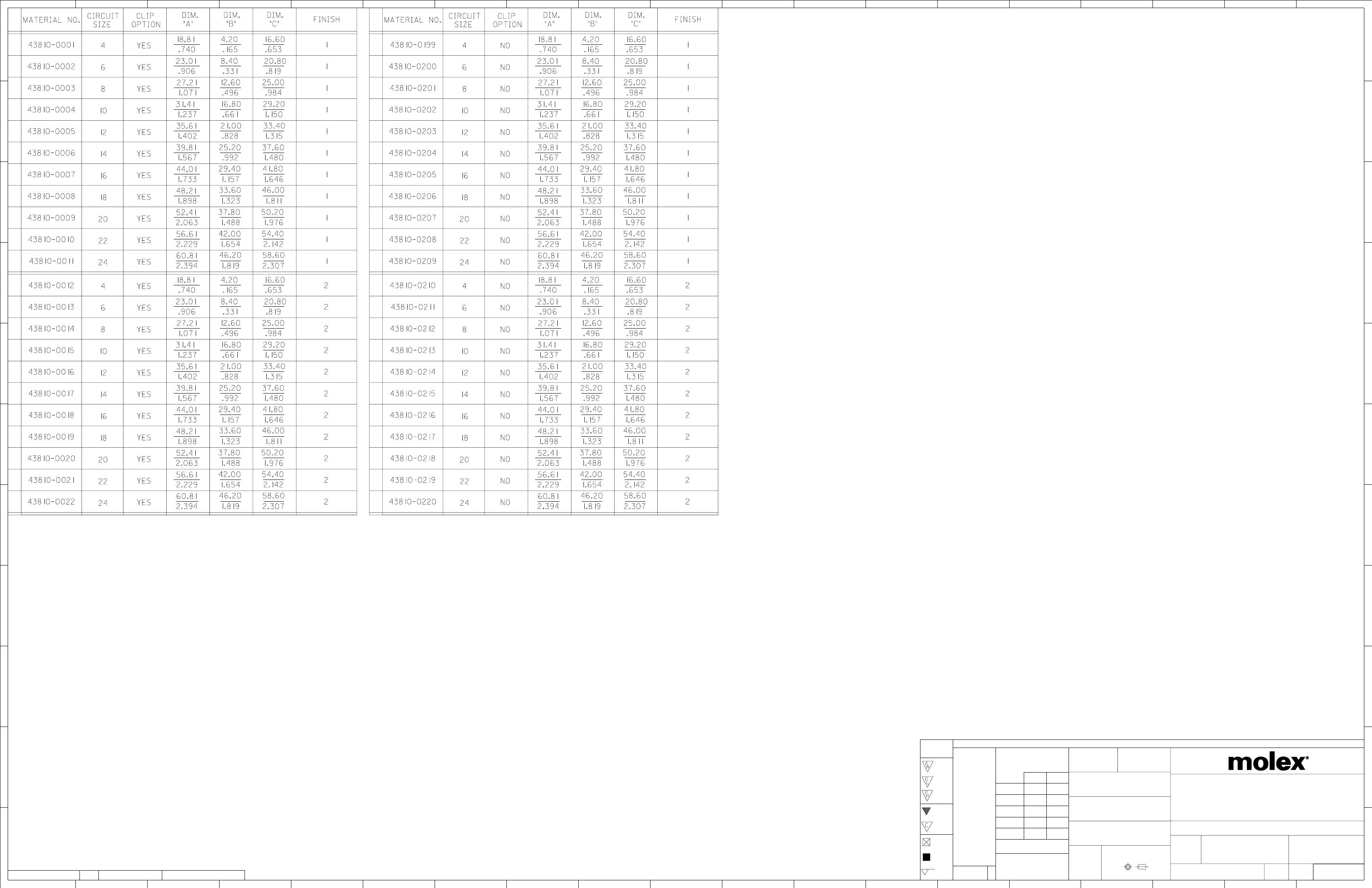

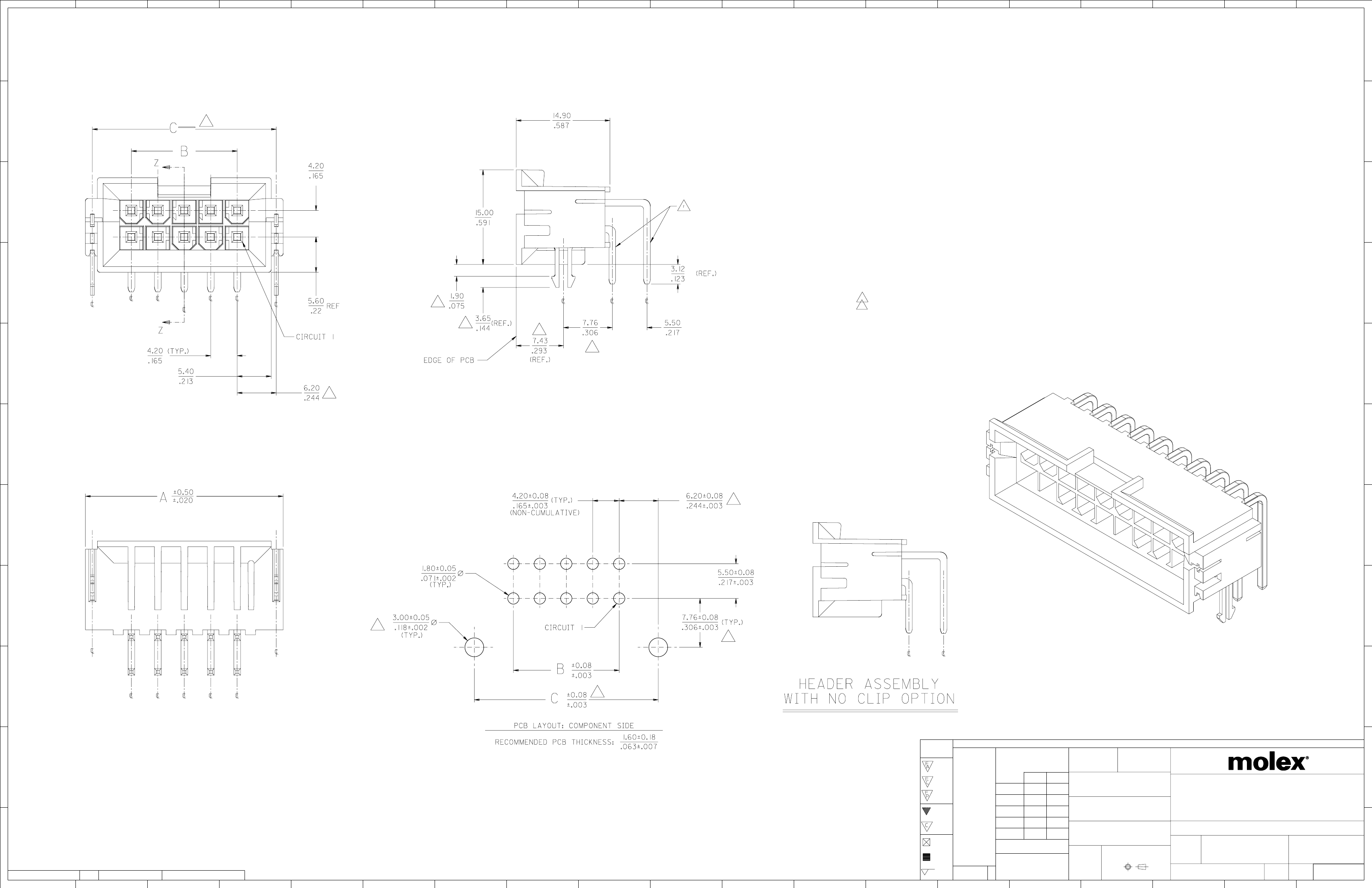

0.50

.020

NOTES

1) MATERIALS

HOUSING: NYLON 4/6 UL 94V-0 GLASS FILLED, COLOR: BLACK

TERMINAL: BRASS

BOARD RETENTION CLIP: BRASS

2) FINISHES:

TERMINAL:

1.=(0.00254)/.000100 MIN. BRIGHT TIN OVER

(0.00127)/.000050 MIN. NICKEL

2.=(0.00076)/.000030 MIN. SELECT GOLD AND

(0.00254)/.000100 MIN. SELECT MATTE TIN

OVER (0.00127)/.000050 MIN. NICKEL OVERALL

MOUNTING CLIP:

(0.00254)/.000100 MIN. MATTE TIN OVER

(0.00127)/.000050 MIN. NICKEL

3) PRODUCT SPECIFICATION: PS-43810-001

4) PACKAGING SPECIFICATION: PK-43810-001

5) PARTS MATES WITH MOLEX RECPTACLE #5557 AND #42474 AND #44516 AND #42385 HEADER

6) PART ALLOWS FOR (1.27)/.050 MAX MIS-ALIGNMENT WITH MATING HOUSINGS IN ANY DIRECTION

7) CONNECTOR ASSEMBLIES ARE NOT TO BE MATED AND UNMATED WHILE CIRCUITS ARE LIVE

8) PARTS ARE NOT DESIGNED FOR CURRENT SHARING

9) DISCOLORATION IN THE BANDOLIER CARRIER AREA OF THE PIN IS INHERENT TO THE PLATING

PROCESS AND IS DUE TO THE MASKING EFFECT OF THE CARRIER. THIS DISCOLORATION IS IN A

NON-FUNCTIONAL AREA OF THE PIN AND WILL NOT AFFECT THE PERFORMANCE OF THE HEADER ASSEMBLY.

10) PART CONFORMS TO CLASS "B" REQUIREMENTS OF COSMETIC SPECIFICATION PS-45499-002

FORMING MARKS ARE ACCEPTABLE

12 DIMENSION DOES NOT APPLY TO PARTS WITHOUT CLIP OPTION.

13) TEXT ON PART IS FOR REFERENCE ONLY. TEXT AND TEXT LOCATION MAY VARY DEPENDING ON

PART NUMBER AND/OR TOOL.

20 CKT SHOWN

2017/04/28

2017/05/03

2017/05/05

QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

SYMBOLS

RELEASE 8CKT

GENERAL TOLERANCES

(UNLESS SPECIFIED)

MM/IN

DRWN BY

DATE

4:1

1997/01/06

DATE

INCH

0.01

0.014

4 PLACES

3 PLACES

0.25

0.35

MANLAPAZ

CHK'D BY

116383

BAPPELDORN

JBELL

FSMITH

MINI-FIT JR BMI

RIGHT ANGLE HEADER ASM. FOR 1.6/.063 THK. PCB

2 PLACES

1 PLACES

0 PLACES

BANDURA

APPR BY

DATE

1997/03/26

PRODUCT CUSTOMER DRAWING

2012/01/19

SERIES

MATERIAL NUMBER

CUSTOMER

FSMITH

DRAWING SIZE

EC NO:

DRWN:

CHK'D:

APPR:

ANGULAR TOL

0.5

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

THIRD ANGLE PROJECTION

43810

DOCUMENT NUMBER

SEE CHART

GENERAL MARKET

DOC TYPE DOC PART

SHEET NUMBER

FORMAT: Eng-lega-master-tb-prod-D

REVISION: C

DATE: 2016/02/04

RELEASE STATUS

RELEASE DATE

REV

SD-43810-011

PSD

000

1 OF 2
