0387800321 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 0387800321

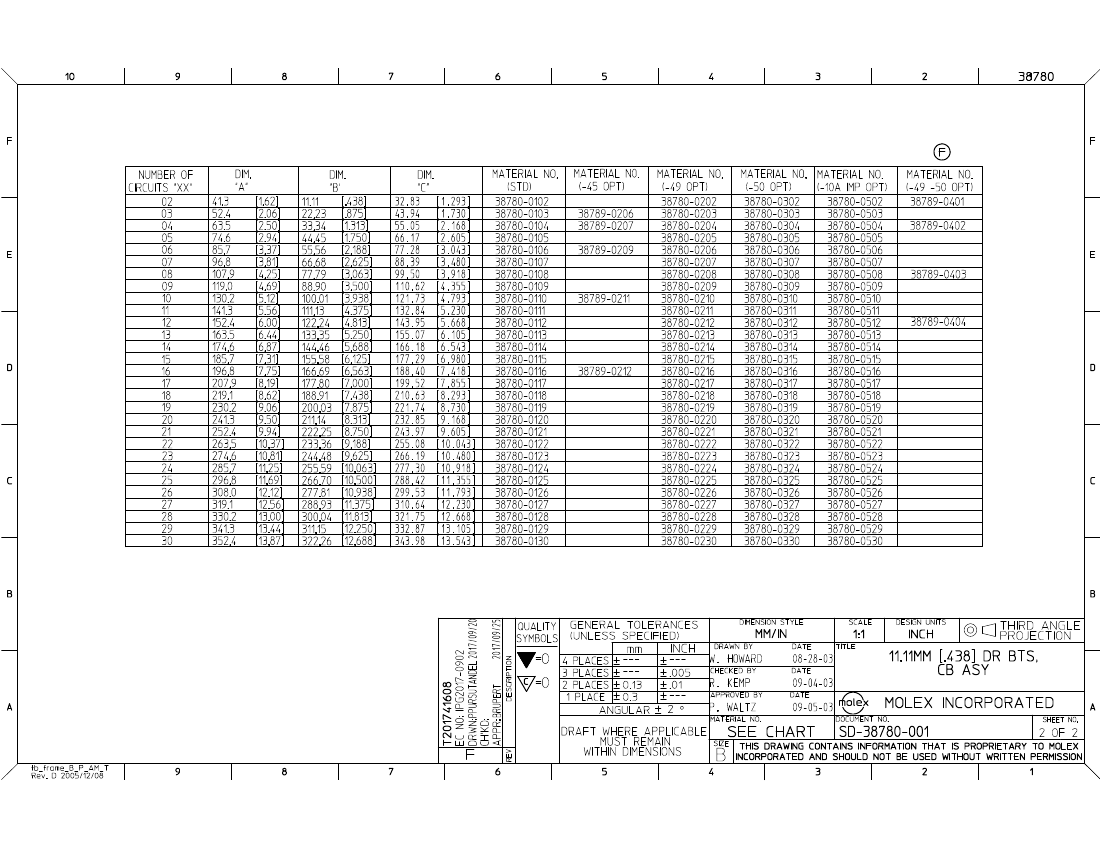

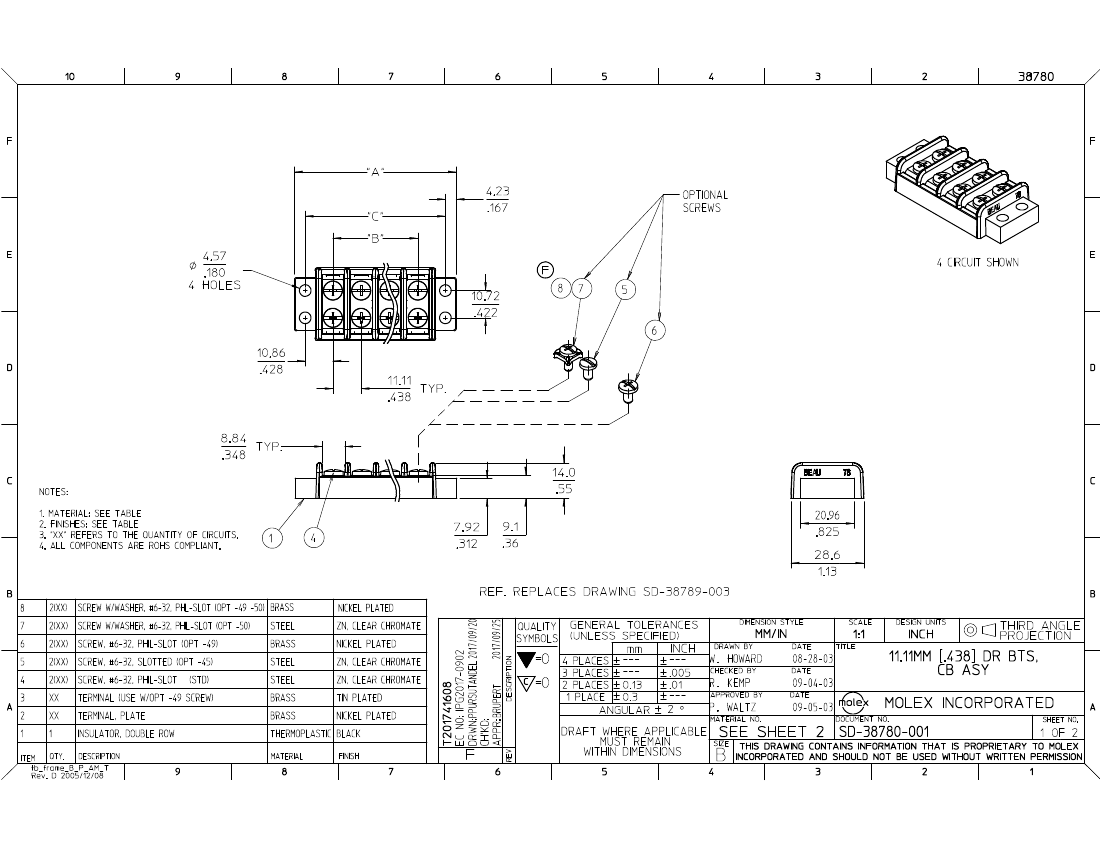

Preview

0387800321: DescriptionCONN BARRIER STRP 21CIRC 0.438"; CategoryThe connector; File Size524KB，4 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0387800321 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0387800321	-	-	View	Buy Now

0387800321 Overview

CONN BARRIER STRP 21CIRC 0.438"

0387800321 Parametric

Parameter Name	Attribute value
Terminal block type	barrier block
Number of circuits	21
Number of incoming lines	42
spacing	0.438"（11.12mm）
Number of rows	2
Rated current	15A
Rated voltage	300V
Wire gauge	14-22 AWG
top termination	screws with fastening plate
bottom termination	closed
Partition type	Double wall (double)
characteristic	flange
color	black
Terminal thread material	steel
Terminal thread surface	Zinc, transparent chromate
Installation type	base, panel
Operating temperature	-
Material - Insulation	thermoplastic
Material flammability rating	UL94 V-0

Preview

Download Datasheet

View All

0387800321 Related Products

	0387800321	0387800311	0387800323	0387800303	0387800506	0387800327	0387800309	0387800503	0387800505
Description	CONN BARRIER STRP 21CIRC 0.438"	CONN BARRIER STRP 11CIRC 0.438"	CONN BARRIER STRP 23CIRC 0.438"	CONN BARRIER STRIP 3CIRC 0.438"	CONN BARRIER STRIP 6CIRC 0.438"	CONN BARRIER STRP 27CIRC 0.438"	CONN BARRIER STRIP 9CIRC 0.438"	CONN BARRIER STRIP 3CIRC 0.438"	CONN BARRIER STRIP 5CIRC 0.438"
Terminal block type	barrier block	barrier block	barrier block	barrier block	barrier block	barrier block	barrier block	barrier block	barrier block
Number of circuits	21	11	23	3	6	27	9	3	5
Number of incoming lines	42	22	46	6	12	54	18	6	10
spacing	0.438"（11.12mm）	0.438"（11.12mm）	0.438"（11.12mm）	0.438"（11.12mm）	0.438"（11.12mm）	0.438"（11.12mm）	0.438"（11.12mm）	0.438"（11.12mm）	0.438"（11.12mm）
Number of rows	2	2	2	2	2	2	2	2	2
Rated current	15A	15A	15A	15A	15A	15A	15A	15A	15A
Rated voltage	300V	300V	300V	300V	300V	300V	300V	300V	300V
Wire gauge	14-22 AWG	14-22 AWG	14-22 AWG	14-22 AWG	14-22 AWG	14-22 AWG	14-22 AWG	14-22 AWG	14-22 AWG
top termination	screws with fastening plate	screws with fastening plate	screws with fastening plate	screws with fastening plate	screws	screws with fastening plate	screws with fastening plate	screws	screws
bottom termination	closed	closed	closed	closed	closed	closed	closed	closed	closed
Partition type	Double wall (double)	Double wall (double)	Double wall (double)	Double wall (double)	Double wall (double)	Double wall (double)	Double wall (double)	Double wall (double)	Double wall (double)
characteristic	flange	flange	flange	flange	Flange, with marked position	flange	flange	Flange, with marked position	Flange, with marked position
color	black	black	black	black	black	black	black	black	black
Terminal thread material	steel	steel	steel	steel	steel	steel	steel	steel	steel
Terminal thread surface	Zinc, transparent chromate	Zinc, transparent chromate	Zinc, transparent chromate	Zinc, transparent chromate	Zinc, transparent chromate	Zinc, transparent chromate	Zinc, transparent chromate	Zinc, transparent chromate	Zinc, transparent chromate
Installation type	base, panel	base, panel	base, panel	base, panel	base, panel	base, panel	base, panel	base, panel	base, panel
Material - Insulation	thermoplastic	thermoplastic	thermoplastic	thermoplastic	thermoplastic	thermoplastic	thermoplastic	thermoplastic	thermoplastic
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
