108457064003055 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 108457064003055

108457064003055: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

108457064003055 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Plug, ROHS COMPLIANT

108457064003055 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: DIN 41612, POLARIZED
body width	0.335 inch
body length	3.7 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	8457
Plug contact pitch	0.2 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

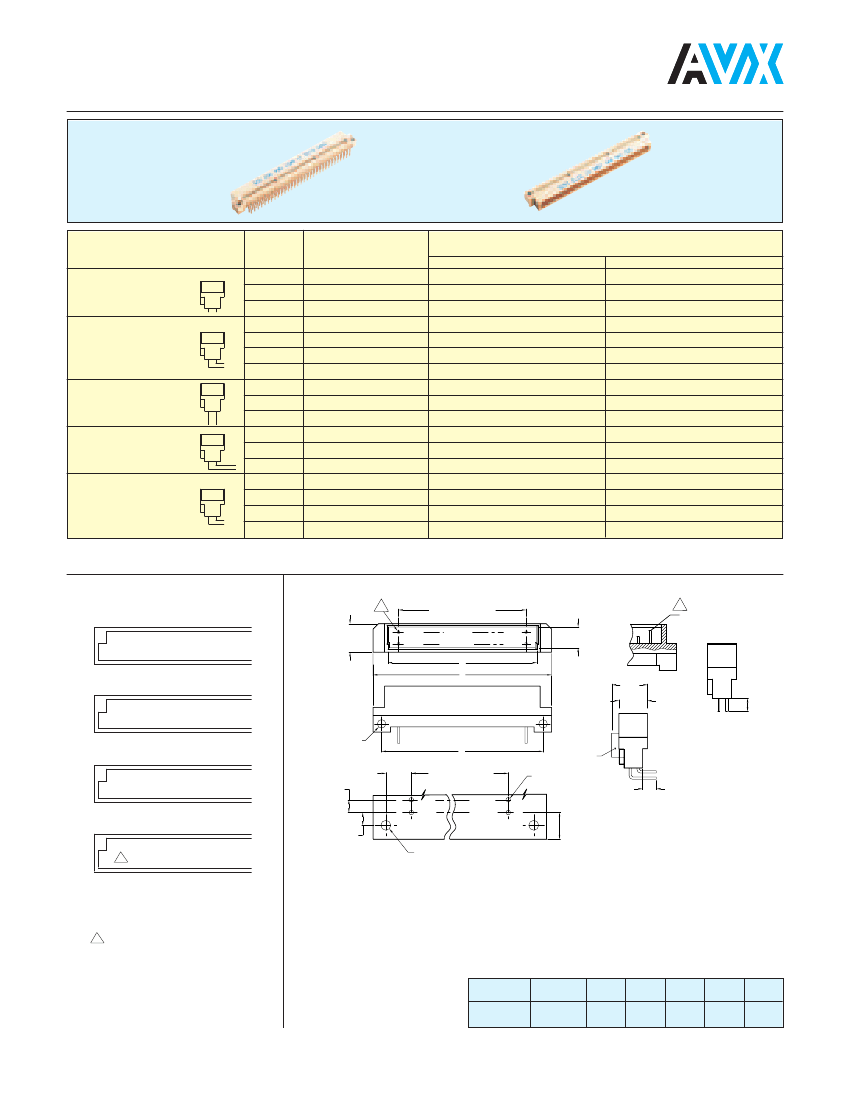

Male Style B

Series 8457 – 2 rows (2 x 32)

Contact Design

and

Termination Length

3.4 mm (Y)

Straight

Number of

Contacts

Part Number

Performance classes according to DIN 41612

Loading Description

a + b fully loaded

a + b even loading

a loading only

a + b fully loaded

a + b even loading

a loading only

fully loaded + ground

a + b fully loaded

a + b even loading

a loading only

a + b fully loaded

a + b even loading

a loading only

a + b fully loaded

a + b even loading

a loading only

fully loaded + ground

10 8457 064 001 025

10 8457 064 001 031

10 8457 064 001 027

10 8457 064 002 025

10 8457 064 002 031

10 8457 064 002 027

10 8457 064 102 025

10 8457 064 003 025

10 8457 064 003 031

10 8457 064 003 027

10 8457 064 004 025

10 8457 064 004 031

10 8457 064 004 027

10 8457 064 008 025

10 8457 064 008 031

10 8457 064 008 027

10 8457 064 108 025

10 8457 064 001 049

10 8457 064 001 055

10 8457 064 001 051

10 8457 064 002 049

10 8457 064 002 055

10 8457 064 002 051

10 8457 064 102 049

10 8457 064 003 049

10 8457 064 003 055

10 8457 064 003 051

10 8457 064 004 049

10 8457 064 004 055

10 8457 064 004 051

10 8457 064 008 049

10 8457 064 008 055

10 8457 064 008 051

10 8457 064 108 049

3.0 mm (Y)

Right Angled

13.0 mm (Y)

Straight

11.3 mm (Y)

Right Angled

62 + 2

2.3 mm (Y)

Right Angled

62 + 2

NB: Alternative Prefix Variations Available: 12, 16 & 17, please refer to Page 10.

Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.

LOADING DESCRIPTION DIMENSIONS

A EQ SP @ 2.54 [0.100] = B

GROUND

CONTACT

●

8.51

[0.335]

ROW A

ROW B

6.20

[0.244]

64 contacts, rows a + b fully loaded

●

11.1

[0.437]

8.51

[0.335]

2.54

[0.100] DIA.

KEYING

0.200

TYP

2.54

[0.100]

A EQ SP @ 2.54 [0.100] = B

1.02

[0.040] DIA.

For Y dimension see

contact design

32 contacts, rows a + b even loading

●

32 contacts, row a loading only

5.31

[0.209]

2.54

[0.100]

●

2.84

[0.112] DIA.

HOLE PATTERN

62 + 2 contacts, fully loaded

with ground in A1 + A32

denotes ground pin

Unit: millimeters (inches)

No. Contact

Positions

Contact

Rows

2 (2 x 32)

78.74

(3.100)

85.19

(3.354)

88.90

(3.500)

93.98

(3.700)
