8041-05-101 Overview

DIP Reed Relays

8041-05-101 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	COTO TECHNOLOGY
Reach Compliance Code	compli
ECCN code	EAR99
body width	6.58 mm
body height	6.6 mm
Body length or diameter	19.5 mm
Maximum coil current (DC)	0.025 A
Coil operating voltage (DC)	3.8 V
Coil power	125 mW
Coil release voltage (DC)	0.5 V
Coil resistance	200 Ω
Maximum coil voltage (DC)	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.25A@100VAC
Maximum contact current (AC)	0.25 A
Maximum contact current (DC)	0.25 A
Contact (DC) maximum rated R load	.25A@100VDC
Maximum contact voltage (AC)	100 V
Maximum contact voltage (DC)	100 V
Electrical life	100000000 Cycle(s)
JESD-609 code	e3
Manufacturer's serial number	8000
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	1 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
physical size	19.5mm x 6.58mm x 6.6mm
Guideline	UL
Relay action	MOMENTARY
Relay function	SPDT
Relay type	DRY REED RELAY
release time	1 ms
seal	HERMETICALLY SEALED
surface mount	NO
Terminal surface	Matte Tin (Sn)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

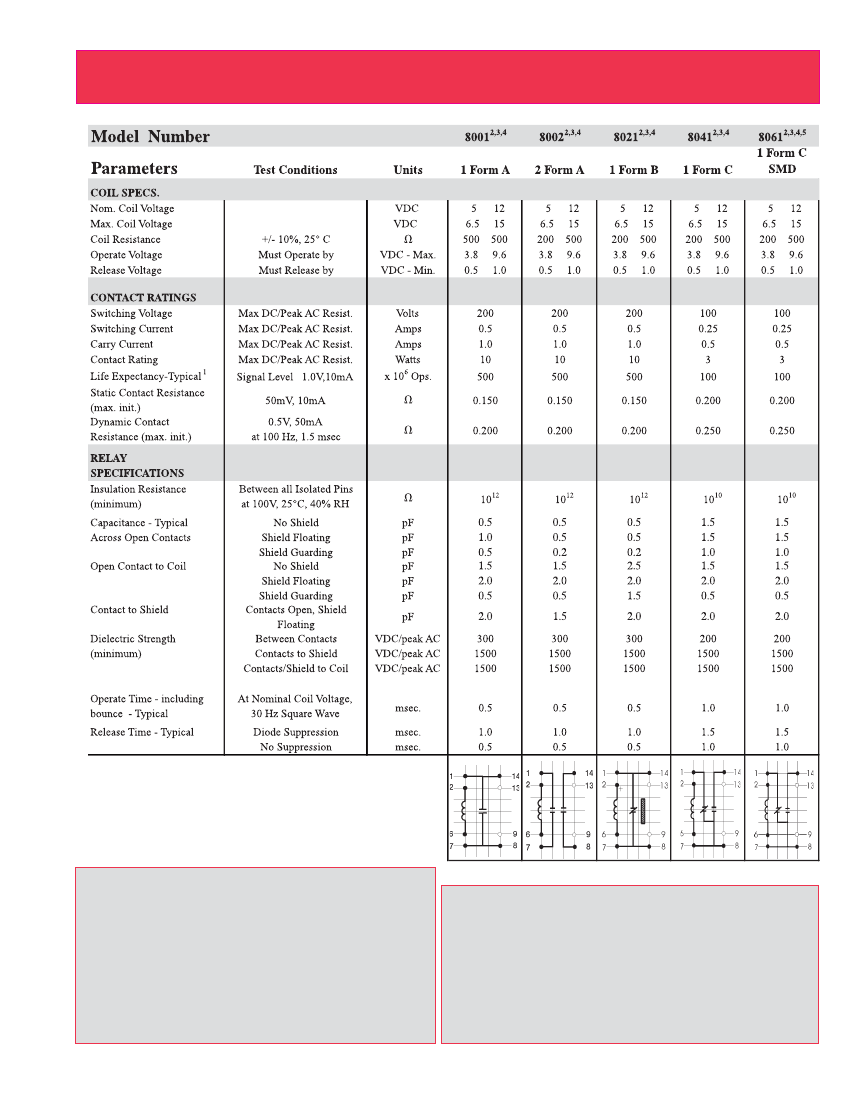

8000 Series/DIP Reed Relays

DIP Reed Relays

The 8000 Series is ideally suited to the needs of Automated Test

Equipment, Instrumentation, Data Acquisition, and Process Control

requirements. The specification tables allow you to select the appropri-

ate relay for your particular application. If your requirements differ

from the selection options, please consult your local representative or

Coto’s Factory to discuss a custom reed relay.

8000 Series Features

14-Pin DIP industry standard package

High Insulation Resistance - 10

12

Ω

offered on most models

High reliability, hermetically sealed contacts for long life (proven

to 500 million operations)

Contact forms; 1A, 2A, 1B and 1C available

Surface mount version available

Molded thermoset body on integral lead frame design

Optional Electrostatic Shield for reducing capacitive coupling

Coil suppression diode available

High Voltage Breakdown versions available

UL File # E67117

(For Model #’s 8001, 8002, 8021 & 8041)

(For Model # 8061)

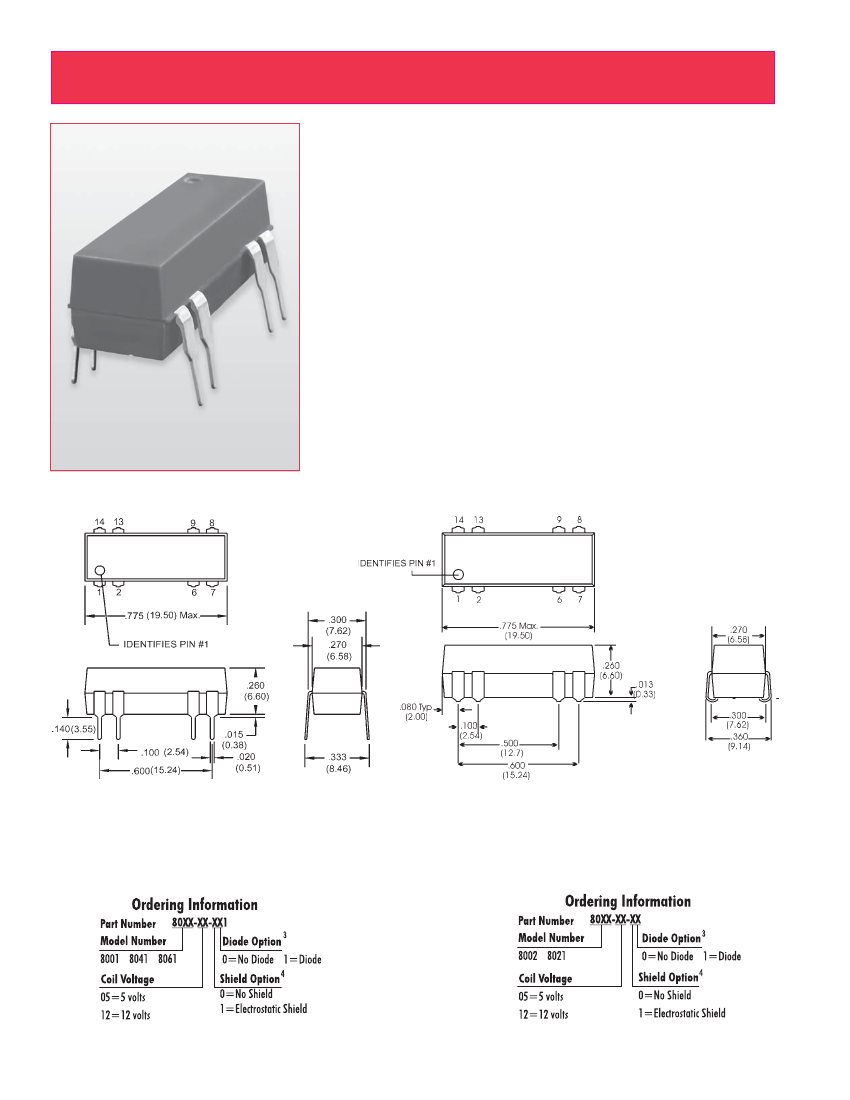

Dimensions in Inches (Millimeters)

24

COTO TECHNOLOGY (USA)

Tel:

(401) 943-2686 / Fax (401) 942-0920

6

(Europe) Tel: +31-45-5439343 / Fax +31-45-5427216

Recommended Resources

Switching battery charger circuit diagram

Panasonic NR-172TA-X refrigerator circuit

Battery safety charging alarm circuit diagram

Developer constant temperature control circuit

HD43019A (TV and VCR) infrared containment and emission circuit

Astable circuits prone to oscillation
