REVISIONS
REV.
K
L
ECO. NO
3797
3832
DESCRIPTION
UPDATE P/N CODING TO INCLUDE MOLDED KEY SLOT
BETWEEN POSITIONS
UPDATE KEY SLOT WIDTH BETWEEN POSITIONS FROM
.042 TO .048", ADD S# TO SLOST LOCATION CHART
DATE
1/18/2018
4/2/2018
BY
JH
JH
F
F
D
C
A
+.005
+0.13
.370
9.40
- .015
- 0.38
2X
.125 3.18
.156 3.96
B
(.025 0.64 ) DEPTH
FROM TOP OF INSULATOR
TO TOP OF PIN
FITS EDGECARDS THAT
ACCEPT .062[1.57] PCB'S
E
E
A
D

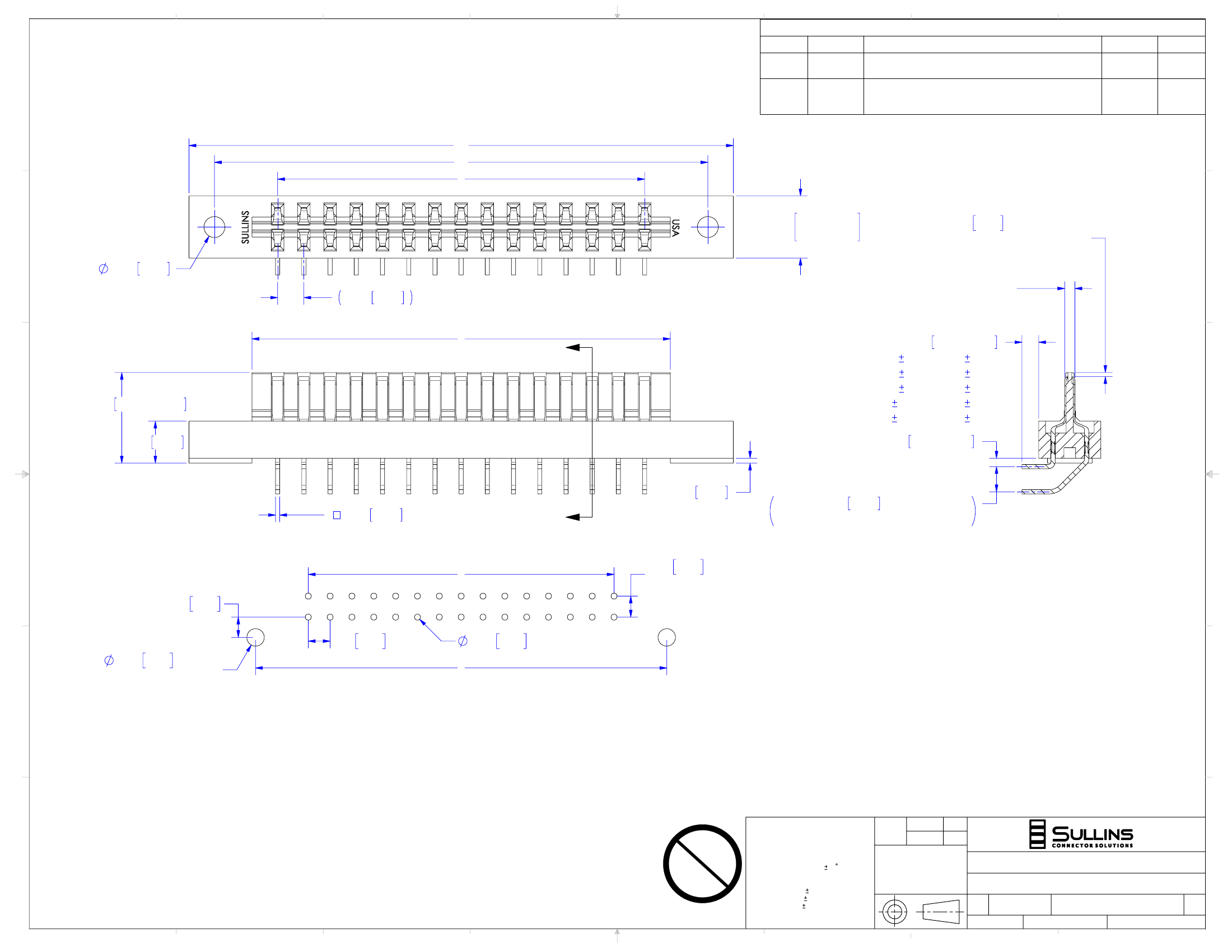

.540±.010 13.72±0.25
.250 6.35
MA = .100±.025 2.54±0.64
MV = .130 .025 [3.30 0.64]
MB = .180 .025 [4.57 0.64]
MD = .250 .025 [6.35 0.64]
MJ = .500 .025 [12.70 0.64]
MK = .560 .025 [14.22 0.64]
.050±.010 1.27±0.25
D
.030 0.76
.025 0.64
C
_ _M_ _M_ _D
A
A
STD = .150 3.81 ROW SPACING
S189 = .200 [5.08] ROW SPACING
SECTION A-A
C
.150 3.81 (FOR STANDARD)
.200[5.08] (FOR S189)
.145 3.68
.156 3.96
2X .125 3.18
FOR Z OR V MOLUNTING
B
.043 1.09 MIN
C
PCB LAYOUT RECOMMENDED
(COMPONENT SIDE)
NOTES:
1. INSULATOR MATERIAL: SEE PART NUMBER CODING
2. CONTACT MATERIAL: SEE PART NUMBER CODING
3. PLATING: SEE PART NUMBER CODING
4. OPERATING TEMPERATURE: SEE PART NUMBER CODING
5. PROCESSING TEMP: SEE PART NUMBER CODING
6. UL FLAMMABILITY RATING: 94V-0
7. OPERATING VOLTAGE: 950 VAC
8. CURRENT RATING: 3 AMP
9. CONTACT RESISTANCE: 30 MILLI OHMS MAX
10. INSULATION RESISTANCE: 5000 MEGA OHMS
11. CONNECTOR IDENTIFICATION: PART SHALL BE MARKED WITH A PART NUMBER AND LOT CODE
12. MODIFICATION: SEE PART NUMBER CODING
8
7
6
5
B
CUSTOMER COPY
A
Pb
RoHS
COMPLIANT
4
UNLESS OTHERWISE SPECIFIED: DRAWN DATE NAME
DIMENSIONS ARE IN INCHES [MM]
03/14/08 MNH
TOLERANCES:
ANGULAR:
1
THE INFORMATION HEREIN CONTAINS
PROPRIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
TITLE
DECIMALS
.XX= .02 [.5]
.XXX= .005 [.13]
.XXXX= .0005 [.013]
PART NUMBER
SIZE
MALE, RIGHT ANGLE BEND, .156 CC
CAGE CODE
A
_ _M_ _M(MA,MV,MB,MD,MJ,MK)_(-S189)
C
54453
DWG. NO.
SCALE: 3:1
3
2
C11076
1
REV
SHEET 1 OF 4
L
FILE NAME: C11076, _ _M_ _M(MA,MV,MB,MD,MJ,MK)_-OMIT, S189, S_ _ _ _ STD KEY SLOT BETWEEN POSITIONS
8
7
6
5
4
3
2
1
F
C
E
2X #4-40
THREADED
INSERTS
F
E
E
_ _M_ _M_ _N
D
_ _M_ _M_ _T
D
C
C
C
2X
.125 3.18
.125 3.18
B
C
.125 3.18
_ _M_ _M_ _Z
B
2X #4-40
THREADED
INSERTS
_ _M_ _M_ _V
CUSTOMER COPY
A
Pb
RoHS
COMPLIANT
8
7
6
5
4
UNLESS OTHERWISE SPECIFIED: DRAWN DATE NAME
DIMENSIONS ARE IN INCHES [MM]
03/14/08 MNH
TOLERANCES:
ANGULAR:
1
THE INFORMATION HEREIN CONTAINS
PROPRIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
TITLE
DECIMALS
.XX= .02 [.5]
.XXX= .005 [.13]
.XXXX= .0005 [.013]
PART NUMBER
SIZE
MALE, RIGHT ANGLE BEND, .156 CC
CAGE CODE
A
_ _M_ _M(MA,MV,MB,MD,MJ,MK)_(-S189)
C
54453
DWG. NO.
SCALE: 2:1
3
2
C11076
1
REV
SHEET 2 OF 4
L
FILE NAME: C11076, _ _M_ _M(MA,MV,MB,MD,MJ,MK)_-OMIT, S189, S_ _ _ _ STD KEY SLOT BETWEEN POSITIONS

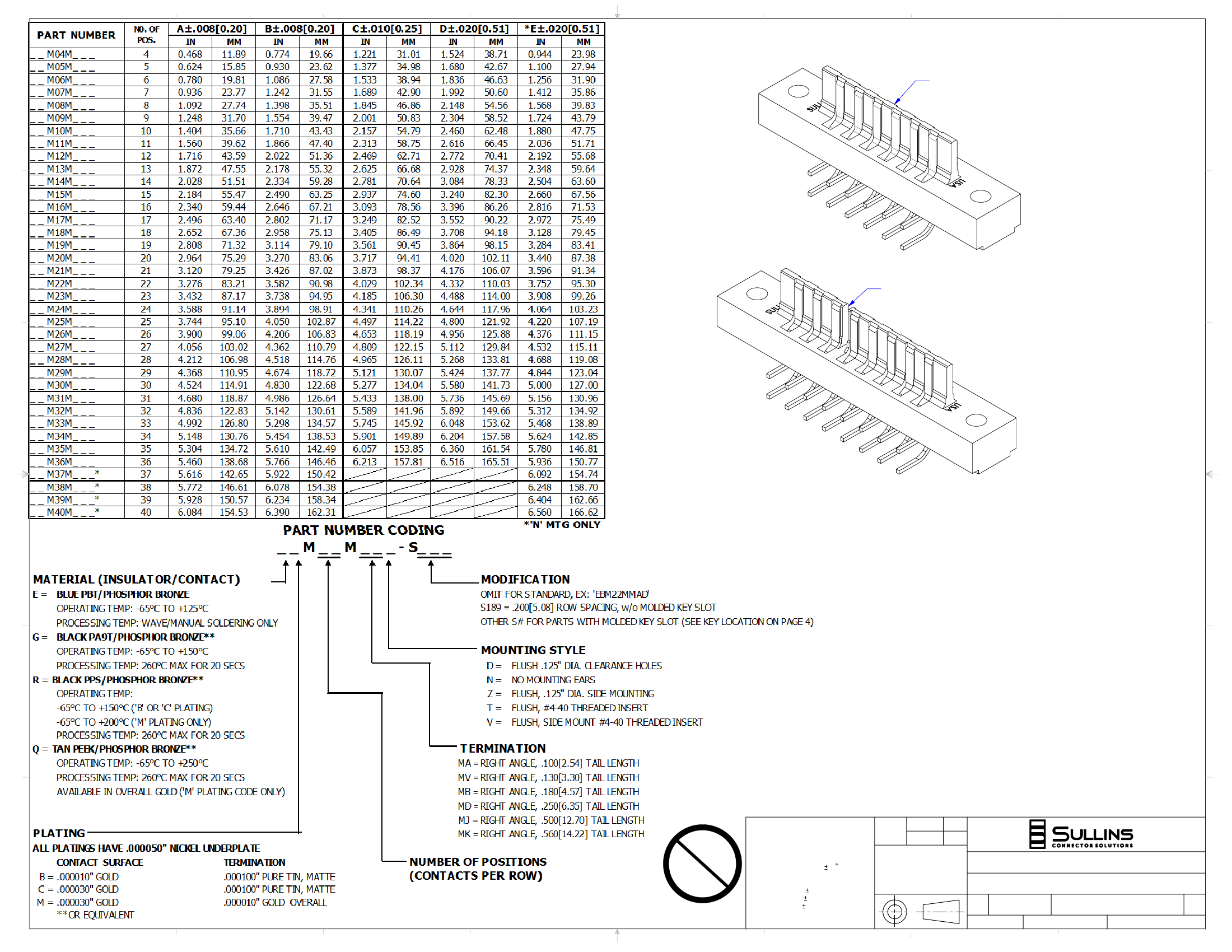

8
7
6
5
4
3
2
1

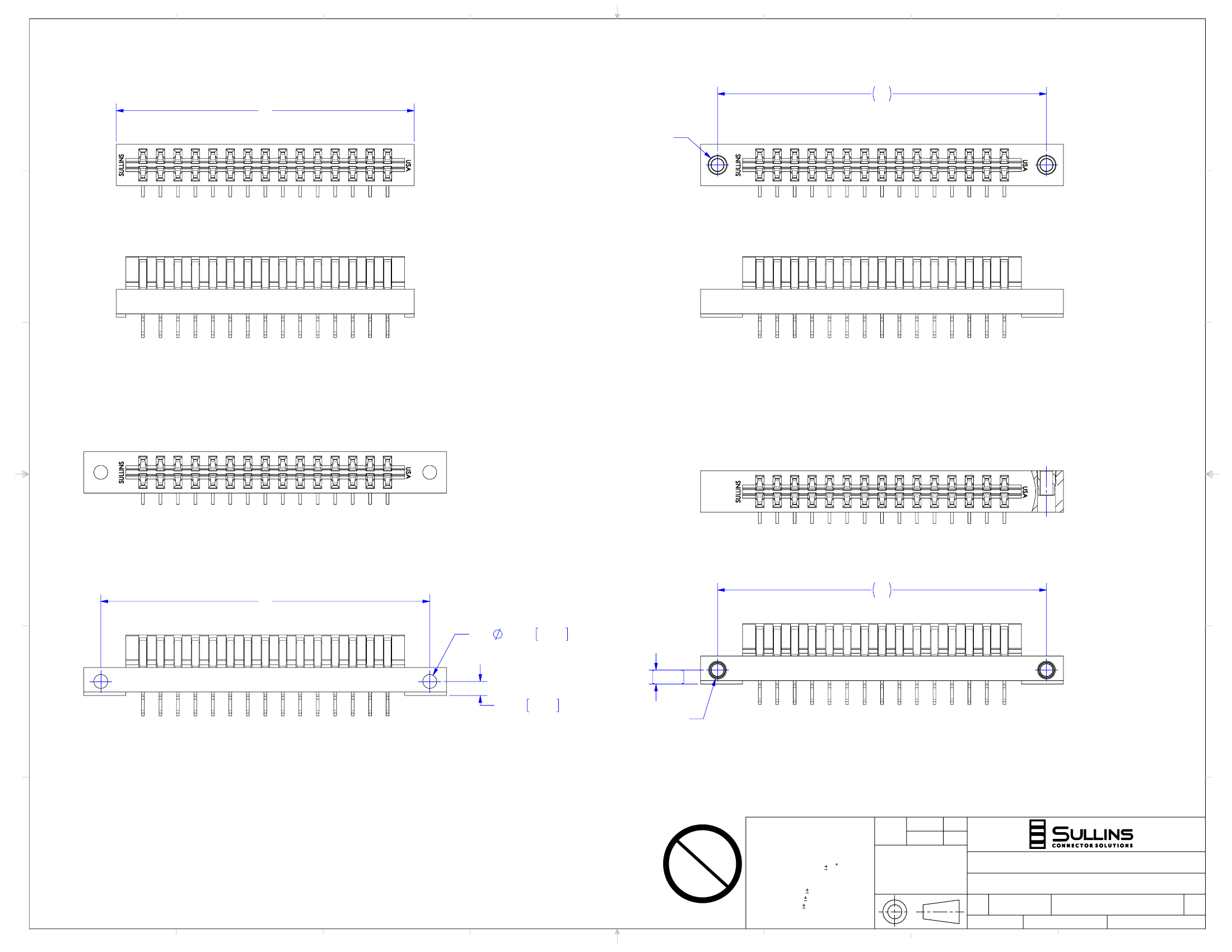

WITHOUT MOLDED KEY SLOT
F
F
E
E
WITH MOLDED KEY SLOT
(SEE PAGE 4)
D
D
C
C
B
B
CUSTOMER COPY
A
Pb
RoHS
COMPLIANT
8
7
6
5
4
UNLESS OTHERWISE SPECIFIED: DRAWN DATE NAME
DIMENSIONS ARE IN INCHES [MM]
03/14/08 MNH
TOLERANCES:
ANGULAR:
1
THE INFORMATION HEREIN CONTAINS
PROPRIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
TITLE
DECIMALS
.XX= .02 [.5]
.XXX= .005 [.13]
.XXXX= .0005 [.013]
PART NUMBER
SIZE
MALE, RIGHT ANGLE BEND, .156 CC
CAGE CODE
A
_ _M_ _M(MA,MV,MB,MD,MJ,MK)_(-S189)
C
54453
DWG. NO.
SCALE: 3:1
3
2
C11076
1
REV
SHEET 3 OF 4
L
FILE NAME: C11076, _ _M_ _M(MA,MV,MB,MD,MJ,MK)_-OMIT, S189, S_ _ _ _ STD KEY SLOT BETWEEN POSITIONS
8
7
6
5
4
3
2
1

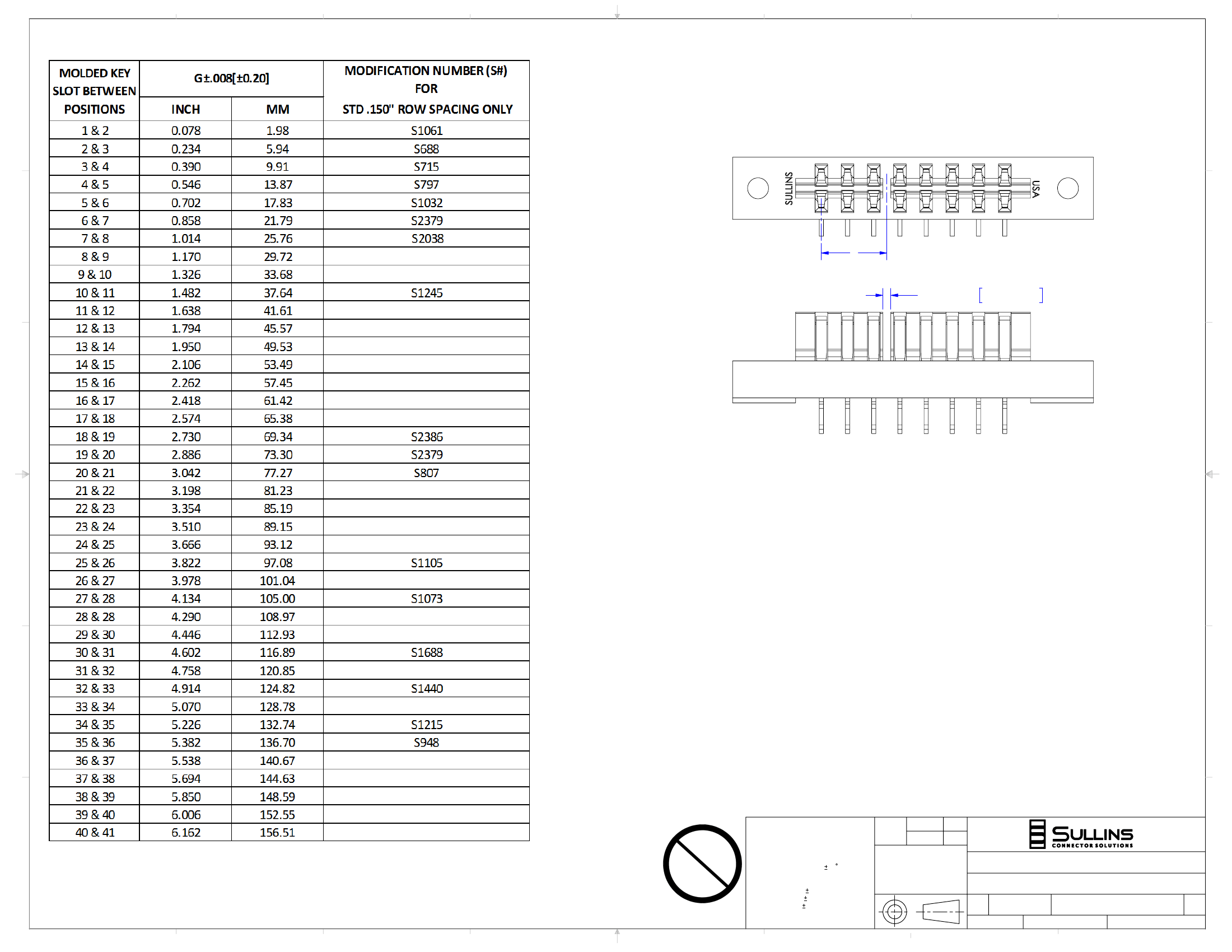

STANDARD KEY SLOT LOCATION TABLE***
F
F
E
G
.048±.002 1.22±0.05
E
D
D
('D' MOUNTING AS SHOWN FOR EXAMPLE)
C
C
B
B
CUSTOMER COPY
A
Pb
***CONNECTOR TOTAL POSITIONS MUST BE AT LEAST ONE POSITION LONGER THAN KEY SLOT LOCATION
RoHS
COMPLIANT
8
7
6
5
4
UNLESS OTHERWISE SPECIFIED: DRAWN DATE NAME
DIMENSIONS ARE IN INCHES [MM]
03/14/08 MNH
TOLERANCES:
ANGULAR:
1
THE INFORMATION HEREIN CONTAINS
PROPRIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
TITLE
DECIMALS
.XX= .02 [.5]
.XXX= .005 [.13]
.XXXX= .0005 [.013]
PART NUMBER
SIZE
MALE, RIGHT ANGLE BEND, .156 CC,
KEY SLOT BETWEEN POSITIONS
DWG. NO.
REV
A
_ _M_ _M(MA,MV,MB,MD,MJ,MK)_-S_ _ _ _
CAGE CODE
SCALE: 3:1
3
2
C
54453
C11076
1
SHEET 4 OF 4
L
FILE NAME: C11076, _ _M_ _M(MA,MV,MB,MD,MJ,MK)_-OMIT, S189, S_ _ _ _ STD KEY SLOT BETWEEN POSITIONS
