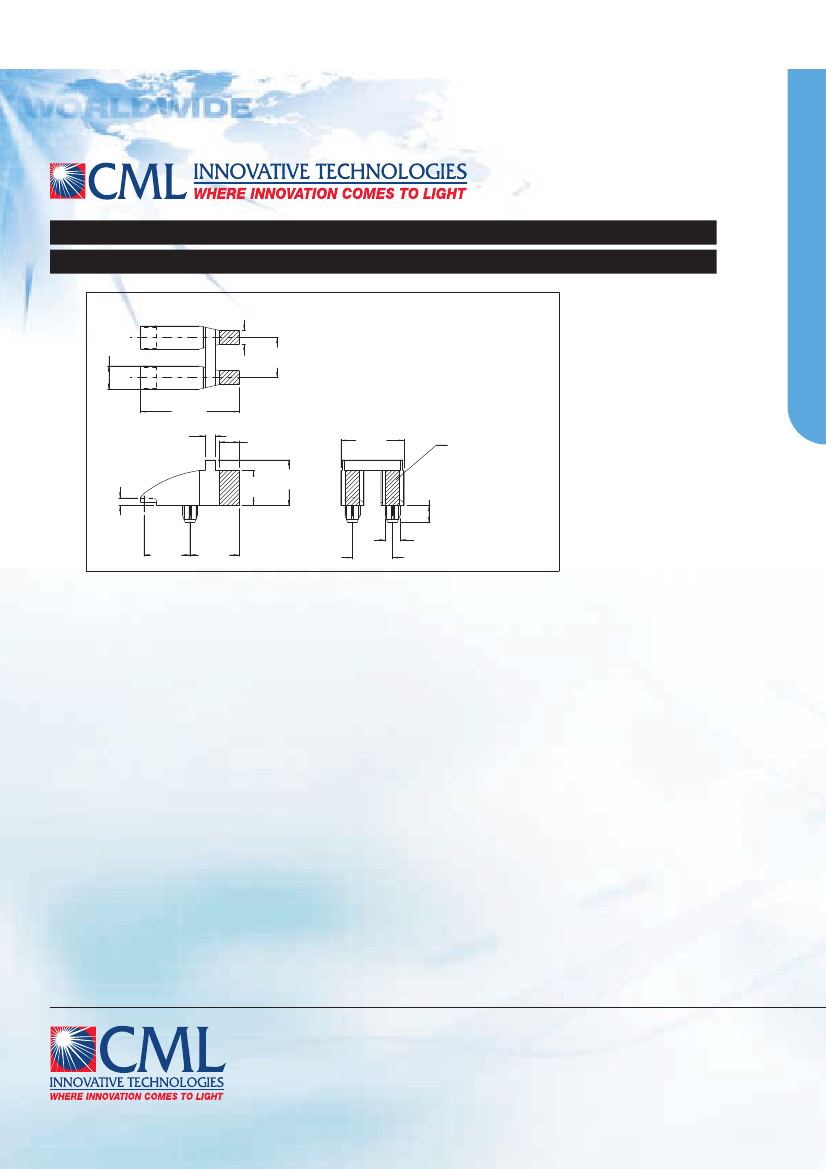

7612D2-2 Series 2mm x 5mm Dual Position Bright
5Pipes™
Optical Lightpipes
DESCRIPTION AND FEATURES
.078 TYP .
.130 TYP .
.225
.552
.055
.100 MIN.
ALL AR OUND
TYP .
.355
C HAR MILLE #24 FINIS H
ON VIE WING S UR FAC E S AND
E IGHT BOR DE R ING S UR FAC E S .
.197
.257
.095
TYP .
.043
C
L
LE D
.083±.002
.259
.275
.225
All dimensions in inches.
• Precision engineered with
ray tracing
for bright, optically precise
even indication and attractive appearance.
• ESD protection from circuitry for exceptional reliability.
• Optimized for use with Bright
5
Chips™ SMT LEDs.
• High contrast and wide viewing angle for greater visibility.
• Available in a variety of colors for added contrast and aesthetics.
• Parts inserted after reflow to permit LED pad inspection before assembly.
• Low profile for height constrained applications.
• Large lens provides high visibility.
• 7612D2-2 is designed for use with 7020X Series Bright Chip LEDs.
Mounting hole pattern on page 1-X5.
America:
CML Innovative Technologies,Inc.
147 Central Avenue
Hackensack -NJ 07601 -USA
Tel:1-201-489 -8989
Fax:1-201-489 -6911
e-mail:americas@cml-it.com
Europe:
CML Technologies GmbH &Co.KG
Robert-Bunsen-Str.1
67098 Bad Dürkheim -GERMANY
Tel:+49 (0)6322 9567-0
Fax:+49 (0)6322 9567-88
e-mail:europe@cml-it.com
Asia:
CML Innovative Technologies,Inc.
61 Aida Street
Singapore 459975
Tel:(65)9630 -5003
e-mail:asia@cml-it.com
CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product
7612D2-2 Series 2mm x 5mm Dual Position
