Part Number

Search

5024269030

Description
CONN 0.4MM BTB RCPT 90POS SMD
CategoryThe connector
File Size525KB,6 Pages
ManufacturerMolex Premise Network
Environmental Compliance
Download Datasheet Parametric Compare View All

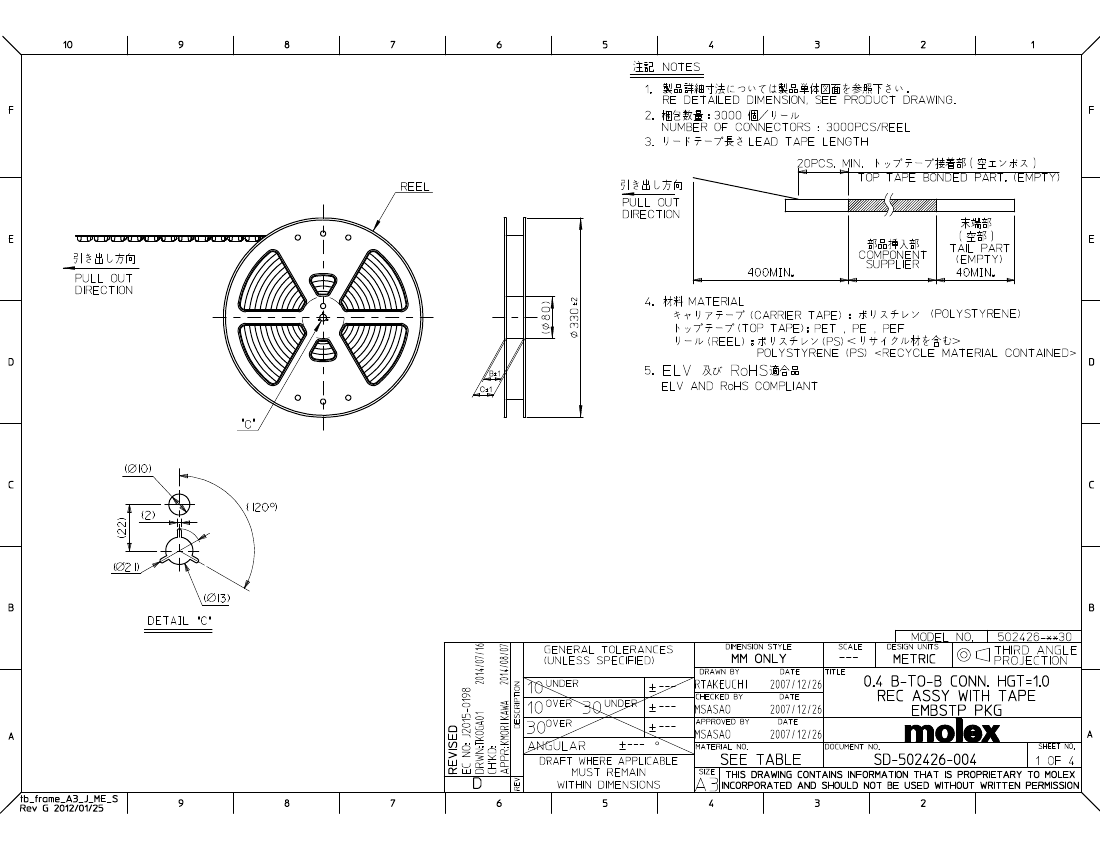

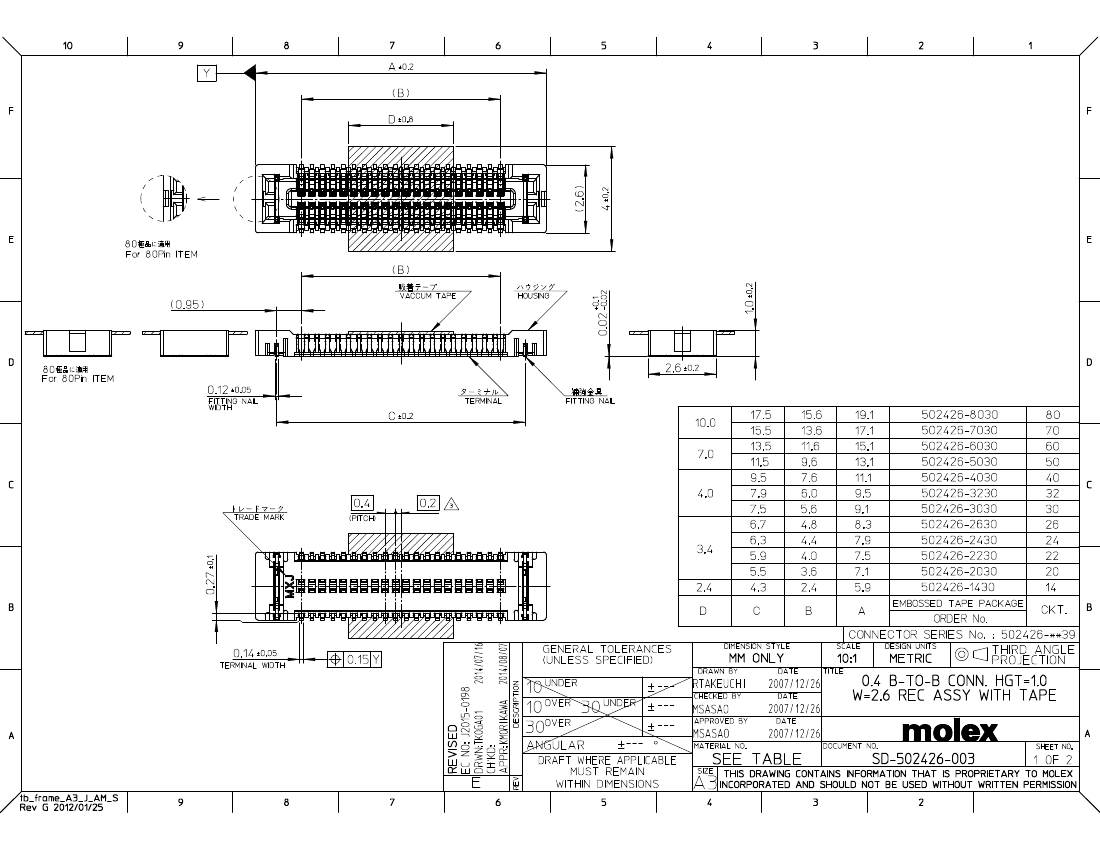

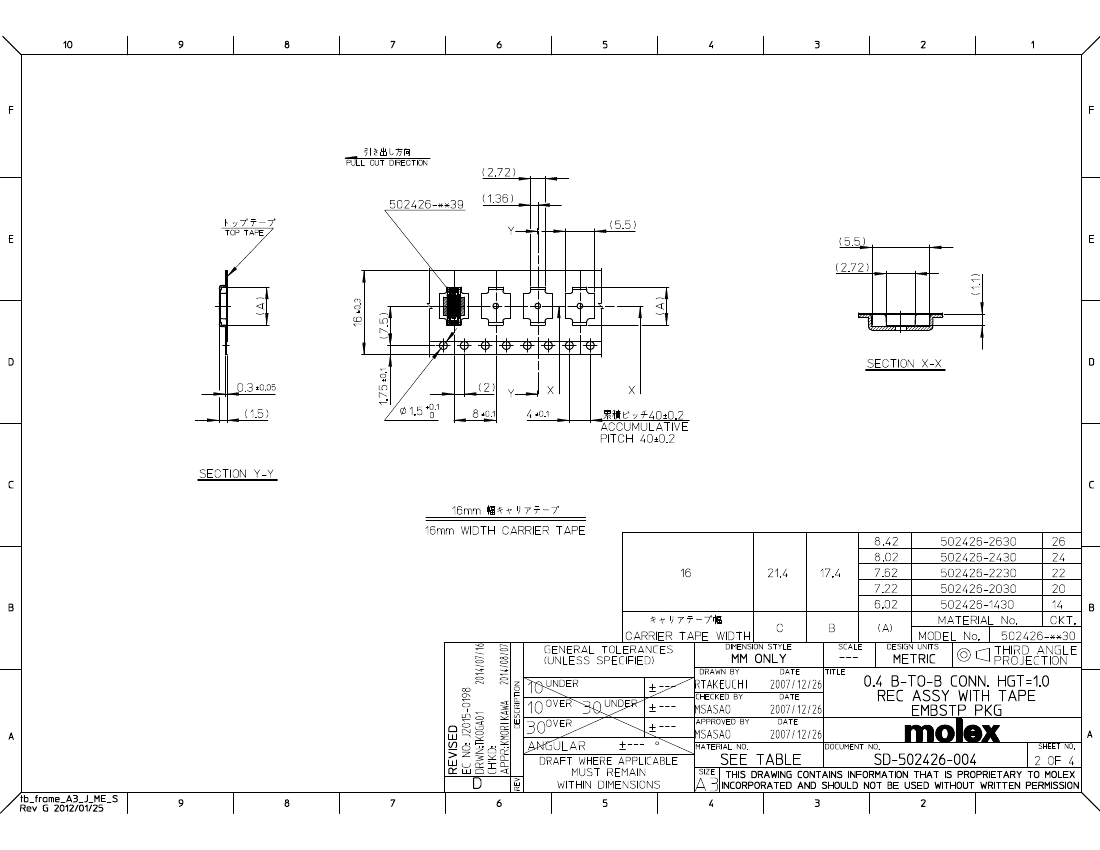

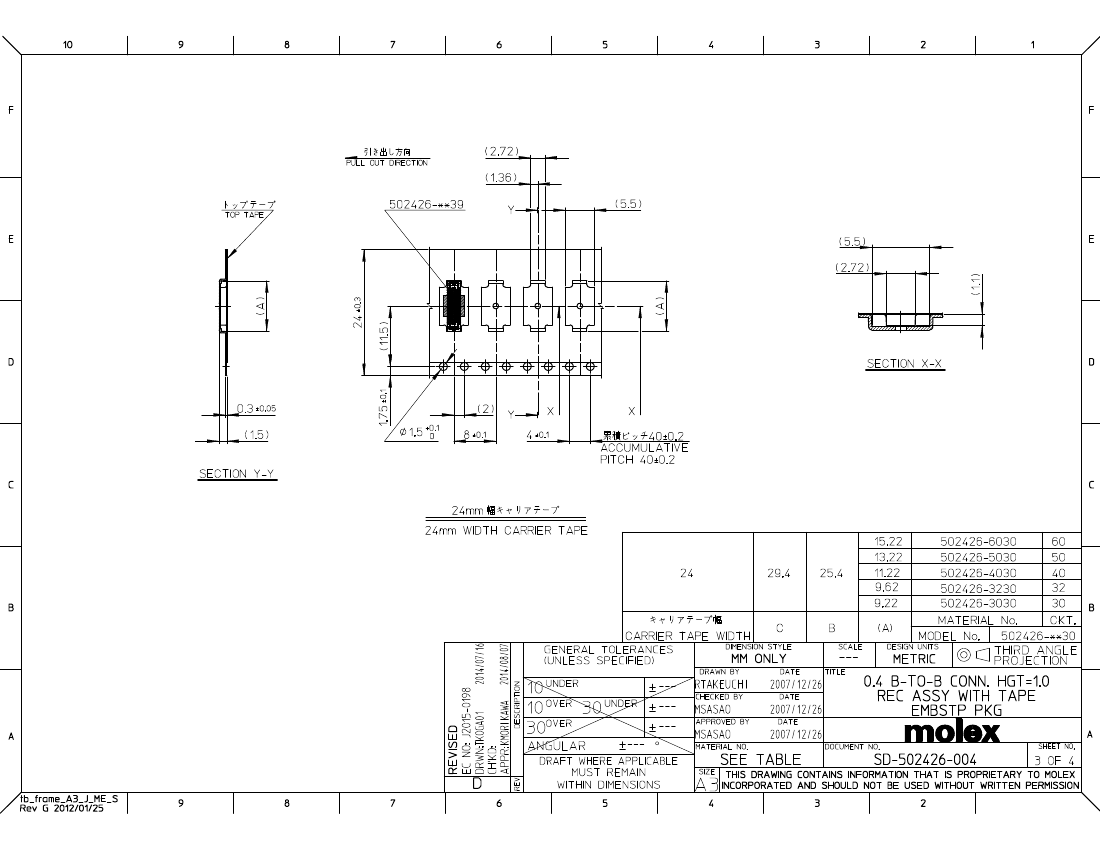

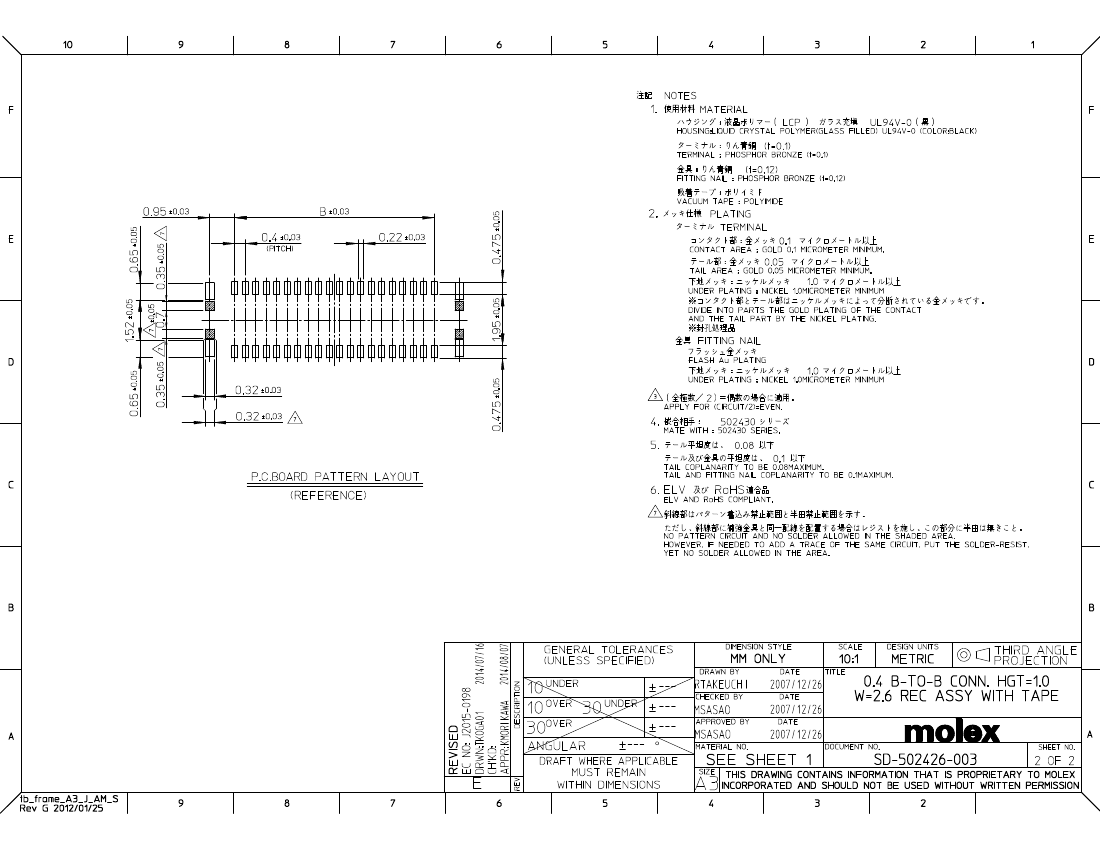

5024269030 Overview

CONN 0.4MM BTB RCPT 90POS SMD

5024269030 Parametric

Parameter NameAttribute value
Connector typeSocket with central contact
Number of pins90
spacing0.016"(0.40mm)
Number of rows2
Installation typesurface mount
characteristicFixed solder tail
Contact platinggold
Contact plating thickness3.90µin(0.099µm)
Joint stack height1mm
board height0.039"(1.00mm)

5024269030 Related Products

5024269030 5024267030 5024266030 5024262430 5024261430 5024262230 5024263230
Description CONN 0.4MM BTB RCPT 90POS SMD CONN B/B 0.4MM RCPT 70CKT CONN B/B 0.4MM RCPT 60CKT CONN 0.4MM RCPT 24CKT SMD CONN 0.4MM BTB RCPT 14POS SMD CONN 0.4MM RCPT 22CKT SMD CONN 0.4MM BTB RCPT 32POS SMD
Connector type Socket with central contact Socket with central contact Socket with central contact Socket with central contact Socket with central contact Socket with central contact Socket with central contact
Number of pins 90 70 60 24 14 22 32
spacing 0.016"(0.40mm) 0.016"(0.40mm) 0.016"(0.40mm) 0.016"(0.40mm) 0.016"(0.40mm) 0.016"(0.40mm) 0.016"(0.40mm)
Number of rows 2 2 2 2 2 2 2
Installation type surface mount surface mount surface mount surface mount surface mount surface mount surface mount
characteristic Fixed solder tail Fixed solder tail Fixed solder tail Fixed solder tail Fixed solder tail Fixed solder tail Fixed solder tail
Contact plating gold gold gold gold gold gold gold
Contact plating thickness 3.90µin(0.099µm) 3.90µin(0.099µm) 3.90µin(0.099µm) 3.90µin(0.099µm) 3.90µin(0.099µm) 3.90µin(0.099µm) 3.90µin(0.099µm)
Joint stack height 1mm 1mm 1mm 1mm 1mm 1mm 1mm
board height 0.039"(1.00mm) 0.039"(1.00mm) 0.039"(1.00mm) 0.039"(1.00mm) 0.039"(1.00mm) 0.039"(1.00mm) 0.039"(1.00mm)
