GT8E-3P-2H(01) Overview

CONN HDR 3POS 2MM

GT8E-3P-2H(01) Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.079"（2.00mm）
Number of pins	3
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Surface mount, right angle
Termination	welding
Fastening type	pin lock
Contact Length - Mating	-
Contact length - terminal	-
Overall contact length	-
Insulation height	0.272"（6.91mm）
Contact shape	Square
Contact surface treatment - mating	-
Contact Surface Treatment Thickness - Mating	-
Contact Surface Preparation - Column	-
Contact material	brass
Insulation Materials	Polyphenylene sulfide (PPS)
characteristic	board guide
Operating temperature	-
Intrusion protection	-
Material flammability rating	-
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

Preview

Download Datasheet

View All

GT13

GT5

Internal connection

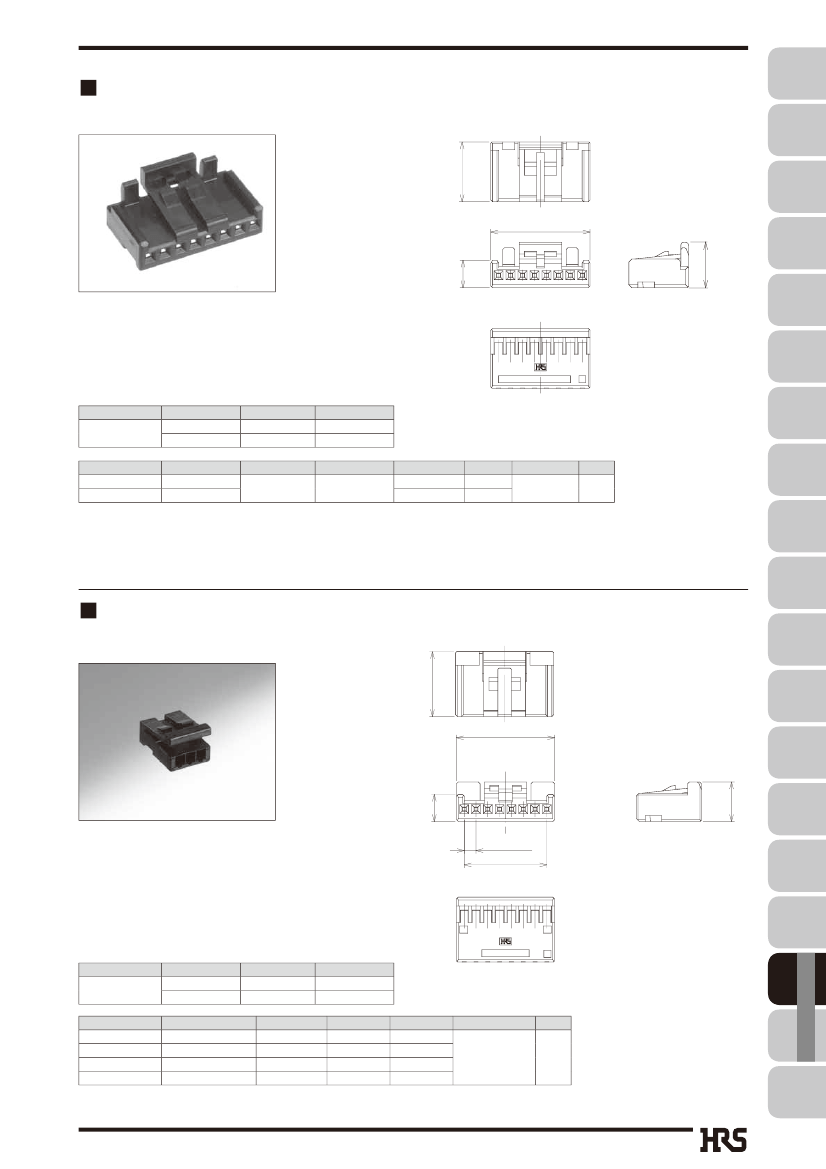

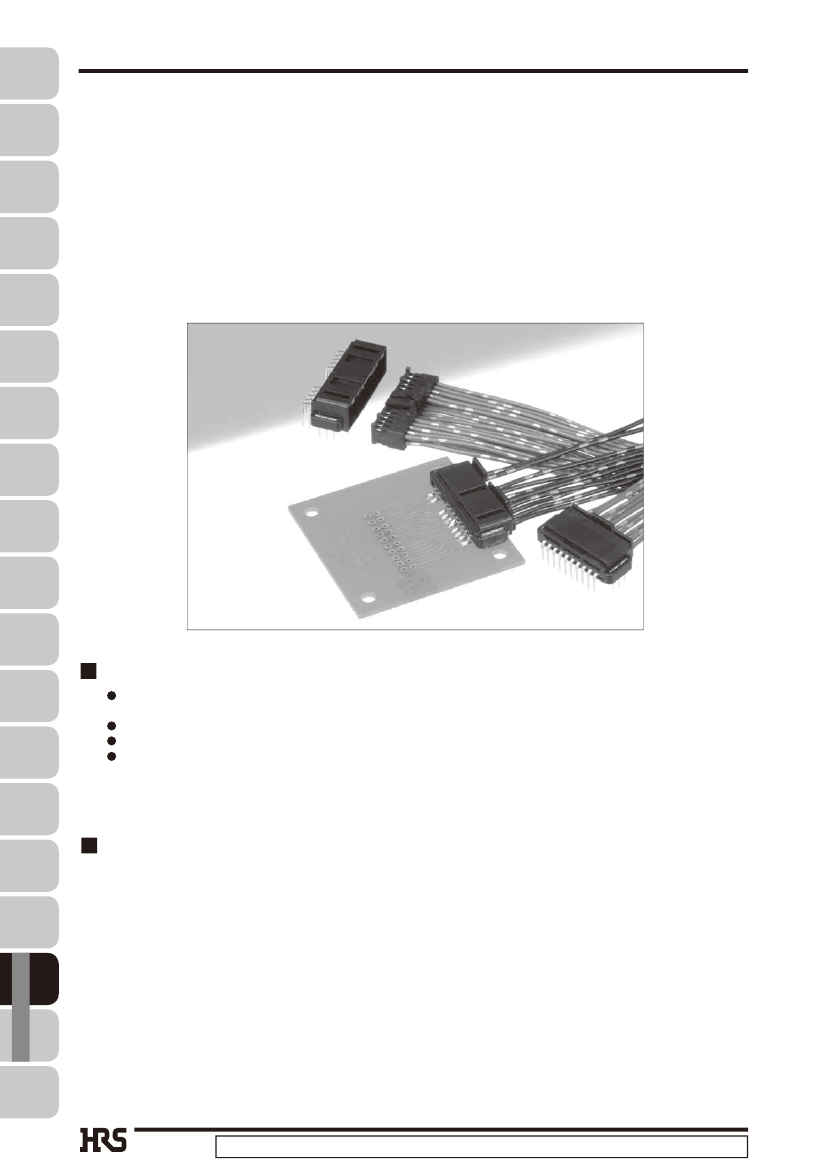

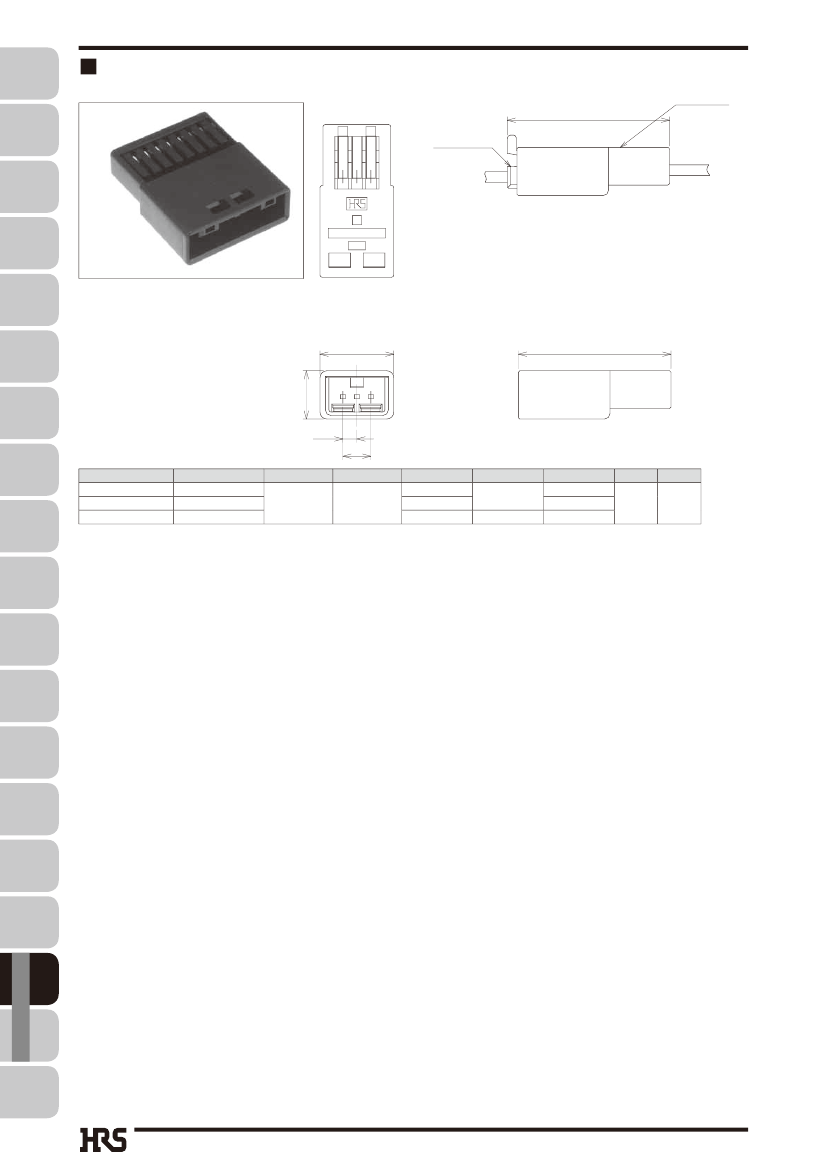

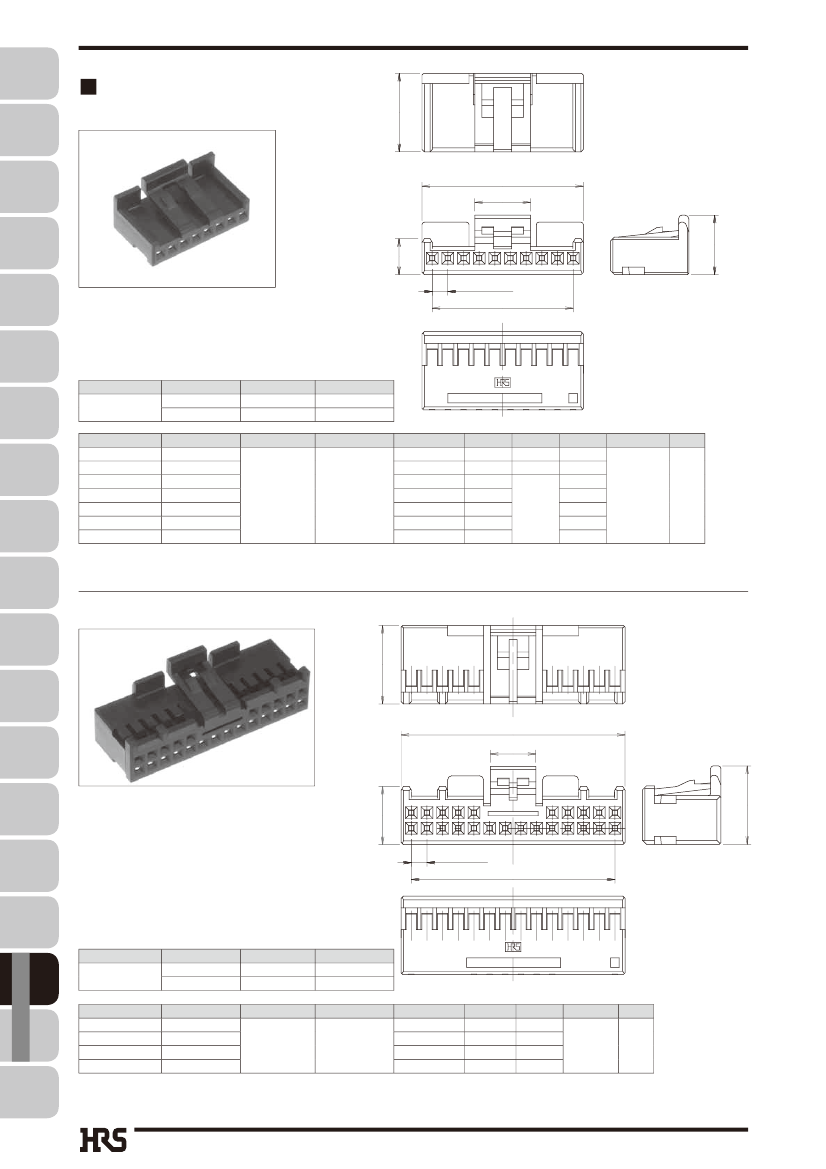

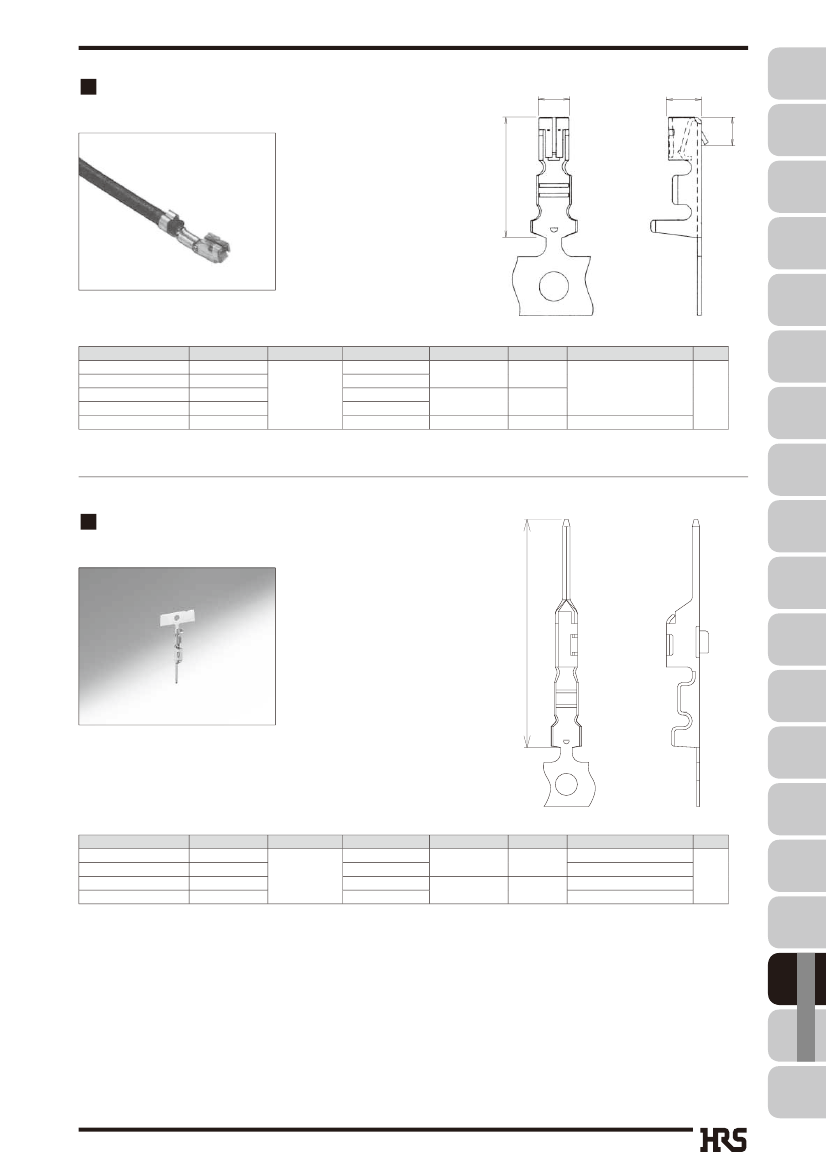

GT8E Series

— High contact pressure Wire-to-Board connectors —

GT32

GT17

GT11

GT36

GT26

GT21

GT19

PO5G

GT16

Features

GT3

Use of a formed dimple construction at the contact point, serves to prevent oxidation of

the contact portion.

Design prevents misinsertion

Stress resisting design

SMT type pin header with pin-in-hole type metal fittings improves PCB retention.

High PCB retention force.

GT10

GT7

GT18W

Applications

Internal connectors for in-vehicle and industrial equipment.

Internal connection

GT15

GT9

GT8E

GT25

200

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.
