Part Number

Search

589296001000014

Description
SINGLE VERTICAL TOP ENTRY
CategoryThe connector
File Size246KB,2 Pages
ManufacturerAVX
Environmental Compliance
Download Datasheet Parametric View All

589296001000014 Online Shopping

Suppliers Part Number Price MOQ In stock
589296001000014 - - View Buy Now

589296001000014 Overview

SINGLE VERTICAL TOP ENTRY

589296001000014 Parametric

Parameter NameAttribute value
Connector typesingle wire
Number of pins1
Cable spacing-
Board side spacing-
spacing-
Installation typesurface mount
Cable terminationPlug-in
Wire gauge18-26 AWG
characteristic-
Contact platingtin
Contact plating thickness-
colornatural
Number of pins loadedall

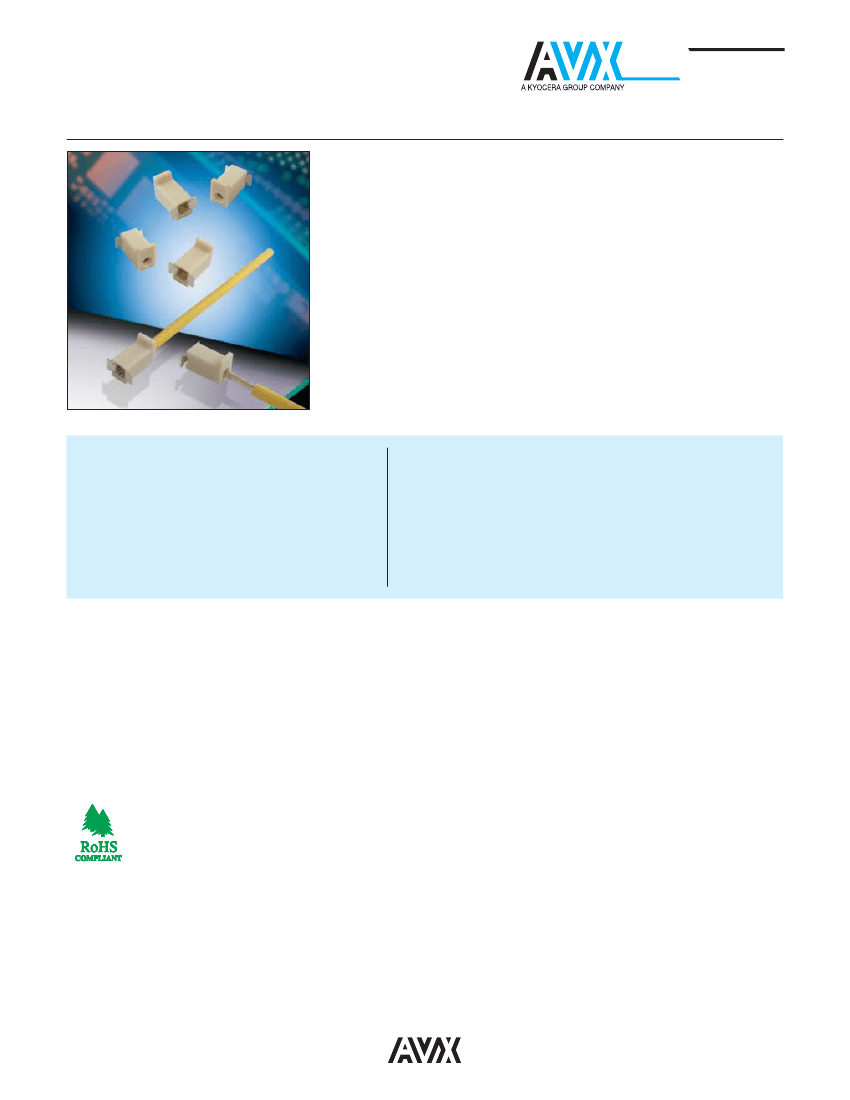

Single Vertical Top Entry
18 AWG
58-9296
INTER
CONNECT
Vertical poke-home connectors were introduced into the market a few years
ago to provide a reliable, yet cost effective discrete wire-to-board termination in
perpendicular applications. Designed to bridge the gap between inconsistent
hand soldering of wires and costly 2-piece connector systems, these
connectors are available in a range of positions and configurations while
accepting 18 to 26AWG solid or stranded wires.
This latest connector was developed specifically to support the high volume
18AWG wire applications used in power supply, LED driver and industrial
control products where PCB space is limited. This new 9296 connector offers
a robust single beam contact which securely captures and retains the wire in a
23% smaller package size.
APPLICATIONS
• Replace inconsistent hand soldered perpendicular
wire terminations onto PCB’s in:
– Power Supplies
– LED Drivers
– Industrial/Motor Controls
• Offer a simple and cost reduced solution to
existing 2-Piece connector systems
FEATURES AND BENEFITS
• Pre-Plated phosphor bronze contact material provides excellent
spring performance with high fatigue and corrosion resistance
• The single stamped and formed box contact maximizes board
attachment and wire capture strength
• Tight tolerance and wire insulation stop helps to prevent potting
from flowing into the connector during encapsulation processes
• Integral molded in flange provides a generous vacuum pick-up
point for automated SMT placement
ELECTRICAL
• Current Rating: 8 Amps
• Voltage Rating: 600 VAC
ENVIRONMENTAL
• Operating Temperature:
-40ºC to +130ºC
MECHANICAL
• Insulator Material: Glass-Filled Nylon 46,
UL94V0
• Contact Material: Phosphor Bronze
• Plating: Lead-Free Tin Over Nickel
• Durability: 3 Cycles

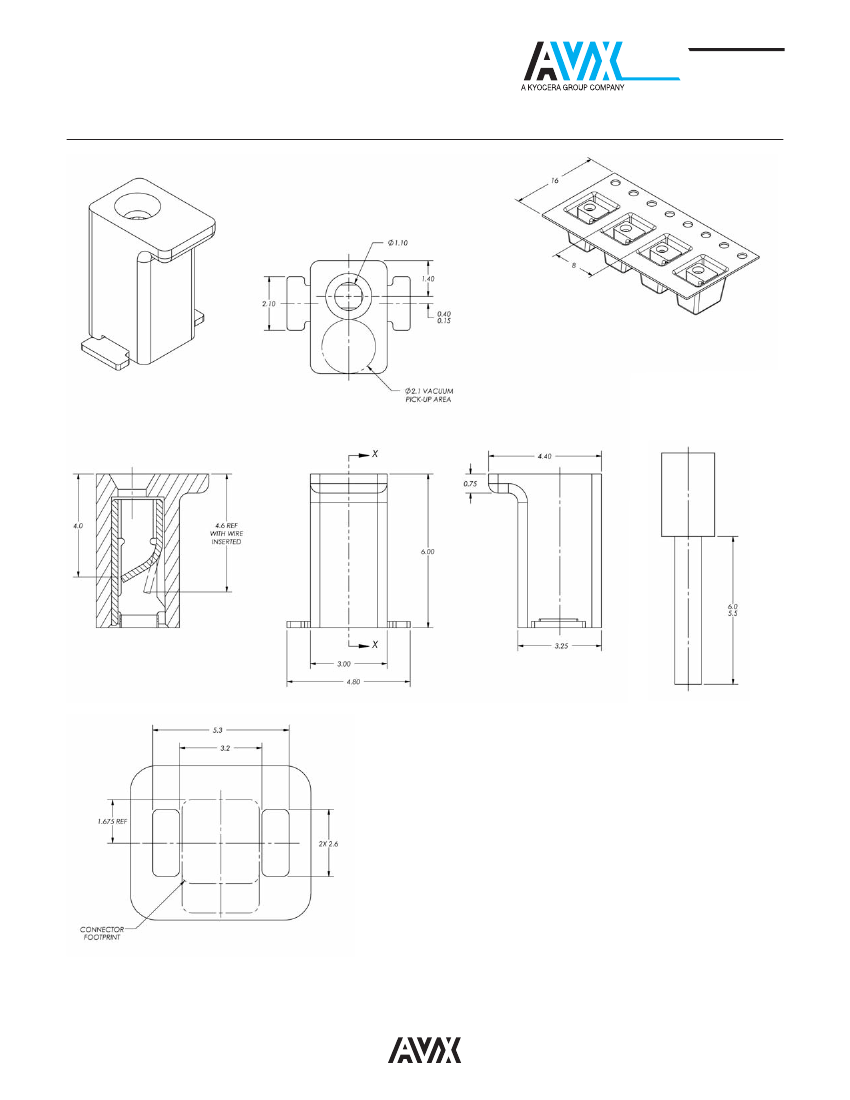

HOW TO ORDER
589296001000014
100
103016
