LFXTAL002995BULK datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> LFXTAL002995BULK

Preview

LFXTAL002995BULK: DescriptionCRYSTAL 32.7680KHZ 12.5PF T/H; CategoryPassive components; File Size122KB，2 Pages; ManufacturerIQD; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL002995BULK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL002995BULK	-	-	View	Buy Now

LFXTAL002995BULK Overview

CRYSTAL 32.7680KHZ 12.5PF T/H

LFXTAL002995BULK Parametric

Parameter Name	Attribute value
type	kHz crystal (tuning fork)
frequency	32.768kHz
frequency stability	-
frequency tolerance	±20ppm
load capacitance	12.5pF
ESR (equivalent series resistance)	50 kOhms
Operating mode	basic harmony
Operating temperature	-40°C ~ 85°C
grade	-
Installation type	Through hole
Package/casing	Cylindrical tank, radial
size/dimensions	0.118" diameter x 0.323" length (3.00mm x 8.20mm)
Height - Installation (maximum)	0.323"（8.20mm）

Preview

Download Datasheet

View All

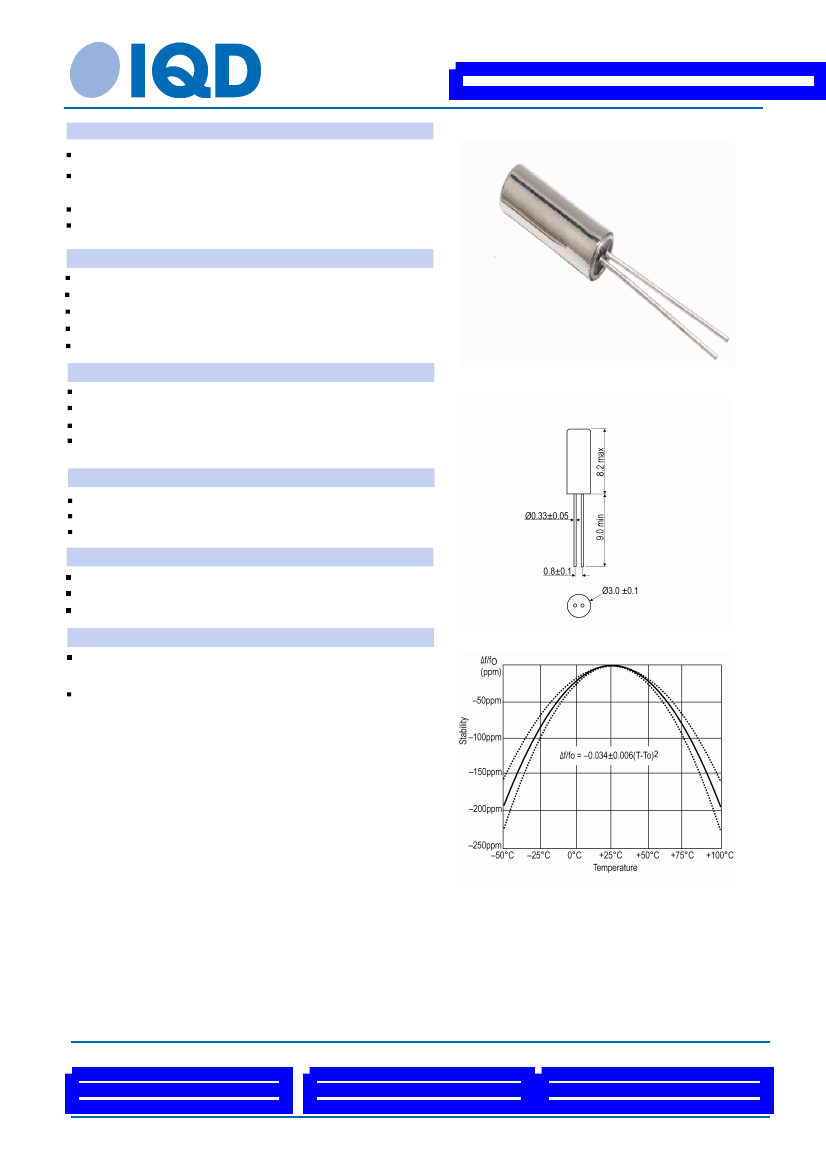

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL002995Bulk

Description

Through-hole cylinder crystal in a press-sealed metal can

-3X8

Leaded crystal in a press sealed metal can 3 x 8mm

Model

WATCH-3X8

Model Issue number

13

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Overtone Order

Ageing

Electrical Parameters

32.7680kHz

±20.00ppm

@ 25°C

Fundamental

±5ppm max per year @ 25°C

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

12.50pF

2.5pF typ

1.0µW max

50.00kΩ max

Outline (mm)

Drop: 75cm drop (3 times) onto hard wooden board

Operable Temperature Range: -40 to 85°C

Storage Temperature Range: -40 to 85°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Typical Frequency Stability Characteristics

Pack Style: Bulk

Pack Size: 1,000

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
