5962F9800801VXC datasheet, PDF

Datasheet> All Categories > logic> 5962F9800801VXC

5962F9800801VXC: DescriptionAC SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16; Categorylogic; File Size47KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9800801VXC Overview

AC SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16

5962F9800801VXC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	DFP
package instruction	CERAMIC, DFP-16
Contacts	16
Reach Compliance Code	not_compliant
Is Samacsys	N
series	AC
JESD-30 code	R-CDFP-F16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.008 A
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Prop。Delay @ Nom-Sup	14 ns
propagation delay (tpd)	14 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class V
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	300k Rad(Si) V
width	6.73 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ACS257MS

November 1997

Radiation Hardened

Quad 2-Input Multiplexer with Three-State Outputs

Description

The Radiation Hardened ACS257MS is a Quad 2-Channel

multiplexer which selects four bits of data from one of two

sources under the control of a single select pin. The Output

Enable input is active LOW and controls all outputs. When OE

is set HIGH, all outputs are conﬁgured into a high impedance

state, regardless of all other input conditions. All inputs are buff-

ered and the outputs are designed for balanced propagation

delay and transition times.

The ACS257MS is fabricated on a CMOS Silicon on Sapphire

(SOS) process, which provides an immunity to Single Event

Latch-up and the capability of highly reliable performance in

any radiation environment. These devices offer signiﬁcant

power reduction and faster performance when compared to

ALSTTL types.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the ACS257 are

contained in SMD 5962-98008. A “hot-link” is provided

on our homepage with instructions for downloading.

http://www.intersil.com/data/sm/index.htm

Features

• QML Qualiﬁed Per MIL-PRF-38535 Requirements

• 1.25Micron Radiation Hardened SOS CMOS

• Radiation Environment

- Latch-up Free Under any Conditions

- Total Dose . . . . . . . . . . . . . . . . . . . . . . 3 x 10

RAD(Si)

- SEU Immunity . . . . . . . . . . . <1 x 10

-10

Errors/Bit/Day

- SEU LET Threshold . . . . . . . . . . . >100MeV/(mg/cm

)

• Input Logic Levels . . .V

= (0.3)(V

), V

= (0.7)(V

)

• Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . .

±8mA

• Quiescent Supply Current. . . . . . . . . . . . . . . . . . .400µA

• Propagation Delay

- Enable to Output . . . . . . . . . . . . . . . . . . . . . . . . . 13ns

- Input or Address to Output . . . . . . . . . . . . . . . . . 14ns

Applications

• 4-Bit Source Selection

• Data Routing

• High Frequency Switching

Ordering Information

SMD PART NUMBER

5962F9800801VEC

N/A

5962F9800801VXC

N/A

INTERSIL PART NUMBER

ACS257DMSR-02

ACS257D/Sample-02

ACS257KMSR-02

ACS257K/Sample-02

ACS257HMSR-02

TEMP. RANGE (

-55 to 125

PACKAGE

16 Ld SBDIP

16 Ld Flatpack

Die

CASE OUTLINE

CDIP2-T16

CDFP4-F16

N/A

Pinouts

ACS257 (SBDIP)

TOP VIEW

S 1

1Y 4

2Y 7

GND 8

16 V

15 OE

14 4I

13 4I

12 4Y

11 3I

10 3I

9 3Y

ACS257 (FLATPACK)

TOP VIEW

GND

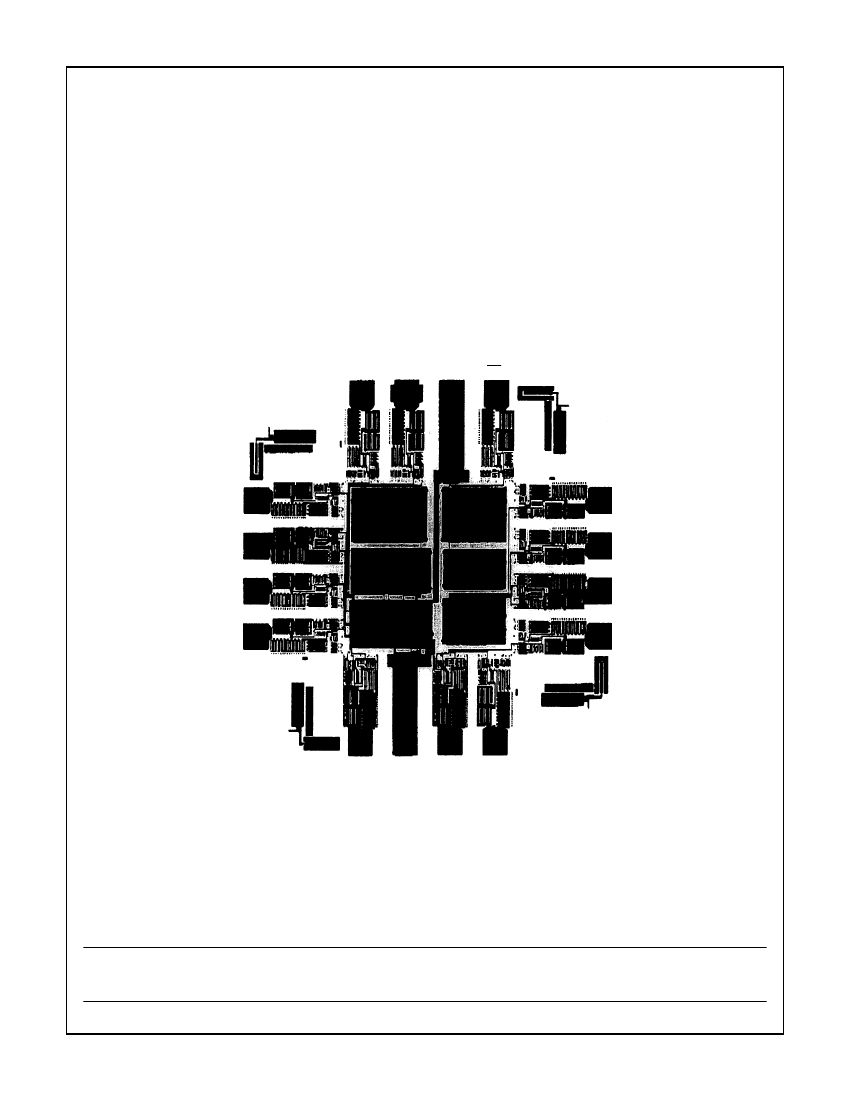

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

File Number

4429

5962F9800801VXC Related Products

	5962F9800801VXC	5962F9800801VEC	ACS257HMSR-02	ACS257DMSR-02	ACS257KMSR-02
Description	AC SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16	AC SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDIP16	AC SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, UUC16, DIE-16	AC SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	AC SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16, CERAMIC, DFP-16
Parts packaging code	DFP	DIP	DIE	DIP	DFP
package instruction	CERAMIC, DFP-16	DIP, DIP16,.3	DIE,	DIP, DIP16,.3	DFP, FL16,.3
Contacts	16	16	16	16	16
Reach Compliance Code	not_compliant	_compli	unknown	not_compliant	not_compliant
series	AC	AC	AC	AC	AC
JESD-30 code	R-CDFP-F16	R-CDIP-T16	S-XUUC-N16	R-CDIP-T16	R-CDFP-F16
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	4	4	4
Number of entries	2	2	2	2	2
Output times	1	1	1	1	1
Number of terminals	16	16	16	16	16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	DIE	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	UNCASED CHIP	IN-LINE	FLATPACK
propagation delay (tpd)	14 ns	14 ns	14 ns	14 ns	14 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883 Class V	MIL-STD-883 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V
surface mount	YES	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	FLAT	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	FLAT
Terminal location	DUAL	DUAL	UPPER	DUAL	DUAL
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
JESD-609 code	e0	e0	-	e0	e0
Load capacitance (CL)	50 pF	50 pF	-	50 pF	50 pF
MaximumI(ol)	0.008 A	0.008 A	-	0.008 A	0.008 A
Maximum operating temperature	125 °C	125 °C	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C
Encapsulate equivalent code	FL16,.3	DIP16,.3	-	DIP16,.3	FL16,.3
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	-	5 V	5 V
Prop。Delay @ Nom-Sup	14 ns	-	-	14 ns	14 ns
Maximum seat height	2.92 mm	5.08 mm	-	5.08 mm	2.92 mm
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V	5 V
Temperature level	MILITARY	MILITARY	-	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	1.27 mm	2.54 mm	-	2.54 mm	1.27 mm
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
width	6.73 mm	7.62 mm	-	7.62 mm	6.73 mm
