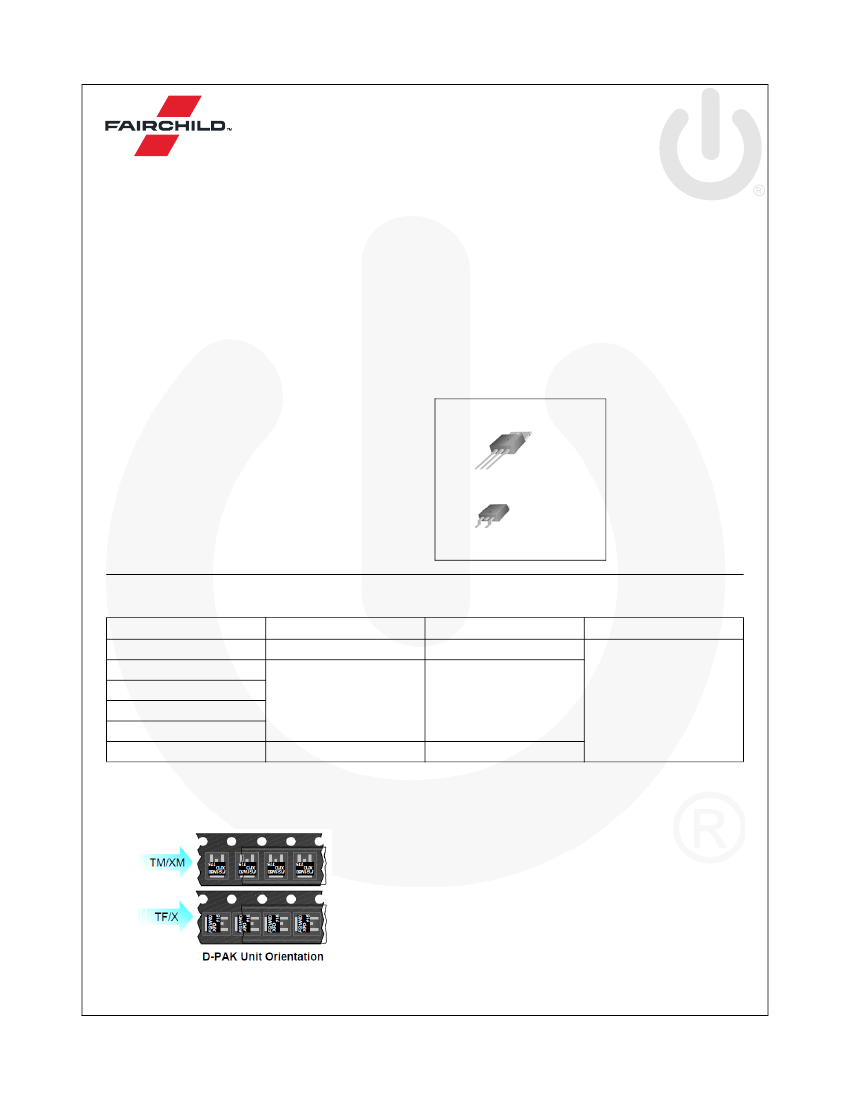

KA79MXX / LM79MXX — 3-Terminal 0.5 A Negative Voltage Regulator
September 2014
KA79MXX / LM79MXX
3-Terminal 0.5 A Negative Voltage Regulator
Features
•
•
•
•
•
•
No External Components Required
Output Current in Excess of 0.5 A
Internal Thermal Overload
Internal Short-Circuit Current Limiting
Output Transistor Safe Area Compensation
Output Voltages: -5 V, -12 V
Description

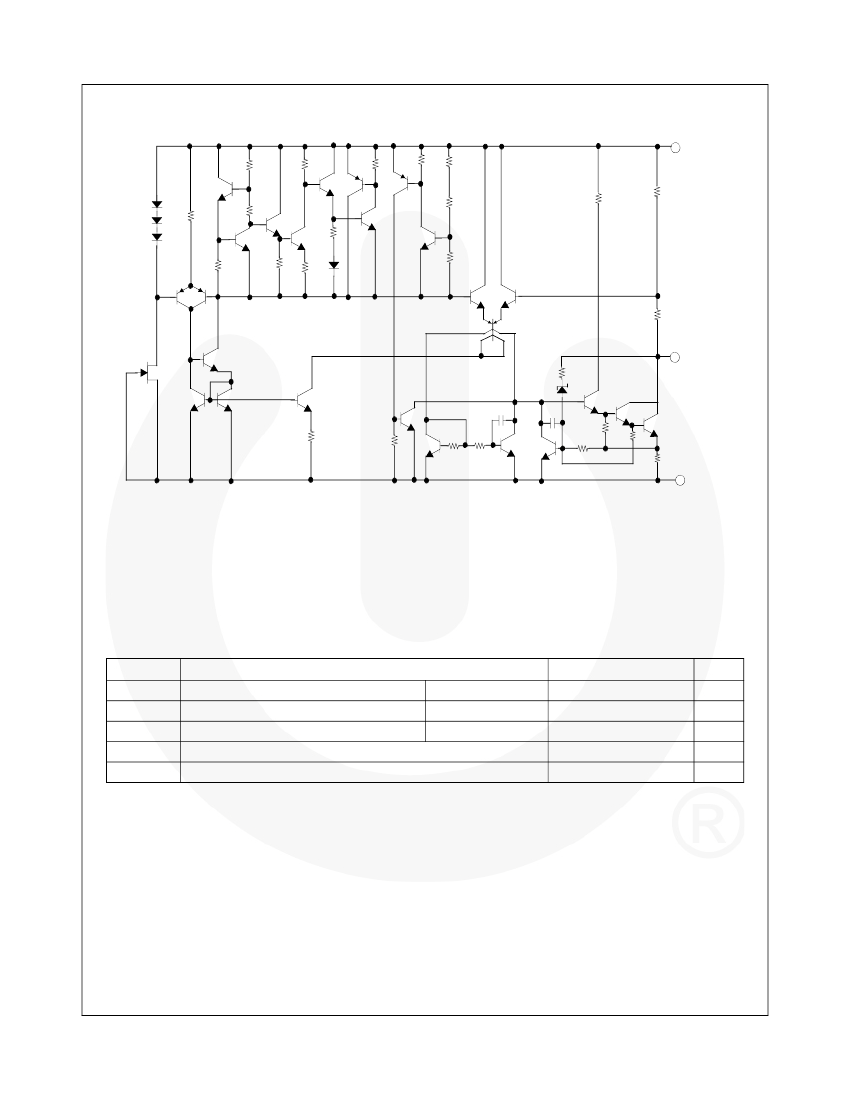

The KA79MXX / LM79MXX series of three terminal
medium current negative voltage regulators are mono-
lithic integrated circuits designed as fixed-voltage regula-
tors. These regulators employ internal current limiting,
thermal shutdown, and safe area compensation.
TO-220
Input
1
D-PAK
Input
1
1. GND 2. Input 3. Output
Ordering Information
(1)
Product Number
KA79M05TU
KA79M05RTM
KA79M05RTF
KA79M12RTM
KA79M12RTF
LM79M05CT
TO-220 (Single Gauge)
Rail
D-PAK
Tape and Reel
0 to +125°C
Package
TO-220 (Dual Gauge)
Packing Method
Rail
Operating Temperature
Note:
1. Refer to below figure for TM / TF suffix of DPAK packing option.
