5962R9671701TXC datasheet, PDF

Datasheet> All Categories > logic> 5962R9671701TXC

5962R9671701TXC: DescriptionACT SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CDFP20, CERAMIC, DFP-20; Categorylogic; File Size50KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9671701TXC Overview

ACT SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CDFP20, CERAMIC, DFP-20

5962R9671701TXC Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DFP
package instruction	CERAMIC, DFP-20
Contacts	20
Reach Compliance Code	unknown
Is Samacsys	N
Control type	ENABLE LOW
series	ACT
JESD-30 code	R-CDFP-F20
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Prop。Delay @ Nom-Sup	13 ns
propagation delay (tpd)	17.5 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class T
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	6.92 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ACTS240T

Data Sheet

July 1999

File Number

4610.1

High Reliability, Radiation Hardened Octal

Buffer/Line Driver, Three-State, Inverting

Intersil‘s Satellite Applications

(SAF) devices are

fully tested and guaranteed to 100kRAD total dose. These

QML Class T devices are processed to a standard ﬂow

intended to meet the cost and shorter lead-time needs of

large volume satellite manufacturers, while maintaining a

high level of reliability.

The Intersil ACTS240T is a Radiation Hardened High

Reliability, High-Speed CMOS/SOS Octal Buffer/Line Driver

with three-state outputs having two active low enable inputs.

Each enable input controls a set of four inverting buffer/line

drivers. A HIGH on the enable input places the outputs in a

high impedance state.

Flow

Features

• QML Class T, Per MIL-PRF-38535

• Radiation Performance

- Gamma Dose (γ) 1 x 10

RAD(Si)

- Latch-Up Free Under Any Conditions

- Single Event Upset (SEU) Immunity: <1 x 10

-10

Errors/Bit/Day (Typ)

- SEU LET Threshold . . . . . . . . . . . . .>100 MEV-cm

/mg

• 1.25 Micron Radiation Hardened SOS CMOS

• Signiﬁcant Power Reduction Compared to ALSTTL Logic

• DC Operating Voltage Range . . . . . . . . . . . . 4.5V to 5.5V

• Input Logic Levels

- V

= 0.8V Max

- V

= V

CC/2

Min

• Fast Propagation Delay . . . . . . . 17.5ns (Max), 12ns (Typ)

Speciﬁcations

Speciﬁcations for Rad Hard QML devices are controlled by

the Defense Supply Center in Columbus (DSCC). The SMD

numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the ACTS240T are

contained in SMD 5962-96717.

A “hot-link” is provided from

our website for downloading.

www.intersil.com/spacedefense/newsafclasst.asp

Intersil‘s Quality Management Plan (QM Plan), listing all

Class T screening operations, is also available on our

website.

www.intersil.com/quality/manuals.asp

Pinouts

ACTS240T (SBDIP), CDIP2-T20

TOP VIEW

AEN

AI1

BO4

AI2

BO3

AI3

BO2

20 V

19 BEN

18 AO1

17 BI4

16 AO2

15 BI3

14 AO3

13 BI2

12 AO4

11 BI1

Ordering Information

ORDERING

NUMBER

5962R9671701TRC

5962R9671701TXC

PART

NUMBER

ACTS240DTR

ACTS240KTR

TEMP.

RANGE

(

-55 to 125

AEN

AI1

BO4

AI2

BO3

AI3

BO2

AI4

BO1

GND

AI4

BO1

GND 10

ACTS240T (FLATPACK), CDFP4-F20

TOP VIEW

BEN

AO1

BI4

AO2

BI3

AO3

BI2

AO4

BI1

NOTE:

Minimum order quantity for -T is 150 units through

distribution, or 450 units direct.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

www.intersil.com or 407-727-9207

Intersil Corporation 1999

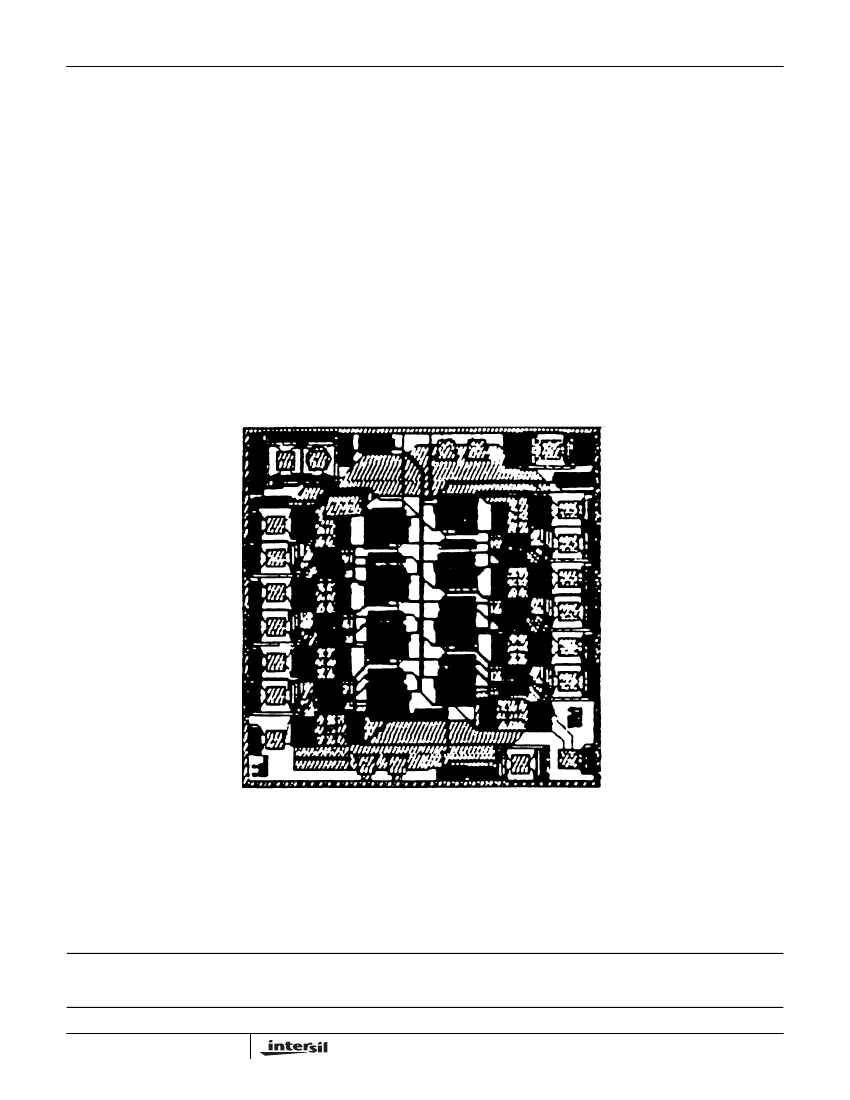

5962R9671701TXC Related Products

	5962R9671701TXC	5962R9671701TRC	ACTS240DTR
Description	ACT SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CDFP20, CERAMIC, DFP-20	ACT SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CDIP20, SIDE BRAZED, CERAMIC, DIP-20	ACT SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CDIP20, SIDE BRAZED, CERAMIC, DIP-20
Parts packaging code	DFP	DIP	DIP
package instruction	CERAMIC, DFP-20	DIP, DIP20,.3	DIP, DIP20,.3
Contacts	20	20	20
Reach Compliance Code	unknown	unknown	not_compliant
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW
series	ACT	ACT	ACT
JESD-30 code	R-CDFP-F20	R-CDIP-T20	R-CDIP-T20
JESD-609 code	e4	e4	e0
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.012 A	0.012 A	0.012 A
Number of digits	4	4	4
Number of functions	2	2	2
Number of ports	2	2	2
Number of terminals	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	DIP
Encapsulate equivalent code	FL20,.3	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	13 ns	13 ns	13 ns
propagation delay (tpd)	17.5 ns	17.5 ns	17.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class T	MIL-PRF-38535 Class T	MIL-PRF-38535 Class T
Maximum seat height	2.92 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	GOLD	GOLD	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V
width	6.92 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1
